2.0L 16v - G4KF
Manufacturers
2.0L 16v - G4KF
Warning: Last items in stock!
New product

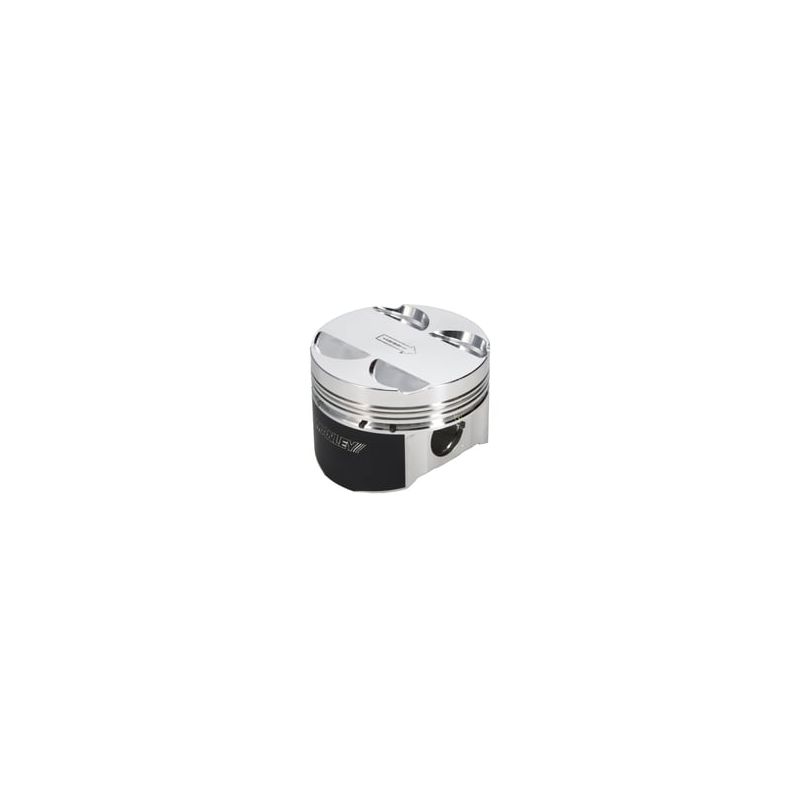

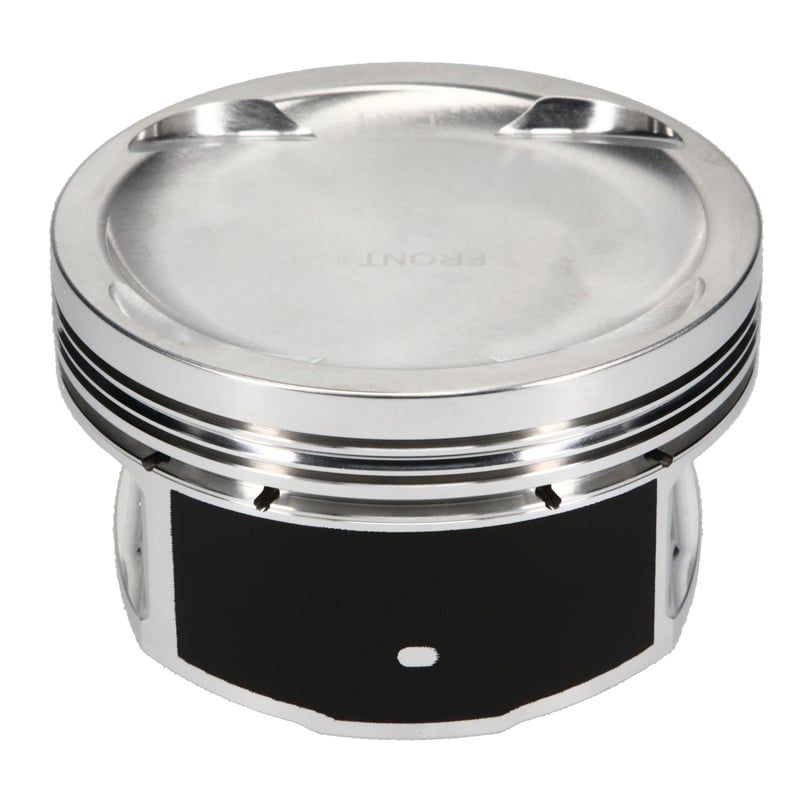

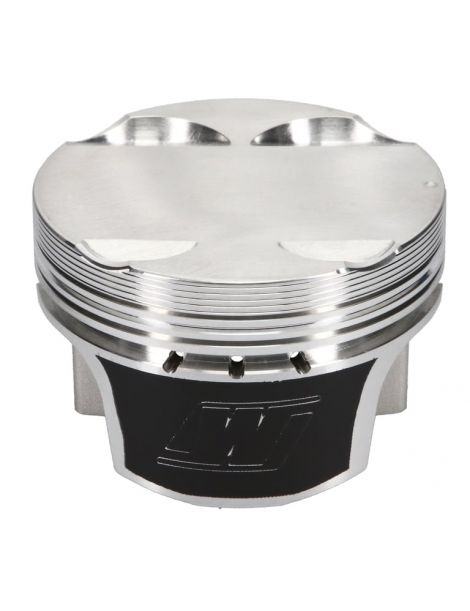

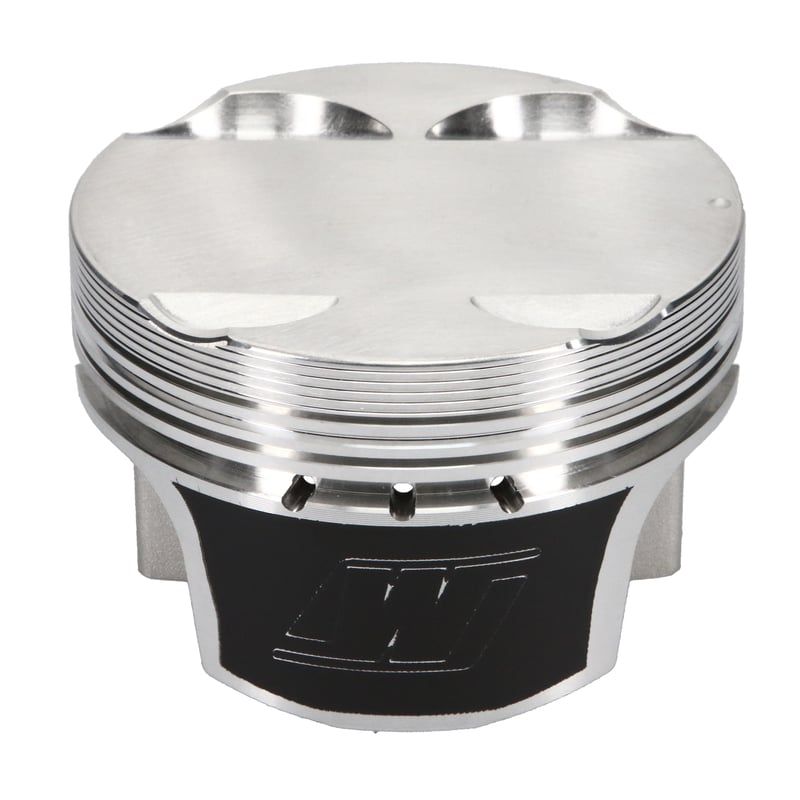

Forged pistons Hyundai G4KF 2.0L - Bores 86-86.5 mm, CR 9-9.3:1, pin 22 mm.
Specifications of the forged pistons offered by NSB Concept for Hyundai 2.0 L 16 v G4KF :
| Reference piston | Bore (mm)OEM 86 | CROEM 9,3 :1 | pin (mm)OEM 22 | Height pin (mm)OEM 30 | Range | Aluminium | Coating | Forging | Dome (cc) | Weight (g) | Rings |
|---|---|---|---|---|---|---|---|---|---|---|---|
| JE-298946 | 86 | 9 :1 | 22 | 30 | JE FSR | 2618 | NC | FSR | -5,5 | 304 | NC |
| 616000C-4 | 86 | 9,3 :1 | NC | 30 | Manley | 4032 | Skirt | NC | -2,5 | 325 | NC |
| WK651M86 | 86 | 9,3 :1 | 22 | 30 | Wiseco | 2618 | Skirt | NC | -4 | NC | 8600XX |
| JE-361353 | 86,25 | 9 :1 | 22 | 30 | JE FSR | 2618 | NC | FSR | -5,9 | 305 | NC |
| JE-298947 | 86,5 | 9 :1 | 22 | 30 | JE FSR | 2618 | NC | FSR | -6,2 | 305 | NC |
| 616005C-4 | 86,5 | 9,3 :1 | NC | 30 | Manley | 4032 | Skirt | NC | -2,5 | 332 | NC |
| WK651M865 | 86,5 | 9,3 :1 | 22 | 30 | Wiseco | 2618 | Skirt | NC | -4 | NC | 8650XX |
Compatibility engine :
| Brand | Model | Chassis | Engine code | Power (ch) | Years |
|---|---|---|---|---|---|
| Hyundai | Genesis Coupe (BK1) | BK | G4KF | 210–226 | 2009 – 2012 |
| Hyundai | Genesis Coupe (BK2, facelift) | BK | G4KF | 260–279 | 2013 – 2014 |
Manufacturer piston references (OEM):
23410‑2C400 (STD A), 23410‑2C410 (STD B), 23410‑2C420 (STD C).23410‑2C460.Warning : Before installation, please verify the integrity and conformity of each component of the piston kit, as well as the correctness of the assembly in the engine. Any warranty is strictly limited to the parts included in the piston kit.
