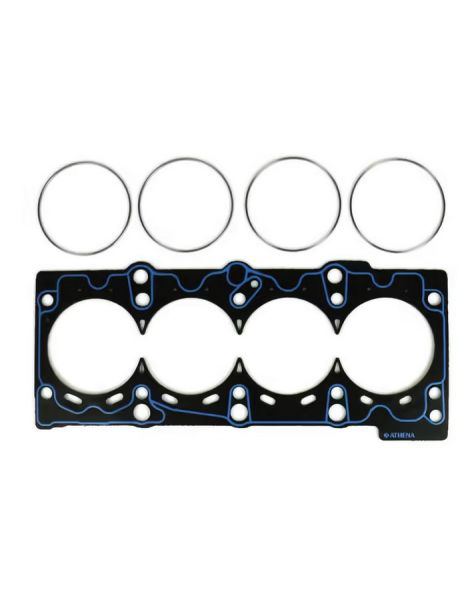

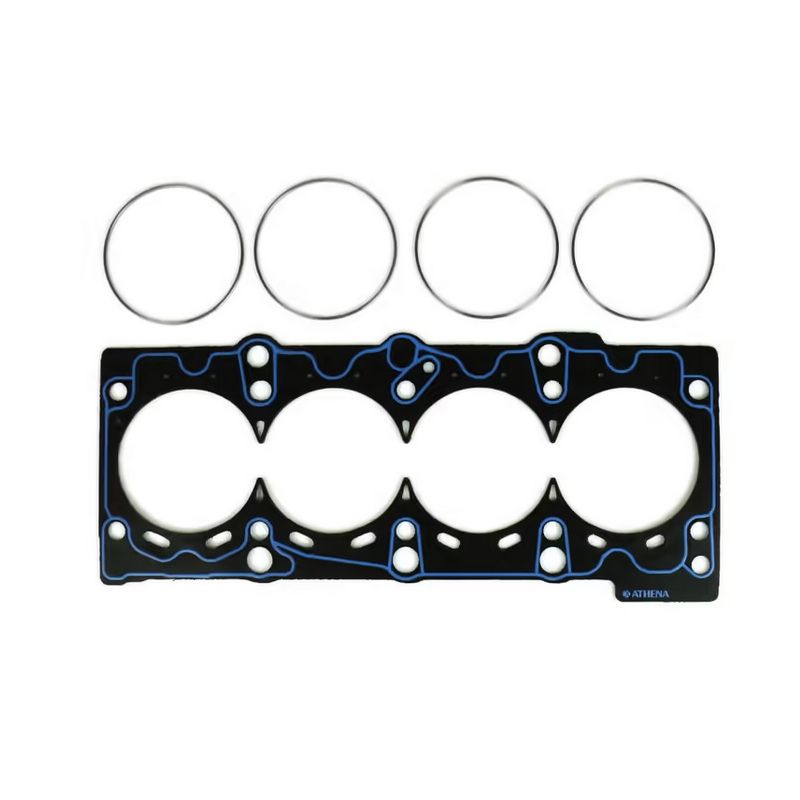

Gasket Cylinder head reinforced O-RING Athena BMW M42B18 318i/318is (E30/E36) 1.8 16V

Designed for engine preparation, thisHead Gasket Athena Cut Ringensures exceptional sealing around the cylinders thanks to itsCooper rings in AISI 304 stainless steel. The body of the Gasket uses a reinforced material (steel core + layers ofaramid fibers without asbestos) with silicone beads on critical passages, to resist high thermal and mechanical stresses, including on supercharged engines (>2 bar) and our Applications.

COMPatibility (Engine Code / vehicles): BMW M42B18 (184S1) 1.8 16V

E30 318is100 KW / 136 hp (09/1989 08/1991)

E30 318i Convertible103 KW / 140 hp (10/1990 12/1992)

E36 318i / 318is / 318ti COMPACT103 KW / 140 hp (01/1992 12/1995)

Features: BoreO86.5mm; thickness2.0mm; technologyCut Ring(biting stainless steel rings) requiring nono machining of seats in the Block; reinforced material Motor-gasket (steel core + aramid);silicone beadson oil/LdR.

Reference: Athena 330075R.

Assembly / advice: Clean flat surfaces and within tolerances, torque and angle tightening according to BMW specifications; Professional installation recommended.

Logistics (GEO): eXpEdition France / Europe subject to availability.
