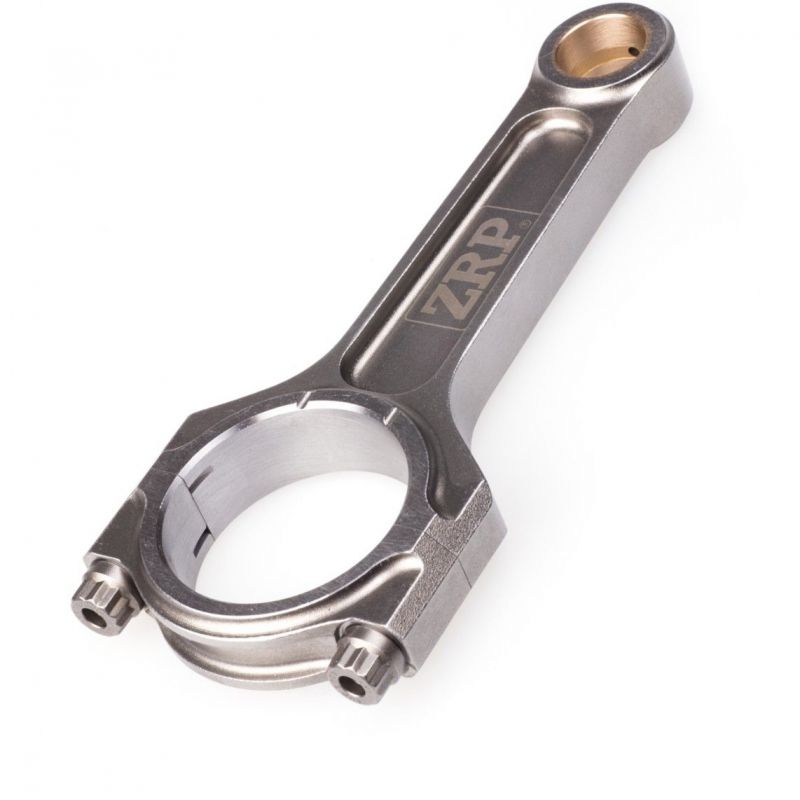

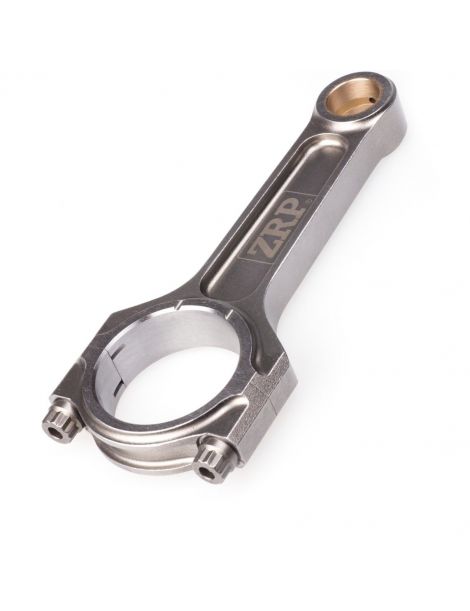

Connecting rods forged I-shaped ZRP for BMW E30/E36 318i/is M42B18

The ZRP Brand is the subsidiary of DRAKOS ENGEERING renowned for its EXPERIENCE in the design of high-performance mechanical parts. ZRP specializes exclusively in forged engine parts and has designed Connecting rods forged in 4340 High Tensile Steel for your BMW E30/E36 318i/is M42B18 to accept high boosts on your M42B18 engine and ARP2000 Rod bolts for significant increases in engine speed.

The Head of the ZRP forged Connecting rods for BMW E30/E36 318i/is M42B18 is equipped with a ring machined from hot extruded cuPro-Aluminum alloy patented AMPCO 18 before being ground to ensure that the oil film is maintained with your Piston pin / Gudgeon pin.

The design of this ZRP forged I-shaped Connecting rod for BMW E30/E36 318i/is M42B18 gives it exceptional resistance to significant increases in Power and torque due to high boost pressures, as well as to extreme uses as we encounter with our customers whom we equip for their preparation for forged Drift engines and forged Run Dragster engines.

Features:

• Center Distance: 139.95mm
• Foot diameter: 48.00mm
• Foot width: 21.97mm
• Piston pin / Gudgeon pin diameter: 22.00mm
• Rod bolts supplied: ARP2000
• Thread of screws provided: 3/8"
• Weight: 492gr
• Maximum admissible power: 800hp



Lexicon:

1)Small End
2) Foot diameter
3) Connecting rod CoRPS
4) Rod bolt
5) Big End
6) Nut
7) Connecting rod cap
8) Head Diameter
9) Center Remote

When you upgrade your M42B18 engine to a forged engine, it is recommended to fit forged Connecting rods with tri-metal Connecting rod bearings, in addition to replacing your Original Pistons with forged Pistons.
