1.6L 16v - EcoBoost
Manufacturers
1.6L 16v - EcoBoost
Warning: Last items in stock!
New product

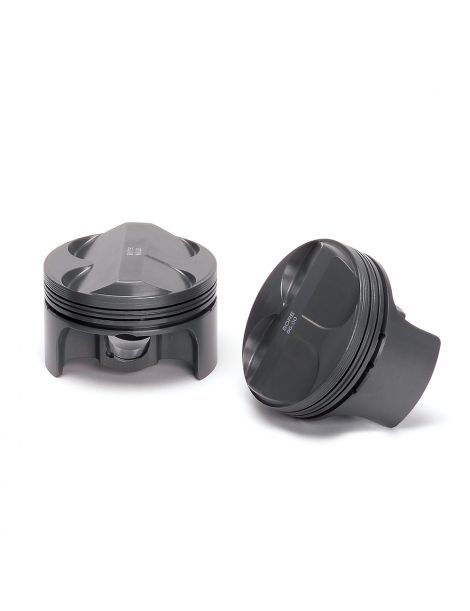

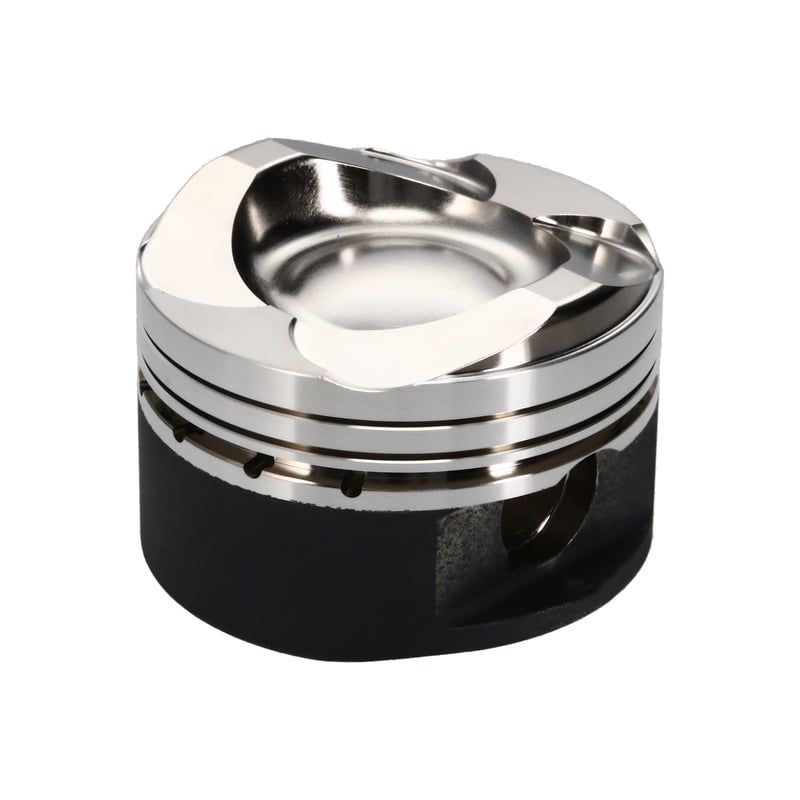

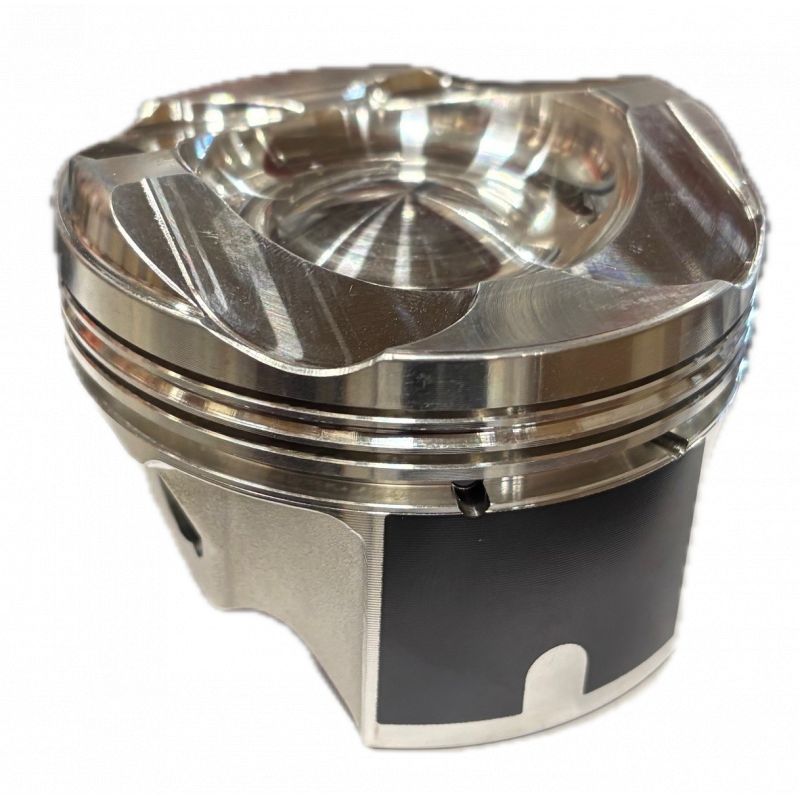

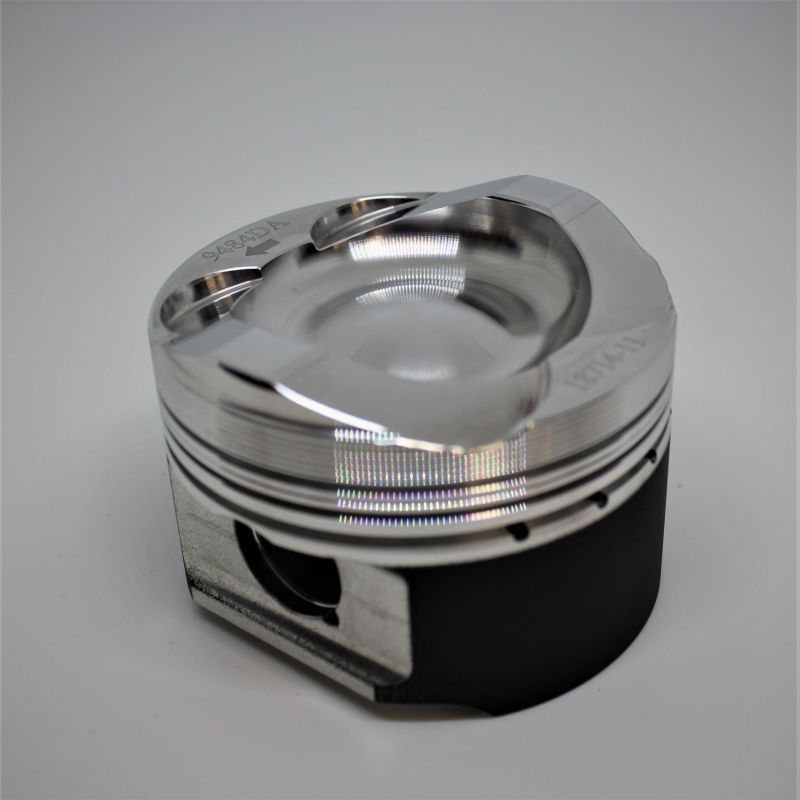

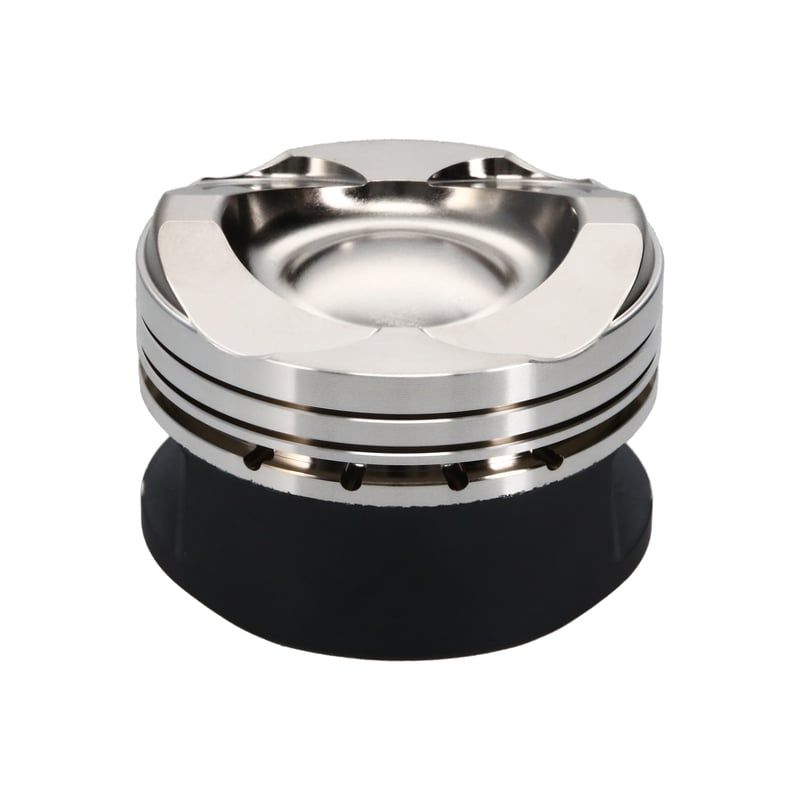

Complete set of 4 JE / Wiseco / Wossner / Diamond / Supertech forged pistons for Ford 1.6 L 16v EcoBoost: bores 79.00-80.00 mm, RV 9.5-10.1:1, 21 mm axle, rings included on Wiseco & Wossner kits.
Characteristics of the forged pistons offered by NSB Concept for Ford 1.6 L 16 v EcoBoost engines:
| Reference (click) | Bore (mm) | VR | Axis (mm) | Axis height (mm) | Range | Treatment | Aluminum | Forging | Dome volume (cc) | Weight | rings |
|---|---|---|---|---|---|---|---|---|---|---|---|
| DIA-33100-4-H | 79 | 10:1 | 21 | 28.70 | Diamond HD | Skirt | 2618 | N/A | -5.90 | N/A | 9513110 |
| DIA-33100-4 | 79 | 10:1 | 21 | 28.70 | Diamond | Skirt | 2618 | N/A | -5.90 | N/A | 9513110 |
| JE-371779 | 79 | 10:1 | 21 | 28.70 | JE FSR | N/A | N/A | FSR | -5.50 | N/A | N/A |
| P4-FECO16-79-N5H13-4 | 79 | 10:1 | 21 | 28.65 | Supertech | Head+Skirt | 4032 | N/A | +0.50 | 275 | W7900XX |
| WKE150M79AP | 79 | 10:1 | 21 | 28.58 | Wiseco AP | Skirt | 2618 | N/A | -3.70 | N/A | 7900XX |
| K9484DA | 79 | 10:1 | 21 | 28.65 | Wossner | N/A | N/A | Round | -7.10 | N/A | 790XPZ |
| K9528DA | 79 | 9.5:1 | 21 | 28.65 | Wossner | N/A | N/A | N/A | -8.05 | N/A | 790XPZ |
| JE-371780 | 79.50 | 10:1 | 21 | 28.70 | JE FSR | N/A | N/A | FSR | -5.90 | N/A | N/A |
| P4-FECO16-795-N5H13-4 | 79.50 | 10:1 | 21 | 28.65 | Supertech | Head+Skirt | 4032 | N/A | +0.50 | 275 | W7950XX |
| WKE150M795AP | 79.50 | 10:1 | 21 | 28.58 | Wiseco AP | Skirt | 2618 | N/A | -3.70 | N/A | 7950XX |
| K9484D050 | 79.50 | 10.1:1 | 21 | 28.65 | Wossner | N/A | N/A | Round | -7.10 | N/A | 795XPZ |
| K9528D050 | 79.50 | 9.5:1 | 21 | 28.65 | Wossner | N/A | N/A | N/A | -8.05 | N/A | 795XPZ |
| JE-371781 | 80 | 10:1 | 21 | 28.70 | JE FSR | N/A | N/A | FSR | -6.40 | N/A | N/A |
| K9528D100 | 80 | 9.5:1 | 21 | 28.65 | Wossner | N/A | N/A | N/A | -8.05 | N/A | 800XPZ |
Compatibilities:
Engine codes: JTJA JTJB JTJE JTMA JTMB (Focus 1.6 EcoBoost)
C1JH C1JJ (Fiesta ST Mk7) JTDA JTDB (C-Max)
Original vehicles equipped with the 1.6L 16v EcoBoost:
| Brand | Model | Power | Years |
|---|---|---|---|
| Ford | Fiesta ST Mk7 | 182-200 hp | 2013-2017 |
| Ford | Focus Mk3/3.5 | 150-182 hp | 2010-2018 |
| Ford | C-Max / large C-Max | 150-182 hp | 2010-2015 |
| Ford | B-Max* / Transit Courier* | 150 hp | 2012-2017 |
*depending on markets.
Piston manufacturer references (OEM):
BN6G-6108-AA bare piston O 79.00 mm
BN6G-6108-BA piston O 79.50 mm (+0.5)
BN6G-6108-CA piston O 80.00 mm (+1.0)
Warning: before any assembly, please check the integrity and conformity of each component of the piston kit as well as the conformity of the assembly in the engine; any possible warranty is strictly limited to the parts of the piston kit only.
