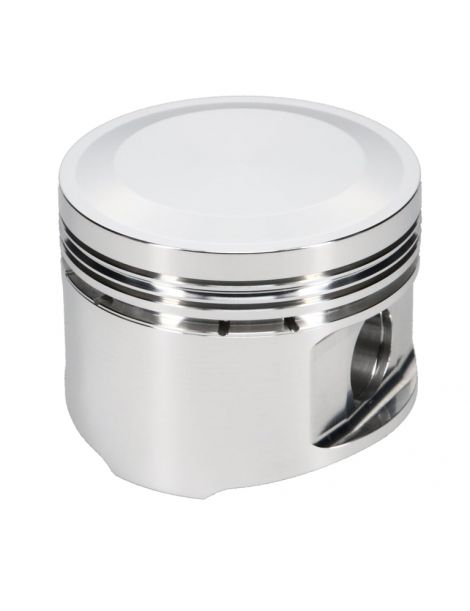

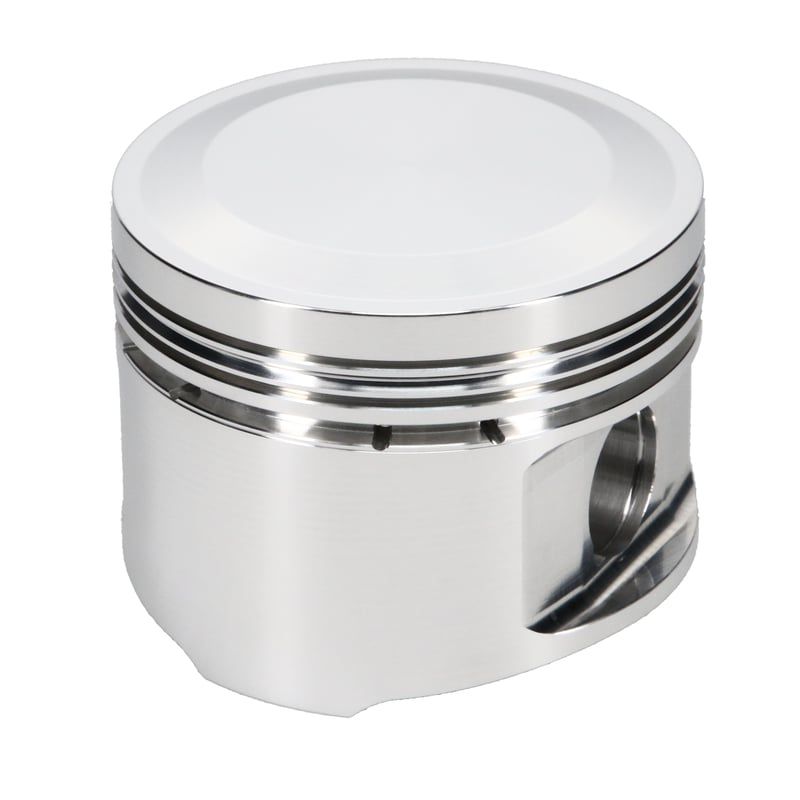

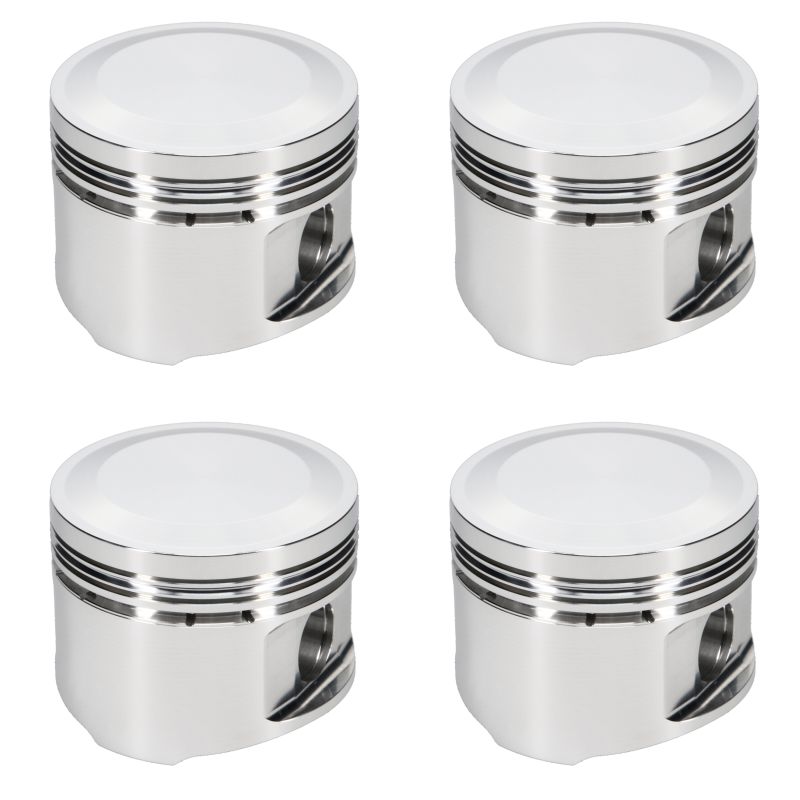

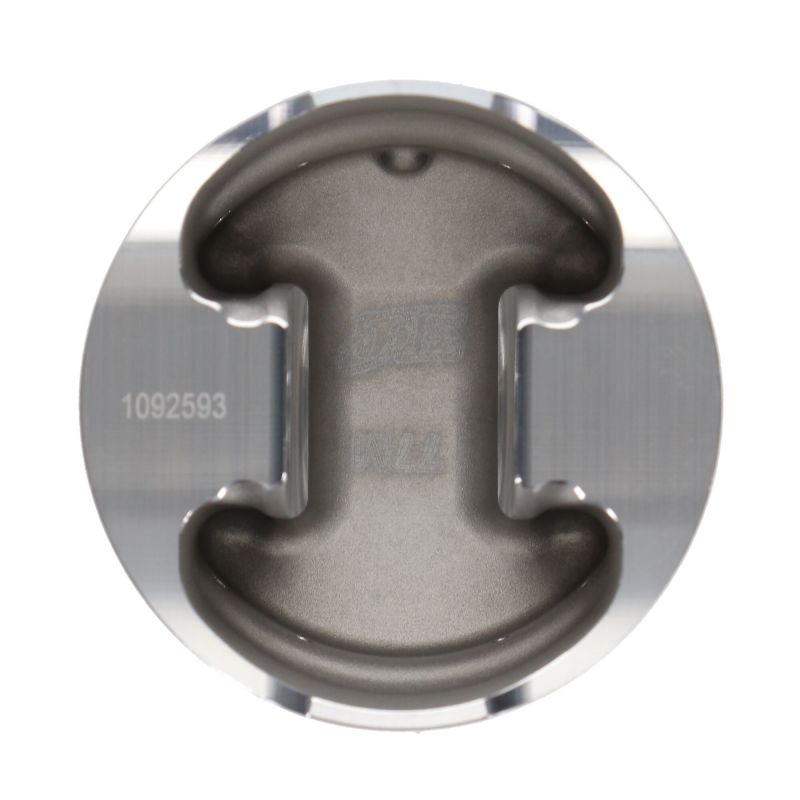

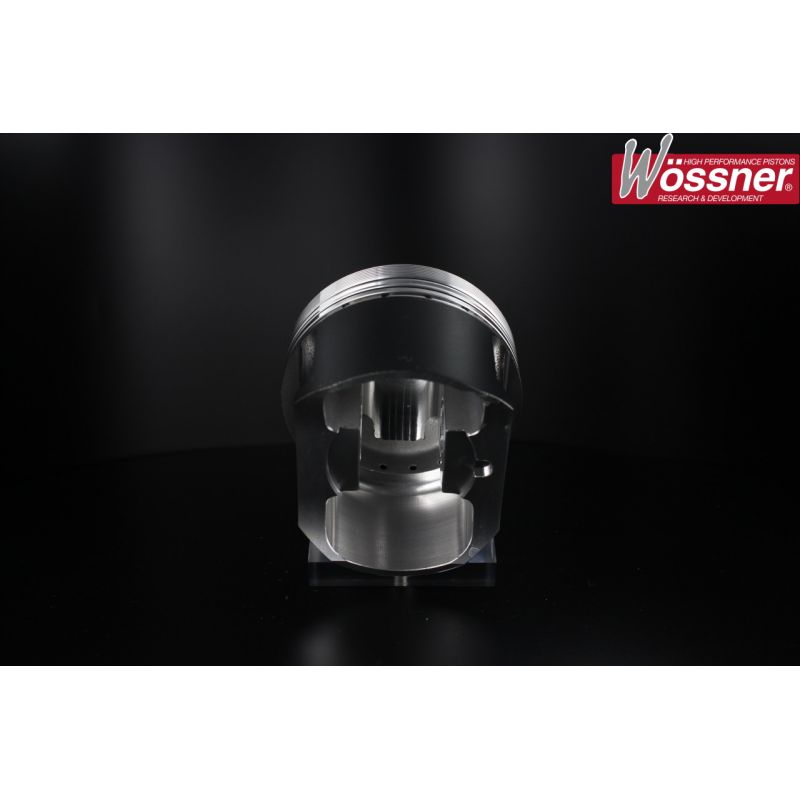

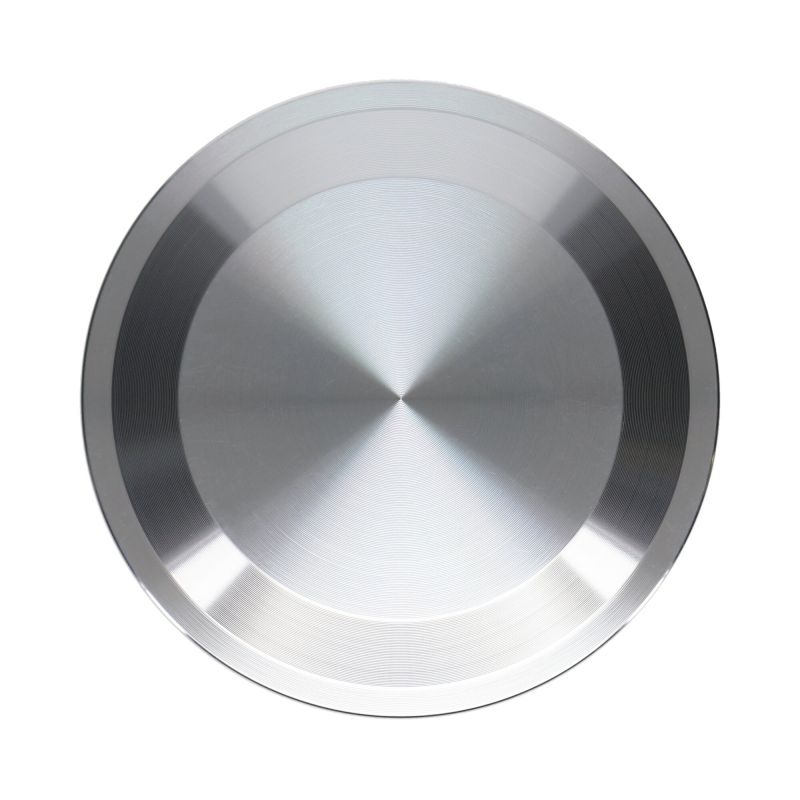

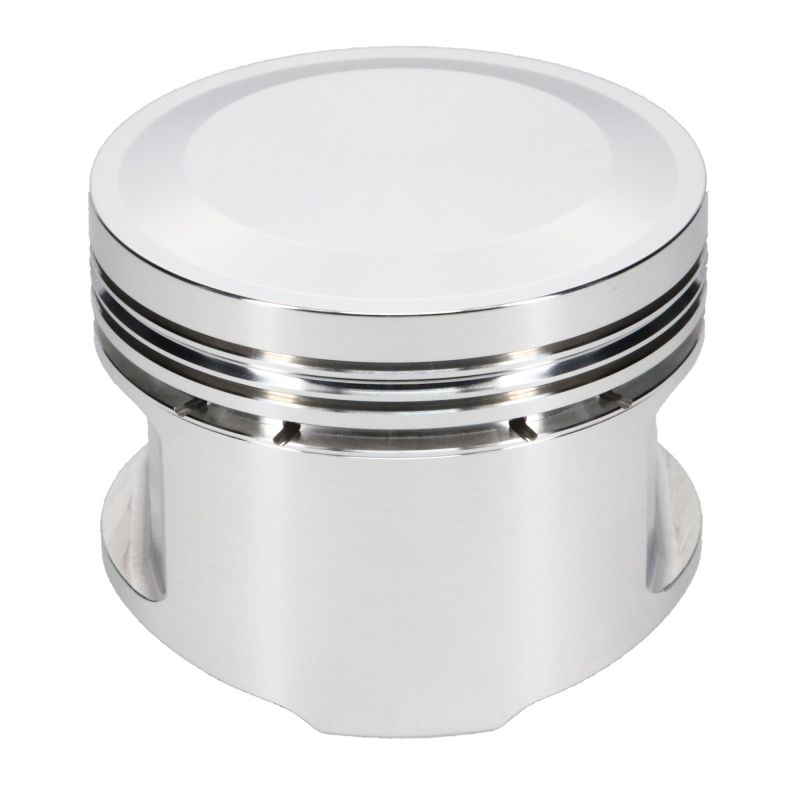

Forged for Renault 1.4 8v 840.730 (R5 Turbo) O76-78, Pin 20, CH 35.6, Compression ratio 7:1. Table, vehicle compatibility/engine codes and reference indications OEM.

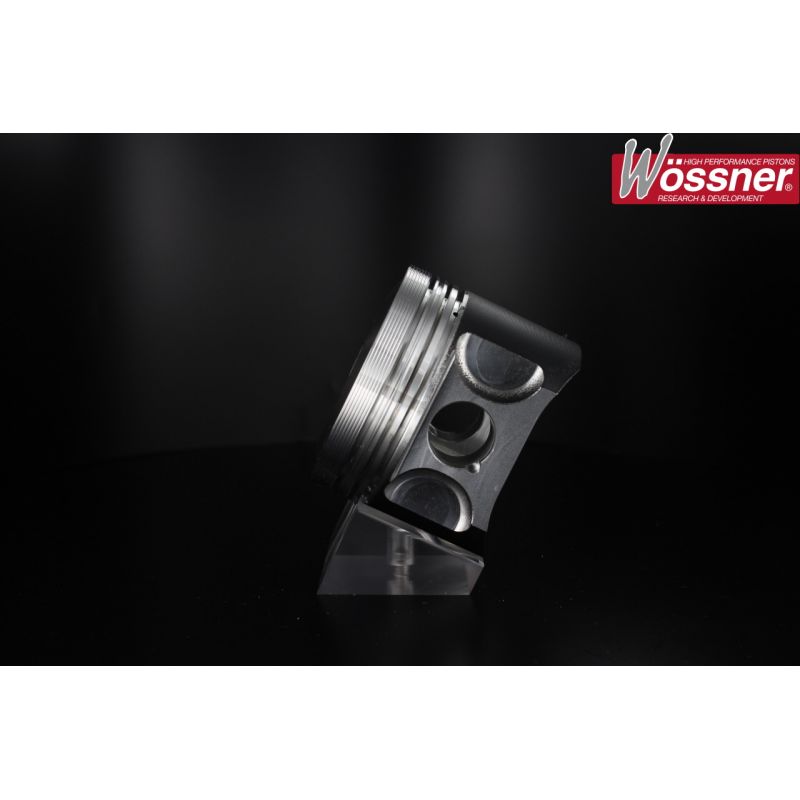

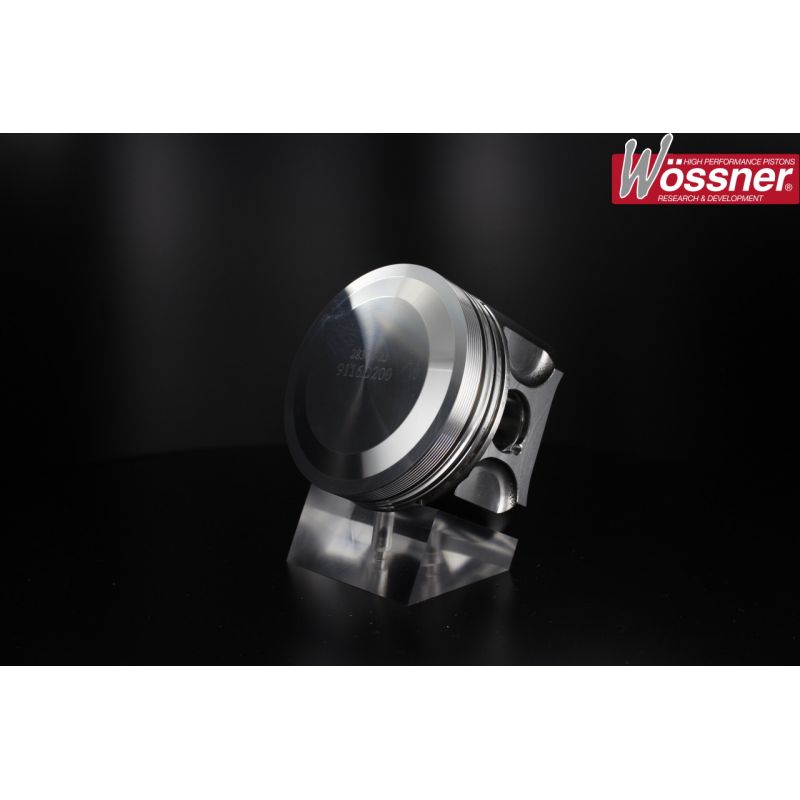

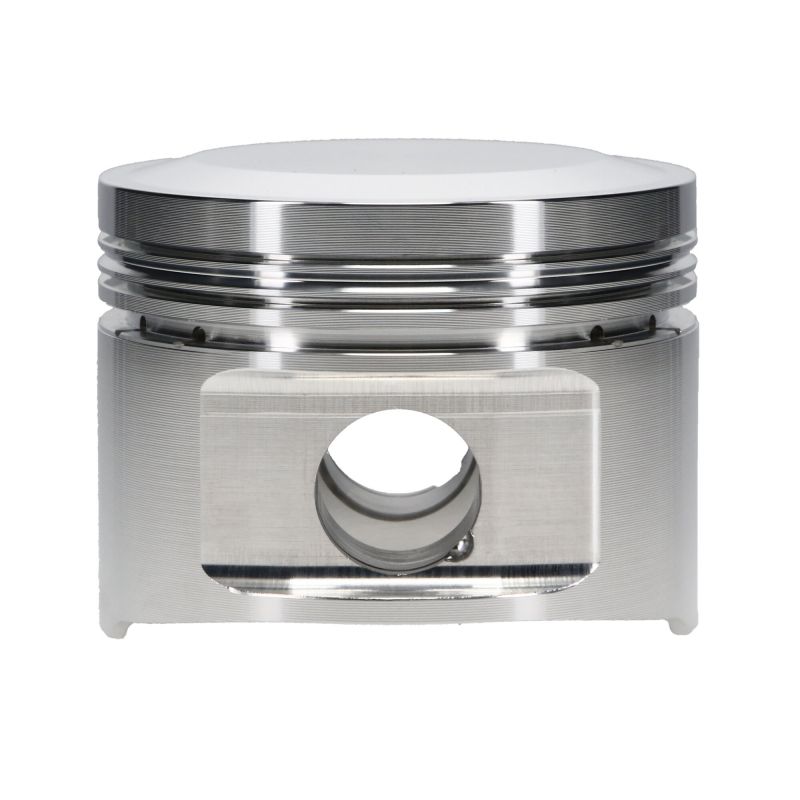

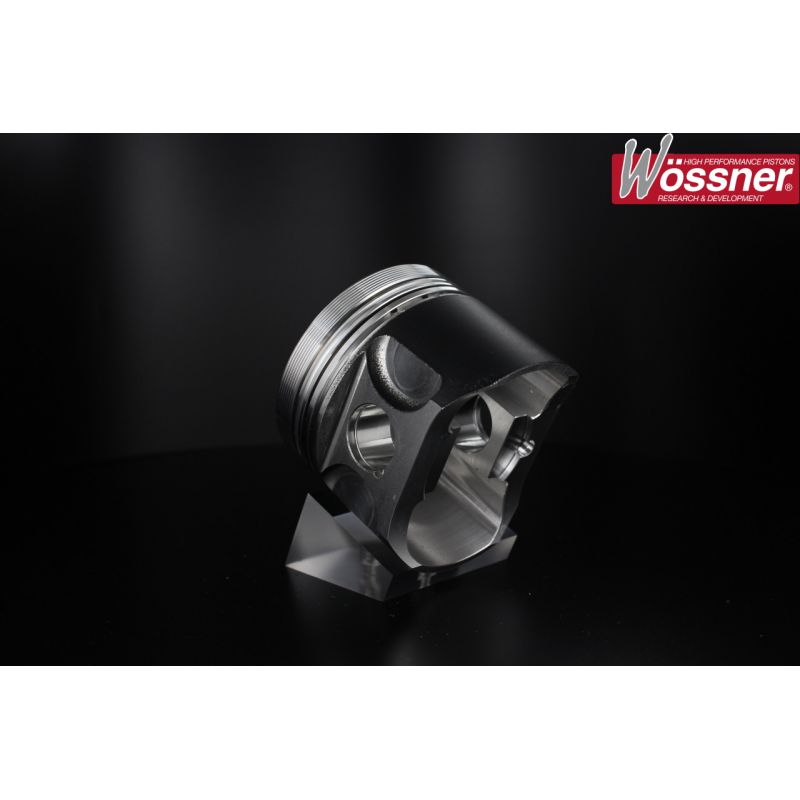

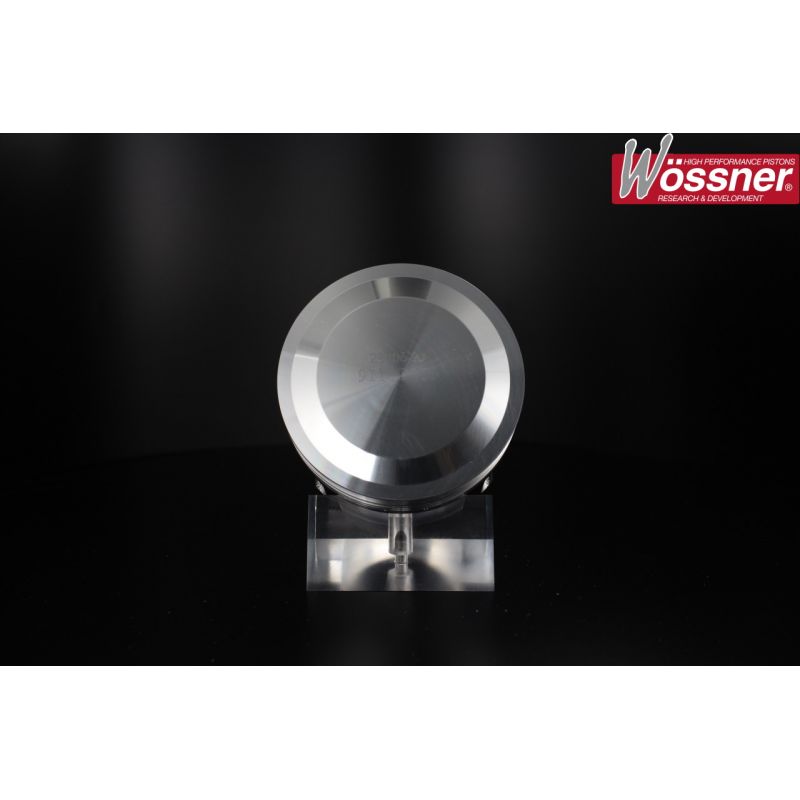

Specifications of the forged pistons offered by NSB Concept for Renault 1.4 L 8 V engine 840.730 (R5 Turbo) :
| Reference | OEM Bore 76,00 mm | OEM CR 7,0 :1 | OEM Pin 20 mm | Height OEM Pin 35,60 mm | Range | Coating | Aluminium | Forging | Dome | Weight | Rings |
|---|---|---|---|---|---|---|---|---|---|---|---|
| JE-312443 | 76 | 7:1 | 20 | 35.6 | JE Round | NC | 2618 | Round | 6.0 | 282.0 | NC |
| K9116DA | 76 | 7:1 | 20 | 35.6 | Wossner | NC | NC | Round | 6.0 | NC | 760XPZ |
| JE-312444 | 77 | 7:1 | 20 | 35.6 | JE Round | NC | 2618 | Round | 6.0 | 289.0 | NC |
| K9116D100 | 77 | 7.2:1 | 20 | 35.6 | Wossner | NC | NC | Round | 6.0 | NC | 770XPZ |
| JE-312445 | 78 | 7:1 | 20 | 35.6 | JE Round | NC | 2618 | Round | 6.0 | 299.0 | NC |
| K9116D200 | 78 | 7.3:1 | 20 | 35.6 | Wossner | NC | NC | Round | 6.0 | NC | 780XPZ |
Compatibility (engine codes):
Original vehicles equipped with the 1.4 8v 840.730 :
| Brand | Model | Engine code | Power | Years |
|---|---|---|---|---|
| Renault | 5 Turbo 1 (R8220) | 840.730 | 160 hp | 1980 – 1982 |
| Renault | 5 Turbo 2 | 840.730 | 160 hp | 1983 – 1985 |
OEM piston references :
Warning: Before installation, please verify the integrity and conformity of each component of the piston kit as well as the correctness of the assembly in the engine; any warranty is strictly limited to the parts included in the piston kit.
