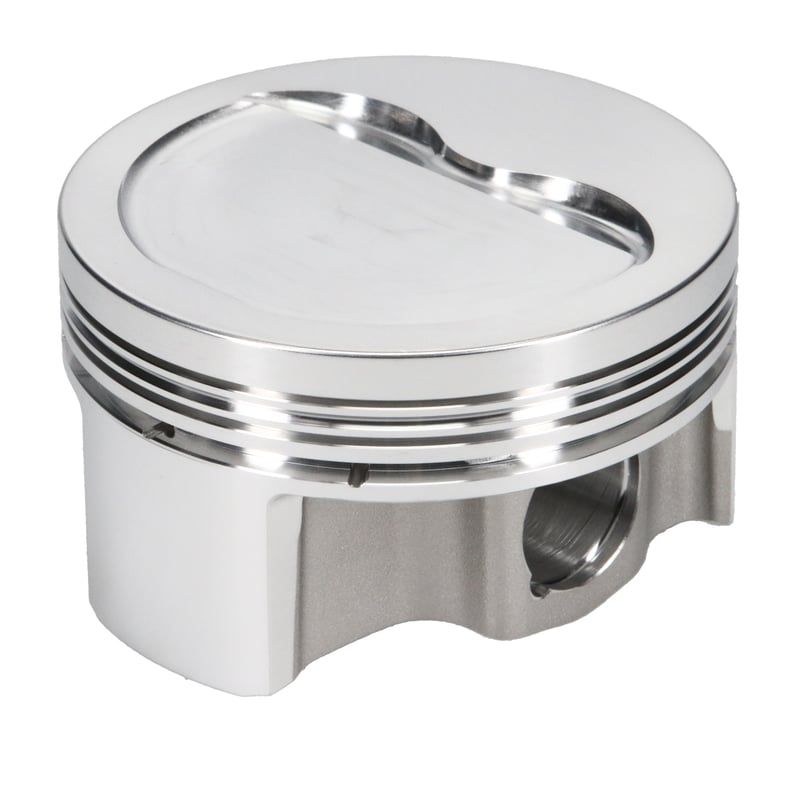

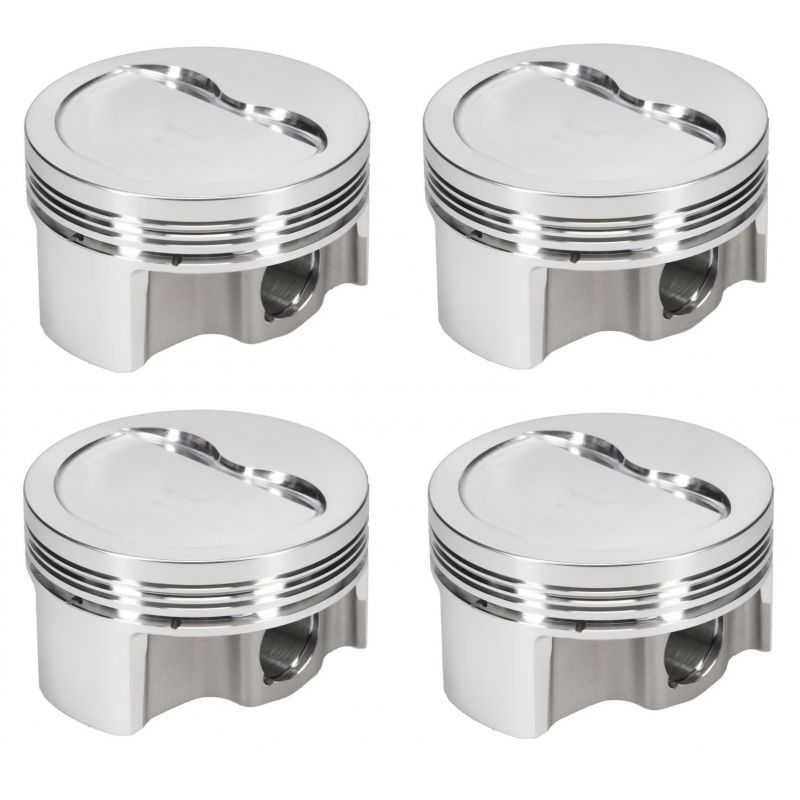

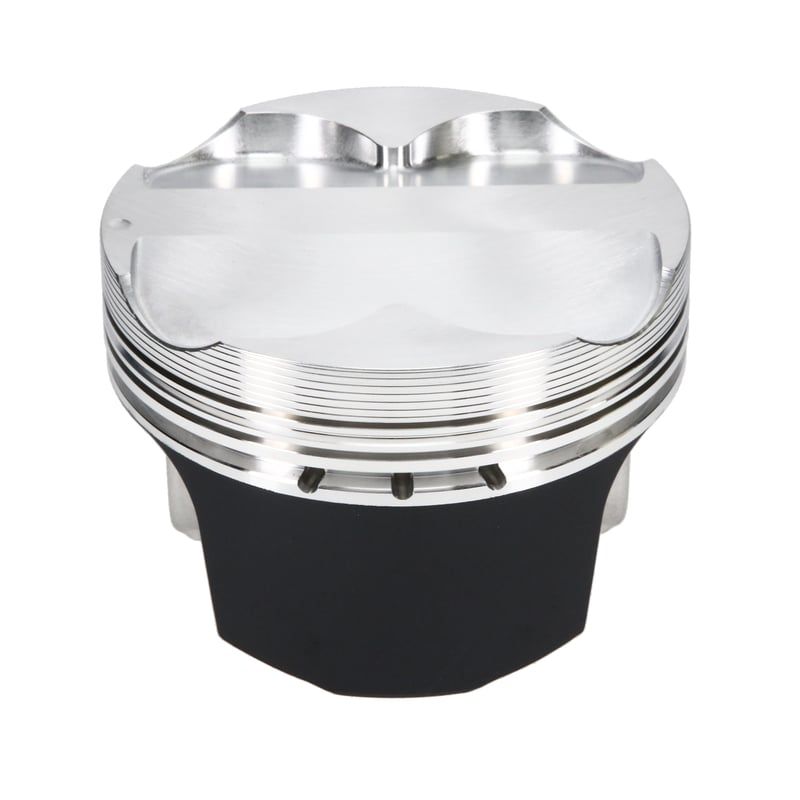

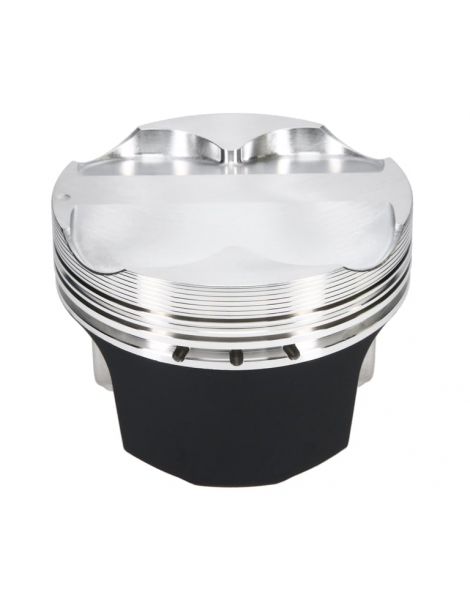

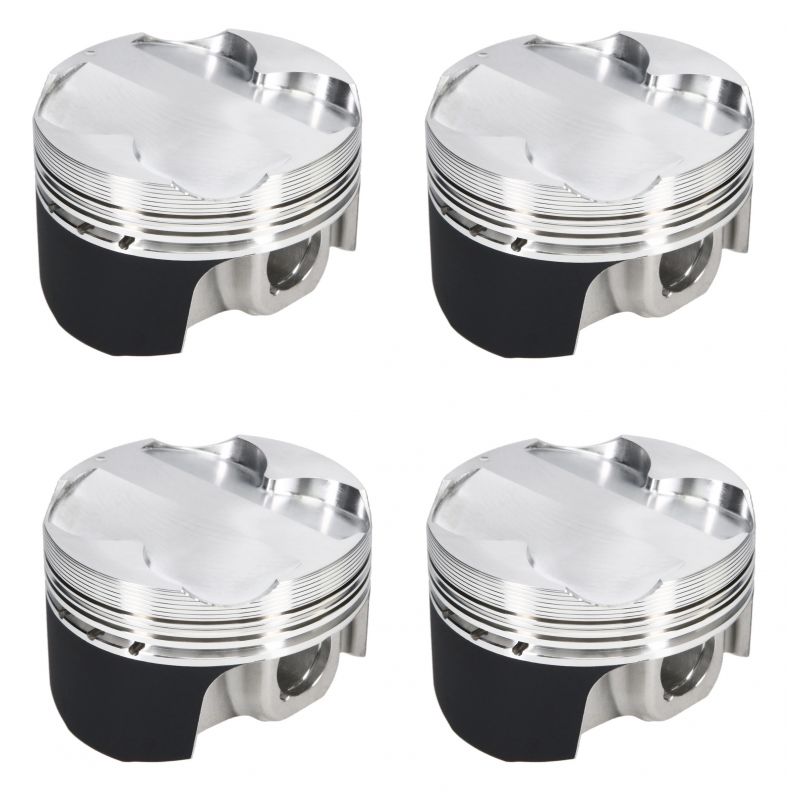

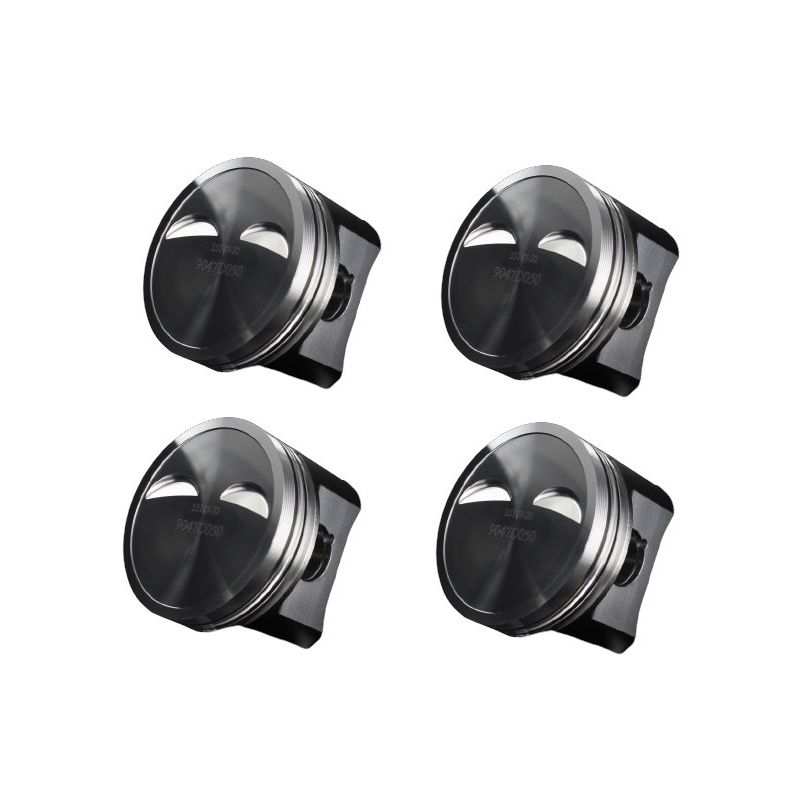

Set of 4 forged pistons JE, Wiseco & WOSSNER for Fiat 1.4 L 8 v Turbo 146A8: bores 80,50 - 81,50 mm, CR 7,8 - 8,0:1, pin 22 mm, rings included on kits Wiseco/WOSSNER.
Specifications of the forged pistons offered by NSB Concept for engines Fiat 1.4 L 8 v Turbo 146A8 :
| Reference | Bore (mm) | CR | pin (mm) | Height pin (mm) | Range | Coating | Aluminium | Forging | Dome volume (cc) | Weight | Rings |
|---|---|---|---|---|---|---|---|---|---|---|---|
| JE-312397 | 80.50 | 7.8:1 | 22 | 33.30 | JE FSR | NC | 2618 | FSR | -6.4 | 285 | NC |
| WKE139M805 | 80.50 | 7.8:1 | 22 | 33.30 | Wiseco | Skirt | 2618 | NC | -10.0 | NC | 3169XC |
| K9047DA | 80.50 | 7.8:1 | 22 | 33.30 | Wössner | NC | NC | Round | -6.5 | NC | 805XPZ |
| JE-312398 | 81.00 | 7.8:1 | 22 | 33.30 | JE FSR | NC | 2618 | FSR | -6.4 | 291 | NC |
| WKE139M81 | 81.00 | 7.8:1 | 22 | 33.30 | Wiseco | Skirt | NC | NC | -10.0 | NC | 8100XX |
| K9047D050 | 81.00 | 7.9:1 | 22 | 33.30 | Wössner | NC | NC | Round | -6.5 | NC | 810XPY |
| WKE139M8125 | 81.25 | 7.8:1 | 22 | 33.30 | Wiseco | Skirt | NC | NC | -10.0 | NC | 8125XX |
| JE-312399 | 81.50 | 7.8:1 | 22 | 33.30 | JE FSR | NC | 2618 | FSR | -6.4 | 296 | NC |
| K9047D100 | 81.50 | 8.0:1 | 22 | 33.30 | Wössner | NC | NC | Round | -6.5 | NC | 815XPY |
Compatibility :
Original vehicles equipped with the engine 1.4 Turbo 8 v 146A8 :
| Brand | Model | Engine code | Power | Years |
|---|---|---|---|---|
| Fiat | Uno Turbo i.e. Mk II (Type 146) | 146A8.000 | 118–120 hp | 1989 – 1995 |
| Fiat | Punto GT (Type 176) | 146A8.000* | 133–136 hp | 1993 – 1999 |
*depending on some versions/ markets.
references piston manufacturer (OEM) :
Warning: Before installation, please verify the integrity and conformity of each component of the piston kit, as well as the correctness of the assembly in the engine. Any warranty is strictly limited to the parts included in the piston kit.
