1.4L 16v - B14NEH
Manufacturers
1.4L 16v - B14NEH
Warning: Last items in stock!
New product

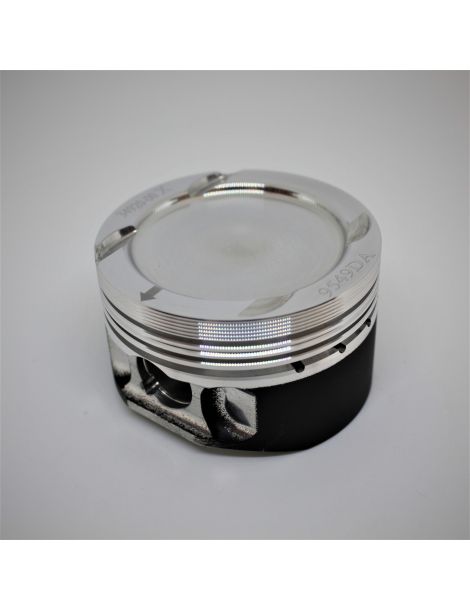

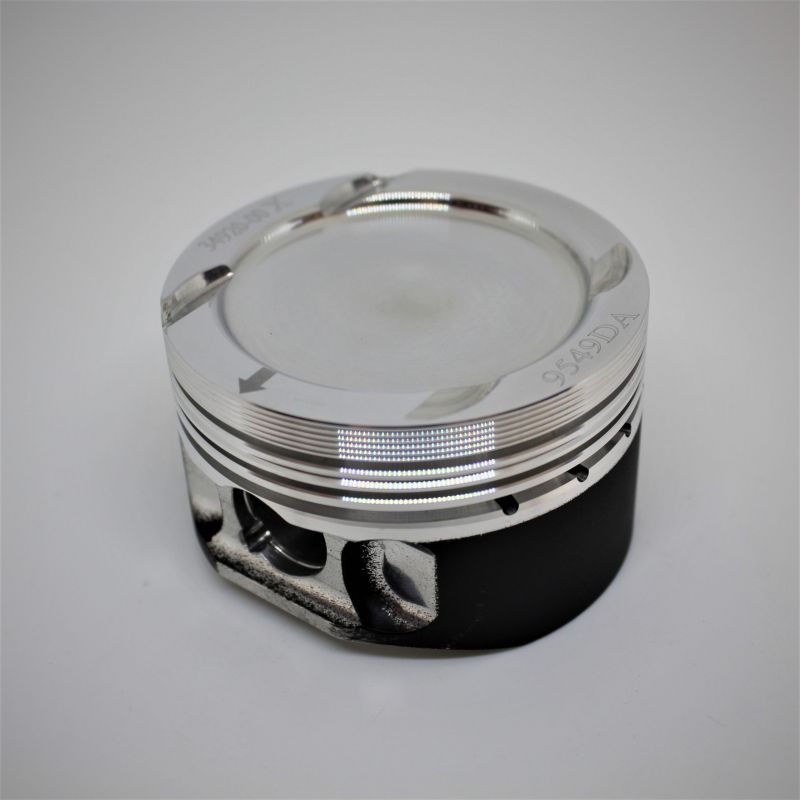

Forged pistons Opel/Vauxhall B14NEH 1.4 16v: O 72.5-73 mm, RV 9.5:1, axle 18 mm. Applications Adam S (2015-2018) & Corsa E 150 hp (2014-2019). OEM Refs: 55580184 (STD), 55580186 (0.50 OS).
Features of forged pistons for 1.4L 16v B14NEH engines:
| Reference | Bore (mm) | VR | Axis (mm) | Axis height (mm) | Range | Treatment | Aluminum | Forging | Dome volume (cc) | Weight (g) | Segments |
|---|---|---|---|---|---|---|---|---|---|---|---|
| K9549DA | 72.50 | 9.5:1 | 18 | 25.85 | Wossner | -7.20 | 725XPZ | ||||
| K9549D050 | 73 | 9.5:1 | 18 | 25.85 | Wossner | -7.20 | 730XPZ |
Compatible vehicles:
| Builder | Model | Years |
|---|---|---|
| Opel / Vauxhall | Adam S B14NEH 1.4 Turbo 150 hp | 2015-2018 |
| Opel / Vauxhall | Corsa E 1.4 Turbo 150 hp B14NEH | 2014-2019 |
Piston manufacturer references (OEM):
Manufacturer references for pistons (bare or equipped with segments).
| Builder | Model | Reference | Designation |
|---|---|---|---|
| Opel / GM | Corsa E / Adam S B14NEH STD (Ident 00) | 55580184 | Piston w/Pin & Rings STD |
| Opel / GM | Corsa E / Adam S B14NEH ⌀0.50 OS | 55580186 | Piston w/Pin & Rings 0.50 OS |
| Opel / GM | Corsa E / Adam S B14NEH STD (rev. ant.) | 55580179 | Piston w/Pin & Rings STD (rev.) |
| Opel / GM | Corsa E / Adam S B14NEH STD (former PNC) | 625072 | Piston STD (old code) |
Warning: before any assembly, please check the integrity and conformity of each component of the piston kit as well as the conformity of the assembly in the engine; any possible warranty is strictly limited to the parts of the piston kit only.
