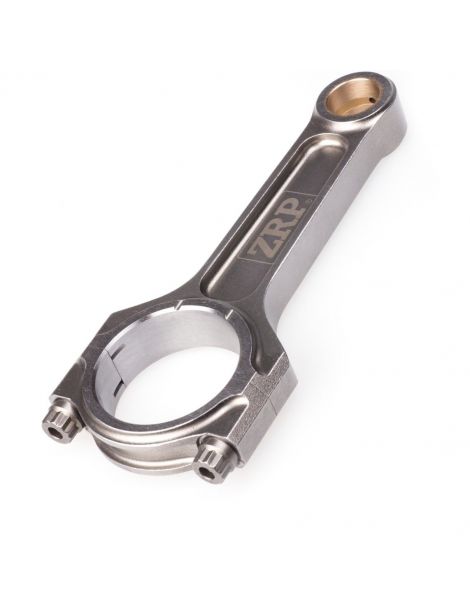

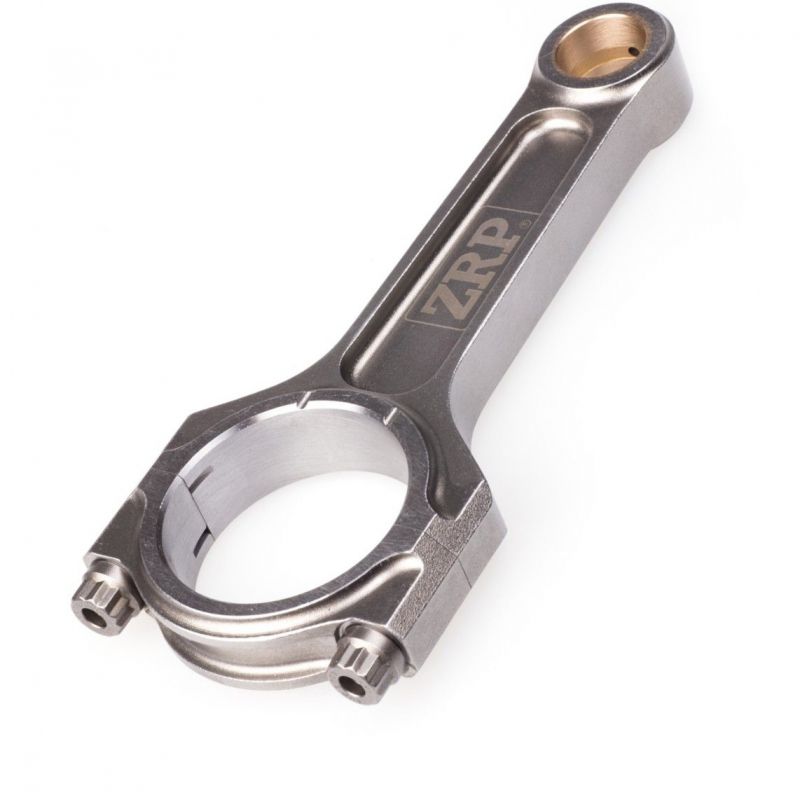

Connecting rods forged I-shaped ZRP for BMW 2002/Tii E10 M10B20

Connecting rods forged I-shaped ZRP for BMW 2002/Tii E10 with ARP screws with Small End in AMPCO 18 ring

The ZRP Brand is the subsidiary of DRAKOS ENGEERING renowned for its EXPERIENCE in the design of high-performance mechanical parts. ZRP specializes exclusively in forged engine parts and has designed for your BMW M10B20 engine R-BMW-008-I forged Connecting rods in 4340 High Tensile Steel and with reinforced ARP Rod bolts in order to resist the increase in inertia linked to your increase in engine speed, available in 3 Ranges:

- ARP 2000: resistant up to 220000psi (i.e. 15000bars)

- ARP L19: resistant up to 260000psi (i.e. 18000bars)

- ARP 625+: resistant up to 280000psi (i.e. 19000bars)

The Head of the ZRP R-BMW-008-I forged Connecting rods for BMW M10B20 engine is equipped with a ring machined from hot extruded cuPro-Aluminum patented AMPCO 18 before being ground to ensure that the oil film is maintained with your Piston pin / Gudgeon pin.

The design of this ZRP R-BMW-008-I forged I-shaped Connecting rod for BMW M10B20 engine gives it exceptional resistance to significant increases in Power and torque due to high boost pressures, as well as to extreme uses as we encounter with our customers whom we equip for their preparation of Drift forged engines and Run Dragster forged engines.

Features:

• Small End profile: plan
• Center Distance: 135.00mm
• Foot diameter: 52.00mm
• Foot width: 23.90mm
• Piston pin / Gudgeon pin diameter: 22.00mm
• Rod bolts supplied: ARP2000, ARP L1 or ARP 625+ (to choose)
• Thread of screws supplied: 496gr
• Maximum admissible power: 800hp



Lexicon:

1)Small End
2) Foot diameter
3) Connecting rod CoRPS
4) Rod bolt
5) Big End
6) Nut
7) Connecting rod cap
8) Head Diameter
9) Center Remote

When you upgrade your BMW M10B20 engine to a forged engine, it is recommended to fit forged Connecting rods with tri-metal Connecting rod bearings, in addition to replacing your Original Pistons with forged Pistons.
