3.0L 24v - ES9J4S
Manufacturers
3.0L 24v - ES9J4S
Warning: Last items in stock!
New product
ES9J4S (XFX) 3.0 V6 forged pistons: O 87.87.5 mm, axle 22 mm, CH 32.64 mm, RV 8.5:1 or 10.9:1. Compatible with Peugeot 406/607/807 and Citroen C5/C8. Full table & OEM info.

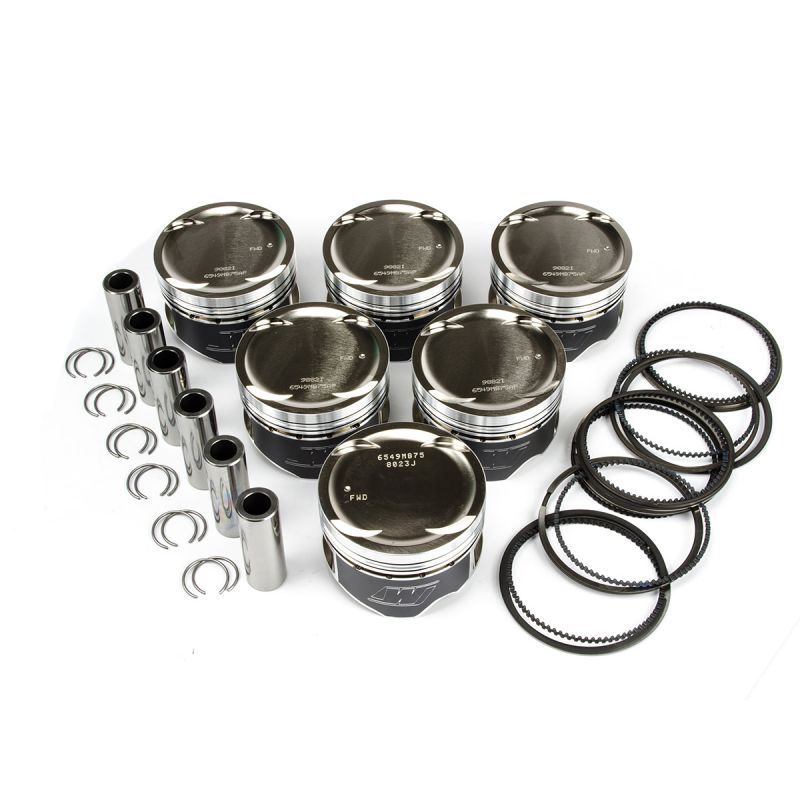

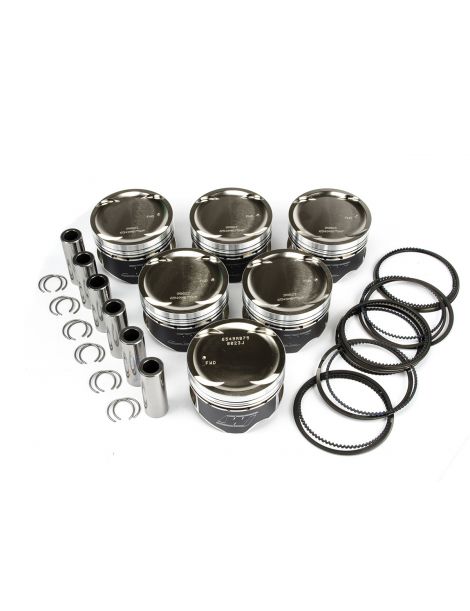

Characteristics of the forged pistons offered by NSB Concept for Peugeot/Citroen 3.0 L 24 V ES9J4S (PSA engine code XFX):
| Reference | Bore | VR | Pin | Axis Height | Range | Treatment | Aluminum | Forging | Dome | Weight | Segments |
|---|---|---|---|---|---|---|---|---|---|---|---|
| WKE270M87 | 87.0 | 8.5:1 | 22 | 32.64 | Wiseco | Skirt | N/A | N/A | -16.3 | N/A | 8700XX |
| WKE271M87 | 87.0 | 10.9:1 | 22 | 32.64 | Wiseco | Skirt | N/A | N/A | -1.2FT | N/A | 8700XX |
| WKE270M8725 | 87.25 | 8.5:1 | 22 | 32.64 | Wiseco | Skirt | N/A | N/A | -16.3 | N/A | 8725XX |
| WKE271M8725 | 87.25 | 10.9:1 | 22 | 32.64 | Wiseco | Skirt | N/A | N/A | -1.2 FT | N/A | 8725XX |
| WKE270M875 | 87.5 | 8.5:1 | 22 | 32.64 | Wiseco | Skirt | N/A | N/A | -16.3 | N/A | 8750XX |
| WKE271M875 | 87.5 | 10.9:1 | 22 | 32.64 | Wiseco | Skirt | N/A | N/A | -1.2 FT | N/A | 8750XX |
Compatibilities (engine codes):
ES9J4S
PSA code
XFX
(V6 3.0 24v atmospheric, 204.207 hp); used according to models: Peugeot 406/607/807, Citroen C5/C8.
Original vehicles equipped with ES9J4S (XFX):
| Brand | Model | Engine Code | Power | Years |
|---|---|---|---|---|
| Citroen | C5 I 3.0 V6 | XFX (ES9J4S) | 207 hp | 2001 2004 |
| Citroen | C5 I (Phase II) 3.0 V6 | XFX (ES9J4S) | 207 hp | 2004 2007 |
| Citroen | C8 3.0 V6 | XFX (ES9J4S) | 204 hp | 2002 2008 |
| Peugeot | 406 Sedan 3.0 V6 | XFX (ES9J4S) | 204 hp | 2000 2004 |
| Peugeot | 406 Estate 3.0 V6 | XFX (ES9J4S) | 204 hp | 2000 2004 |
| Peugeot | 406 Coupe 3.0 V6 | XFX (ES9J4S) | 207 hp | 2000 2004 |
| Peugeot | 607 3.0 V6 24v | XFX (ES9J4S) | 207 hp | 2000 2004 |
| Peugeot | 807 3.0 V6 | XFX (ES9J4S) | 204 hp | 2002 2005 |
Piston manufacturer references (OEM):
OEM piston part numbers vary depending on
WINE
, selection class (A/B/C) and premiums. To obtain the exact reference: consult
Peugeot/Citroen Service Box
(group
01.11
piston & rings) with the serial number.
Warning:
before any assembly, please check the integrity and conformity of each component of the piston kit as well as the conformity of the assembly in the engine; any possible warranty is strictly limited to the parts of the piston kit only.
