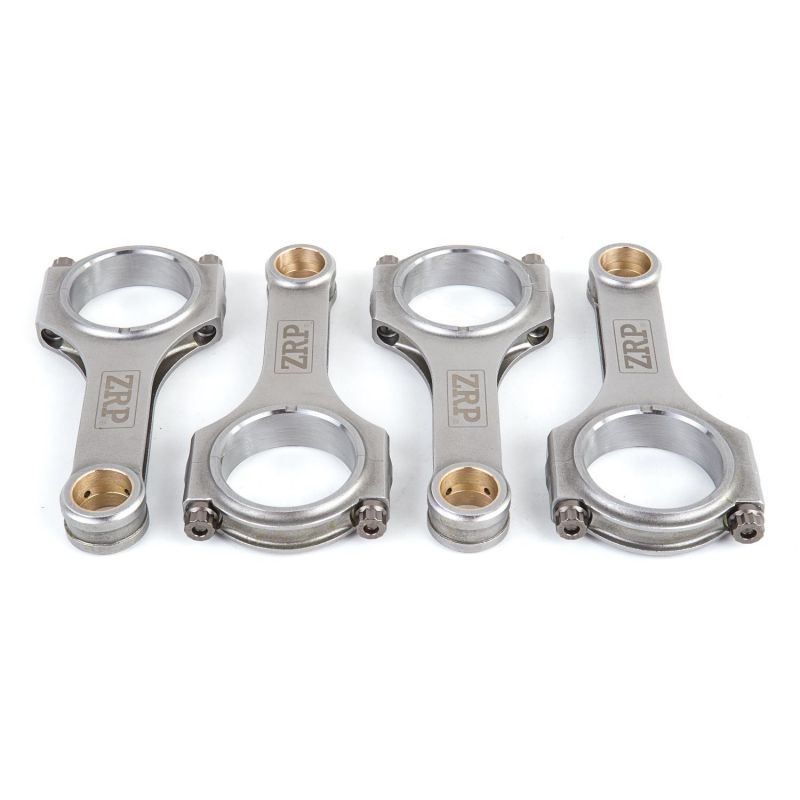

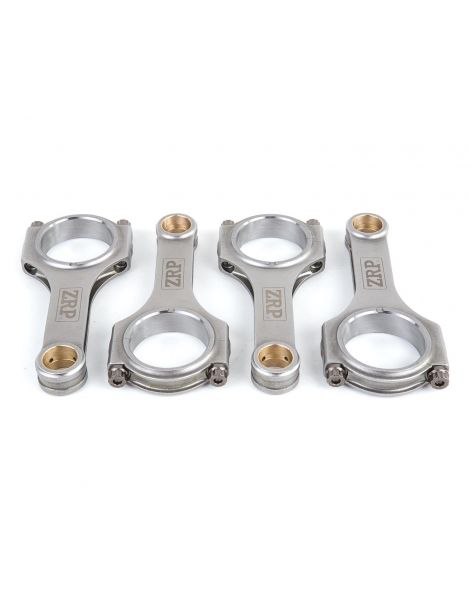

Forged H ZRP connecting rods FORD Fiesta V ST150 2.0 16V N4JB 150CV 2004-2009

The ZRP brand is the subsidiary of DRAKOS ENGEERING renowned for its experience in high-performance mechanical part designs. ZRP specializes exclusively in forged engine parts and has designed forged connecting rods in high-strength 4340 steel for your FORD Fiesta V ST150 2.0 16V N4JB in order to accept high boosts on your N4JB engine and ARP2000 connecting rod screws for large increases in engine speed.

The head of the ZRP forged connecting rods for FORD Fiesta V ST150 2.0 16V N4JB is equipped with a bushing machined from siliconized aluminum-bronze alloy before being ground to ensure the oil film is maintained with your piston pin.

The design of this ZRP forged H-shaped connecting rod for FORD Fiesta V ST150 2.0 N4JB gives it exceptional resistance to significant increases in engine speed and increase in engine compression ratios as well as to the intense use of competition as we encounter with our customers who are preparers and enthusiasts in circuit, rally, endurance, TTM that we supply for the creation of their forged engines.

Features:

Center distance: 146.25mm

Foot diameter: 50023mm

Foot width: 21.82mm

Piston pin diameter: 21.00mm

Connecting rod screws supplied: ARP2000

Thread of screws provided: 3/8"

Weight: 456gr

Maximum admissible power: 800hp

Lexicon:

1) Connecting rod

2) Foot diameter

3) Connecting rod body

4) Connecting rod screw

5) Big end

6) Nut

7) Connecting rod cap

8) Head diameter

9) Center distance

When you upgrade your N4JB engine to a forged engine, it is recommended to fit forged connecting rods with tri-metal connecting rod bearings, in addition to replacing your original pistons with forged pistons.

Find the forged pistons for your FORD Fiesta V ST150 2.0 16V N4JB (if your engine has more than 50,000km, it is recommended to take an extra cost and re-bore the cylinders followed by honing the barrels):

FORGED PISTONS

Find the connecting rod bearings for your ZRP forged connecting rods for your FORD Fiesta V ST150 2.0 16V N4JB:

CONNECTING ROD BEARINGS

Find this kit with reinforced ARP L19 and ARP 625+ connecting rod screws for your FORD Fiesta V ST150 2.0 16V N4JB:

ZRP FORGED CONNECTING ROD WITH ARP L19 OR 625+ SCREWS
