2.0L 16v - Duratec-RS215
Manufacturers
2.0L 16v - Duratec-RS215
Warning: Last items in stock!
New product

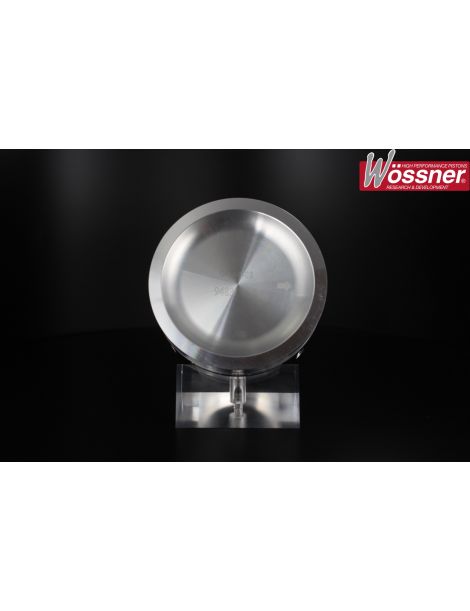

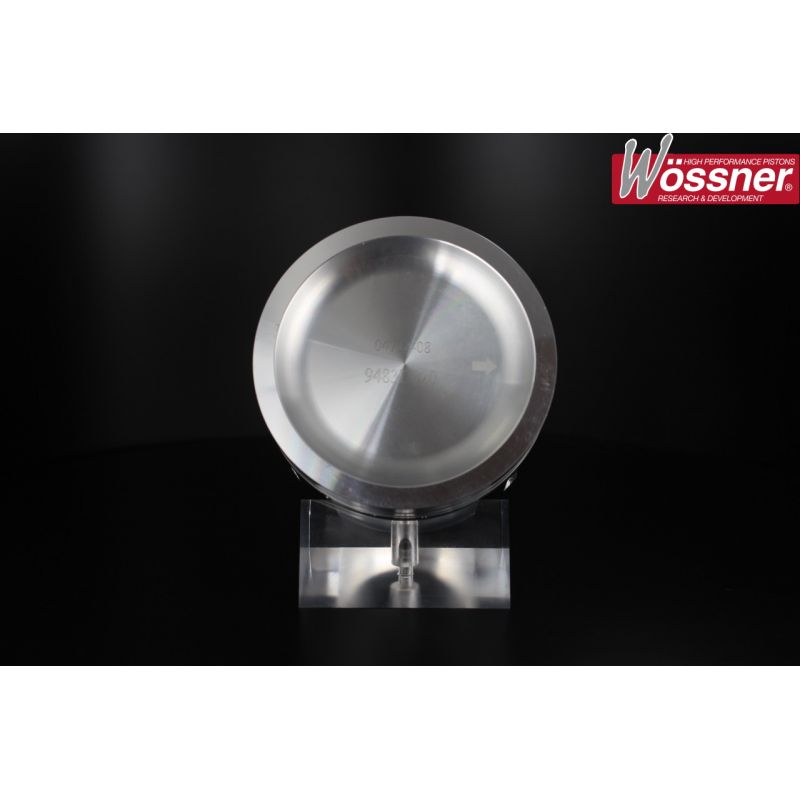

Ford 2.0 Duratec RS (HDMA) forged pistons bores 84.8-86 mm, RV 8-9:1, axle 22 mm. Wiseco & Wossner ranges. Applications: Focus RS Mk1 (C170).
Characteristics of the forged pistons offered by NSB Concept for Ford 2.0 L 16 v Duratec RS (HDMA):
| Reference Piston | Bore (mm) | VR | Axis (mm) | Axis Height (mm) | Range | Aluminum | Treatment | Forging | Dome (cc) | Weight (g) | rings |
|---|---|---|---|---|---|---|---|---|---|---|---|
| K9483DA | 84.8 | 8:1 | 22 | 32 | Wossner | N/A | N/A | Round | -20.1 | N/A | 848XPY |
| WKE154M848 | 84.8 | 9:1 | 22 | 31.7 | Wiseco | N/A | Skirt | N/A | -21.5 | N/A | 8500XX |
| K9483D020 | 85 | 8:1 | 22 | 32 | Wossner | N/A | N/A | Round | -20.1 | N/A | 850XPY |
| WKE154M85 | 85 | 9:1 | 22 | 31.7 | Wiseco | N/A | Skirt | N/A | -21.5 | N/A | 8500XX |
| WKE154M8525 | 85.25 | 9:1 | 22 | 31.7 | Wiseco | N/A | Skirt | N/A | -21.5 | N/A | 8525XX |
| K9483D070 | 85.5 | 8.1:1 | 22 | 32 | Wossner | N/A | N/A | Round | -20.1 | N/A | 855XPY |
| WKE154M855 | 85.5 | 9:1 | 22 | 31.7 | Wiseco | N/A | Skirt | N/A | -21.5 | N/A | 8550XX |
| K9483D120 | 86 | 8.2:1 | 22 | 32 | Wossner | N/A | N/A | Round | -20.1 | N/A | 860XPY |
Engine compatibility:
Ford 2.0 L 16v Duratec RS Engine code:
HDMA
| Brand | Model | Chassis | Engine Code | Power (hp) | Years |
|---|---|---|---|---|---|
| Ford | Focus RS Mk1 | C170 | HDMA | 212 | 10/2002-11/2003 |
Attention:
before any assembly, please check the integrity and conformity of each component of the piston kit as well as the conformity of the assembly in the engine; any possible warranty is strictly limited to the parts of the piston kit only.
