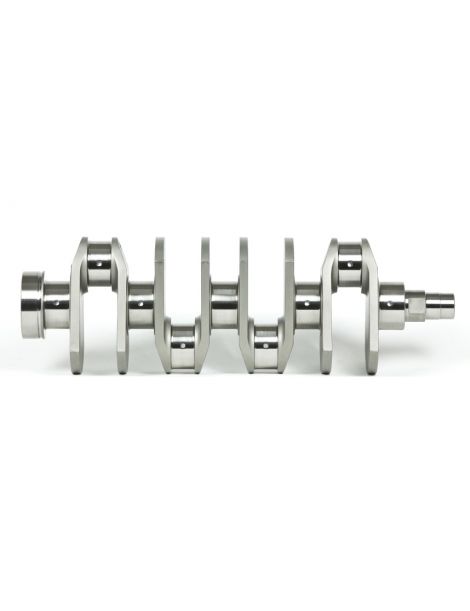

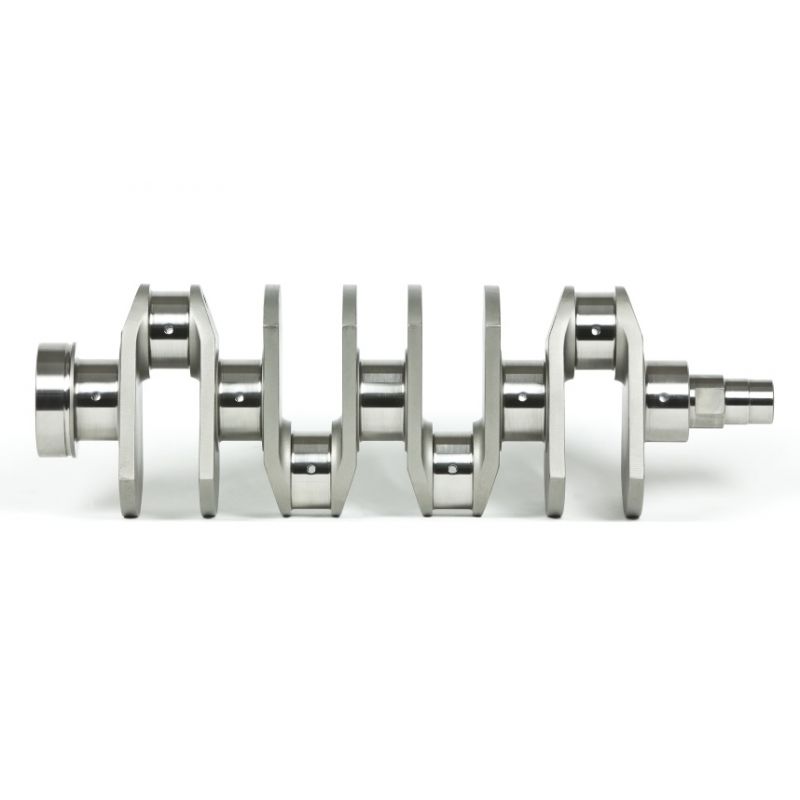

ZRP Forged Crankshaft 90.00mm Stroke 2.0 16V FIAT Coupé Lancia Delta HF

Here we offer a ZRP forged crankshaft for the FIAT 2.0 16V 836A3, 175A1 and LANCIA 2.0 16V 836A3, 836A2, 175A4 engines.

Fitting instructions are available in the "Download" tab above.

Technical specification

• Stroke: 90.00mm (OEM)
• Main journal diameter: 50.80mm
• Big end journal diameter: 53.00mm
• Steel grade: 4340
• Weight: 13.0kg
• CNC machining
• ION (plasma) nitriding hardening process
• Heat treatment
• Shot peening for stress relief
• Micro-polished big end and main journals
• X-ray inspection of the crankshaft

ZRP is the subsidiary of DRAKOS ENGINEERING, renowned for its experience in designing high-performance mechanical parts. ZRP specialises exclusively in forged engine parts such as forged connecting rods or, as here, a forged crankshaft in high-strength 4340 steel. ZRP crankshafts are supplied factory balanced (report included). The undercut profiled counterweights keep the weight, and therefore the rotating mass, to a minimum. The drilled main journals also contribute to the lightness of the ZRP crankshaft. In addition, the straight, chamfered oil galleries optimise lubrication.
