Piston Pins, Circlips and Piston Rings
Manufacturers
Piston Pins, Circlips and Piston Rings
Warning: Last items in stock!
JE-JG1201-3228
New product

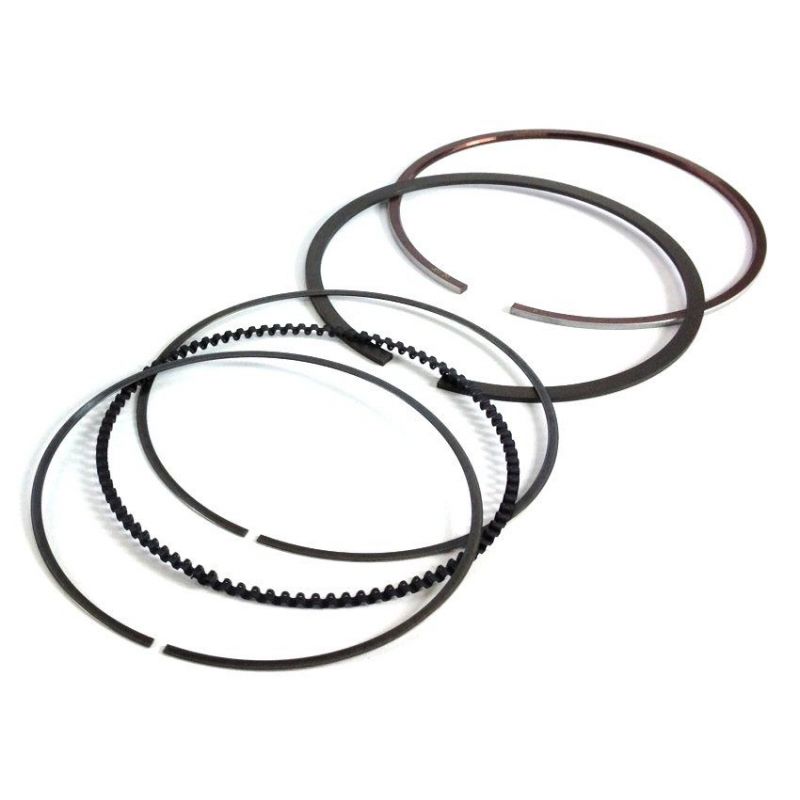

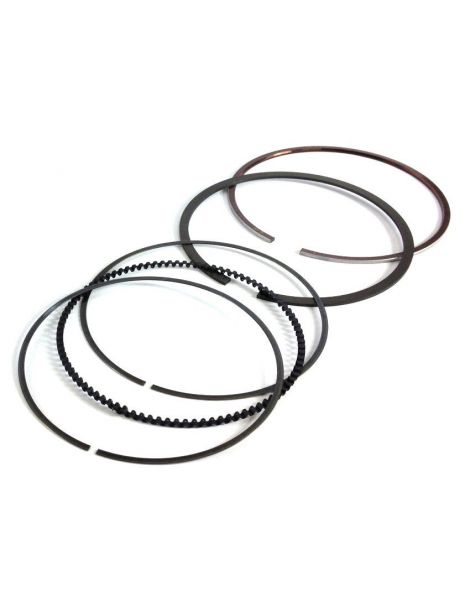

JE PISTONS piston ring set for an 82.00 mm bore. 1.2 mm PVD coated top ring, 1.2 mm second ring and 2.0 mm oil ring. For pistons with 1.2 / 1.2 / 2.0 mm ring grooves. Sold for 1 piston: order one per cylinder.
This ring set from JE PISTONS is designed for pistons with 1.2 / 1.2 / 2.0 mm ring grooves running in an 82.00 mm bore. Check the bore and ring thickness on your piston specification before ordering.
Technical specifications
| Bore | 82.00 mm |
| Top ring | 1.2 mm, PVD coating |
| Second ring | 1.2 mm |
| Oil ring | 2.0 mm |
| Packaging | for 1 piston |
| Reference | JE-JG1201-3228 |
JE Pistons know-how
JE Pistons rings are designed to maximise horsepower through precise sealing of combustion pressure. They are offered in a wide choice of sizes, materials and thicknesses. JE Pistons also masters PVD coating, used by NHRA Pro Stock and NASCAR teams for greater durability, lower friction and improved ring seal.
Image for illustration only
