Piston Pins, Circlips and Piston Rings

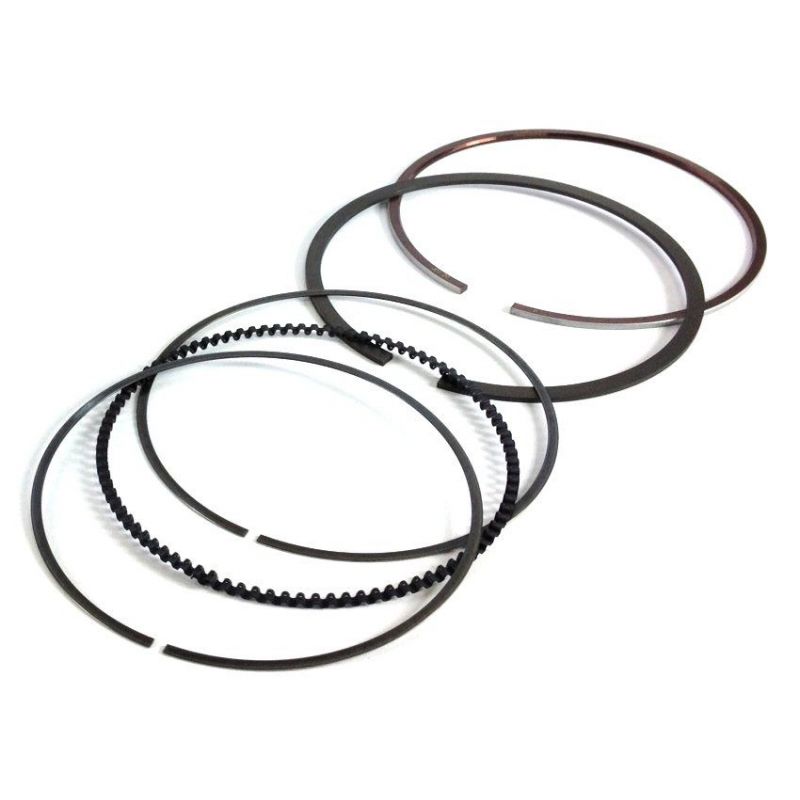

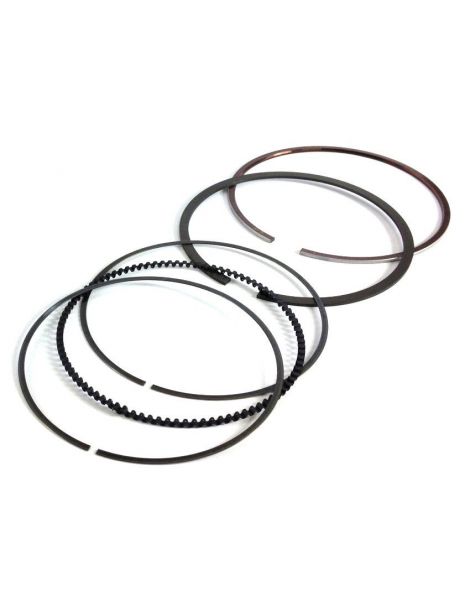

Jeu de Segments JE PISTONS Ø82.55mm - 1.0/1.2/2.8mm - Référence JG1001-3250 View larger

JE PISTONS JG1001 JG1001-3250 performance part

JG1001-3250

Au Détail

New product

JE PISTONS high-performance piston ring set for 82.55mm bore. Nitrided steel and phosphated ductile iron rings for optimal sealing and maximum durability during engine preparation. Complete kit for 1 piston.

More details

45,80 € tax incl.

ORDER TODAY, WE SHIP IN 5 - 15 DAYS

  • JE PISTONS Piston Ring Set - Excellence in Engine Tuning

    Specifically designed for high-performance tuned engines, this JE PISTONS piston ring set, reference JG1001-3250, offers optimal combustion sealing to maximize the power and reliability of your engine tuning.

    Technical Specifications

    Bore and Dimensions

    • Bore: 82.55mm (3.250")
    • Upper Ring Thickness: 1.0mm (0.0394")
    • Intermediate ring: 1.2mm (0.0472") Thickness
    • Oil scraper ring: 2.8mm (0.1102") Thickness
    • File Fit (filing fit)

    Premium Materials

    • Upper Ring: High-strength nitrided carbon steel
    • Middle Ring: Ductile iron with phosphate treatment
    • Scraper Ring: Low-tension nitrided carbon steel for oil control optimal

    JE PISTONS Expertise - 70 Years of Innovation

    For over 70 years, JE PISTONS has been the world leader in forged pistons and rings for motorsport. Their technology is used by top NHRA Pro Stock and NASCAR teams, guaranteeing top-level performance in Drift, Rally, Circuit, TrackDay, and Drag racing.

    JE PISTONS rings are designed to maximize power thanks to precise combustion pressure sealing. They are available in a wide selection of sizes, materials, and thicknesses to suit all types of engine preparation.

    Customized Services Available

    JE PISTONS also offers custom services used by professional teams:

    • Back cutting (lightening the back of the piston rings)
    • Dyke cutting (modification of the (throats)
    • Lapping (precision honing)
    • Grinding (rectification)
    • PVD coating (physical vapor deposition)

    These services offer considerable gains in durability and power thanks to reduced friction and improved sealing.

    Performance Advantages

    ? ?maximum sealing: Reduced compression leakage for more power
    ? Low friction: Low-tension scraper rings for less mechanical loss
    ? Exceptional durability: Race-proven materials and surface treatments
    ? Precise fit: File Fit type for optimal seating in the grooves
    ? Oil Control: Controlled oil consumption even under high stress
