Piston Pins, Circlips and Piston Rings
Manufacturers
Piston Pins, Circlips and Piston Rings
Warning: Last items in stock!
JE-J10008-4280-5
New product

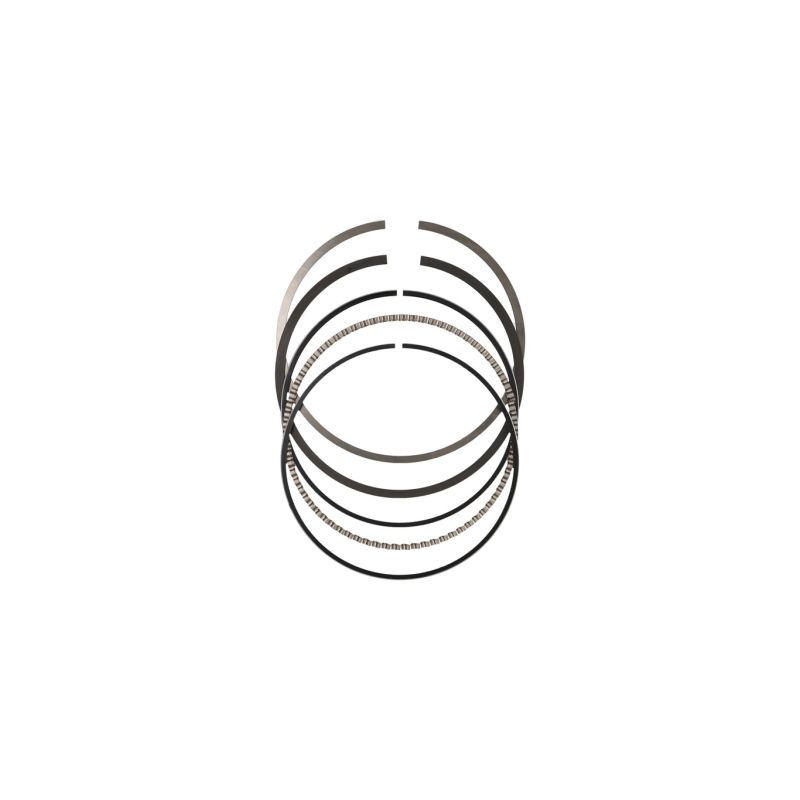

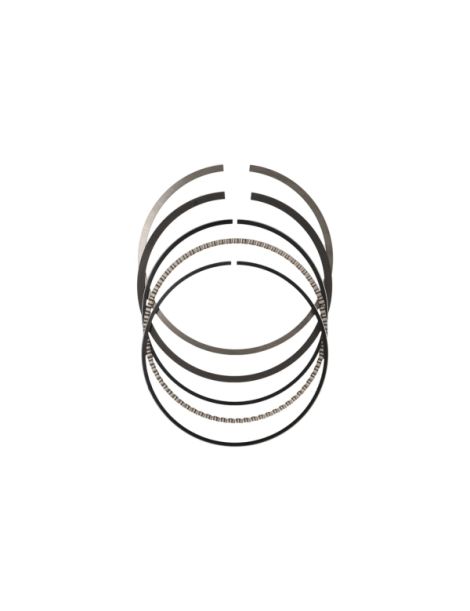

JE Pistons JE-J10008-4280-5 piston ring set, Premium Race Series low tension, for 8 cylinders of 4.280 in bore (108.71 mm). 1/16, 1/16 and 3/16 in sizes. Ductile iron top ring with plasma-moly inlay. Supplied File Fit, to be gapped.
Specifications of the JE Pistons JE-J10008-4280-5 piston ring set for 8 cylinders of 4.280 in bore:
| Part number | Bore in / mm | Top ring in / mm | Second ring in / mm | Oil ring in / mm | Fitment | Series | Quantity |
|---|---|---|---|---|---|---|---|
| JE-J10008-4280-5 | 4.280 / 108.71 | 1/16 / 1.59 | 1/16 / 1.59 | 3/16 / 4.76 | File Fit | Premium Race Series | 8 cylinders |
Matching piston kit:
| Piston part number | Bore | Block | Resulting displacement |
|---|---|---|---|
| JE-258252 | 4.280 in | Chevrolet Big Block | 460 ci, 7,538 cc |
The manufacturer lists this reference as the recommended ring set for the JE-258252 piston kit. Always check the actual bore of your cylinders after machining before ordering.
Important: before any assembly, always check the integrity and conformity of every ring as well as the end gap once the rings are fitted in the cylinders; any warranty is strictly limited to the parts of the ring set alone.
