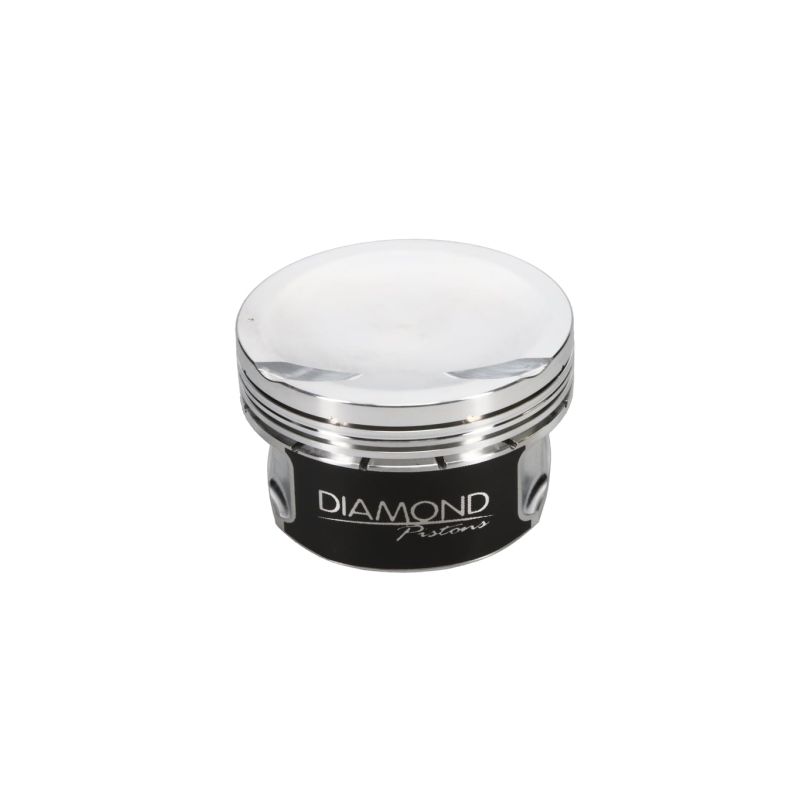

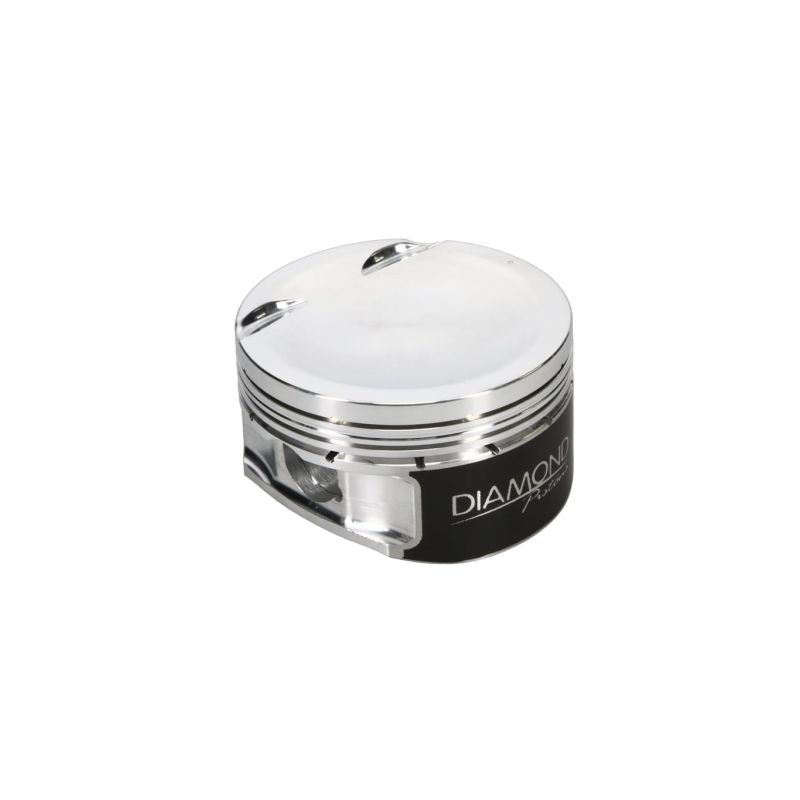

Forged Pistons 5.2L 40v V10 FSI Audi Lamborghini

€2,196.93 (tax incl.)
€2,929.25 (tax incl.) -25%

Forged pistons V10 5.2 FSI Audi/Lamborghini: Rings included, Bores Original/oversize, Pin 20 mm, CH 27.60 mm. COMPatibilities S6/S8, R8 (Type 42 & 4S), Gallardo, Huracan.

DIA-83070-8
0 in stock in France
ORDER TODAY, WE SHIP IN 5 - 15 DAYS
Pay in installments

Specifications of the forged pistons offered by NSB Concept for Audi / Lamborghini 5.2 L 40 V V10 FSI :

ReferenceOEM Bore
84,50 mm
OEM CR 12,5 :1OEM Pin
20 mm
Height OEM Pin
27,60 mm
RangeCoatingAluminiumForgingDomeWeightRings
JE-308178 84.5 9:1 20 27.6 JE FSR NC 2618 FSR -14.0 284.0 NC
DIA-83070-10 84.5 10:1 20 27.6 Diamond Skirt 2618 NC -6.5 NC 9573326.0
640000CE-10 84.5 10:1 20 27.6 Manley HD Skirt 2618 NC -6,5 NC NC
JE-361281 84.5 10.5:1 20 27.6 JE FSR NC 2618 FSR -3.7 NC NC
DIA-83071-10 84.5 12.5:1 20 27.6 Diamond Skirt 2618 NC 6.8 NC 9573326.0
JE-361280 85.0 9:1 20 27.6 JE FSR NC 2618 FSR -14.6 NC NC
JE-361282 85.0 10.5:1 20 27.6 JE FSR NC 2618 FSR -4.7 NC NC


Compatibility (engine codes):

  • Audi S6 C6 : BXA
  • Audi S8 D3 : BSM
  • Audi R8 Type 42 : CTYA (525 hp), CTPA (550 hp), CMPA (GT 560 hp)
  • Audi R8 Type 4S : DKA (V10 plus), CSPA/CSPB (depending on versions)
  • Lamborghini Gallardo : LP560‑4/LP550‑2/LP570‑4 (V10 5.2 FSI)
  • Lamborghini Huracán : LP610‑4 / LP580‑2 / LP640‑4 (toutes variants 5.2 FSI)


Original vehicles equipped with the V10 5.2 FSI :

BrandModelEngine codePowerYears
Audi R8 Type 42 5.2 FSI CTYA 525 hp 2009 – 2012
Audi R8 Type 42 5.2 FSI GT/plus CTPA/CMPA 550–560 hp 2010 – 2015
Audi R8 Type 4S V10 / V10 plus DKA/CSPA/CSPB 540–610 hp 2015 – 2023
Audi S6 C6 5.2 FSI quattro BXA 435 hp 2006 – 2011
Audi S8 D3 5.2 FSI quattro BSM 450 hp 2006 – 2010
Lamborghini Gallardo LP560‑4 / LP550‑2 / LP570‑4 — 560–570 hp 2008 – 2013
Lamborghini Huracán LP610‑4 / LP580‑2 / LP640‑4 — 580–640 hp 2014 – 2024


OEM piston references :

  • Audi R8 5.2 FSI (Type 42, 2010–2015) : 079 107 065 CS / 079 107 066 CS ; 07L 107 065 AC / 07L 107 066 AC.
  • Audi R8 5.2 FSI (Type 4S, 2015–2023) : 07L 107 065 AG (depending on versions).
  • Audi S6/S8 5.2 FSI : 079 107 065 AS (and remplacements).
  • Lamborghini Gallardo/Huracán 5.2 FSI : pistons equivalents Audi 07L 107 065 xx / 079 107 065 xx depending on model year.

Warning: Before installation, please verify the integrity and conformity of each component of the piston kit as well as the correctness of the assembly in the engine; any warranty is strictly limited to the parts included in the piston kit.

Forged pistons V10 5.2 FSI Audi/Lamborghini : rings included, bores OEM/oversize, pin 20 mm, CH 27,60 mm. Compatibility S6/S8, R8 (Type 42 & 4S), Gallardo, Huracán.
