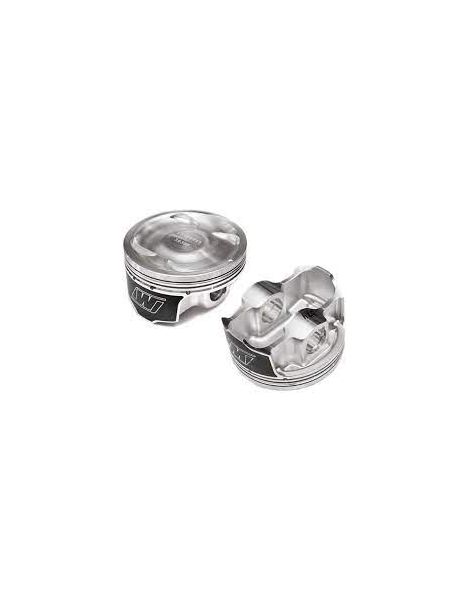

Reduced price! Pistons forgés VAG Polo 6N Ibiza 6K AFH View larger

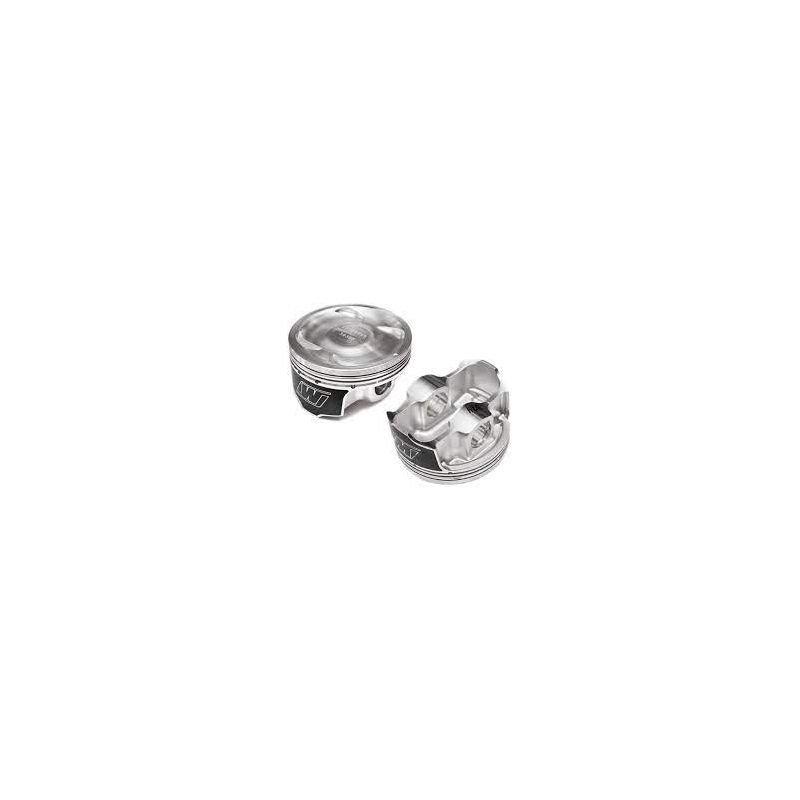

Forged pistons 1.4L 16v AFH VW

New product

JE forged pistons for VW 1.4 16v AFH: Bores 76.7 77.0 mm, Pin 17 mm, CH 28.8 mm, Dome 6.8 cc, CR OEM

More details

860,13 € tax incl.

-25%

1 146,84 € tax incl.

ORDER TODAY, WE SHIP IN 5 - 15 DAYS

  • Specifications of the forged pistons offered by NSB Concept for VW 1.4 L 16 V AFH :

    ReferenceOEM Bore
    76,50 mm    		OEM CR 10,5 :1OEM Pin
    17 mm    		Height OEM Pin
    28,80 mm    		RangeCoatingAluminiumForgingDomeWeightRings
    JE-325709C*476.710.5:11728.8JENCNCNC-6.8NCNC
    JE-354482C*477.010.5:11728.8JENCNCNC-6.8NCNC


    Compatibility (engine codes):

    • VW / SEAT — AFH (1.4L 16v DOHC, EA111)


    Original vehicles equipped with the 1.4 16V AFH :

    BrandModelEngine codePowerYears
    VolkswagenPolo III (6N/6KV) 1.4 16VAFH100 hp1996 – 1999
    SEATIbiza II (6K) 1.4 16VAFH101 hp1997 – 1999
    SEATCordoba I (6K) 1.4 16VAFH101 hp1997 – 1999


    OEM piston references :

    • 036 107 065 AM — STD piston 76,50 mm (VW/Seat/Skoda) — applications AFH depending on model years.
    • 036 107 065 AT — piston oversize +0,50 mm (77,00 mm).

    Warning: Before installation, please verify the integrity and conformity of each component of the piston kit as well as the correctness of the assembly in the engine; any warranty is strictly limited to the parts included in the piston kit.
