3.6L 24v - R36
Manufacturers
3.6L 24v - R36
Warning: Last items in stock!
New product

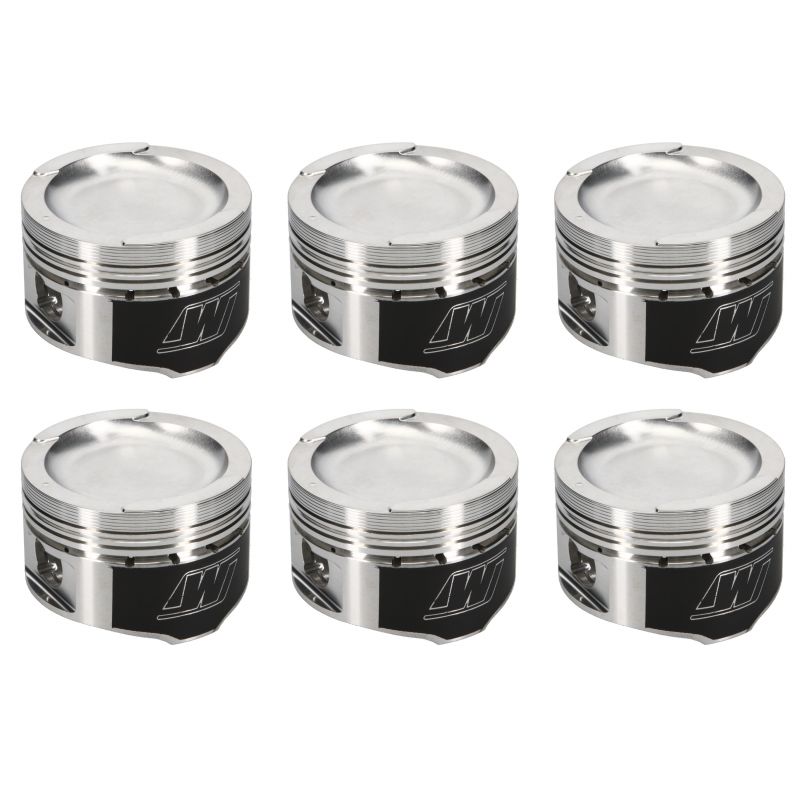

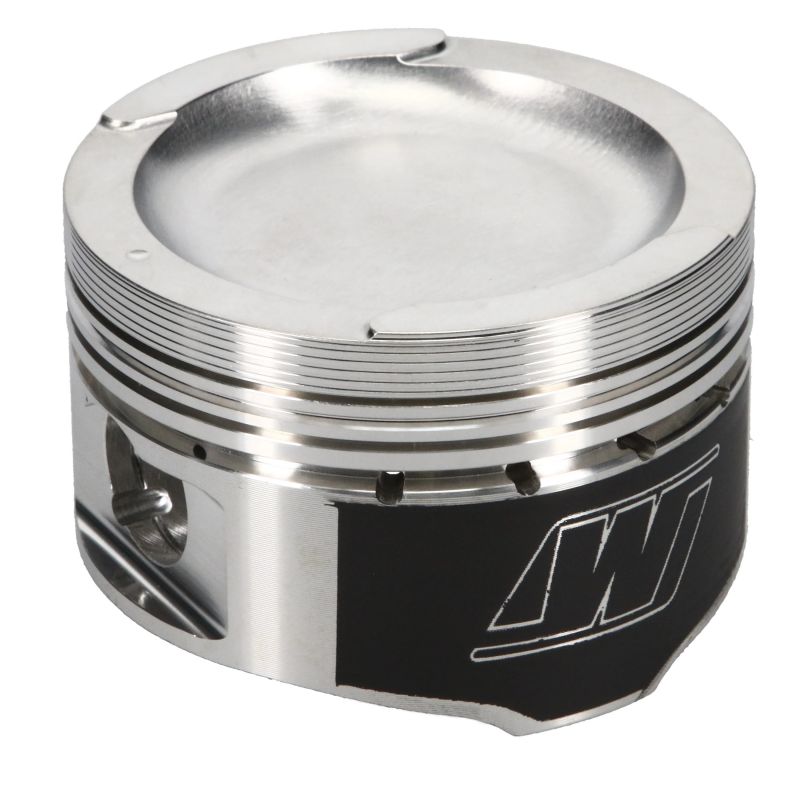

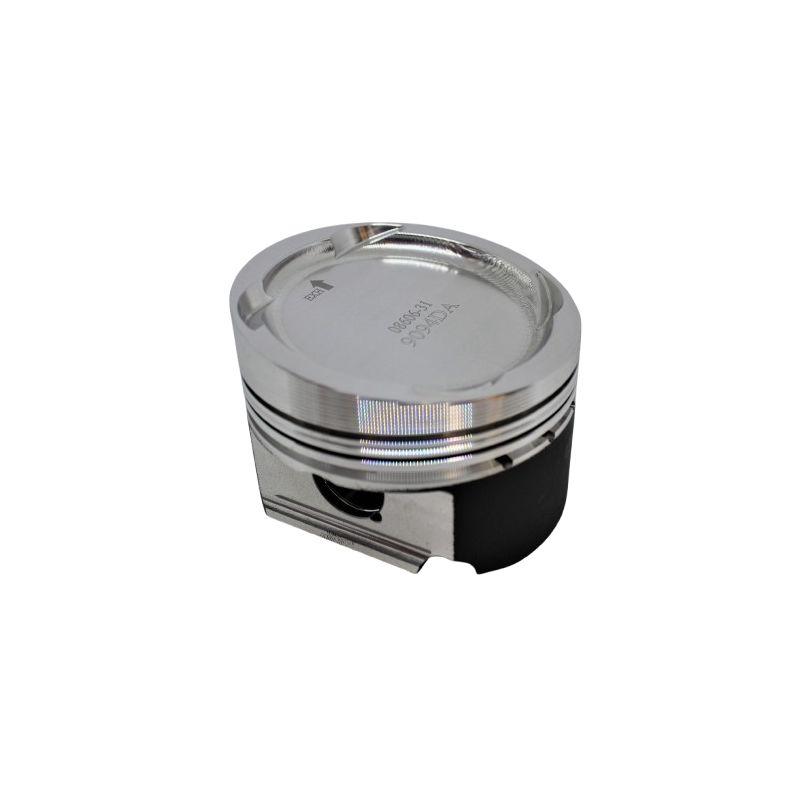

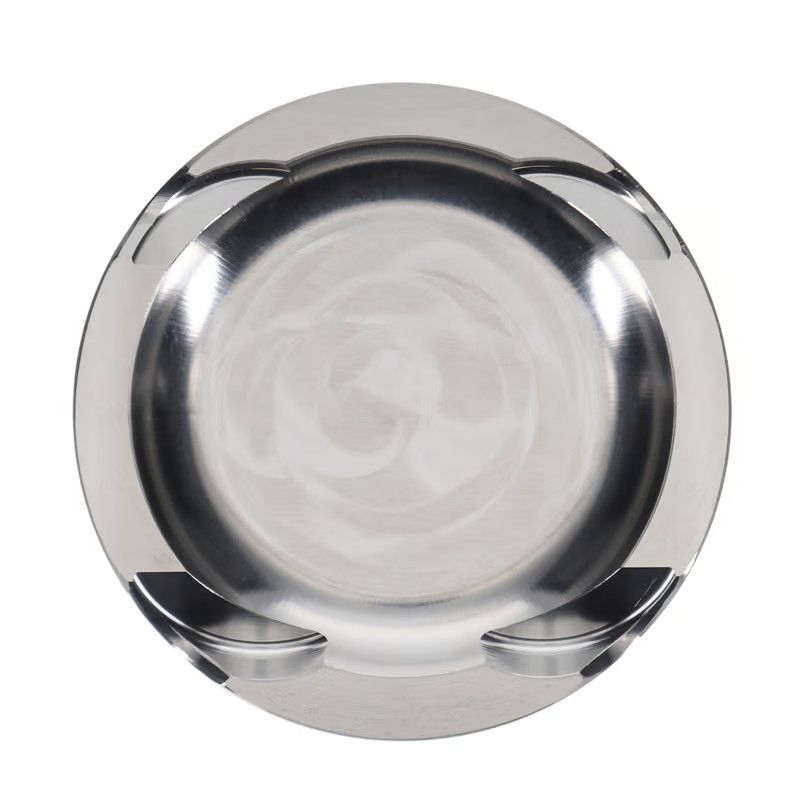

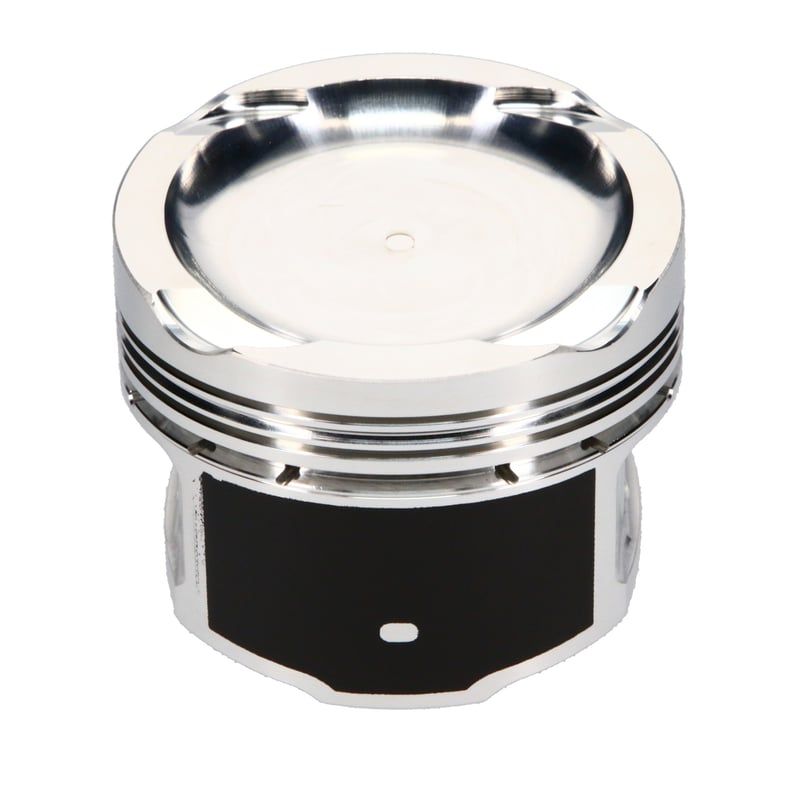

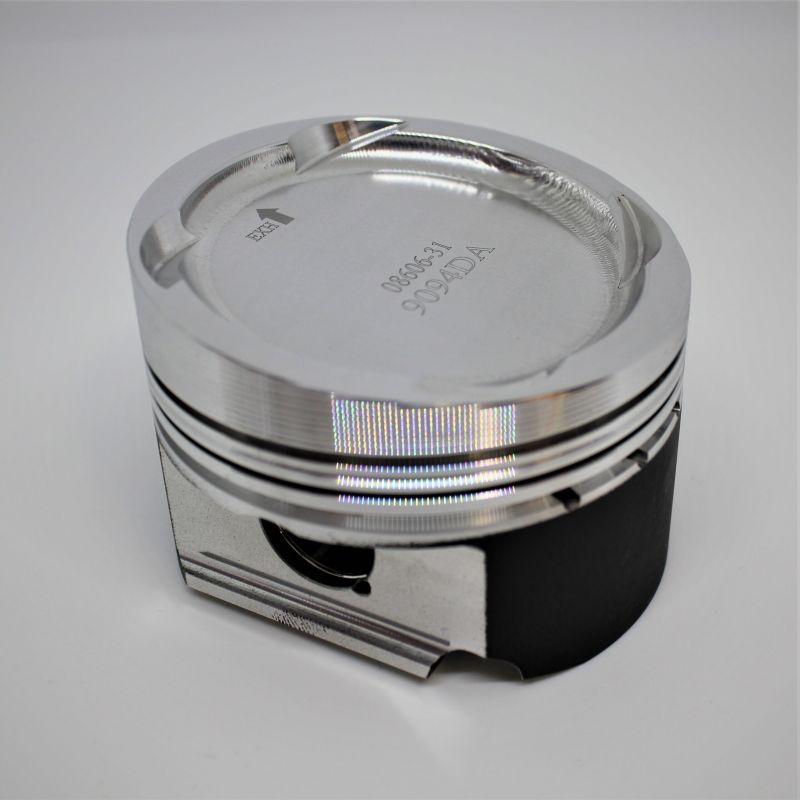

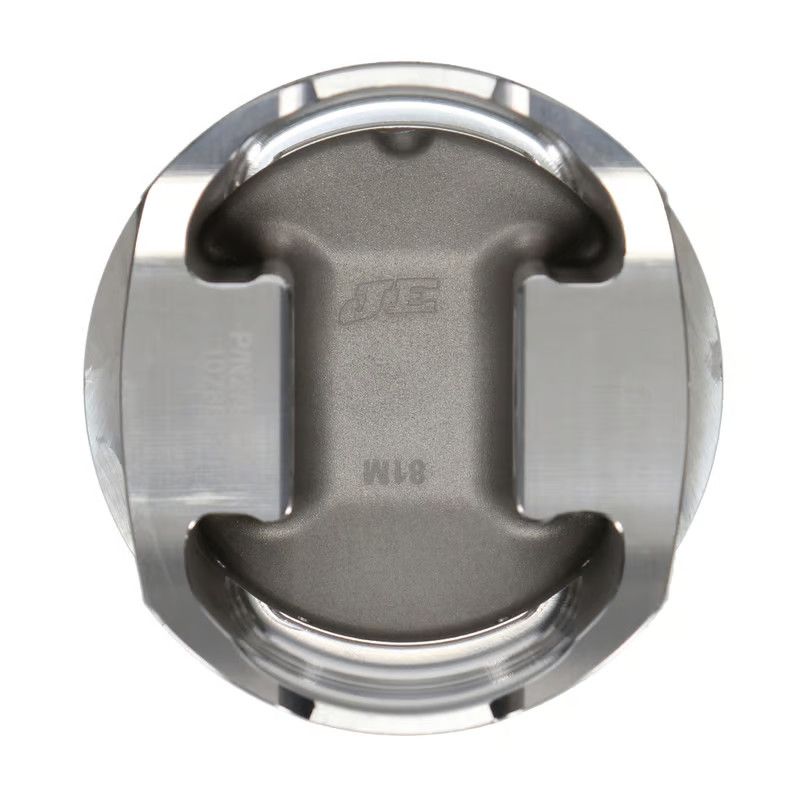

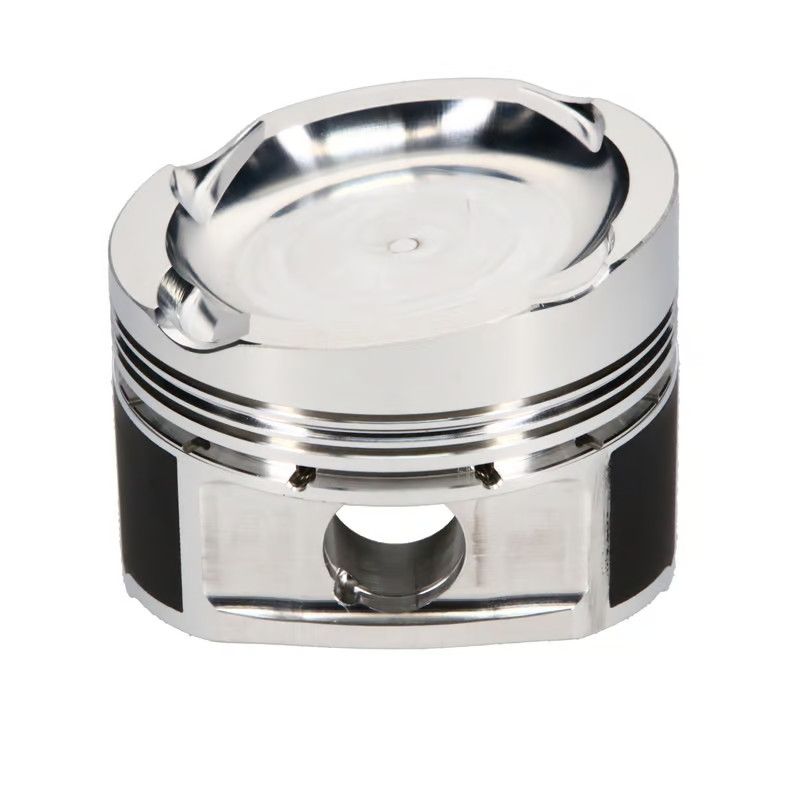

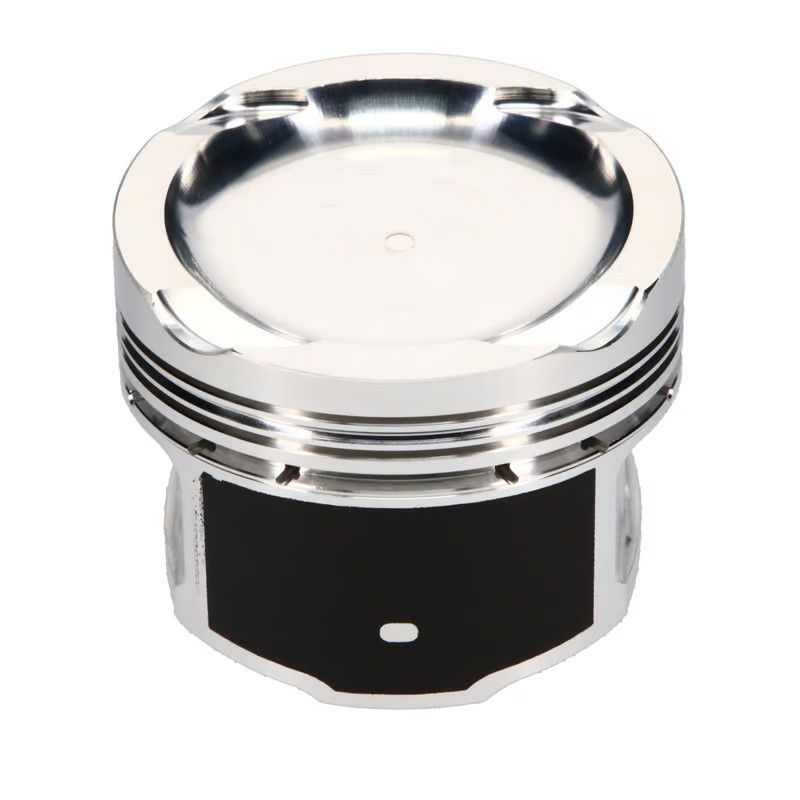

Forged pistons 3.6 VR6 FSI R36 (EA390), Bores 89.0 90.0 mm, Pin 20 mm. compatible Passat R36, CC 3.6, Touareg, Q7, Phaeton, Superb, Eos. Rings according to reference.
Specifications of the forged pistons offered by NSB Concept for Volkswagen / Audi 3.6 L 24 V VR6 FSI (R36 / EA390) :
| Reference | OEM Bore 89,00 mm | OEM CR 11,4 :1 | OEM Pin 20 mm | Height OEM Pin 31,05 mm | Range | Coating | Aluminium | Forging | Dome | Weight | Rings |
|---|---|---|---|---|---|---|---|---|---|---|---|
| JE-386123C*6 | 89.0 | 8.5:1 | 20 | 32.54 | JE | NC | NC | NC | -27.0 cc | 379 | JG1001-3504 |
| JE-318328C*6 | 89.0 | 9:1 | 20 | 32.54 | JE | NC | NC | NC | -21.2 cc | 385 | JG1001-3504 |
| JE-383890C*6 | 89.5 | 8.5:1 | 20 | 32.54 | JE | NC | NC | NC | -28.3 cc | 386 | JG1001-3524 |
| JE-379899C*6 | 89.5 | 9:1 | 20 | 32.54 | JE | NC | NC | NC | -23.2 cc | 391 | JG1001-3524 |
| JE-388041C*6 | 89.5 | 11.5:1 | 20 | 32.54 | JE | NC | NC | NC | -5.0 cc | 403 | JG1001-3524 |
| JE-377621C*6 | 89.5 | 11.8:1 | 20 | 32.54 | JE | NC | NC | NC | -3.8 cc | 402 | JG1001-3524 |
| JE-329111C*6 | 90.0 | 8.5:1 | 20 | 32.54 | JE | NC | NC | NC | -28.8 cc | 380 | JG1001-3544 |
| JE-346991C*6 | 90.0 | 11.8:1 | 20 | 32.54 | JE | NC | NC | NC | -5.0 cc | 402 | JG1001-3544 |
Compatibility (engine codes):
Original vehicles equipped with the 3.6 VR6 FSI (EA390) :
| Brand | Model | Engine code | Power | Years |
|---|---|---|---|---|
| Audi | Q7 3.6 FSI quattro (Typ 4L) | BHK | 280 hp | 2006 – 2010 |
| Skoda | Superb II 3.6 FSI 4x4 | CDVA | 260 hp | 2008 – 2013 |
| Volkswagen | CC 3.6 VR6 4Motion (NA) | CNNA | 299 hp | 2012 – 2017 |
| Volkswagen | Eos 3.6 FSI | CDVA | 260 hp | 2009 – 2011 |
| Volkswagen | Passat B6 3.6 FSI | BLV | 280 hp | 2005 – 2010 |
| Volkswagen | Passat B6 R36 (berline/break) | BWS | 300 hp | 2008 – 2010 |
| Volkswagen | Passat CC 3.6 VR6 4Motion | BLV | 280 hp | 2008 – 2012 |
| Volkswagen | Phaandon 3.6 V6 FSI 4Motion | CHNA / CMVA | 280 hp | 2008 – 2016 |
| Volkswagen | Touareg 3.6 V6 FSI | CGRA / CMTA | 280 hp | 2010 – 2018 |
OEM piston references :
03H 107 065 N, 03H 107 065 AR (depending on cylindre/update) ; rings 03H 198 151 C/G (depending on model year and application CC/Passat/Touareg/Q7/Phaandon).Warning: Before installation, please verify the integrity and conformity of each component of the piston kit as well as the correctness of the assembly in the engine; any warranty is strictly limited to the parts included in the piston kit.
