2.4L 16v - 2RZ-FE
Manufacturers
2.4L 16v - 2RZ-FE
Warning: Last items in stock!
New product
2RZ-FE/3RZ-FE forged pistons: Table O95-96, Volume ratio 8.8:1, Pin 24, CH 35.5, alloy 2618 (Wiseco). COMPatibilities & vehicles, with Pistons OEM Toyota references.

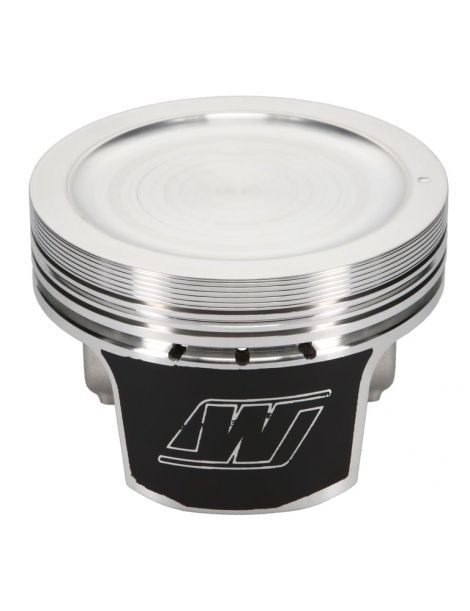

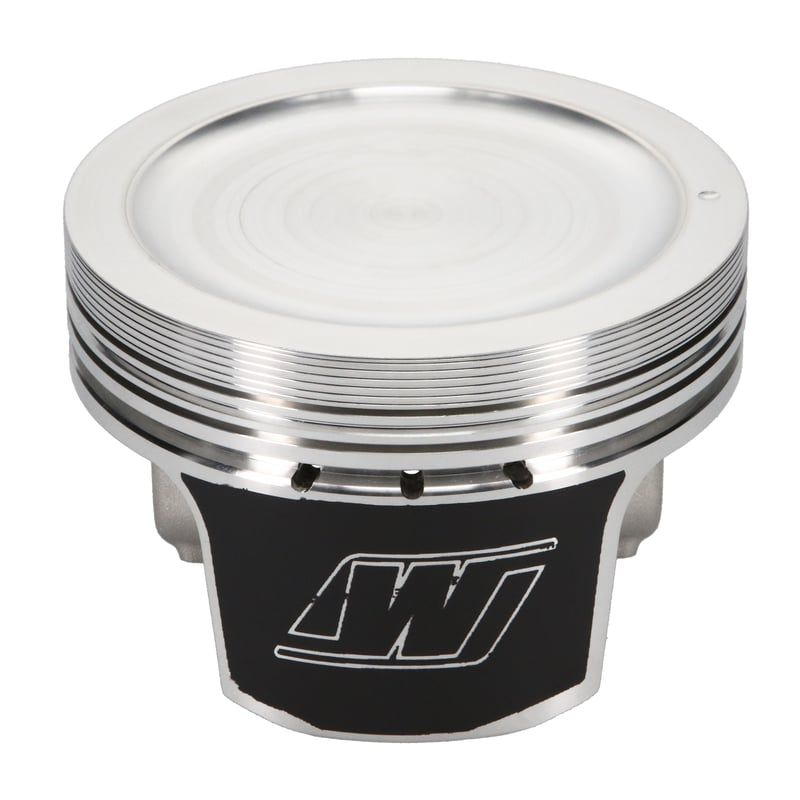

Characteristics of the forged pistons offered by NSB Concept for Toyota 2RZ-FE (2.4 L) & 3RZ-FE (2.7 L):
| Reference | Bore | VR | Axis | Axis Height | Range | Treatment | Aluminum | Forging | Dome | Weight | Segments |
|---|---|---|---|---|---|---|---|---|---|---|---|
| WK642M95 | 95.0 | 8.8:1 | 24 | 35.5 | Wiseco | Skirt | 2618 | N/A | -10.0 | N/A | 9500XX |
| WK642M955 | 95.5 | 8.8:1 | 24 | 35.5 | Wiseco | Skirt | 2618 | N/A | -10.0 | N/A | 9550XX |
| WK642M96 | 96.0 | 8.8:1 | 24 | 35.5 | Wiseco | Skirt | 2618 | N/A | -10.0 | N/A | 9600XX |
Compatibilities (engine codes):
2RZ-FE 2.4L DOHC 16v (95.0 x 86.0 mm; RV 9.5: 1).
3RZ-FE 2.7L DOHC 16v (95.0 x 95.0 mm; RV 9.5: 1).
Original vehicles equipped with 2RZ-FE / 3RZ-FE:
| Brand | Model | Engine Code | Power | Years |
|---|---|---|---|---|
| Toyota | 4Runner (3rd gen.) | 3RZ-FE | 150 hp | 1996-2000 |
| Toyota | Granvia / Touring Hiace | 3RZ-FE | ‚??150 hp | 1995-2002 |
| Toyota | HiAce (H100/H200) | 3RZ-FE | ‚??150 hp | 1990-2004 |
| Toyota | Hilux (N140/N150) | 3RZ-FE | ‚??150 hp | 1995-2004 |
| Toyota | Land Cruiser Prado (J90) | 3RZ-FE | ‚??150 hp | 1996-2004 |
| Toyota | T100 (N50/N60) | 3RZ-FE | 150 hp | 1994-1998 |
| Toyota | Tacoma 4x2 (1st gen.) | 2RZ-FE | 142 hp | 1995-2004 |
| Toyota | Tacoma (1st gen.) | 3RZ-FE | 150 hp | 1995-2004 |
Piston manufacturer references (OEM):
2RZ-FE (Tacoma 2.4 / Hilux, depending on markets)
: 13101-75070 (STD, depending on vintage), 13101-75020 (O/S +0.50).
3RZ-FE (Tacoma 2.7 / 4Runner / T100 / Hilux?)
: 13101-75040 (STD), 13101-75041 (O/S +0.50).
Warning:
before any assembly, please check the integrity and conformity of each component of the piston kit as well as the conformity of the assembly in the engine; any possible warranty is strictly limited to the parts of the piston kit only.
