1.6L 8v - 159A3
Manufacturers
1.6L 8v - 159A3
Warning: Last items in stock!
New product

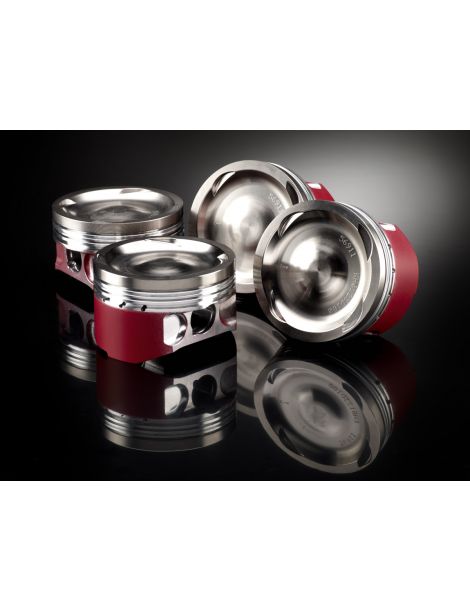

Forged pistons for Fiat 1.8L 8v 159A3 with 79mm stroke crankshaft: bore 82,0 mm, CR 9,0:1.
Specifications of the forged pistons offered by NSB Concept for engines Fiat 1.6 L 8 v 159A3 :
| Reference | Bore (mm) | CR | pin (mm) | Height pin (mm) | Range | Coating | Aluminium | Forging | Dome volume (cc) | Weight | Rings |
|---|---|---|---|---|---|---|---|---|---|---|---|
| JE-312394 | 86.40 | 9.2:1 | 22 | 33.30 | JE FSR | NC | 2618 | FSR | -4.40 | 322 | NC |
| K9049DA | 86.40 | 9.2:1 | 22 | 33.30 | Wössner | NC | NC | Round | -4.77 | NC | 865XPY |
| JE-312395 | 87.00 | 9.2:1 | 22 | 33.30 | JE FSR | NC | 2618 | FSR | -4.40 | 328 | NC |
| K9049D060 | 87.00 | 9.3:1 | 22 | 33.30 | Wössner | NC | NC | Round | -4.77 | NC | 870XPY |
| JE-312396 | 87.50 | 9.2:1 | 22 | 33.30 | JE FSR | NC | 2618 | FSR | -4.40 | 332 | NC |
| K9049D110 | 87.50 | 9.4:1 | 22 | 33.30 | Wössner | NC | NC | Round | -4.77 | NC | 875XPY |
Compatibility :
Original vehicles equipped with the engine 1.6 L 8 v 159A3 :
| Brand | Model | Type engine | Power | Years |
|---|---|---|---|---|
| Fiat | Tempra 159 | 159A3.000 | 90 – 100 hp | 1990 – 1996 |
| Fiat | Tipo 160 | 159A3.000 / .046 | 84 – 90 hp | 1988 – 1995 |
references piston manufacturer (OEM):
Warning: Before installation, please verify the integrity and conformity of each component of the piston kit as well as the correctness of the assembly in the engine; any warranty is strictly limited to the parts included in the piston kit.
