1.6L 8v - XU5JA
Manufacturers
1.6L 8v - XU5JA
Warning: Last items in stock!
New product
XU5JA 1.6 8v forged pistons: sorted table (bore, RV, axle, weight), compatibilities, original vehicles and OEM PSA piston references for 205 GTI/CTI, 309 SRi, Visa GTI, BX 16 GTi.

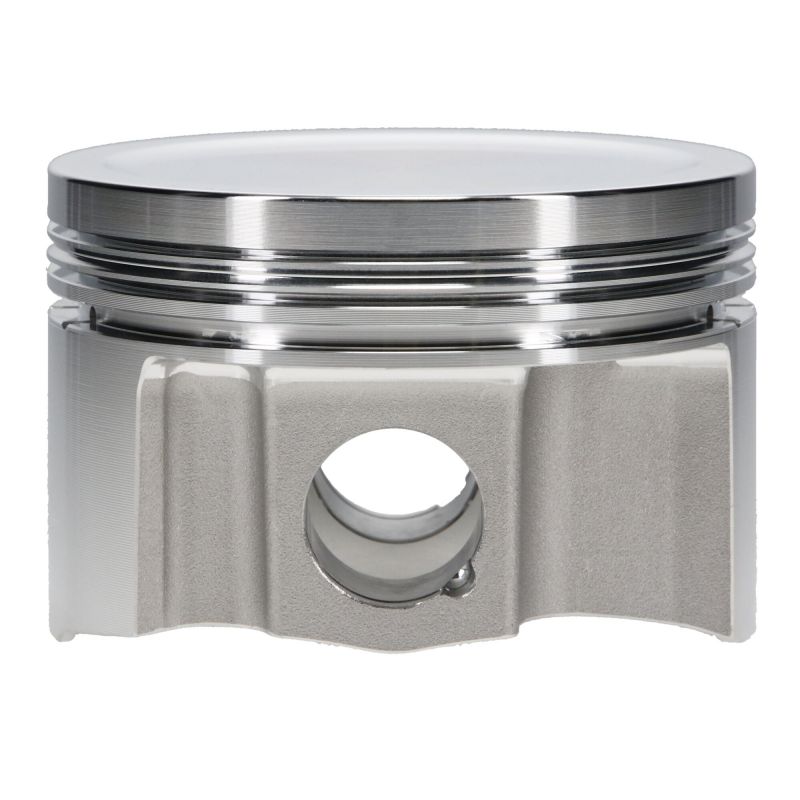

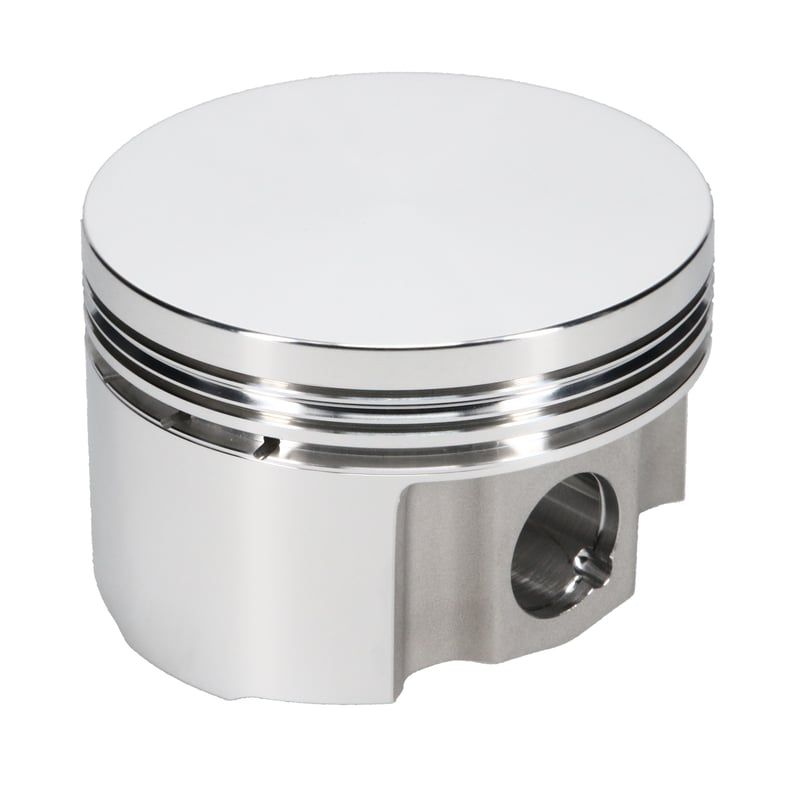

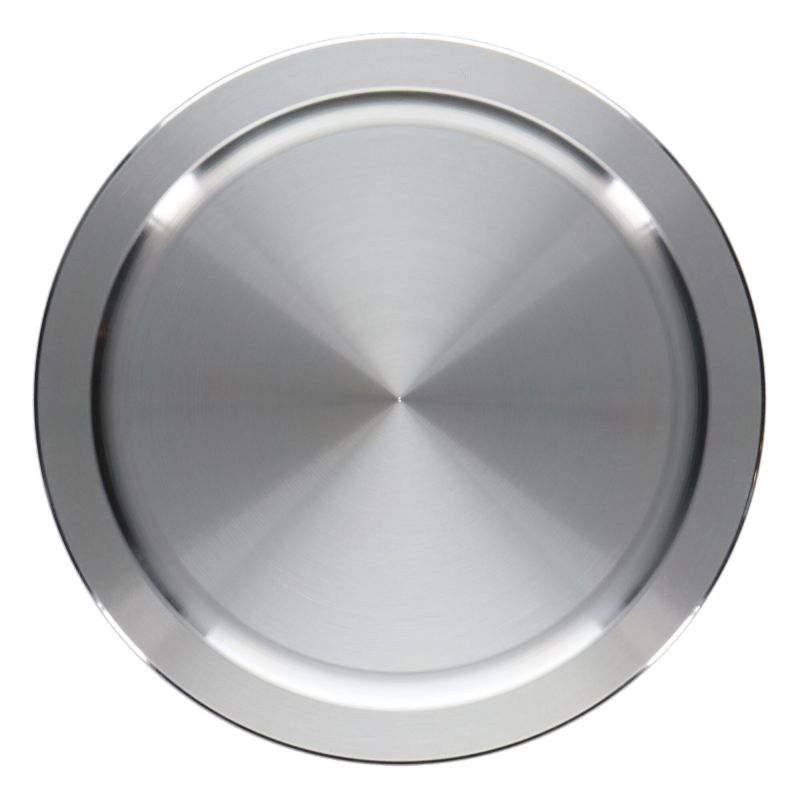

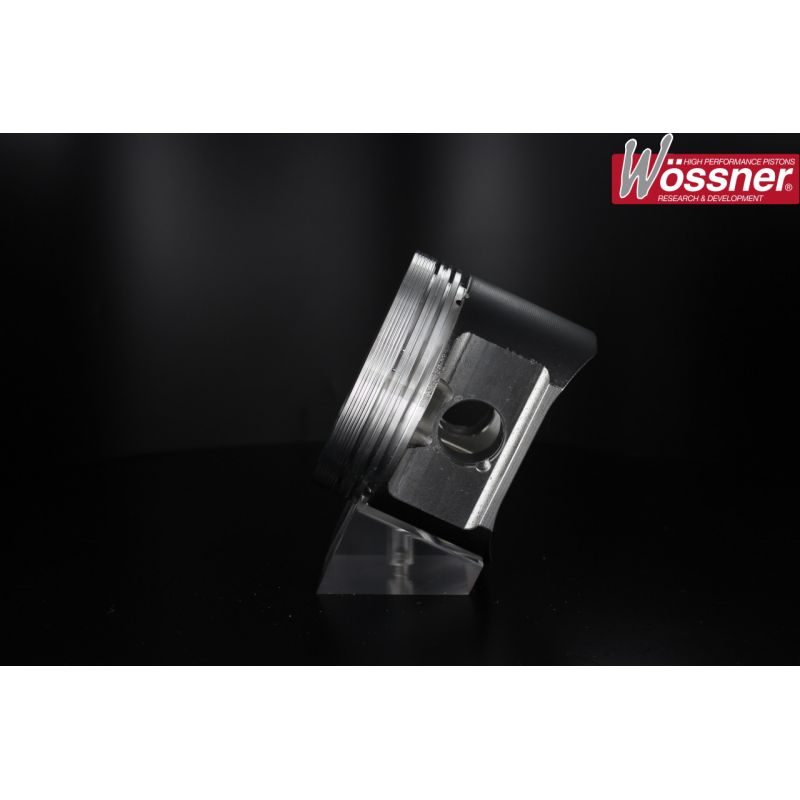

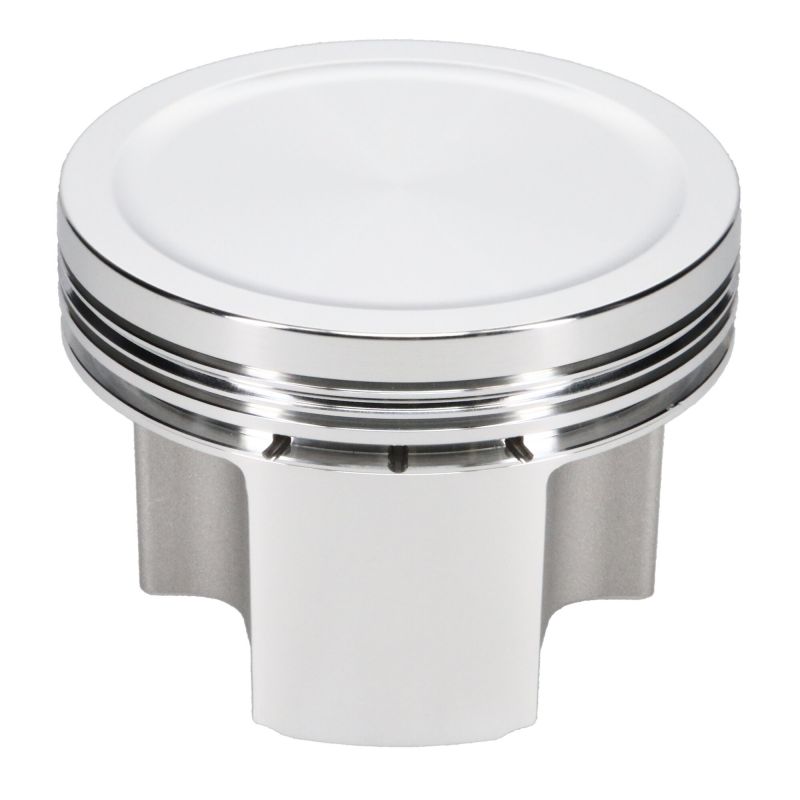

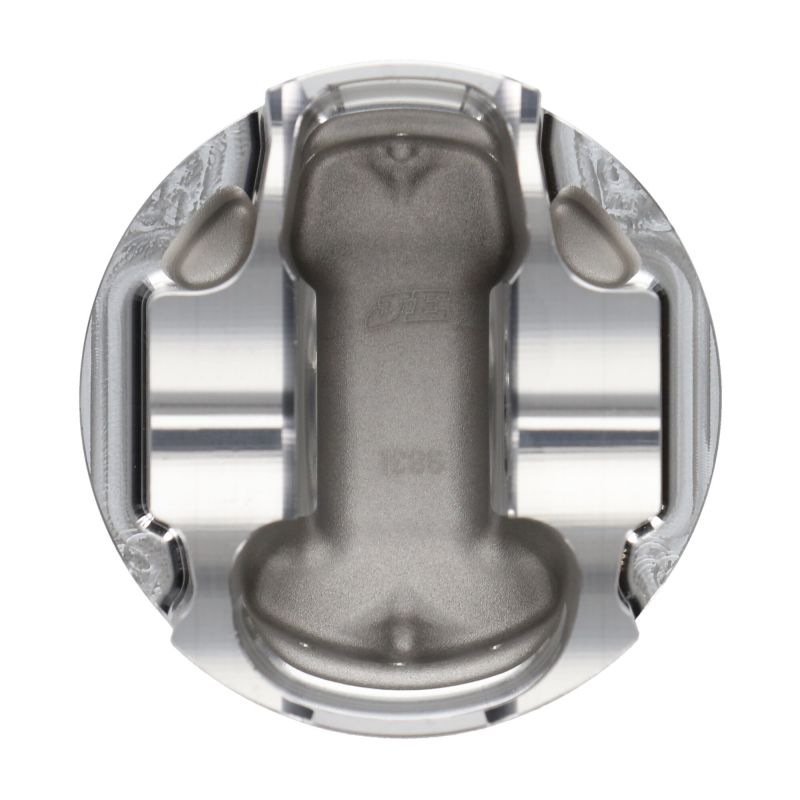

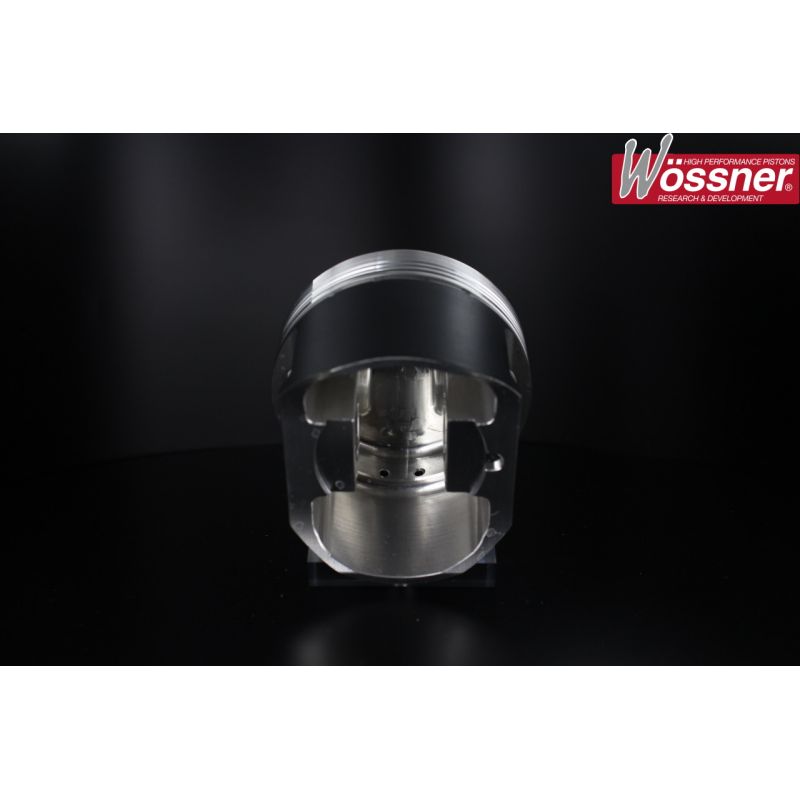

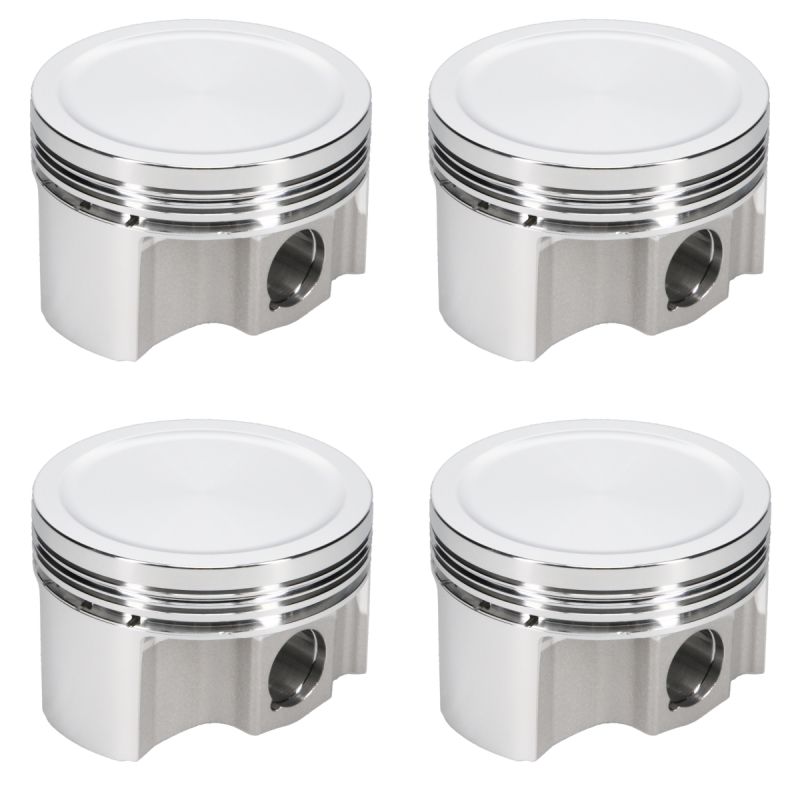

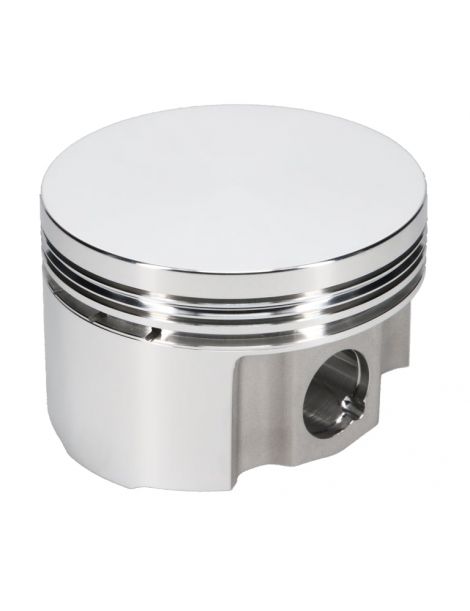

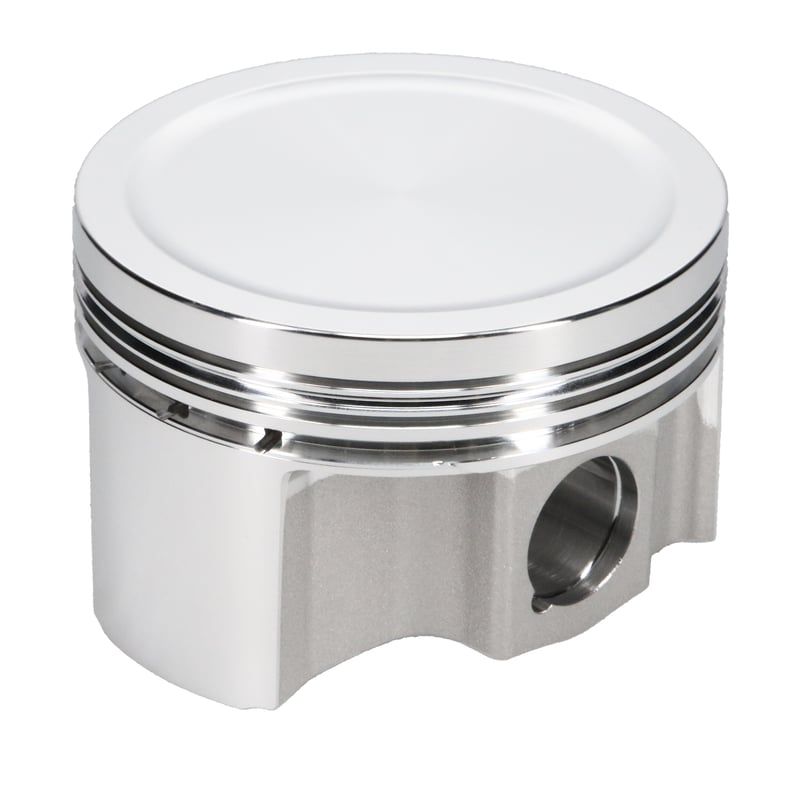

Characteristics of the forged pistons offered by NSB Concept for 1.6L 8v - XU5JA:
| Reference(Click) | Bore | VR | Pin | Axis Height | Range | Treatment | Aluminum | Forging | Dome | Weight | Segments |
|---|---|---|---|---|---|---|---|---|---|---|---|
| JE-312432 | 83.0 | 11.5:1 | 20 | 37.0 | JE FSR | N/A | 2618.0 | FSR | -3.7 | 319.0 | N/A |

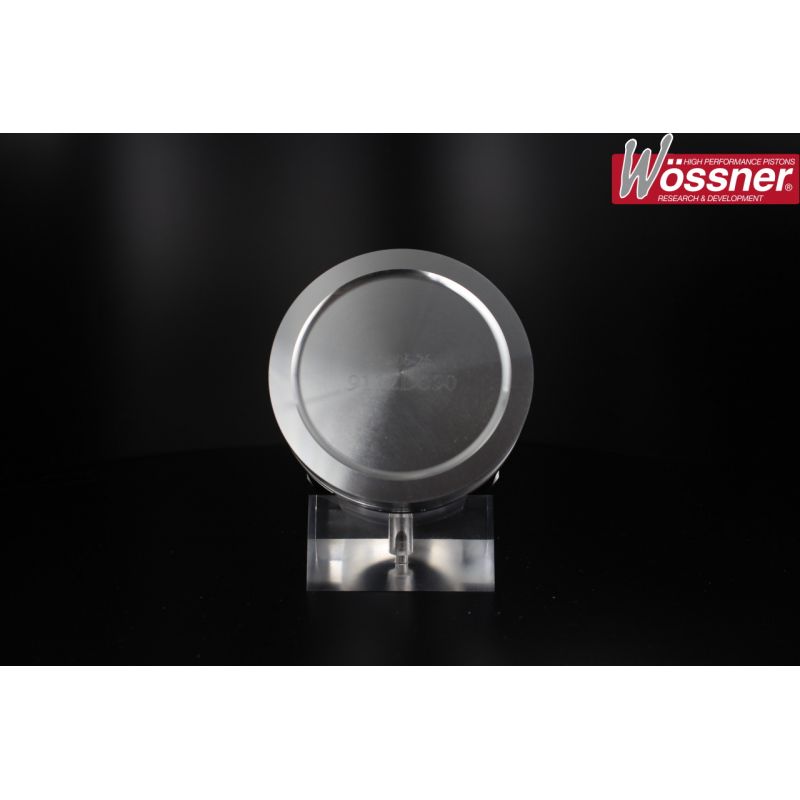

| K9113DA*4 | 83.0 | 11.5:1 | 20 | 32.0 | Wossner | N/A | N/A | Round | 6.89 | N/A | 830XSY |
| JE-312435 | 83.0 | 12:1 | 20 | 38.25 | JE FSR | N/A | 2618.0 | FSR | 0 FT | 335.0 | N/A |

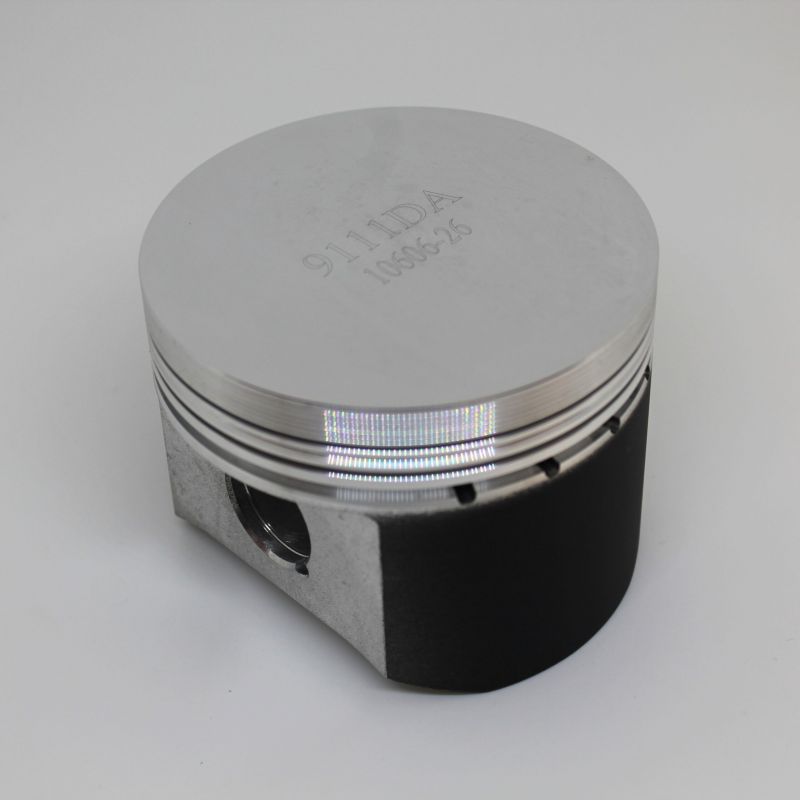

| K9111DA | 83.0 | 12:1 | 20 | 38.2 | Wossner | N/A | N/A | Round | 0 | N/A | 830XSY |
| K9112DA | 83.0 | 12.5:1 | 20 | 37.0 | Wossner | N/A | N/A | Round | -0.5 | N/A | 830XSY |
| JE-312433 | 83.5 | 11.5:1 | 20 | 37.0 | JE FSR | N/A | 2618.0 | FSR | -3.7 | 324.0 | N/A |
| K9113D050 | 83.5 | 11.6:1 | 20 | 32.0 | Wossner | N/A | N/A | Round | 6.89 | N/A | 835XSY |
| JE-312436 | 83.5 | 12:1 | 20 | 38.25 | JE FSR | N/A | 2618.0 | FSR | 0 FT | 339.0 | N/A |
| K9111D050 | 83.5 | 12.1:1 | 20 | 38.2 | Wossner | N/A | N/A | Round | 0 | N/A | 835XSY |
| K9112D050 | 83.5 | 12.6:1 | 20 | 37.0 | Wossner | N/A | N/A | Round | -0.5 | N/A | 835XSY |
| JE-312434 | 84.0 | 11.5:1 | 20 | 37.0 | JE FSR | N/A | 2618.0 | FSR | -3.7 | 327.0 | N/A |
| K9113D100 | 84.0 | 11.8:1 | 20 | 32.0 | Wossner | N/A | N/A | Round | 6.89 | N/A | 840XSY |
| JE-312437 | 84.0 | 12:1 | 20 | 38.25 | JE FSR | N/A | 2618.0 | FSR | 0 FT | 343.0 | N/A |
| K9111D100 | 84.0 | 12.3:1 | 20 | 38.2 | Wossner | N/A | N/A | Round | 0 | N/A | 840XSY |
| K9112D100 | 84.0 | 12.8:1 | 20 | 37.0 | Wossner | N/A | N/A | Round | -0.5 | N/A | 840XSY |
Compatibilities (engine codes):
XU5JA 1.6L 8V injection (115 hp) PSA XU5 family
Original vehicles equipped with the XU5JA 1.6 8v:
| Brand | Model | Engine Code | Power | Years |
|---|---|---|---|---|
| Citroen | BX 16 GTi (export) | XU5JA | 113 hp | 1989 1992 |
| Citroen | Visa GTI | XU5JA | 115 hp | 1986 1988 |
| Peugeot | 205 CTI 1.6 | XU5JA | 115 hp | 1986 1992 |
| Peugeot | 205 GTI 1.6 | XU5JA | 115 hp | 1986 1992 |
| Peugeot | 309 SRi 1.6 | XU5JA | 115 hp | 1987 1989 |
Piston manufacturer references (OEM):
Peugeot 205 GTI/CTI 1.6 (XU5JA)
: piston kit + PSA liners
0114.K8
; PSA segment sets
9543.85
(following selection/rectification).
Peugeot 309 SRi 1.6 (XU5JA)
: PSA
0114.K8
(to be confirmed according to VIN/ORGA).
Citroen Visa GTI 1.6 (XU5JA)
: PSA
0114.K8
(Visa GTI 115 hp applications).
Citroen BX 16 GTi (XU5JA, export markets)
: PSA
0114.K8
(depending on variants and markets).
NB: indicative references which may vary depending on OPR/ORGA code, country and selection classes. VIN verification recommended.
Warning:
before any assembly, please check the integrity and conformity of each component of the piston kit as well as the conformity of the assembly in the engine; any possible warranty is strictly limited to the parts of the piston kit only.
