Reduced price! Pistons forgés WISECO RENAULT Clio 4 RS Megane 4 Tce M5M View larger

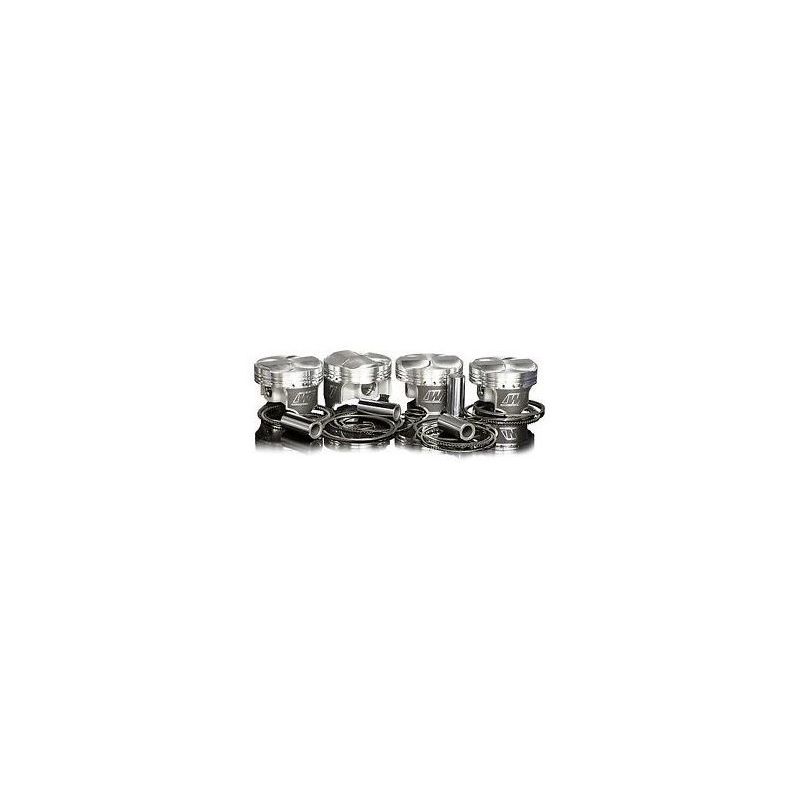

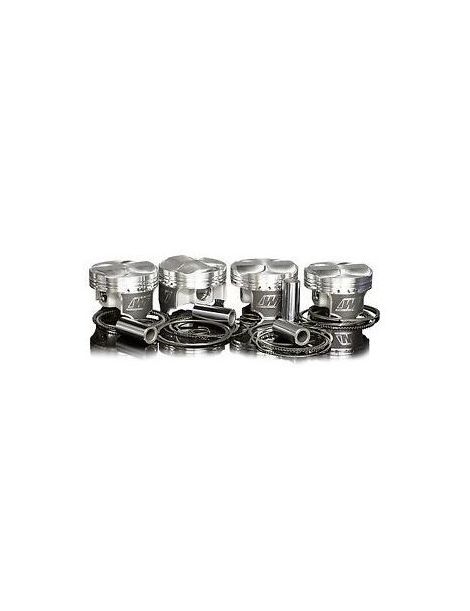

Forged Pistons 1.6L 16v M5M MR16DDT Nissan Renault

New product

Forged pistons 1.6 16v MR16DDT / Renault M5M O79.7 80, Pin 22, CH 35.60/35.35, Compression ratio 9.5:1. Table, vehicle compatibilities and references Pistons OEM.

More details

562,09 € tax incl.

-30%

802,98 € tax incl.

EXPÉDIÉ SOUS 1 À 3 SEMAINES - LIVRAISON OFFERTE DÈS 99 EUROS

  • Characteristics of the forged pistons offered by NSB Concept for Nissan/Renault 1.6 L 16 V MR16DDT (Renault M5M):

    ReferenceBore OEM
    79.70mm    		Compression ratio OEM 9.5:1Pin OEM
    22mm    		Pin Height OEM
    35.60mm    		RangeTreatmentAluminumForgingDomeWeightRings
    WKE170M79779.79.5:12235.35WisecoSkirtNCNC-7.92NCRA084-3140
    WKE170M79879.89.5:12235.35WisecoSkirtNCNC-7.92NC8000XX
    WKE170M8080.09.5:12235.35WisecoSkirtNCNC-7.92NC8000XX


    COMPatibilities (engine codes):

    • Nissan MR16DDT 1.6 DIG-T
    • Renault M5M M5M400 / M5M401 (Clio IV RS), M5MB4 (Megane IV GT), M5M450 (Talisman/Megane IV)


    Original vehicles equipped with the 1.6 Turbo MR16DDT / M5M:

    BrandModelEngine CodePowerYears
    NissanJuke (F15) 1.6 DIG-TMR16DDT190-215 hp2011-2019
    NissanPulsar (C13) 1.6 DIG-TMR16DDT190 hp2014-2018
    NissanQashqai (J11) 1.6 DIG-TMR16DDT163 hp2014-2018
    NissanX-Trail (T32) 1.6 DIG-TMR16DDT163 hp2015-2018
    NissanSentra SR Turbo / NismoMR16DDT188 hp2017-2019
    RenaultClio IV RS 200 EDCM5M401200 hp2013-2016
    RenaultClio IV RS 220 TrophyM5M401220 hp2015-2019
    RenaultMegane IV GT 205 EDCM5MB4 / M5M450205 hp2016-2018
    RenaultTalisman 1.6 TCeM5M450190-200 hp2015-2022
    RenaultKadjar 1.6 TCeM5M160 hp2017-2018
    Renault KoreaSM5/SM6 TCeM5M190-200 hp2016-2022


    REFERENCES Pistons manufacturer (OEM):

    • Nissan MR16DDT (Juke/Pulsar/Qashqai/Sentra ): Pistons OEMA2010-1KC1C(supersessions A2010-1KC1A),A2010-1KC0A supplied with Pin O22 mm; Rings OEM12033-1KC0A(depending on vintage/selection).
    • Renault M5M (Clio IV RS, Megane IV GT, Talisman): Pistons references to be confirmed via EPC Renault (VIN/reference M5M400/401/450); AlliaNCe equivaleNCes with the Nissan references above depending on markets.

    Attention:before any assembly, please check the integrity and conformity of each COMPONENT of the Pistons kit as well as the conformity of the assembly in the engine; any possible warranty is strictly limited to the parts of the Piston kit only.
