Tableau complet des pistons forgés VR38DETT (95,50–100,00 mm), RV 9,0–10,5:1, axe 23 mm, alliages 2618/4032. Compatibilités GT-R R35 & Nismo + références OEM.
Caractéristiques des pistons forgés proposés par NSB Concept pour Nissan 3.8 L 24 V VR38DETT :
| Référence | Alésage OEM 95,50 mm |
RV OEM 9,0 :1 | Axe OEM 23 mm |
Hauteur Axe OEM 30,74 mm |
Gamme | Traitement | Aluminium | Forging | Dôme | Poids | Segments |
|---|---|---|---|---|---|---|---|---|---|---|---|

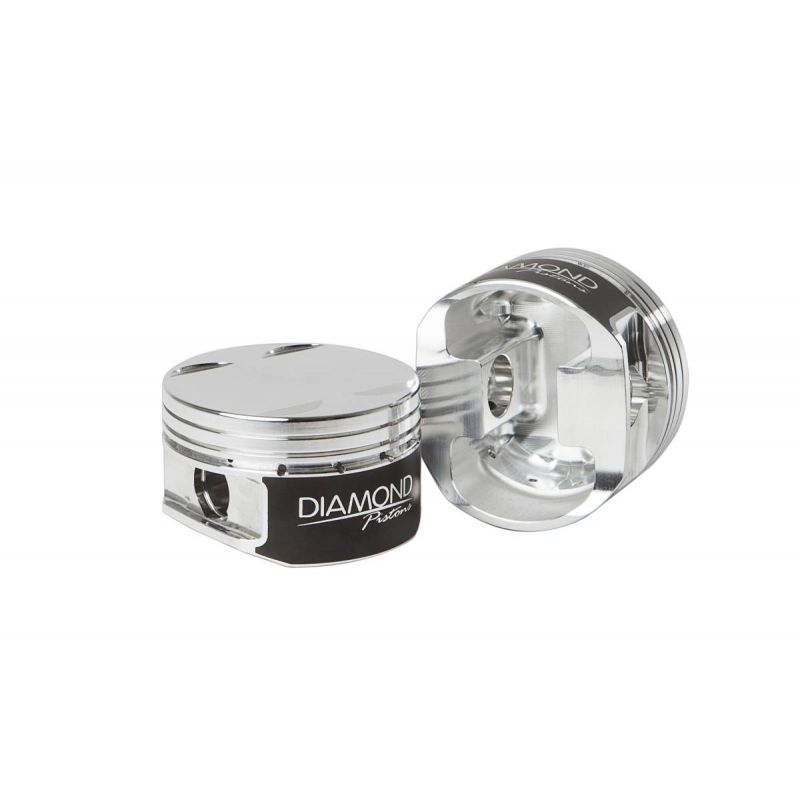

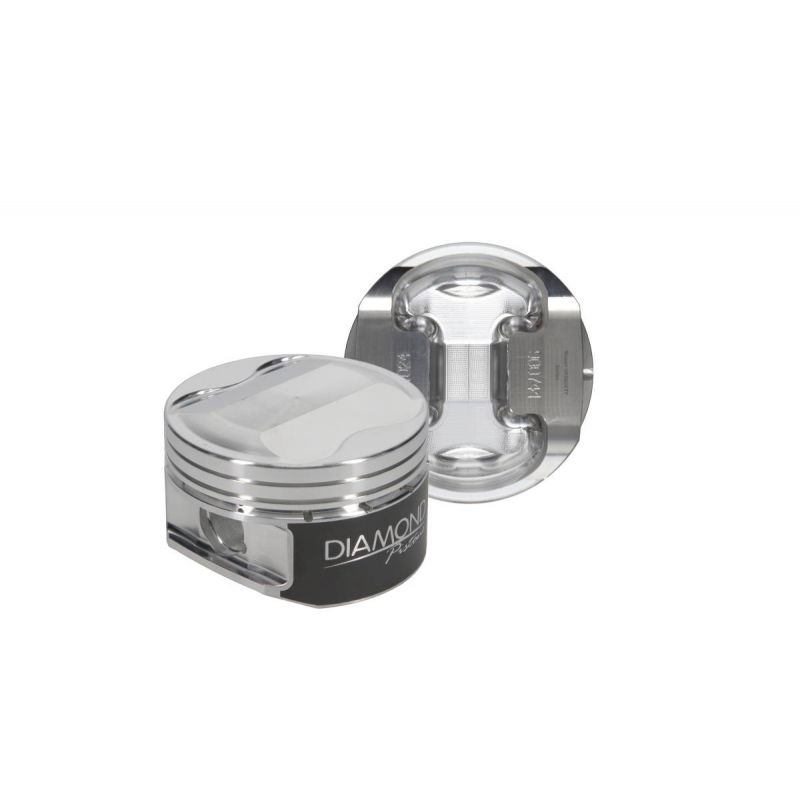

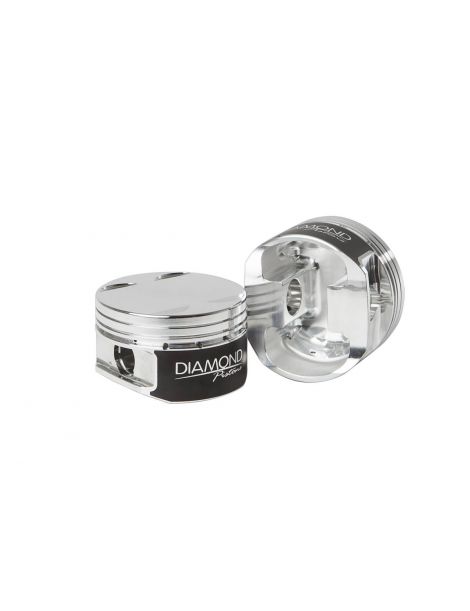

| DIA-81000-6 | 95.50 | 9:1 | 23.00 | 34.29 | Diamond | Jupe | 2618.00 | NC | -0.86 | NC | 9503760 |
| DIA-81001-6 | 95.50 | 9:1 | 23.00 | 34.29 | Diamond | Jupe | 2618.00 | NC | -0.86 | NC | 9503760 |
| DIA-81002-6 | 95.50 | 9:1 | 23.00 | 34.29 | Diamond | Jupe | 2618.00 | NC | -0.86 | NC | 9503760 |

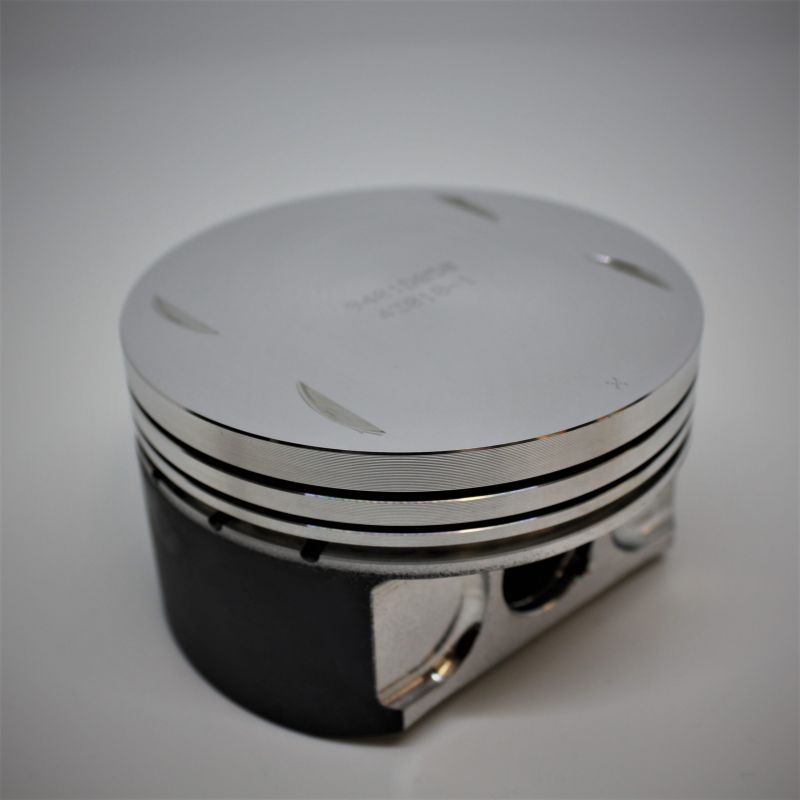

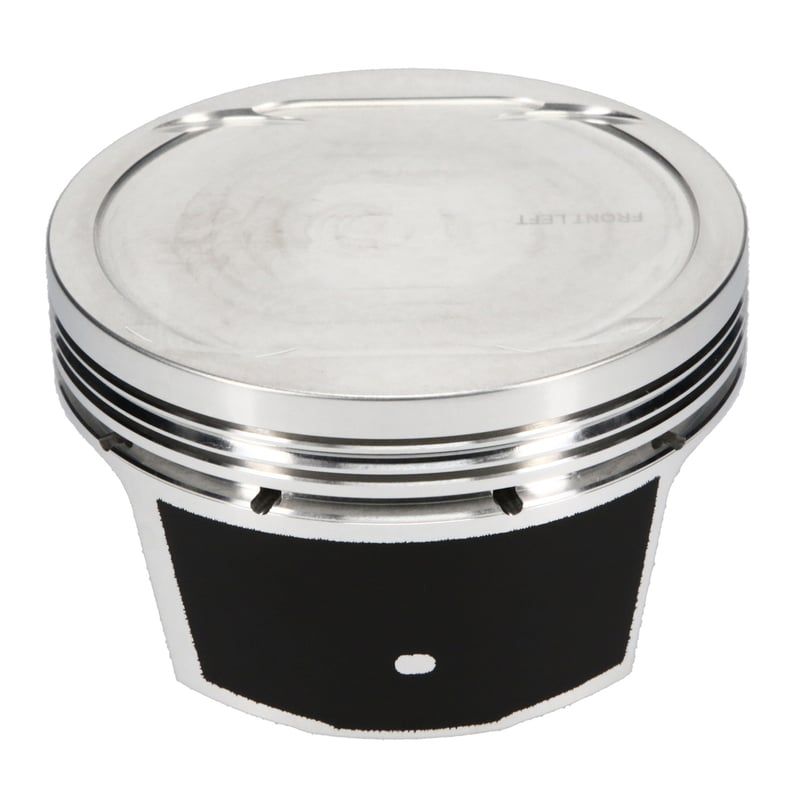

| JE-321269 | 95.50 | 9:1 | 23.00 | 34.30 | JE FSR | NC | 2618.00 | FSR | -7.2 | 411 | NC |
| JE-321271 | 95.50 | 9:1 | 23.00 | 34.30 | JE FSR | NC | 2618.00 | FSR | -12.6 | 390 | NC |
| JE-321271 | 95.50 | 9:1 | 23.00 | 34.30 | JE FSR | NC | 2618.00 | FSR | -12.6 | 390 | NC |
| K9504DA | 95.50 | 9:1 | 23.00 | 34.30 | Wossner | Jupe | 4032.00 | Round | -10.13 | NC | 955XPY |
| DIA-81007-6 | 95.50 | 9.5:1 | 23.00 | 34.29 | Diamond | Jupe | 2618.00 | NC | -0.86 | NC | 9503760 |
| DIA-81008-6 | 95.50 | 9.5:1 | 23.00 | 34.29 | Diamond | Jupe | 2618.00 | NC | -0.86 | NC | 9503760 |
| DIA-81009-6 | 95.50 | 9.5:1 | 23.00 | 34.29 | Diamond | Jupe | 2618.00 | NC | -0.86 | NC | 9503760 |
| DIA-81021-6 | 95.50 | 10:1 | 23.00 | 34.29 | Diamond | Jupe | 2618.00 | NC | 6.5 | NC | 9503760 |
| DIA-81022-6 | 95.50 | 10:1 | 23.00 | 34.29 | Diamond | Jupe | 2618.00 | NC | 6.5 | NC | 9503760 |
| DIA-81023-6 | 95.50 | 10:1 | 23.00 | 34.29 | Diamond | Jupe | 2618.00 | NC | 6.5 | NC | 9503760 |
| JE-321270 | 95.50 | 10:1 | 23.00 | 34.30 | JE FSR | NC | 2618.00 | FSR | -7.2 | 411 | NC |
| DIA-81027-6 | 95.50 | 10:1 | 23.00 | 31.24 | Diamond | Jupe | 2618.00 | NC | -6.5 | NC | 9503760 |
| DIA-81028-6 | 95.50 | 10:1 | 23.00 | 31.24 | Diamond | Jupe | 2618.00 | NC | -6.5 | NC | 9503760 |
| DIA-81029-6 | 95.50 | 10:1 | 23.00 | 31.24 | Diamond | Jupe | 2618.00 | NC | -6.5 | NC | 9503760 |
| DIA-81024-6 | 95.50 | 10.5:1 | 23.00 | 34.29 | Diamond | Jupe | 2618.00 | NC | 6.5 | NC | 9503760 |
| JE-321272 | 95.50 | 10:1 | 23.00 | 31.30 | JE FSR | NC | 2618.00 | FSR | -7.2 | 403 | NC |
| JE-321272 | 95.50 | 10:1 | 23.00 | 31.30 | JE FSR | NC | 2618.00 | FSR | -7.2 | 403 | NC |
| DIA-81025-6 | 95.50 | 10.5:1 | 23.00 | 34.29 | Diamond | Jupe | 2618.00 | NC | 6.5 | NC | 9503760 |
| DIA-81026-6 | 95.50 | 10.5:1 | 23.00 | 34.29 | Diamond | Jupe | 2618.00 | NC | 6.5 | NC | 9503760 |

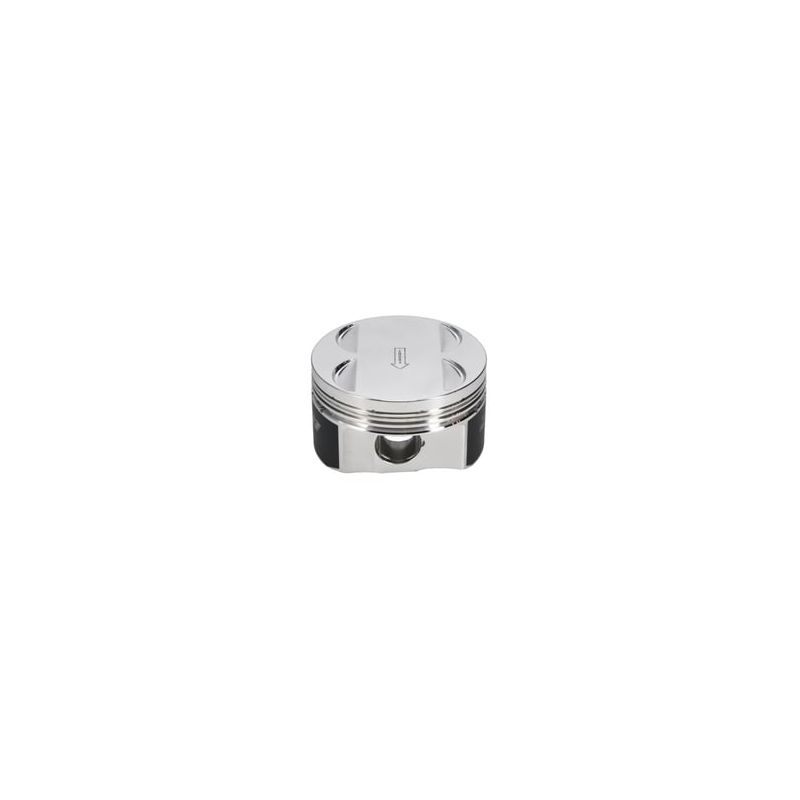

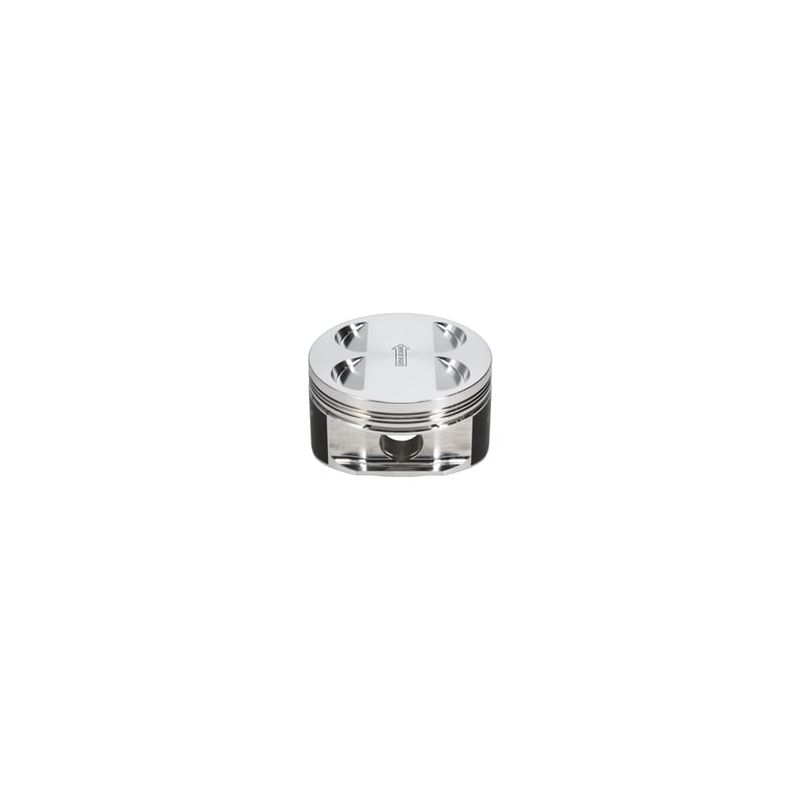

| 6693M955AP-3D | 95.50 | 10.5:1 | 23.00 | 34.30 | Wiseco | Jupe | 2618.00 | Round | 6.6 | NC | 9550XX |
| K694M955 | 95.50 | 10.5:1 | 23.00 | 30.74 | Wiseco AP | Jupe | 2618.00 | Round | -7.00 | NC | 9550XX |
| K695M955-3D | 95.50 | 10.5:1 | 23.00 | 30.74 | Wiseco AP | Jupe | 2618.00 | Round | 3.50 | NC | 9550XX |
| K695M955 | 95.50 | 10.5:1 | 23.00 | 30.74 | Wiseco AP | Jupe | 2618.00 | Round | 3.50 | NC | 9550XX |
| WK681M955AP | 95.50 | 9.5:1 | 23.00 | 34.30 | Wiseco AP | Jupe | 4032.00 | Round | -1.80 | NC | 9550XX |
| WK692M955AP | 95.50 | 9.5:1 | 23.00 | 34.30 | Wiseco AP | Jupe | 4032.00 | Round | -7.00 | NC | 9550XX |
| WK694M955AP | 95.50 | 9.5:1 | 23.00 | 30.74 | Wiseco AP | Jupe | 2618.00 | Round | -7.00 | NC | 9550XX |
| WK697M955-3D | 95.50 | 10.5:1 | 23.00 | 34.30 | Wiseco AP | Jupe | 4032.00 | Round | 2.75 | NC | 9550XX |
| WK697M955AP | 95.50 | 10.5:1 | 23.00 | 34.30 | Wiseco AP | Jupe | 4032.00 | Round | 2.75 | NC | 9550XX |
| DIA-81013-6 | 100.00 | 9.7:1 | 23.00 | 31.24 | Diamond | Jupe | 2618.00 | NC | -6.5 | NC | 9503937 |
| DIA-81006-6 | 100.00 | 9.7:1 | 23.00 | 34.29 | Diamond | Jupe | 2618.00 | NC | -0.86 | NC | 9503937 |
| DIA-81020-6 | 100.00 | 9.8:1 | 23.00 | 29.33 | Diamond | Jupe | 2618.00 | NC | -9.5 | NC | 9503937 |

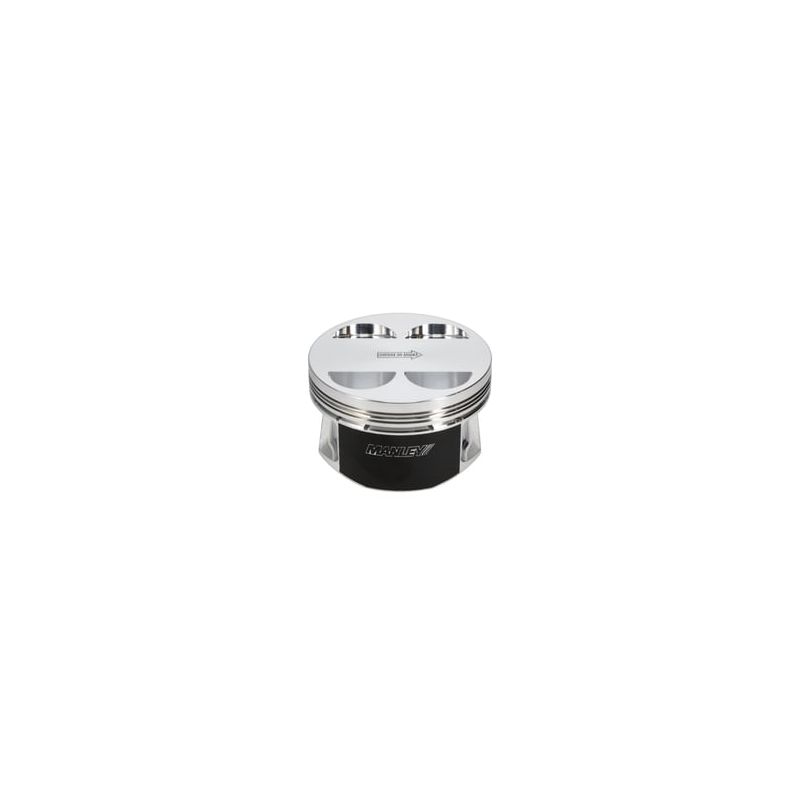

| 641000CE-6 | 98.00 | 9.8:1 | NC | 34.29 | Manley | Jupe | 2618.00 | Round | NC | NC | NC |
| DIA-81010-6 | 98.50 | 9.4:1 | 23.00 | 31.24 | Diamond | Jupe | 2618.00 | NC | -9.5 | NC | 9503878 |
| DIA-81003-6 | 98.50 | 9.5:1 | 23.00 | 34.29 | Diamond | Jupe | 2618.00 | NC | -0.86 | NC | 9503878 |
| DIA-81017-6 | 98.50 | 9.5:1 | 23.00 | 29.33 | Diamond | Jupe | 2618.00 | NC | -9.5 | NC | 9503878 |
| DIA-81011-6 | 99.00 | 9.5:1 | 23.00 | 31.24 | Diamond | Jupe | 2618.00 | NC | -9.5 | NC | 9503898 |
| DIA-81004-6 | 99.00 | 9.6:1 | 23.00 | 34.29 | Diamond | Jupe | 2618.00 | NC | -0.86 | NC | 9503898 |
| DIA-81018-6 | 99.00 | 9.6:1 | 23.00 | 29.33 | Diamond | Jupe | 2618.00 | NC | -9.5 | NC | 9503898 |
| 634010C-6 | 99.00 | 9.8:1 | NC | 34.29 | Manley | Jupe | 2618.00 | Round | NC | NC | NC |
| 634010CE-6 | 99.00 | 9.8:1 | NC | 34.29 | Manley HD | Jupe | 2618.00 | Round | NC | NC | NC |
| 641010CE-6 | 99.00 | 9.9:1 | NC | 34.29 | Manley HD | Jupe | 2618.00 | Round | NC | NC | NC |
| WK681M9558AP | 95.58 | 9.5:1 | 23.00 | 34.30 | Wiseco AP | Jupe | 4032.00 | Round | -1.80 | NC | 9550XX |
| WK692M9558AP | 95.58 | 9.5:1 | 23.00 | 34.30 | Wiseco AP | Jupe | 4032.00 | Round | -7.00 | NC | 9550XX |
| WK694M9558AP | 95.58 | 9.5:1 | 23.00 | 30.74 | Wiseco AP | Jupe | 2618.00 | Round | -7.00 | NC | 9550XX |
| WK681M96AP | 96.00 | 9.5:1 | NC | NC | Wiseco AP | NC | NC | NC | NC | NC | 9550XX |
| K9557D050 | 96.00 | 9.6:1 | 23.00 | 34.30 | Wossner | Jupe | 4032.00 | Round | NC | NC | 960XPY |
| K9401D050 | 96.00 | 9.6:1 | 23.00 | 34.30 | Wossner | Jupe | 4032.00 | Round | NC | NC | 960XPY |
| 641000CE-6 | 98.00 | 9.8:1 | NC | 34.29 | Manley | Jupe | 2618.00 | Round | NC | NC | NC |
| DIA-81010-6 | 98.50 | 9.4:1 | 23.00 | 31.24 | Diamond | Jupe | 2618.00 | NC | -9.5 | NC | 9503878 |
| DIA-81003-6 | 98.50 | 9.5:1 | 23.00 | 34.29 | Diamond | Jupe | 2618.00 | NC | -0.86 | NC | 9503878 |
| DIA-81017-6 | 98.50 | 9.5:1 | 23.00 | 29.33 | Diamond | Jupe | 2618.00 | NC | -9.5 | NC | 9503878 |
| DIA-81011-6 | 99.00 | 9.5:1 | 23.00 | 31.24 | Diamond | Jupe | 2618.00 | NC | -9.5 | NC | 9503898 |
| DIA-81004-6 | 99.00 | 9.6:1 | 23.00 | 34.29 | Diamond | Jupe | 2618.00 | NC | -0.86 | NC | 9503898 |
| DIA-81018-6 | 99.00 | 9.6:1 | 23.00 | 29.33 | Diamond | Jupe | 2618.00 | NC | -9.5 | NC | 9503898 |
| 634010C-6 | 99.00 | 9.8:1 | NC | 34.29 | Manley | Jupe | 2618.00 | Round | NC | NC | NC |
| 634010CE-6 | 99.00 | 9.8:1 | NC | 34.29 | Manley HD | Jupe | 2618.00 | Round | NC | NC | NC |
| 641010CE-6 | 99.00 | 9.9:1 | NC | 34.29 | Manley HD | Jupe | 2618.00 | Round | NC | NC | NC |
| WK681M9558AP | 95.58 | 9.5:1 | 23.00 | 34.30 | Wiseco AP | Jupe | 4032.00 | Round | -1.80 | NC | 9550XX |
| WK692M9558AP | 95.58 | 9.5:1 | 23.00 | 34.30 | Wiseco AP | Jupe | 4032.00 | Round | -7.00 | NC | 9550XX |
| WK694M9558AP | 95.58 | 9.5:1 | 23.00 | 30.74 | Wiseco AP | Jupe | 2618.00 | Round | -7.00 | NC | 9550XX |
| WK681M96AP | 96.00 | 9.5:1 | NC | NC | Wiseco AP | NC | NC | NC | NC | NC | 9550XX |
| K9557D050 | 96.00 | 9.6:1 | 23.00 | 34.30 | Wossner | Jupe | 4032.00 | Round | NC | NC | 960XPY |
| K9401D050 | 96.00 | 9.6:1 | 23.00 | 34.30 | Wossner | Jupe | 4032.00 | Round | NC | NC | 960XPY |
| 641000CE-6 | 98.00 | 9.8:1 | NC | 34.29 | Manley | Jupe | 2618.00 | Round | NC | NC | NC |
| DIA-81010-6 | 98.50 | 9.4:1 | 23.00 | 31.24 | Diamond | Jupe | 2618.00 | NC | -9.5 | NC | 9503878 |
| DIA-81003-6 | 98.50 | 9.5:1 | 23.00 | 34.29 | Diamond | Jupe | 2618.00 | NC | -0.86 | NC | 9503878 |
| DIA-81017-6 | 98.50 | 9.5:1 | 23.00 | 29.33 | Diamond | Jupe | 2618.00 | NC | -9.5 | NC | 9503878 |
| DIA-81011-6 | 99.00 | 9.5:1 | 23.00 | 31.24 | Diamond | Jupe | 2618.00 | NC | -9.5 | NC | 9503898 |
| DIA-81004-6 | 99.00 | 9.6:1 | 23.00 | 34.29 | Diamond | Jupe | 2618.00 | NC | -0.86 | NC | 9503898 |
| DIA-81018-6 | 99.00 | 9.6:1 | 23.00 | 29.33 | Diamond | Jupe | 2618.00 | NC | -9.5 | NC | 9503898 |
| 634010C-6 | 99.00 | 9.8:1 | NC | 34.29 | Manley | Jupe | 2618.00 | Round | NC | NC | NC |
| 634010CE-6 | 99.00 | 9.8:1 | NC | 34.29 | Manley HD | Jupe | 2618.00 | Round | NC | NC | NC |
| 641010CE-6 | 99.00 | 9.9:1 | NC | 34.29 | Manley HD | Jupe | 2618.00 | Round | NC | NC | NC |
Compatibilités moteur :
VR38DETT
Véhicules d’origine équipés du moteur 3.8 VR38DETT :
| Marque | Modèle | Code moteur | Puissance | Années |
|---|---|---|---|---|
| Nissan | GT-R R35 | VR38DETT | 485 ch | 2007 – 2010 |
| Nissan | GT-R R35 | VR38DETT | 530 ch | 2010 – 2012 |
| Nissan | GT-R R35 | VR38DETT | 550 ch | 2012 – 2016 |
| Nissan | GT-R R35 | VR38DETT | 570 ch | 2016 – 2022 |
| Nissan | GT-R R35 | VR38DETT | 570 ch | 2023 – 2025 |
| Nissan | GT-R R35 NISMO | VR38DETT | 600 ch | 2014 – 2025 |
Références Piston Constructeur (OEM) :
Attention : avant tout montage, veuillez impérativement vérifier l’intégrité et la conformité de chaque composant du kit pistons ainsi que la conformité de l'assemblage dans le moteur; toute garantie éventuelle est strictement limitée aux seules pièces du kit piston.
