2.0L 16v - EJ205/207
Fabricants
2.0L 16v - EJ205/207
Attention : dernières pièces disponibles !
Neuf

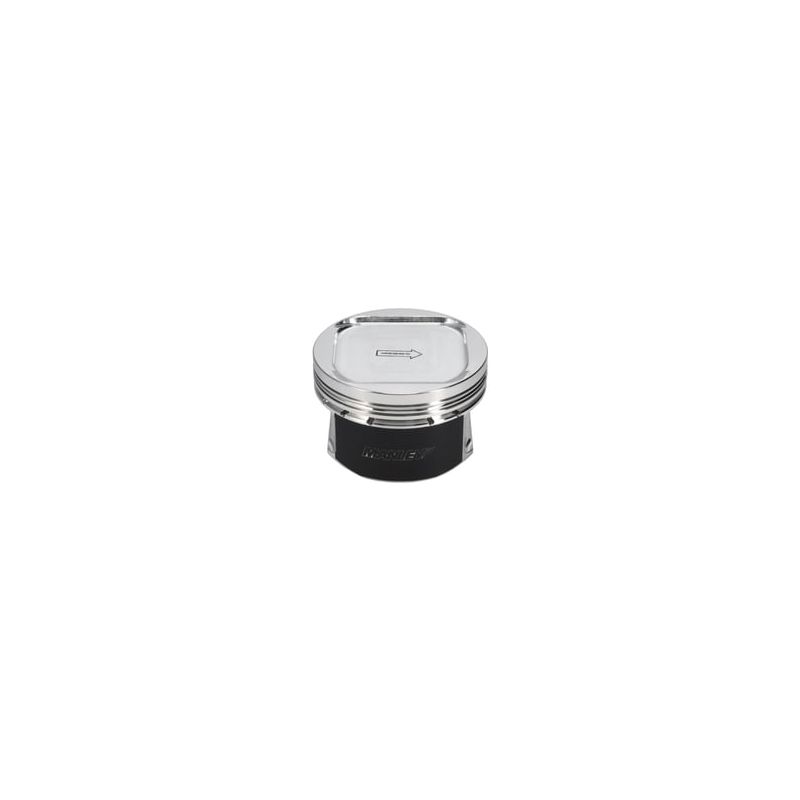

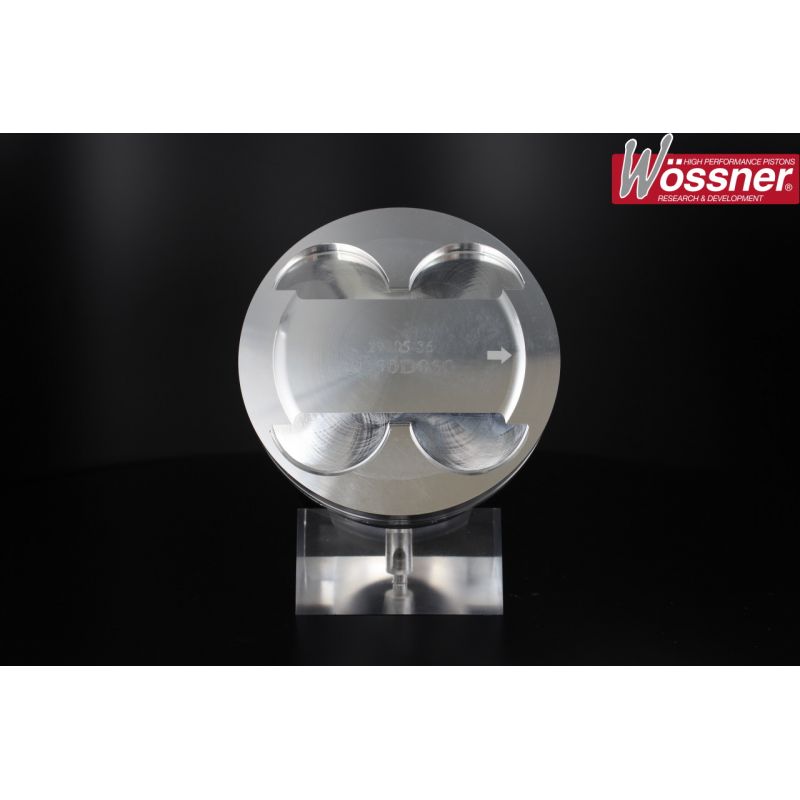

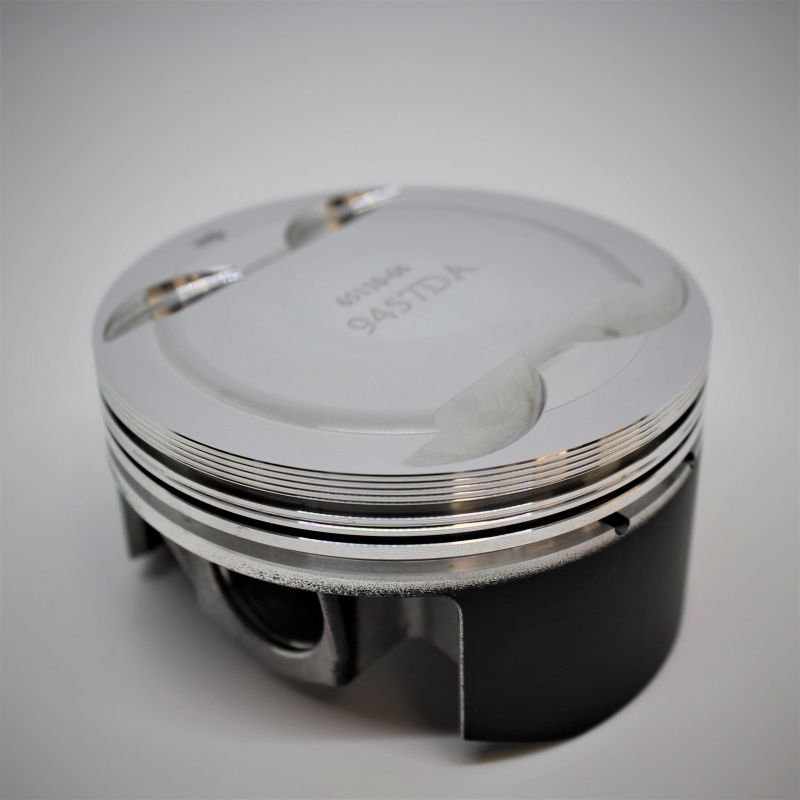

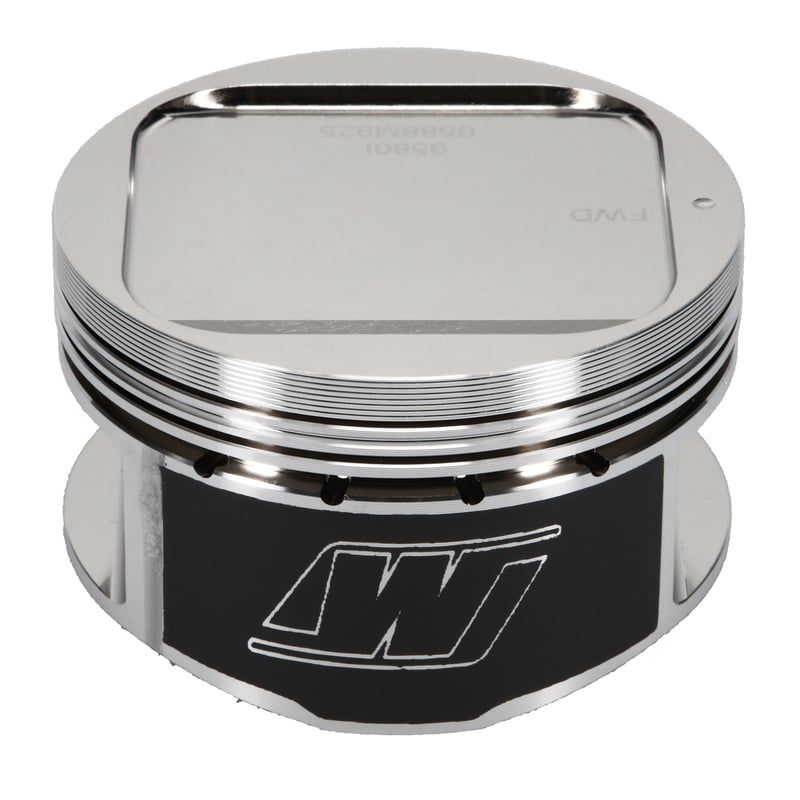

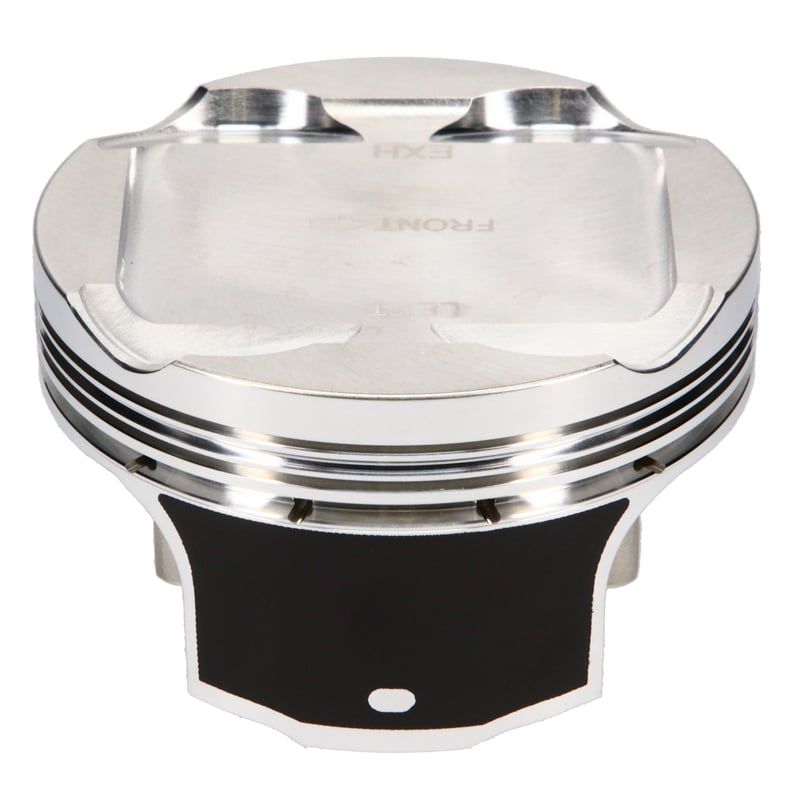

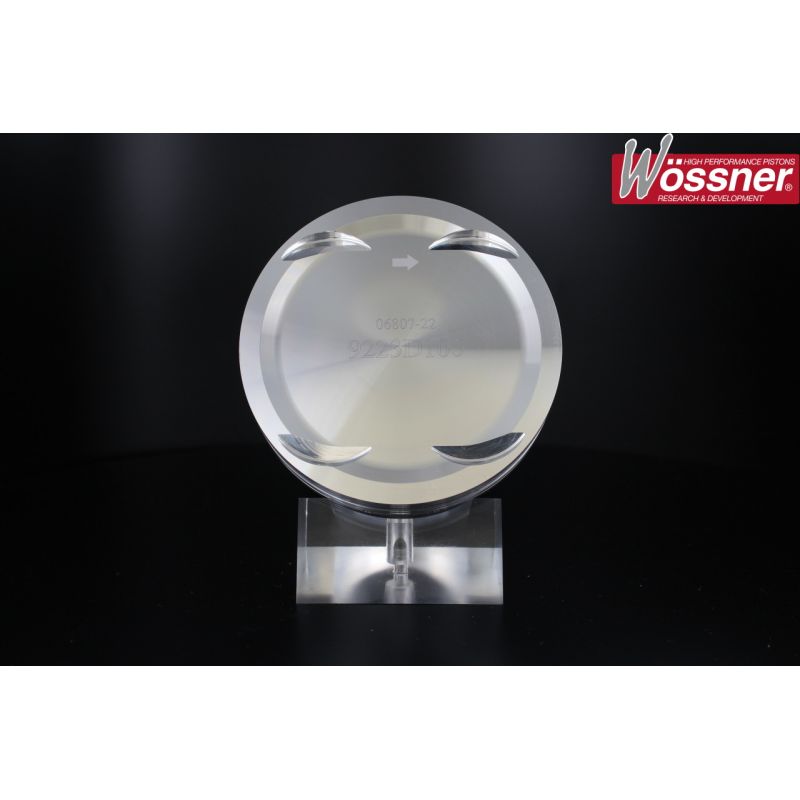

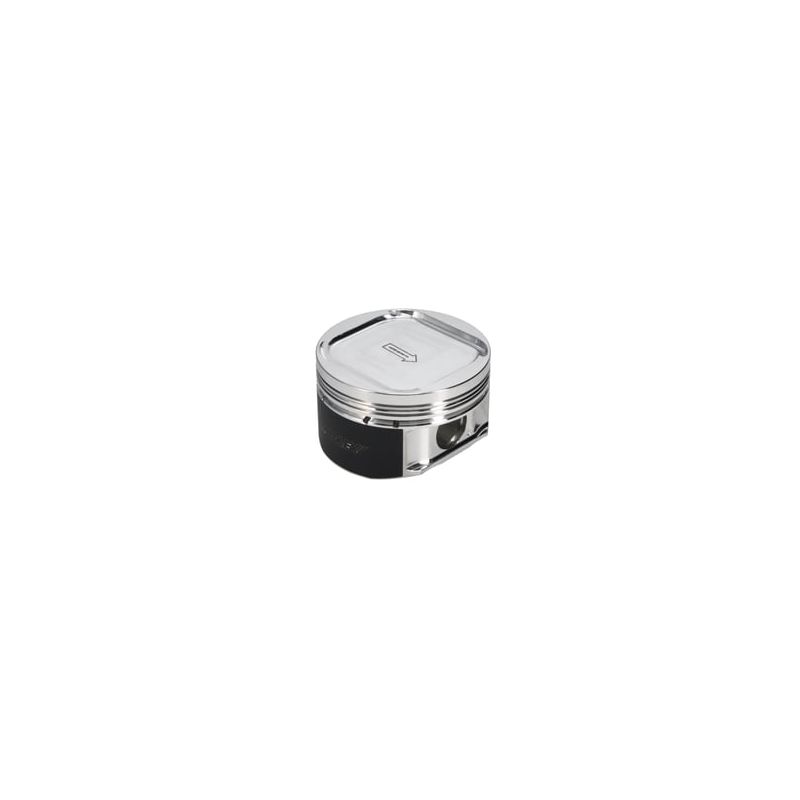

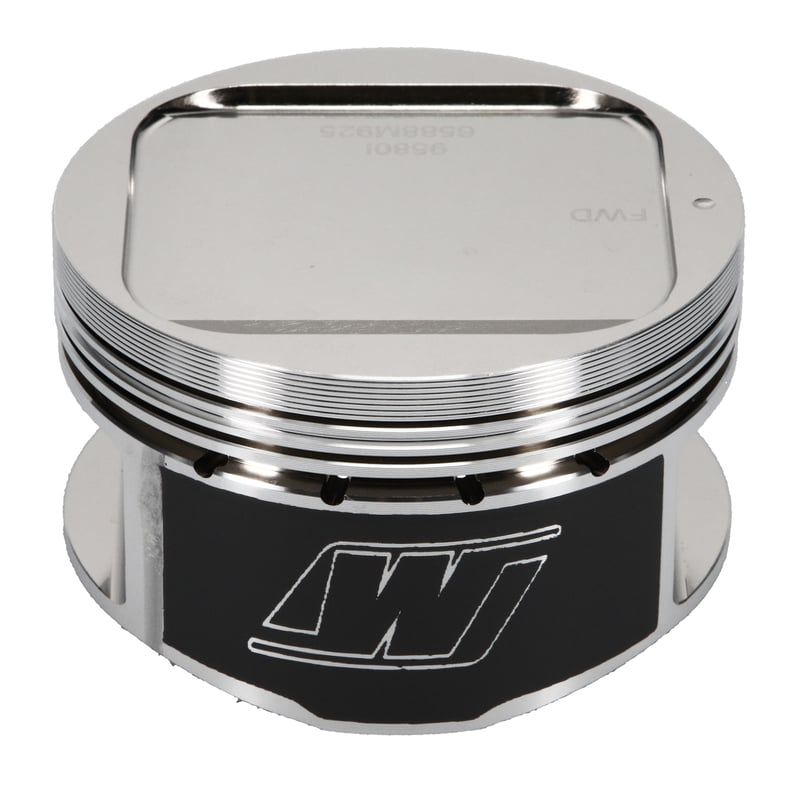

Pistons forgés 2.0 EJ205/EJ207 : Ø92–93 mm, axe 23 mm, CH ≈32,7 mm. Compatibles WRX/STI, Forester 2.0 XT, Saab 9-2X. Tableau trié + références OEM incluses.
Caractéristiques des pistons forgés proposés par NSB Concept pour Subaru 2.0 L 16 V EJ205 / EJ207 :
| Référence | Alésage OEM 92,00 mm | RV OEM EJ205 : 8,0–9,0 :1 · EJ207 : 8,0 :1 | Axe OEM 23 mm | Hauteur Axe OEM ≈ 32,7 mm | Gamme | Traitement | Aluminium | Forging | Dôme | Poids | Segments |
|---|---|---|---|---|---|---|---|---|---|---|---|

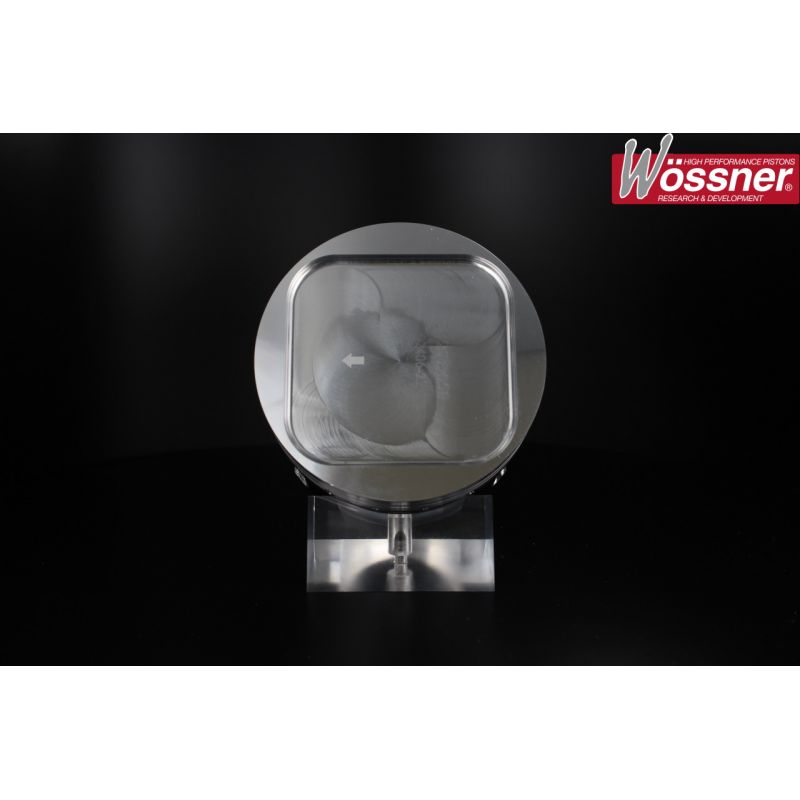

| K9223DA | 92.0 | 8:1 | 23.0 | 31.5 | Wossner | NC | NC | Slipper | -6.4 | NC | 920XPY |
| K9223DA | 92.0 | 8:1 | 23.0 | 31.5 | Wossner | NC | NC | Slipper | -6.4 | NC | 920XPY |
| K9223DA | 92.0 | 8:1 | 23.0 | 31.5 | Wossner | NC | NC | Slipper | -6.4 | NC | 920XPY |
| K9130DA | 92.0 | 8:1 | 23.0 | 32.7 | Wossner | NC | NC | Slipper | -8.7 | NC | 920XPY |
| K9130DA | 92.0 | 8:1 | 23.0 | 32.7 | Wossner | NC | NC | Slipper | -8.7 | NC | 920XPY |
| K9130DA | 92.0 | 8:1 | 23.0 | 32.7 | Wossner | NC | NC | Slipper | -8.7 | NC | 920XPY |
| K9129DA | 92.0 | 8:1 | 23.0 | 33.4 | Wossner | NC | NC | Round | -16.8 | NC | 920XPY |
| K9129DA | 92.0 | 8:1 | 23.0 | 33.4 | Wossner | NC | NC | Round | -16.8 | NC | 920XPY |
| K9129DA | 92.0 | 8:1 | 23.0 | 33.4 | Wossner | NC | NC | Round | -16.8 | NC | 920XPY |
| P4-SU9200-N5-H13-4 | 92.0 | 8.3:1 | 23.0 | 31.5 | Supertech | Tête + Jupe | 4032 | NC | -5.0 | 380.0 | R92-SWF20060-0 |

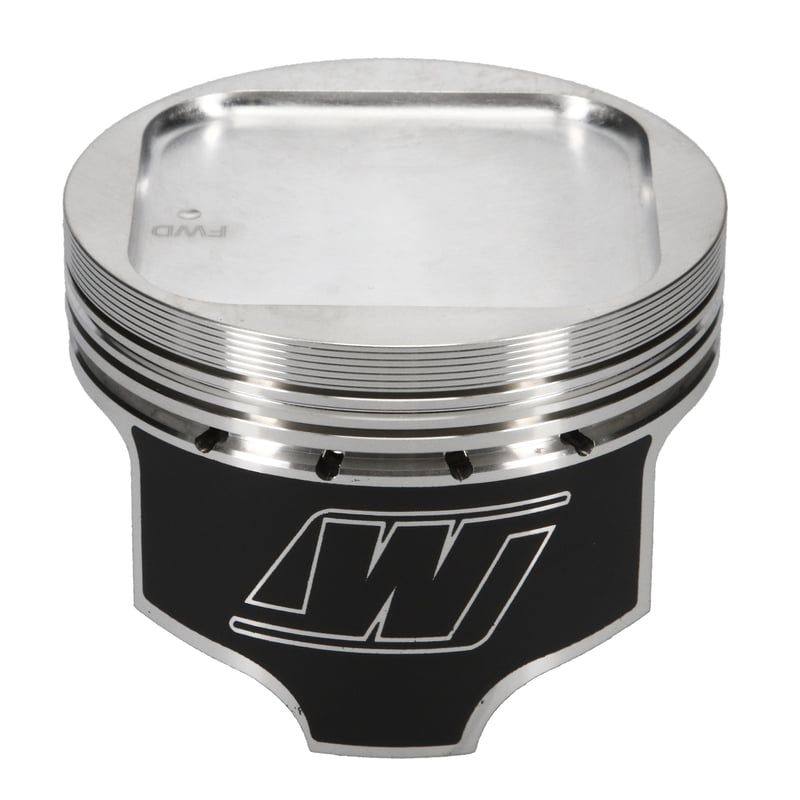

| WK588M92 | 92.0 | 8.3:1 | 23.0 | 32.66 | Wiseco | Jupe | 2618 | NC | -9.0 | NC | 9200TX |
| WK588M92AP | 92.0 | 8.3:1 | 23.0 | 32.66 | Wiseco AP | Jupe | 2618 | NC | -9.0 | NC | 9200TX |
| JE-314437 | 92.0 | 8.5:1 | 23.0 | 32.7 | JE FSR | NC | 2618 | FSR | -11.0 | 359.0 | NC |
| JE-361318 | 92.0 | 8.5:1 | 23.0 | 32.7 | JE Ultra Series | Tête + Jupe | 2618 | FSR | -11.7 | NC | NC |
| 615000C-4 | 92.0 | 8.5:1 | NC | 32.64 | Manley | Jupe | 4032 | NC | -12.0 | 369.0 | NC |
| 615000CE-4 | 92.0 | 8.5:1 | NC | 32.64 | Manley HD | Jupe | 2618 | NC | -12.0 | 369.0 | NC |
| K9050DA | 92.0 | 9:1 | 23.0 | 31.4 | Wossner | NC | NC | Slipper | -0.2 | NC | 920XPY |
| K9050DA | 92.0 | 9:1 | 23.0 | 31.4 | Wossner | NC | NC | Slipper | -0.2 | NC | 920XPY |
| K9050DA | 92.0 | 9:1 | 23.0 | 31.4 | Wossner | NC | NC | Slipper | -0.2 | NC | 920XPY |
| K9050DA | 92.0 | 9:1 | 23.0 | 31.4 | Wossner | NC | NC | Slipper | -0.2 | NC | 920XPY |
| K9050DA | 92.0 | 9:1 | 23.0 | 31.4 | Wossner | NC | NC | Slipper | -0.2 | NC | 920XPY |
| K9457DA | 92.0 | 9:1 | 23.0 | 31.5 | Wossner | NC | NC | NC | 2.5 | NC | 920XPY |
| K9457DA | 92.0 | 9:1 | 23.0 | 31.5 | Wossner | NC | NC | NC | 2.5 | NC | 920XPY |
| K9457DA | 92.0 | 9:1 | 23.0 | 31.5 | Wossner | NC | NC | NC | 2.5 | NC | 920XPY |
| K9457DA | 92.0 | 9:1 | 23.0 | 31.5 | Wossner | NC | NC | NC | 2.5 | NC | 920XPY |
| K9457DA | 92.0 | 9:1 | 23.0 | 31.5 | Wossner | NC | NC | NC | 2.5 | NC | 920XPY |
| K9432DA | 92.0 | 9:1 | 23.0 | 33.4 | Wossner | NC | NC | NC | -8.7 | NC | 920XPY |
| K9432DA | 92.0 | 9:1 | 23.0 | 33.4 | Wossner | NC | NC | NC | -8.7 | NC | 920XPY |
| K9432DA | 92.0 | 9:1 | 23.0 | 33.4 | Wossner | NC | NC | NC | -8.7 | NC | 920XPY |
| K9432DA | 92.0 | 9:1 | 23.0 | 33.4 | Wossner | NC | NC | NC | -8.7 | NC | 920XPY |
| K9432DA | 92.0 | 9:1 | 23.0 | 33.4 | Wossner | NC | NC | NC | -8.7 | NC | 920XPY |
| K9403DA | 92.0 | 9:1 | 23.0 | 32.7 | Wossner | NC | NC | Slipper | 0.3 | NC | 920XPY |
| K9403DA | 92.0 | 9:1 | 23.0 | 32.7 | Wossner | NC | NC | Slipper | 0.3 | NC | 920XPY |
| K9403DA | 92.0 | 9:1 | 23.0 | 32.7 | Wossner | NC | NC | Slipper | 0.3 | NC | 920XPY |
| K9403DA | 92.0 | 9:1 | 23.0 | 32.7 | Wossner | NC | NC | Slipper | 0.3 | NC | 920XPY |
| K9403DA | 92.0 | 9:1 | 23.0 | 32.7 | Wossner | NC | NC | Slipper | 0.3 | NC | 920XPY |
| K9248DA | 92.0 | 9:1 | 23.0 | 31.4 | Wossner | NC | NC | Round | -17.8 | NC | 920XPY |
| K9248DA | 92.0 | 9:1 | 23.0 | 31.4 | Wossner | NC | NC | Round | -17.8 | NC | 920XPY |
| K9248DA | 92.0 | 9:1 | 23.0 | 31.4 | Wossner | NC | NC | Round | -17.8 | NC | 920XPY |
| K9248DA | 92.0 | 9:1 | 23.0 | 31.4 | Wossner | NC | NC | Round | -17.8 | NC | 920XPY |
| K9248DA | 92.0 | 9:1 | 23.0 | 31.4 | Wossner | NC | NC | Round | -17.8 | NC | 920XPY |
| JE-314440 | 92.0 | 9.5:1 | 23.0 | 32.7 | JE FSR | NC | 2618 | FSR | -3.2 | 379.0 | NC |
| JE-361321 | 92.0 | 9.5:1 | 23.0 | 32.7 | JE Ultra Series | Tête + Jupe | 2618 | FSR | -3.2 | 388.0 | NC |

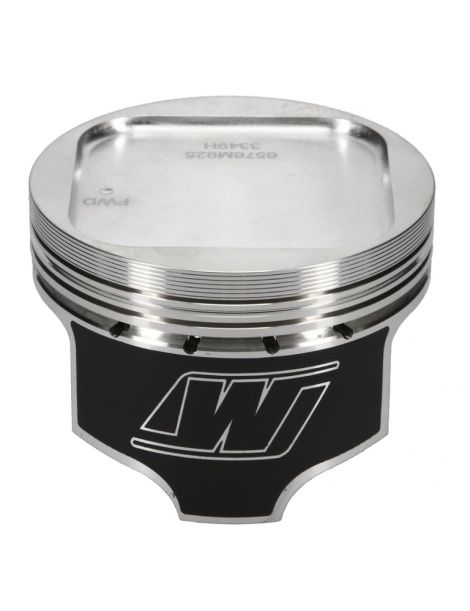

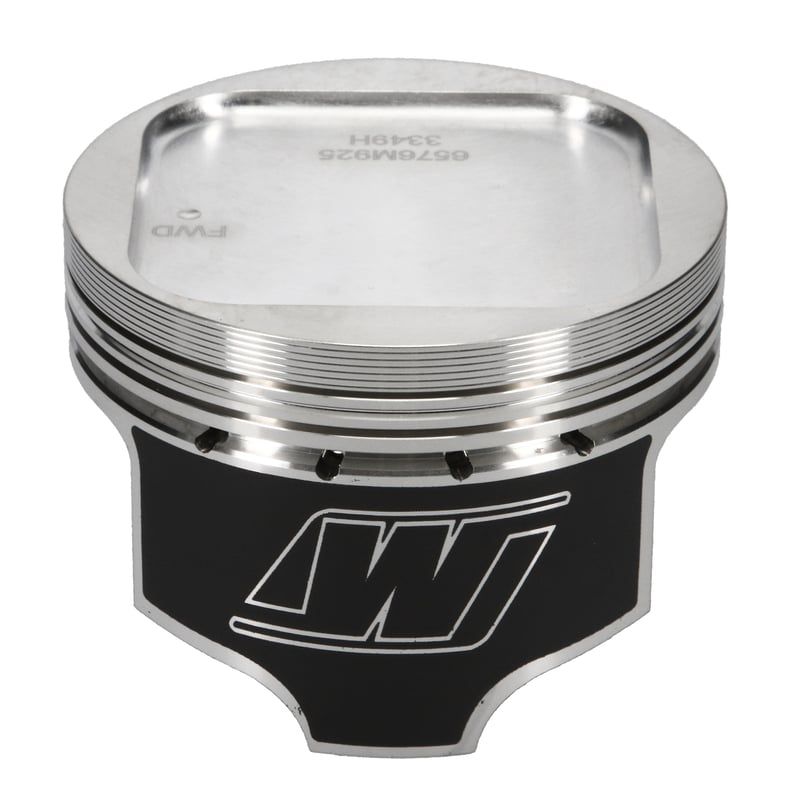

| WK576M925 | 92.5 | 8:1 | 23.0 | 33.32 | Wiseco | Jupe | 2618 | NC | -17.8 | NC | 9250TX |
| K9223D050 | 92.5 | 8.1:1 | 23.0 | 31.5 | Wossner | NC | NC | Slipper | -6.4 | NC | 925XPY |
| K9223D050 | 92.5 | 8.1:1 | 23.0 | 31.5 | Wossner | NC | NC | Slipper | -6.4 | NC | 925XPY |
| K9223D050 | 92.5 | 8.1:1 | 23.0 | 31.5 | Wossner | NC | NC | Slipper | -6.4 | NC | 925XPY |
| K9130D050 | 92.5 | 8.1:1 | 23.0 | 32.7 | Wossner | NC | NC | Slipper | -8.7 | NC | 925XPY |
| K9130D050 | 92.5 | 8.1:1 | 23.0 | 32.7 | Wossner | NC | NC | Slipper | -8.7 | NC | 925XPY |
| K9130D050 | 92.5 | 8.1:1 | 23.0 | 32.7 | Wossner | NC | NC | Slipper | -8.7 | NC | 925XPY |
| K9129D050 | 92.5 | 8.1:1 | 23.0 | 33.4 | Wossner | NC | NC | Round | -16.8 | NC | 925XPY |
| K9129D050 | 92.5 | 8.1:1 | 23.0 | 33.4 | Wossner | NC | NC | Round | -16.8 | NC | 925XPY |
| K9129D050 | 92.5 | 8.1:1 | 23.0 | 33.4 | Wossner | NC | NC | Round | -16.8 | NC | 925XPY |
| P4-SU9250-N5-H13-4 | 92.5 | 8.3:1 | 23.0 | 31.5 | Supertech | Tête + Jupe | NC | NC | -5.0 | NC | R92.5-SWF20060-2 |
| WK588M925 | 92.5 | 8.3:1 | 23.0 | 32.66 | Wiseco | Jupe | 2618 | NC | -9.0 | NC | 9250TX |
| WK588M925AP | 92.5 | 8.3:1 | 23.0 | 32.66 | Wiseco AP | Jupe | 2618 | NC | -9.0 | NC | 9250TX |
| JE-226378 | 92.5 | 8.5:1 | 23.0 | 32.7 | JE | NC | NC | NC | -11.8 | NC | NC |
| JE-314438 | 92.5 | 8.5:1 | 23.0 | 32.7 | JE FSR | NC | 2618 | FSR | -11.7 | 363.0 | NC |
| JE-361319 | 92.5 | 8.5:1 | 23.0 | 32.7 | JE Ultra Series | Tête + Jupe | 2618 | FSR | -11.0 | 367.0 | NC |
| 615005C-4 | 92.5 | 8.5:1 | NC | 32.64 | Manley | Jupe | 4032 | NC | -12.0 | 375.0 | NC |
| 615005CE-4 | 92.5 | 8.5:1 | NC | 32.64 | Manley HD | Jupe | 2618 | NC | -12.0 | 375.0 | NC |
| K9248D050 | 92.5 | 9:1 | 23.0 | 31.4 | Wossner | NC | NC | Round | -17.8 | NC | 925XPY |
| K9050D050 | 92.5 | 9.1:1 | 23.0 | 31.4 | Wossner | NC | NC | Slipper | -0.2 | NC | 925XPY |
| K9050D050 | 92.5 | 9.1:1 | 23.0 | 31.4 | Wossner | NC | NC | Slipper | -0.2 | NC | 925XPY |
| K9050D050 | 92.5 | 9.1:1 | 23.0 | 31.4 | Wossner | NC | NC | Slipper | -0.2 | NC | 925XPY |
| K9050D050 | 92.5 | 9.1:1 | 23.0 | 31.4 | Wossner | NC | NC | Slipper | -0.2 | NC | 925XPY |
| K9457D050 | 92.5 | 9.1:1 | 23.0 | 31.5 | Wossner | NC | NC | NC | 2.5 | NC | 925XPY |
| K9457D050 | 92.5 | 9.1:1 | 23.0 | 31.5 | Wossner | NC | NC | NC | 2.5 | NC | 925XPY |
| K9457D050 | 92.5 | 9.1:1 | 23.0 | 31.5 | Wossner | NC | NC | NC | 2.5 | NC | 925XPY |
| K9457D050 | 92.5 | 9.1:1 | 23.0 | 31.5 | Wossner | NC | NC | NC | 2.5 | NC | 925XPY |
| K9432D050 | 92.5 | 9.1:1 | 23.0 | 33.4 | Wossner | NC | NC | NC | -8.7 | NC | 925XPY |
| K9432D050 | 92.5 | 9.1:1 | 23.0 | 33.4 | Wossner | NC | NC | NC | -8.7 | NC | 925XPY |
| K9432D050 | 92.5 | 9.1:1 | 23.0 | 33.4 | Wossner | NC | NC | NC | -8.7 | NC | 925XPY |
| K9432D050 | 92.5 | 9.1:1 | 23.0 | 33.4 | Wossner | NC | NC | NC | -8.7 | NC | 925XPY |
| K9403D050 | 92.5 | 9.1:1 | 23.0 | 32.7 | Wossner | NC | NC | Slipper | 0.3 | NC | 925XPY |
| K9403D050 | 92.5 | 9.1:1 | 23.0 | 32.7 | Wossner | NC | NC | Slipper | 0.3 | NC | 925XPY |
| K9403D050 | 92.5 | 9.1:1 | 23.0 | 32.7 | Wossner | NC | NC | Slipper | 0.3 | NC | 925XPY |
| K9403D050 | 92.5 | 9.1:1 | 23.0 | 32.7 | Wossner | NC | NC | Slipper | 0.3 | NC | 925XPY |
| JE-314441 | 92.5 | 9.5:1 | 23.0 | 32.7 | JE FSR | NC | 2618 | FSR | -3.8 | 382.0 | NC |
| JE-361322 | 92.5 | 9.5:1 | 23.0 | 32.7 | JE Ultra Series | Tête + Jupe | 2618 | FSR | -3.8 | 390.0 | NC |
| WK576M93 | 93.0 | 8:1 | 23.0 | 33.32 | Wiseco | Jupe | 2618 | NC | -17.8 | NC | 9300TX |
| K9223D100 | 93.0 | 8.2:1 | 23.0 | 31.5 | Wossner | NC | NC | Slipper | -6.4 | NC | 930XPY |
| K9223D100 | 93.0 | 8.2:1 | 23.0 | 31.5 | Wossner | NC | NC | Slipper | -6.4 | NC | 930XPY |
| K9223D100 | 93.0 | 8.2:1 | 23.0 | 31.5 | Wossner | NC | NC | Slipper | -6.4 | NC | 930XPY |
| K9130D100 | 93.0 | 8.2:1 | 23.0 | 32.7 | Wossner | NC | NC | Slipper | -8.7 | NC | 930XPY |
| K9130D100 | 93.0 | 8.2:1 | 23.0 | 32.7 | Wossner | NC | NC | Slipper | -8.7 | NC | 930XPY |
| K9130D100 | 93.0 | 8.2:1 | 23.0 | 32.7 | Wossner | NC | NC | Slipper | -8.7 | NC | 930XPY |
| K9129D100 | 93.0 | 8.2:1 | 23.0 | 33.4 | Wossner | NC | NC | Round | -16.8 | NC | 930XPY |
| K9129D100 | 93.0 | 8.2:1 | 23.0 | 33.4 | Wossner | NC | NC | Round | -16.8 | NC | 930XPY |
| K9129D100 | 93.0 | 8.2:1 | 23.0 | 33.4 | Wossner | NC | NC | Round | -16.8 | NC | 930XPY |
| WK588M93 | 93.0 | 8.4:1 | 23.0 | 32.66 | Wiseco | Jupe | 2618 | NC | -9.0 | NC | 9300TX |
| WK588M93AP | 93.0 | 8.4:1 | 23.0 | 32.66 | Wiseco AP | Jupe | 2618 | NC | -9.0 | NC | 9300TX |
| JE-314439 | 93.0 | 8.5:1 | 23.0 | 32.7 | JE FSR | NC | 2618 | FSR | -12.4 | 367.0 | NC |
| JE-361320 | 93.0 | 8.5:1 | 23.0 | 32.7 | JE Ultra Series | Tête + Jupe | 2618 | FSR | -12.4 | 365.0 | NC |
| 615010C-4 | 93.0 | 8.5:1 | NC | 32.64 | Manley | Jupe | 4032 | NC | -12.0 | 383.0 | NC |
| 615010CE-4 | 93.0 | 8.5:1 | NC | 32.64 | Manley HD | Jupe | 2618 | NC | -12.0 | 383.0 | NC |
| P4-SU9300-N5-H13-4 | 93.0 | 8.5:1 | 23.0 | 31.5 | Supertech | Tête + Jupe | 4032 | NC | -4.5 | 400.0 | R93-SWN30115-0 |
| K9050D100 | 93.0 | 9.2:1 | 23.0 | 31.4 | Wossner | NC | NC | Slipper | -0.2 | NC | 930XPY |
| K9050D100 | 93.0 | 9.2:1 | 23.0 | 31.4 | Wossner | NC | NC | Slipper | -0.2 | NC | 930XPY |
| K9050D100 | 93.0 | 9.2:1 | 23.0 | 31.4 | Wossner | NC | NC | Slipper | -0.2 | NC | 930XPY |
| K9050D100 | 93.0 | 9.2:1 | 23.0 | 31.4 | Wossner | NC | NC | Slipper | -0.2 | NC | 930XPY |
| K9457D100 | 93.0 | 9.2:1 | 23.0 | 31.5 | Wossner | NC | NC | NC | 2.5 | NC | 930XPY |
| K9457D100 | 93.0 | 9.2:1 | 23.0 | 31.5 | Wossner | NC | NC | NC | 2.5 | NC | 930XPY |
| K9457D100 | 93.0 | 9.2:1 | 23.0 | 31.5 | Wossner | NC | NC | NC | 2.5 | NC | 930XPY |
| K9457D100 | 93.0 | 9.2:1 | 23.0 | 31.5 | Wossner | NC | NC | NC | 2.5 | NC | 930XPY |
| K9432D100 | 93.0 | 9.2:1 | 23.0 | 33.4 | Wossner | NC | NC | NC | -8.7 | NC | 930XPY |
| K9432D100 | 93.0 | 9.2:1 | 23.0 | 33.4 | Wossner | NC | NC | NC | -8.7 | NC | 930XPY |
| K9432D100 | 93.0 | 9.2:1 | 23.0 | 33.4 | Wossner | NC | NC | NC | -8.7 | NC | 930XPY |
| K9432D100 | 93.0 | 9.2:1 | 23.0 | 33.4 | Wossner | NC | NC | NC | -8.7 | NC | 930XPY |
| K9403D100 | 93.0 | 9.2:1 | 23.0 | 32.7 | Wossner | NC | NC | Slipper | 0.3 | NC | 930XPY |
| K9403D100 | 93.0 | 9.2:1 | 23.0 | 32.7 | Wossner | NC | NC | Slipper | 0.3 | NC | 930XPY |
| K9403D100 | 93.0 | 9.2:1 | 23.0 | 32.7 | Wossner | NC | NC | Slipper | 0.3 | NC | 930XPY |
| K9403D100 | 93.0 | 9.2:1 | 23.0 | 32.7 | Wossner | NC | NC | Slipper | 0.3 | NC | 930XPY |
| JE-314442 | 93.0 | 9.5:1 | 23.0 | 32.7 | JE FSR | NC | 2618 | FSR | -4.4 | 385.0 | NC |
| JE-361323 | 93.0 | 9.5:1 | 23.0 | 32.7 | JE Ultra Series | Tête + Jupe | 2618 | FSR | -4.4 | 392.0 | NC |
Compatibilités (codes moteur) :
Véhicules d’origine équipés des EJ205/EJ207 :
| Marque | Modèle | Code moteur | Puissance | Années |
|---|---|---|---|---|
| Saab | 9-2X Aero | EJ205 | 227 ch | 2005 – 2006 |
| Subaru | Forester SG 2.0 XT | EJ205 | 177–226 ch | 2002 – 2008 |
| Subaru | Impreza WRX (GD/GG) | EJ205 | 218–227 ch | 2000 – 2005 |
| Subaru | Impreza WRX STI (GDB) | EJ207 | 280 ch (JDM) | 2000 – 2007 |
Références pistons constructeur (OEM) :
Références données à titre indicatif ; à vérifier selon VIN, grade (A/B/C), marché (US/EU/JPN) et éventuelle rectification.
Attention : avant tout montage, veuillez impérativement vérifier l’intégrité et la conformité de chaque composant du kit pistons ainsi que la conformité de l'assemblage dans le moteur; toute garantie éventuelle est strictement limitée aux seules pièces du kit piston.
