Pump gasoline/E85 internal 400L/H AEM

AEM 400L/H Submersible Ethanol/Petrol Pump for E85

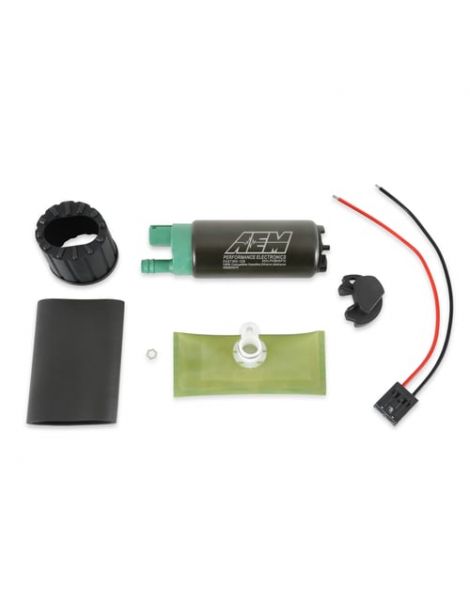

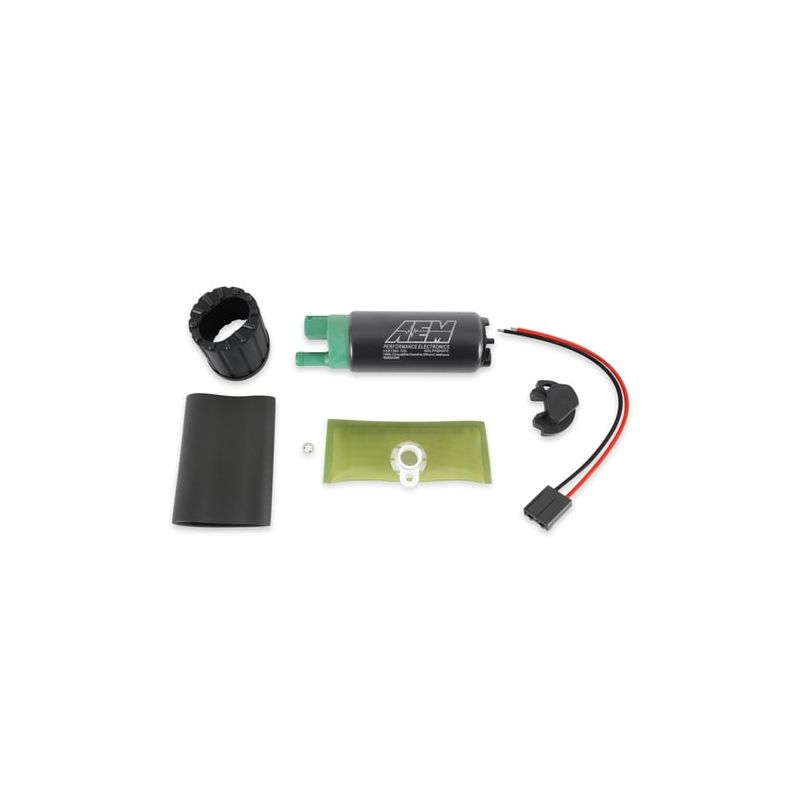

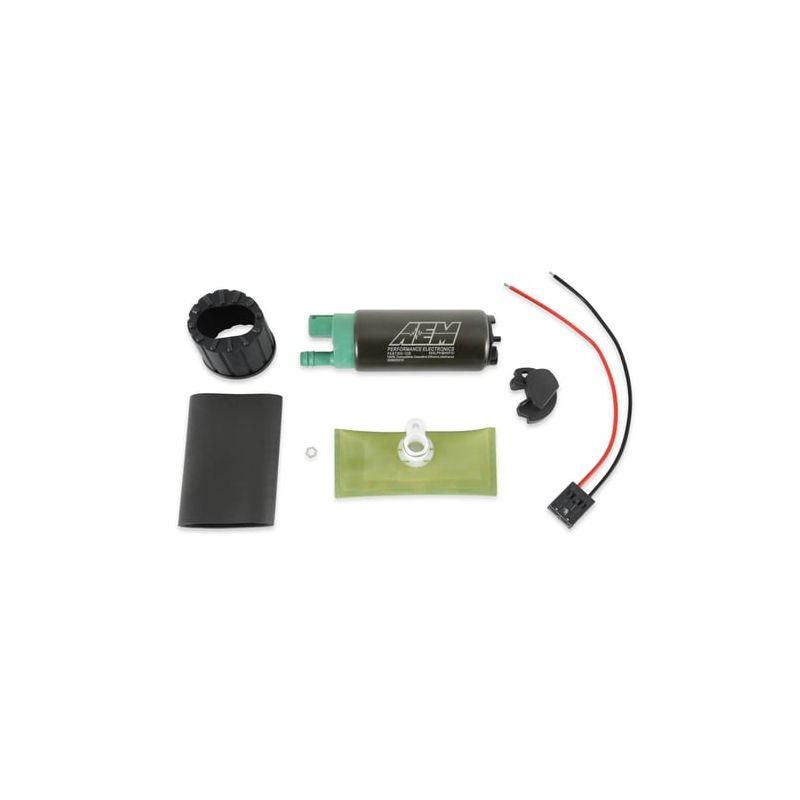

AEM's high-flow 400LPH fuel pumps have been designed for high-performance EFI vehicles, both naturally aspirated and forced induction! They offer the same high flow rate and reliable performance for which AEM has become famous at a very competitive price. Each pump is individually tested and guaranteed to deliver 400+ LPH (106 GPH) at 40 PSI (13.5V), which on gasoline will Mount over 1000 horsepower!* The pumps also maintain their high flow rate even when system pressure increases to 330+ LPH at 70 PSI (13.5V), which will Mount approximately 870 HP* on gasoline! Please refer to the flow curves and current consumption vs. fuel pressure graphs in the Specifications tab for more information. With their compact 39mm body (same size as the Walbro 255), low amperage draw, 11mm inlets, and 9mm barbed outlets, these fuel pumps were designed to replace the OEM fuel pump in many applications. The 50-1230 has a dual barbed outlet that is ideal for 3/8" ID hose, while the 50-1235 has a smooth barbed outlet compatible with 5/16" ID hose. Each pump includes a wiring harness, pre-filter, internal fuel line and clamps, end cap, and rubber buffer sleeve. Note: Your vehicle's factory fuel pump wiring may not be sufficient to handle the current draw of AEM's high-flow fuel pumps. Please refer to the Electrical Requirements section in the instruction manual for proper wiring. Note: These pumps do not include integrated check valves.

39mm fuel pump body - highest flow rate on the market. Each pump flows individually and is guaranteed to deliver over 400 LPH (40 PSI, 13.5V)
Maintains a very high flow rate even at increased fuel pressures; 330+ LPH (70 PSI, 13.5V) (30 PSI boost)
100% compatible with most fuels, including: pump/racing gasoline, ethanol (up to E100), methanol (up to M100).
Highly efficient - the pumps draw only 12A at 40 PSI and 15A at 70 PSI
Both models have a 9mm outlet bead with an 11mm inlet in line with the outlet.
