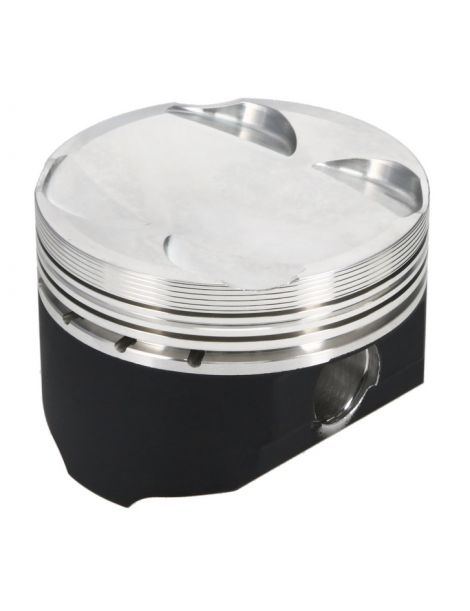

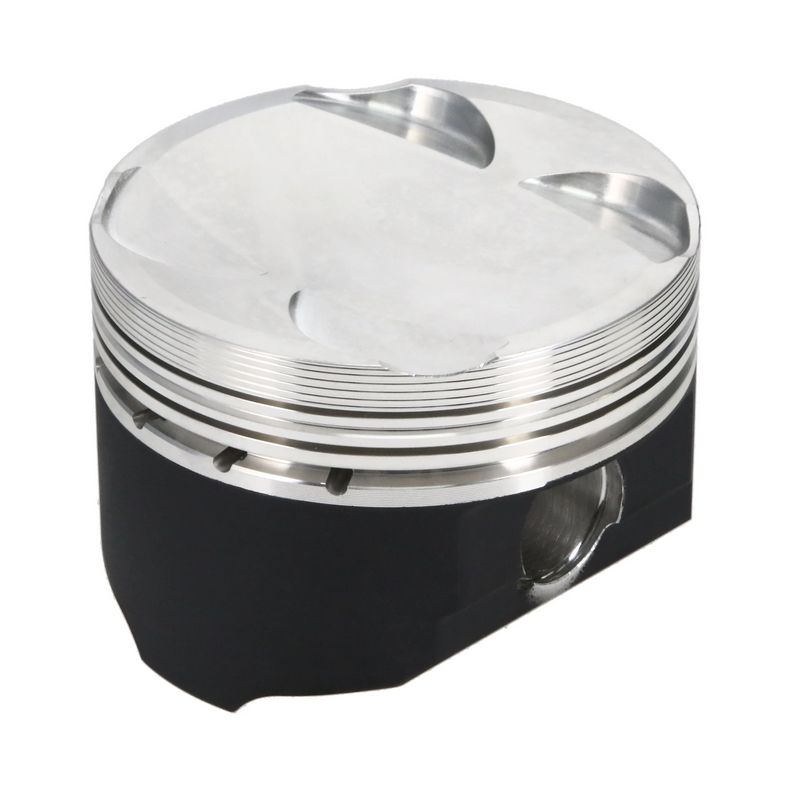

Characteristics of the forged pistons offered by NSB Concept for Alfa Romeo 1.7 L 16 V AR32205:
Characteristics of the forged pistons offered by NSB Concept for Alfa Romeo 1.7 L 16 V AR32205:
| Reference (Click) | OEM bore 82.00mm | RV OEM 9.5:1 | OEM axle 20mm | OEM Axle Height 33mm | Range | Treatment | Aluminum | Forging | Dome | Weight | Segments |
|---|---|---|---|---|---|---|---|---|---|---|---|
| K9274DA | 82.00 | 9.0:1 | 20 | 33 | Wössner | Skirt | 4032-T6 | Round | -12.4 cc | 284g | 820XTY |
| K9274D050 | 82.50 | 9.1:1 | 20 | 33 | Wössner | Skirt | 4032-T6 | Round | -12.4 cc | 284g | 825XTY |
| K9274D100 | 83.00 | 9.2:1 | 20 | 33 | Wössner | Skirt | 4032-T6 | Round | -12.4 cc | 284g | 830XTY |
Original vehicles equipped with the AR32205 engine:
| Brand | Model | Engine code | Power | Years |
|---|---|---|---|---|
| Alfa Romeo | 33 1.7 16V QV | AR32205 | 137 hp | 1990? 1994 |
| Alfa Romeo | 33 Sportwagon 1.7 16V | AR32205 | 137 hp | 1990? 1994 |
| Alfa Romeo | 33 1.7 16V | AR32205 | 129 hp | 1994? 1995 |
| Alfa Romeo | 145 1.7 16V | AR32205 | 129 hp | 1994? 1997 |
| Alfa Romeo | 146 1.7 16V | AR32205 | 129 hp | 1995? 1998 |
