- On order

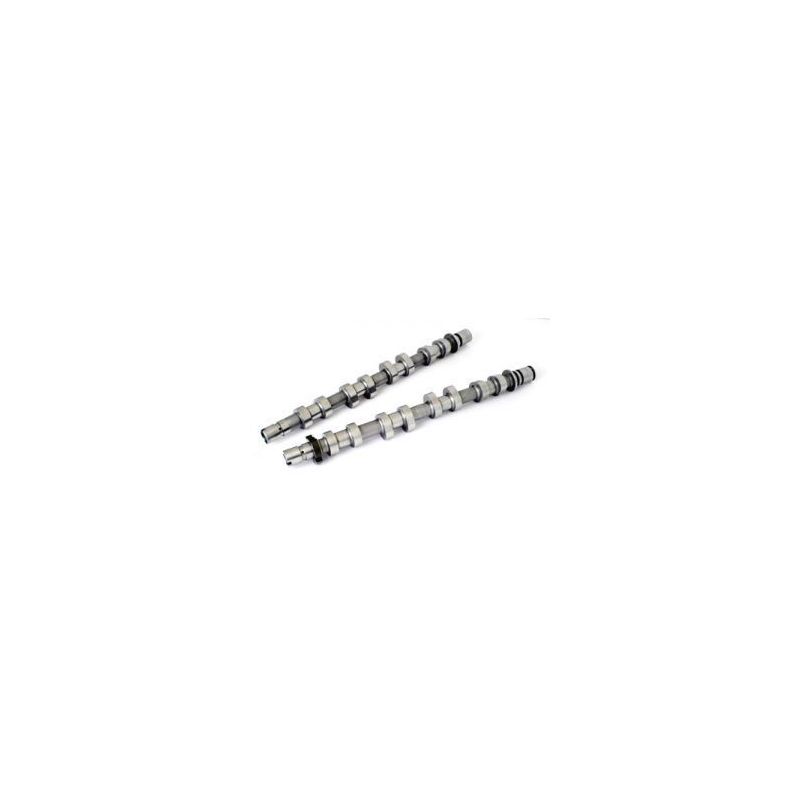

CATCAMS camshafts ref 1900438
€961.20
(tax incl.)
€1,068.00
(tax incl.)
-10%
CATCAMS camshafts ref 1900438 Find your engine at: http://www.catcams.com/engines/engine-selection.aspx?SelectedManufacturer=-1
CATCAMS camshafts ref 1900438 CATCAMS is among the world leaders in the development and manufacture of camshafts, everything is done in Flanders in the family company founded by the father from his experience with different English manufacturers. Find your engine on: http://www.catcams.com/engines/engine-selection.aspx?SelectedManufacturer=-1
1900438
turbo conversion
Fiat 836 A3.000 Fiat Tipo 16v + Lancia Delta integrale
I-4cyl 2.0L 16v DOHC (DTs/DTs)
intake
exhaust
camshaft data:
>lash ramp
: 0.40mm
0.45mm
duration @ 0.1mm
: 259A deg
251A deg
duration @ 1.0mm
: 226A deg
208A deg
valve lift
: 10.10mm
8.80mm
cam __lift
: 10.10mm
8.80mm
lobe angle
: 110A deg
108A deg
timing @ 1.0mm
: 3A deg / 43A deg
32A deg / -4A deg
valve lift @ TDC
: 1.75mm
1.10mm
parts setup:
cam __wheels:
:
CTFI036
CTFI036: CTFI036
CTFI036follower
:
O.E.M.
O.E.M.: O.E.M.
O.E.M.valve lash
: O.E.M.
O.E.M.: O.E.M.
O.E.M.valve
: O.E.M.
O.E.M.: O.E.M.
O.E.M.valve locks
: O.E.M.
O.E.M.: O.E.M.
O.E.M.upper retainer
: O.E.M.
O.E.M.: O.E.M.
O.E.M.lower retainer
: O.E.M.
O.E.M.: O.E.M.
O.E.M.exterior spring
: O.E.M.
O.E.M.: O.E.M.
O.E.M.interior spring
: O.E.M.
O.E.M.: O.E.M.
O.E.M.fitted load / length
: 53kg @ 34.7mm
: 53kg 34.7mm
>max. load / lift
: 95kg @ 10.5mm
: 95kg @ 10.5mm
-
Brand
-
Reference1900438/S
