1.6L 8v - RS Turbo
Manufacturers
1.6L 8v - RS Turbo
Warning: Last items in stock!
New product

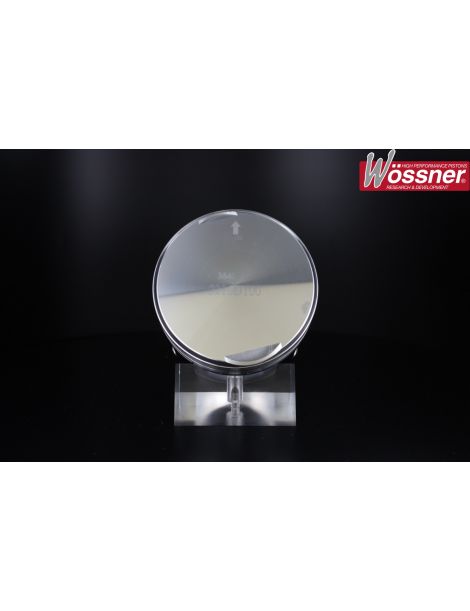

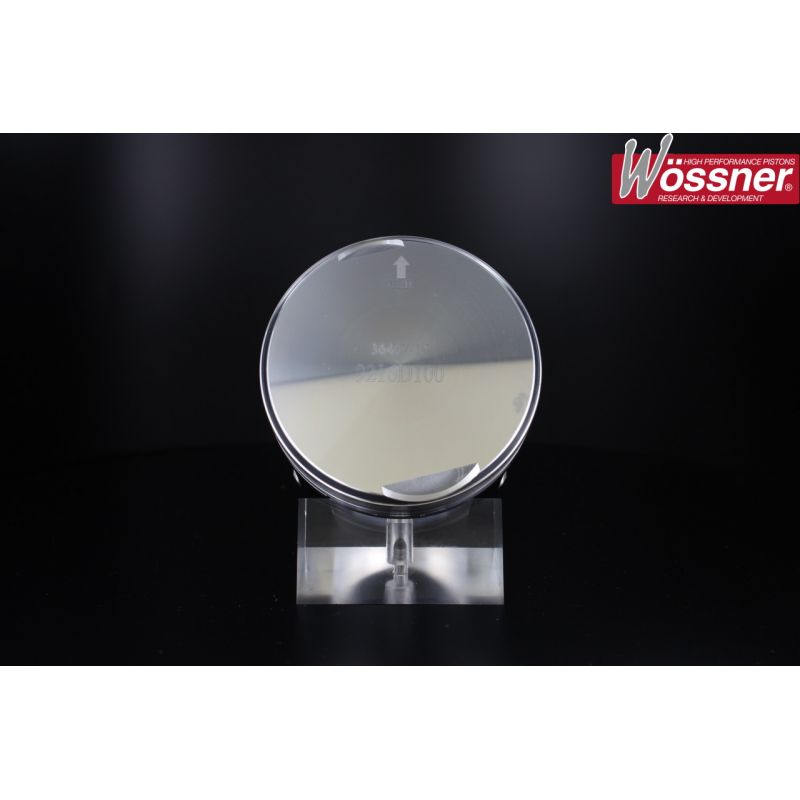

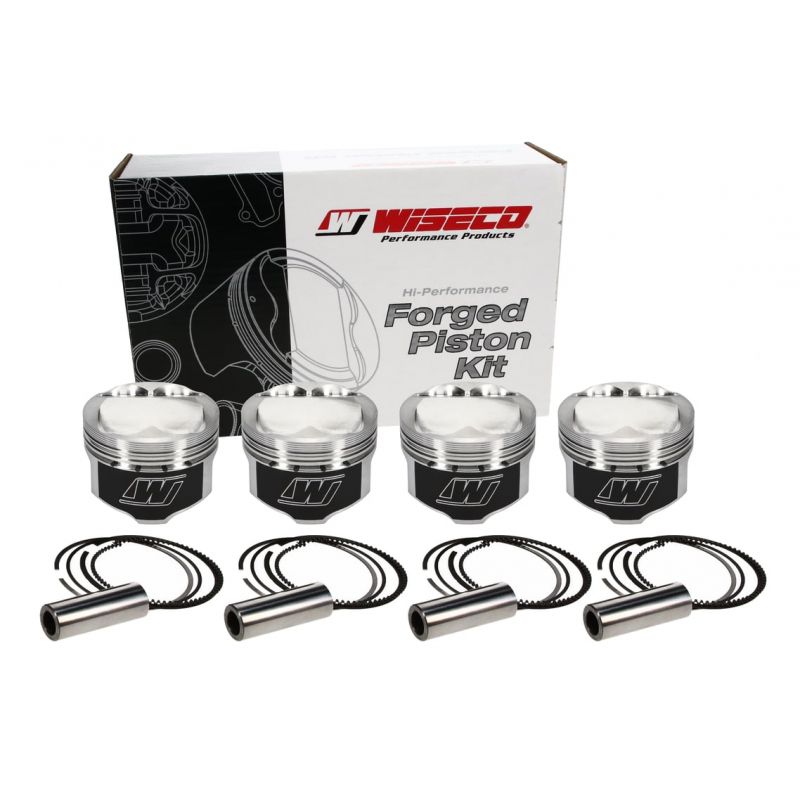

Set of 4 Wossner & Wiseco forged pistons for Ford Escort / Fiesta RS Turbo 1.6 CVH 8 v: bores 80.0-81.0 mm, RV 7.5-8.3:1, 20.63mm axle, rings included.
Characteristics of the forged pistons offered by NSB Concept for Ford 1,600 cm3 CVH 8 v Turbo engine:
| Reference (click) | Bore(mm) | VR | Axis(mm) | Axis height (mm) | Range | Treatment | Aluminum | Forging | Flight. dome(cc) | Weight | rings |
|---|---|---|---|---|---|---|---|---|---|---|---|
| K9216DA | 80.00 | 8.3:1 | 20.63 | 38.80 | Wossner | 4032-T6 | Round | +11.6 | 800XPY | ||
| WKE151M80 | 80.00 | 7.5:1 | 20.63 | 38.81 | Wiseco | Skirt | 2618 | -0.5 | 8000XX | ||
| K9216D050 | 80.50 | 8.4:1 | 20.63 | 38.80 | Wossner | 4032-T6 | Round | +11.6 | 805XPZ | ||
| WKE151M805 | 80.50 | 7.5:1 | 20.63 | 38.81 | Wiseco | Skirt | 2618 | -0.5 | 3169XC | ||
| K9216D100 | 81.00 | 8.5:1 | 20.63 | 38.80 | Wossner | 4032-T6 | Round | +11.6 | 810XPY | ||
| WKE151M81 | 81.00 | 7.5:1 | 20.63 | 38.81 | Wiseco | Skirt | 2618 | -0.5 | 8100XX |
Compatibilities:
Ford CVH 1,597 cm3 Turbo block (Escort & Fiesta RS Turbo)
Crankshaft stroke: 79.52 mm C/C connecting rods 132 mm
Original vehicles equipped with the 1.6 CVH Turbo:
| Brand | Model | Power | Years |
|---|---|---|---|
| Ford | Escort RS Turbo Mk3 (S1) | 132 hp | 1984-1985 |
| Ford | Escort RS Turbo Mk4 (S2) | 139 hp | 1986-1990 |
| Ford | Fiesta RS Turbo Mk3 | 133 hp | 1990-1992 |
Piston manufacturer references (OEM):
CV141A bare piston O 80.00 mm
CV141A.5MM piston O 80.50 mm (+0.5)
CV141A 1.0MM piston O 81.00 mm (+1.0)
Warning: before any assembly, please check the integrity and conformity of each component of the piston kit as well as the conformity of the assembly in the engine; any possible warranty is strictly limited to the parts of the piston kit only.
