3.6L 12v - M64
Manufacturers
3.6L 12v - M64
Warning: Last items in stock!
New product

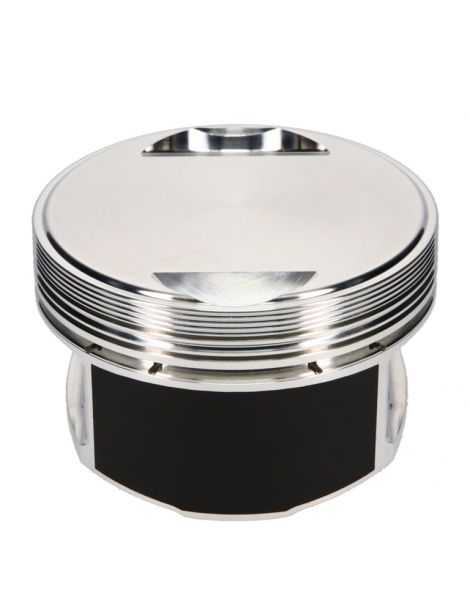

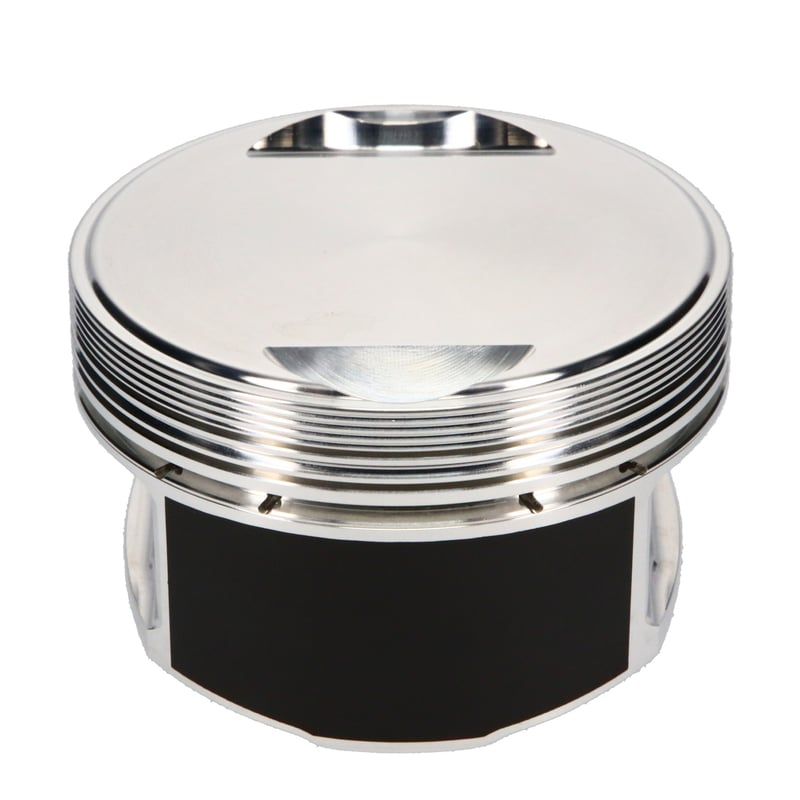

Forged pistons Porsche 911 (964) 3.6 M64: bore 100 OEM, pin 23 mm, CR 11.3:1 (Carrera) / 7.5:1 (Turbo). Complete table of references JE/Wossner 100-105 mm + vehicles & OEM.
Specifications of the forged pistons offered by NSB Concept for Porsche 911 3.6 L 12 V M64 (964) :
| Reference | OEM Bore 100,00 mm | OEM CR 11,3 :1 (Carrera) / 7,5 :1 (Turbo 3.6) | OEM Pin 23 mm | Height OEM Pin 31,80 mm | Range | Coating | Aluminium | Forging | Dome | Weight | Rings |
|---|---|---|---|---|---|---|---|---|---|---|---|
| JE-381261 | 100.0 | 11:1 | 23 | 31.8 | JE | NC | 4032 | NC | NC | NC | NC |
| JE-274637 | 100.0 | 11.5:1 | 23 | 31.8 | JE Round | NC | 2618 | Round | 40.8 | 488.0 | NC |
| JE-353306 | 100.0 | 11.5:1 | 23 | 31.8 | JE Round | NC | 2618 | Round | 40.8 | NC | NC |
| K9016DA | 100.0 | 11.8:1 | 23 | 31.7 | Wossner | NC | NC | Slipper | 40.16 | NC | 1000XSY |
| K9017DA | 100.0 | 11.8:1 | 23 | 31.7 | Wossner | NC | NC | Slipper | 40.16 | NC | 1000XSY |
| JE-274636 | 100.0 | 12.5:1 | 23 | 31.8 | JE | NC | 2618 | NC | 45.8 | NC | NC |
| JE-353307 | 100.0 | 12.5:1 | 23 | 31.8 | JE Round | NC | 2618 | Round | 45.8 | NC | NC |
| K9196D200 | 102.0 | 8.2:1 | 23 | 31.7 | Wossner | NC | NC | NC | 6.65 | NC | 1020XSK |
| JE-381262 | 102.0 | 11:1 | 23 | 31.8 | JE | NC | 4032 | NC | NC | NC | NC |
| JE-274046 | 102.0 | 11.5:1 | 23 | 31.8 | JE Round | NC | 2618 | Round | 38.8 | 494.0 | NC |
| JE-353308 | 102.0 | 11.5:1 | 23 | 31.8 | JE Round | NC | 2618 | Round | 38.8 | NC | NC |
| K9016D200 | 102.0 | 11.8:1 | 23 | 31.7 | Wossner | NC | NC | Slipper | 40.16 | NC | 1020XSK |
| K9017D200 | 102.0 | 11.8:1 | 23 | 31.7 | Wossner | NC | NC | Slipper | 40.16 | NC | 1020XSK |
| JE-274045 | 102.0 | 12.5:1 | 23 | 31.8 | JE Round | NC | 2618 | Round | 44.0 | 506.0 | NC |
| JE-353309 | 102.0 | 12.5:1 | 23 | 31.8 | JE Round | NC | 2618 | Round | 44.0 | NC | NC |
| JE-381263 | 103.12 | 11:1 | 23 | 31.8 | JE | NC | 4032 | NC | NC | NC | NC |
| JE-353310 | 103.15 | 11.5:1 | 23 | 31.8 | JE Round | NC | 2618 | Round | 37.7 | NC | NC |
| JE-353311 | 103.15 | 12.5:1 | 23 | 31.8 | JE Round | NC | 2618 | Round | 43.0 | NC | NC |
| JE-381264 | 105.03 | 11:1 | 23 | 31.8 | JE | NC | 4032 | NC | NC | NC | NC |
| JE-353312 | 105.03 | 11.5:1 | 23 | 31.8 | JE Round | NC | 2618 | Round | 35.7 | NC | NC |
| JE-353313 | 105.03 | 12.5:1 | 23 | 31.8 | JE Round | NC | 2618 | Round | 41.2 | NC | NC |
Compatibility (engine codes):
Original vehicles equipped with the flat‑6 M64 3.6 :
| Brand | Model | Engine code | Power | Years |
|---|---|---|---|---|
| Porsche | 911 (964) Carrera 4 | M64/01 | 250 hp | 1989 – 1993 |
| Porsche | 911 (964) Carrera 2 | M64/01 | 250 hp | 1990 – 1993 |
| Porsche | 911 (964) Carrera 2 Tiptronic | M64/02 | 250 hp | 1990 – 1993 |
| Porsche | 911 (964) Carrera RS | M64/03 | 260 hp | 1992 – 1993 |
| Porsche | 911 (964) Turbo 3.6 | M64/50 | 360 hp | 1993 – 1994 |
OEM piston references :
964 Carrera 2 / 4 (M64/01, M64/02) 100 mm, 11.3:1: Mahle piston/cylinder kits (ex. 964 103 915 25 – to be confirmed by VIN/PR Codes and selection A/B/C).
964 Carrera RS 3.6 (M64/03): piston/cylinder assemblies matched specific RS – check by VIN.
964 Turbo 3.6 (M64/50): specific low compression pistons (≈7.5:1) – references dedicated to Turbo 3.6.
*Important: indicative references. Always validate with the series number (VIN) and the Porsche EPC.
Warning: Before installation, please verify the integrity and conformity of each component of the piston kit as well as the correctness of the assembly in the engine; any warranty is strictly limited to the parts included in the piston kit.
