2.4L 12v - Dino V6 135CS

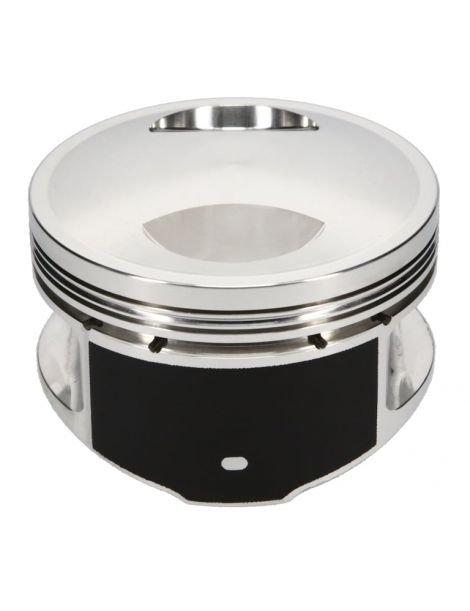

Reduced price! Pistons forgés 2.4L 12v F106A 135C/S Ferrari View larger
Previous Next

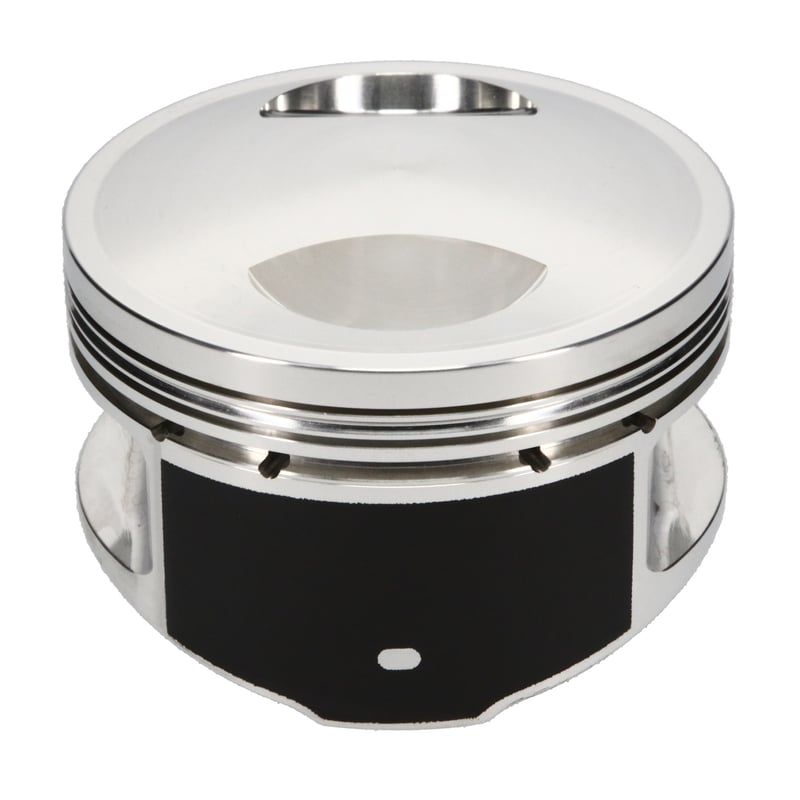

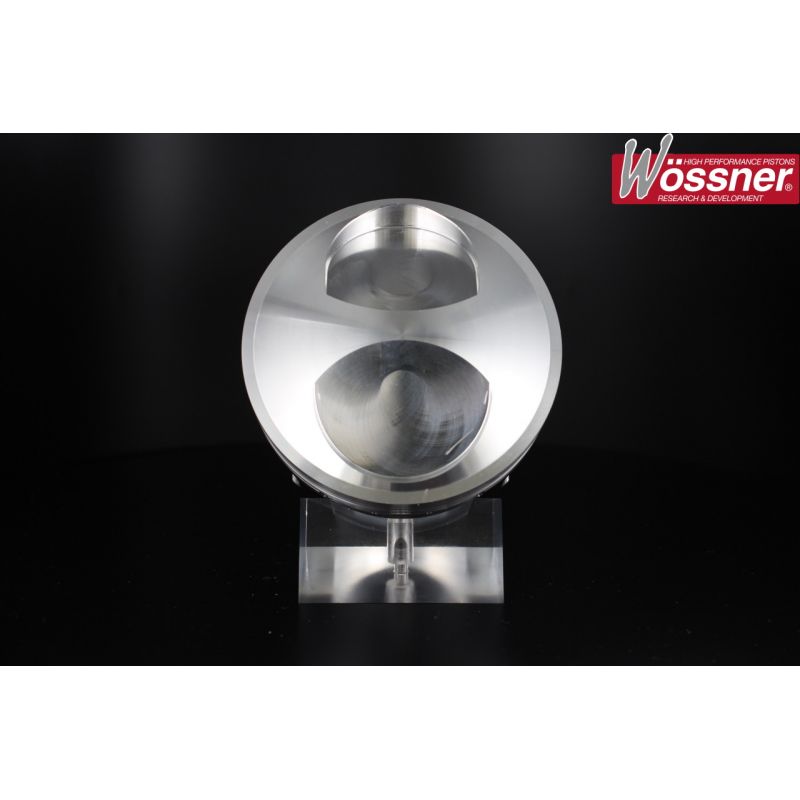

Forged Pistons 2.4L 12v Dino V6 135CS Ferrari

New product

2.4-L V6 Dino (Tipo-135-C) forged pistons: rings included, OEM/oversize bores, Pin 20-mm, CH 30.00-mm. Compatibilities Ferrari 246-GT/GTS, Fiat Dino-2400, Lancia Stratos-HF.

More details

1 134,61 € tax incl.

-25%

1 512,82 € tax incl.

ORDER TODAY, WE SHIP IN 2 - 5 DAYS

  • Specifications of the forged pistons offered by NSB Concept for Ferrari / Fiat / Lancia — 2.4 L 12 V Dino V6 (Tipo 135 C) :

    ReferenceOEM Bore
    92,50 mm    		OEM CR 9,0 :1OEM Pin
    20 mm    		Height OEM Pin
    30,00 mm    		RangeCoatingAluminiumForgingDomeWeightRings
    K9101DA92.510.1:12030WossnerNCNCRound18.77NC925XSY
    K9101DA92.510.1:12030WossnerNCNCRound18.77NC925XSY
    JE-36220993.09:12030JE RoundNC2618Round12.8398.0NC
    JE-36220993.09:12030JE RoundNC2618Round12.8398.0NC
    JE-36221293.010:12030JE RoundNC2618Round18.5411.0NC
    JE-36221293.010:12030JE RoundNC2618Round18.5411.0NC
    K9101D05093.010.1:12030WossnerNCNCRound18.77NC930XSY
    K9101D05093.010.1:12030WossnerNCNCRound18.77NC930XSY
    JE-36221093.59:12030JE RoundNC2618Round12.4400.0NC
    JE-36221093.59:12030JE RoundNC2618Round12.4400.0NC
    JE-36221393.510:12030JE RoundNC2618Round18.1414.0NC
    JE-36221393.510:12030JE RoundNC2618Round18.1414.0NC
    K9101D10093.510.2:12030WossnerNCNCRound18.77NC935XSY
    K9101D10093.510.2:12030WossnerNCNCRound18.77NC935XSY
    JE-36221194.09:12030JE RoundNC2618Round12.0404.0NC
    JE-36221194.09:12030JE RoundNC2618Round12.0404.0NC
    JE-36221494.010:12030JE RoundNC2618Round17.7418.0NC
    JE-36221494.010:12030JE RoundNC2618Round17.7418.0NC


    Compatibility (engine codes):

    • Fiat Dino 2400 : 135C.000 (V6 2418 cm³)
    • Ferrari Dino 246 GT/GTS : Tipo 135 C (V6 2419 cm³)
    • Lancia Stratos HF (Stradale/Group 4) : Dino V6 2.4 (2418 cm³)


    Original vehicles equipped with the V6 2.4 Dino (Tipo 135 C) :

    BrandModelEngine codePowerYears
    FerrariDino 246 GTTipo 135 C195 hp1969 – 1974
    FerrariDino 246 GTSTipo 135 C195 hp1972 – 1974
    FiatDino 2400 Coupé135C.000180 hp1969 – 1973
    FiatDino 2400 Spider135C.000180 hp1969 – 1973
    LanciaStratos HF Stradale— (Dino 2.4 V6)190 hp1973 – 1978


    OEM piston references :

    • Ferrari Dino 246 (toutes variants 2.4) : 4178481 (piston STD 92,5), 4178484 (1st oversize), 140167 (complete piston 92,5).
    • Fiat Dino 2400 135C.000 : 24616066 (piston sand STD 92,5), 24616067 (1st oversize 92,7), 24616063 (2nd oversize 92,9).
    • Lancia Stratos HF (V6 2.4) : STD piston 92,5 mm — references equivalents Ferrari/Borgo depending on model year.

    Warning: Before installation, please verify the integrity and conformity of each component of the piston kit as well as the correctness of the assembly in the engine; any warranty is strictly limited to the parts included in the piston kit.

    Forged pistons 2.4 L V6 Dino (Tipo 135 C) : rings included, bores OEM/oversize, pin 20 mm, CH 30,00 mm. Compatibility Ferrari 246 GT/GTS, Fiat Dino 2400, Lancia Stratos HF.
