2.3L 16v - M102
Manufacturers
2.3L 16v - M102
Warning: Last items in stock!
New product

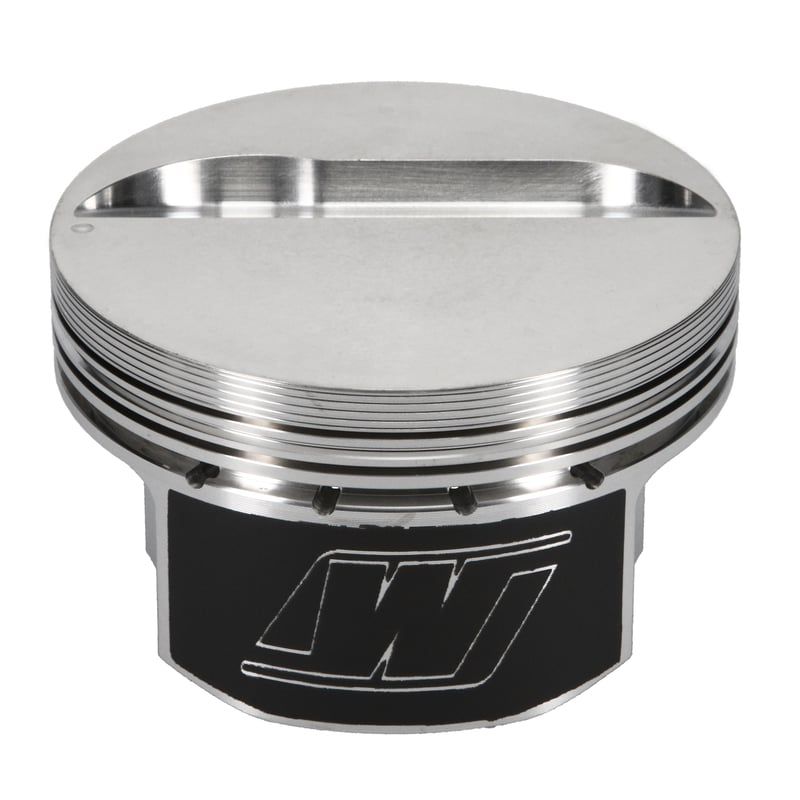

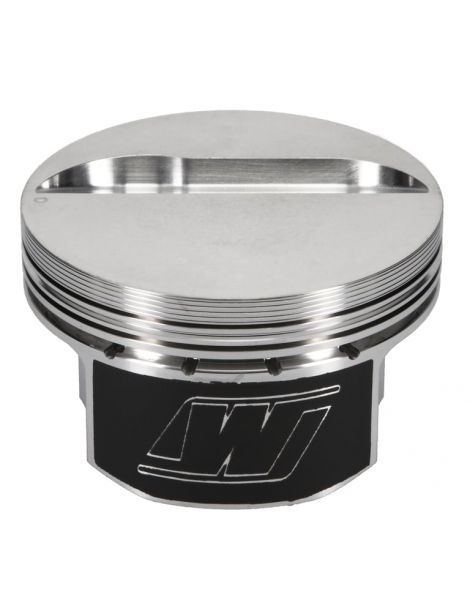

Forged pistons Mercedes 2.3L 16v(Connecting rods149mm) Bores 95.5-97mm, RV 8.5-11.4:1, Pine 22mm. compatible WITH 190E 2.3-16 (W201, M102.983).
Specifications of the forged pistons offered by NSB Concept for Mercedes 2,3 L 16 v (config. connecting rods 149 mm) :
| Reference piston | Bore (mm)OEM 96 | CROEM 8,5 :1 | pin (mm)OEM 22 | Height pin (mm)OEM 38,9 | Range | Aluminium | Coating | Forging | Dome (cc) | Weight (g) | Rings |
|---|---|---|---|---|---|---|---|---|---|---|---|
| WKE230M955 | 95,5 | 8,5 :1 | 22 | 38,9 | Wiseco | 2618 | Skirt | NC | -10 | NC | 9550XX |
| WKE230M9575 | 95,75 | 8,5 :1 | 22 | 38,9 | Wiseco | NC | Skirt | NC | -10 | NC | 9575XX |
| WKE230M96 | 96 | 8,5 :1 | 22 | 38,9 | Wiseco | 2618 | Skirt | NC | -10 | NC | 9600XX |
| JE-359457C*4 | 96 | 11,3 :1 | 22 | 38,9 | JE | NC | NC | NC | 12 | NC | NC |
| WKE230M9625 | 96,25 | 8,5 :1 | 22 | 38,9 | Wiseco | NC | Skirt | NC | -10 | NC | 9625XX |
| WKE230M965 | 96,5 | 8,5 :1 | 22 | 38,9 | Wiseco | 2618 | Skirt | NC | -10 | NC | 9650XX |
| JE-377693C*4 | 96,5 | 11,3 :1 | 22 | 38,9 | JE | NC | NC | NC | 12 | NC | NC |
| JE-391386C*4 | 97 | 11,4 :1 | 22 | 38,9 | JE | NC | NC | NC | 12 | NC | NC |
Compatibility engine :
| Brand | Model | Chassis | Engine code | Power (ch) | Years |
|---|---|---|---|---|---|
| Mercedes-Benz | 190E 2.3-16 | W201 | M102.983 | 167–185 | 1984 – 1988 |
Manufacturer piston references (OEM):
A102 030 97 37 54 (piston), A102 030 91 37 (piston). variables references depending on model year and selection bore.Warning : Before installation, please verify the integrity and conformity of each component of the piston kit, as well as the correctness of the assembly in the engine. Any warranty is strictly limited to the parts included in the piston kit.
