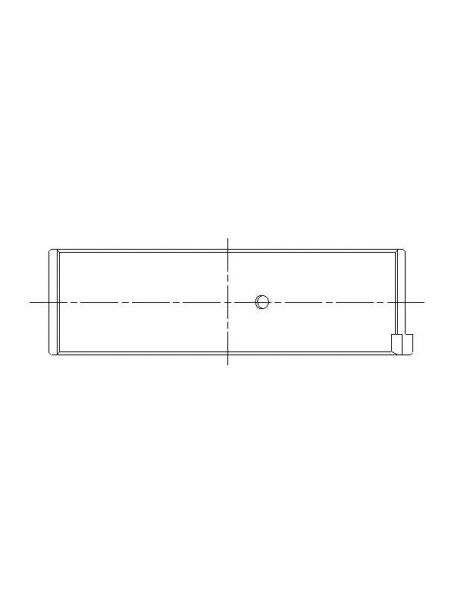

ACL trimetal connecting rod bearings Mitsubishi 6G72 6G73 ACL trimetal connecting rod bearings Mitsubishi 6G72 6G73 ACL trimetal connecting rod bearings Mitsubishi 6G72 6G73 ACL trimetal connecting rod bearings Mitsubishi 6G72 6G73

ACL trimetal connecting rod bearings Mitsubishi 6G72 6G73

€69.03 (tax incl.)
€76.70 (tax incl.) -10%

Set of 12 trimetal connecting rod half-bearings for Mitsubishi 6G72, 6G73.

  • Brand and treatment: ACL Race
  • Compatibility: 3000 GT, GTO, Pajero, L200, Galant, Diamante, Magna, Eclipse, Space Wagon, Grandis, Hyundai Grandeur, Dodge Stealth
  • Engine codes: 6G72, 6G72-T, 6G73, G6AT, G6AV
  • Available sizes: standard to +0.25 mm, increased-clearance version (HX)
6B1140H-STD
0 in stock in France
ORDER TODAY, WE SHIP IN 5 - 15 DAYS
Pay in installments

The Mitsubishi 6G72 and 6G73 V6 engines

The 6G72 and 6G73 are Mitsubishi's 3.0 and 2.5 litre V6 engines, with 12 or 24 valves, single or double overhead camshafts, naturally aspirated or turbocharged (6G72-T), fitted to the 3000 GT, GTO, Pajero, L200, Galant, Diamante, Magna, Eclipse, Space Wagon and Grandis, as well as to Hyundai (G6AT, G6AV), Dodge and Chrysler models. ACL lists a single bearing set for these engines: same crankpin diameter, a single set covers the family.

From the factory, this engine is fitted with standard production connecting rod bearings, sized for the loads of the original engine: as soon as power, engine speed or boost pressure increase, they reach their limits.

Trimetal connecting rod bearings

In a trimetal bearing, a steel back carries a copper-lead intermediate layer with high load capacity, itself covered by an anti-friction running layer that spares the crankpin. The set is supplied complete: 12 half shells, i.e. 6 pairs.

Trimetal targets high, sustained loads, whereas aluminium bi-metal is limited to low to medium loads: about 8,000 psi for the latter, up to 12,000 psi for a performance trimetal, 50% more. The benefit shows in strength and durability on turbo, supercharged and high-revving engines.

Technical specifications

Fitment dimensions common to all references
ACL bearings
Crankpin Ø 49.980 / 50.000 mm
Housing bore Ø 53.000 / 53.020 mm
Width 15.5 mm
ReferenceBrand and treatmentSizeWall thickness (mm)
6B1140H-STD ACL Race - Untreated Standard 1.491
6B1140HX-STD ACL Race - Untreated Std, increased clearance (HX) 1.478
6B1140H-.025 ACL Race - Untreated +0.025 1.504
6B1140H-.25 ACL Race - Untreated +0.25 1.616

Running clearance

Running clearance is the gap between the bearing and the crankpin, filled by the oil film.

While the engine turns, the crankpin floats on this oil film, which carries the load without direct contact with the bearing. Film thickness depends on clearance: too tight, oil passes poorly, temperature rises and the risk of seizure grows; too wide, oil escapes, the film carries less and oil pressure decreases. A correct clearance ensures both sufficient lubrication and a well-maintained film.

Size / gradeWhen to choose itACL Race Series
Standard (STD) Standard journal, not reground 0.053 to 0.063 mm
Increased clearance (HX) Wider clearance: high oil flow, high rpm 0.078 to 0.088 mm
+0.025 mm Polished journal 0.053 to 0.063 mm
+0.25 mm Journal reground to 0.25 mm 0.053 to 0.063 mm

Checking on assembly: lay a calibrated strip (Plastigauge) on the journal, torque the rod cap to spec, then compare the crushed strip against the gauge to read the clearance.

Plastigauge

Order the Plastigauge →

Technical guide

These ACL trimetal connecting rod bearings are aimed at built engines and racing: where a standard bearing quickly reaches its limit, they accept more power, more rpm and more boost. The range includes the standard size, a +0.025 mm size for a crankpin that has only been polished, a +0.25 mm regrind size and the HX version with increased clearance for high-revving engines or engines needing a high oil flow. It allows the same part number to be kept after the crankshaft is reground and the clearance to be tailored to the oil used and the engine's duty.

The brand

ACL Bearing Company An Australian specialist in high-performance engine bearings since 1949, ACL Bearing Company produces the Race Series: precisely made trimetal bearings, available in numerous sizes and recognised on built engines across the world.

Vehicle compatibility

This connecting rod bearing set fits the 6G72 and 6G73 V6 engines of the following Mitsubishi, Hyundai, Dodge and Chrysler models:

BrandModel (chassis)Engine codePowerYears
Chrysler LE BARON Convertible 3.0 i V6 6G72 143 hp 1990–1996
Chrysler SARATOGA 3.0 6G72 142 hp 1989–1995
Chrysler VOYAGER II (ES) 3.0 i 6G72 147 hp 1991–1995
Dodge DYNASTY Saloon 3.0 6G72 (SOHC 12V) 141 hp 1988–1993
Dodge RAM 50 Extended Cab Pickup 3.0 / 3.0 4WD 6G72 (SOHC 12V) 143 hp 1989–1991
Dodge RAM 50 Standard Cab Pickup 3.0 / 3.0 4WD 6G72 (SOHC 12V) 144 hp 1989–1991
Dodge STEALTH Hatchback 3.0 / 3.0 AWD 6G72 (DOHC 24V), 6G72 (SOHC 12V), 6G72-T 166–324 hp 1990–1996
Dodge STRATUS Coupé 3.0 6G72 (SOHC 24V) 203 hp 2000–2005
Dodge STRATUS II 3.0 6G72 (SOHC 24V) 203 hp 2000–2001
Hyundai DYNASTY 2.5 G6AV 162 hp 1997–2005
Hyundai GALLOPER II (JK-01) 3.0 AWD / 3.0 V6 G6AT 141–160 hp 1998–2003
Hyundai GALLOPER I 3.0 / 3.0 V6 6G72, G6AT 141–161 hp 1991–1998
Hyundai GRANDEUR (LX) 2.5 / 3.0 / LPI 6G72 (DOHC 24V), 6G72T, 6G73, G6AT, G6AV 161–224 hp 1992–1999
Hyundai GRANDEUR 3.0 6G72 (DOHC 24V) 200 hp 1989–1992
Hyundai MARCIA 3.0 G6AT 146 hp 1993–1998
Hyundai SONATA II (Y-2) 3.0 i V6 G6AT 145 hp 1991–1993
Hyundai SONATA III (Y-3) 3.0 i V6 G6AT 146 hp 1993–1998
Mitsubishi 3000 GT Coupé (Z1_A) 3.0 / 3.0 (Z11A) / 3.0 (Z15A) / 3.0 4WD / 3.0 4WD (Z16A) / 3.0 Turbo 4WD (Z16A) 6G72 (DOHC 24V), 6G72 (SOHC 12V), 6G72-T/C (DOHC 24V) 162–325 hp 1989–2000
Mitsubishi 3000GT Convertible 3.0 / 3.0 AWD 6G72 (DOHC 24V), 6G72-T/C (DOHC 24V) 226–325 hp 1994–1996
Mitsubishi DEBONAIR (S1_A) 3.0 (S12A) 6G72 (DOHC 24V), 6G72 (SOHC 12V) 150–200 hp 1986–1992
Mitsubishi DEBONAIR (S2_A) 3.0 (S22A) 6G72 (SOHC 12V) 170 hp 1992–1997
Mitsubishi DELICA / SPACE GEAR 3.0 (PB6W) / 3.0 (PD6W) 6G72 (SOHC 12V), 6G72 (SOHC 24V) 181–185 hp 1994–2006
Mitsubishi DIAMANTE Estate (F_W) 3.0 / 3.0 (F36W) / 3.0 (K45) 6G72 (SOHC 12V), 6G72 (SOHC 24V) 165–190 hp 1992–2001
Mitsubishi DIAMANTE I Saloon (F2_A, F1_A) 2.5 (F13A, F15A) / 3.0 (F17A) 6G72 (DOHC 24V), 6G73 175–241 hp 1990–1996
Mitsubishi DIAMANTE II Saloon (F4_A, F3_A) 2.5 (F31A) / 2.5 4WD (F41A) / 3.0 (F36A) 6G72 (DOHC 24V), 6G73 190–200 hp 1994–2005
Mitsubishi ECLIPSE Convertible (D5_A) 3.0 6G72 (SOHC 24V) 203–213 hp 1999–2005
Mitsubishi ECLIPSE III (D5_A) 3.0 6G72 (SOHC 24V) 203–213 hp 1999–2005
Mitsubishi GALANT V (E1_A) 3.0 6G72 (SOHC 12V) 144 hp 1988–1990
Mitsubishi GALANT VII (E5_A, E7_A, E8_A) 2.5 (E88A) / 2.5 V6-24 4WD (E88A) 6G73 170 hp 1992–1996
Mitsubishi GALANT VII Saloon (E5_A, E7_A, E8_A) 2.5 / 2.5 V6-24 4WD (E88A) 6G73 170 hp 1992–1996
Mitsubishi GALANT VIII (EA_) 3.0 / 3.0 (EA8A) 6G72 (SOHC 24V) 197–207 hp 1998–2004
Mitsubishi GALLOPER (JK-01) 3.0 V6 G6AT 141 hp 1998–2003
Mitsubishi GRANDIS (N9_, N8_) 3.0 (N86W) / 3.0 GLX 4WD (N96W) 6G72 (DOHC 24V), 6G72 (SOHC 24V) 215 hp 1999–2003
Mitsubishi GTO Coupé (Z1_A) 3.0 AWD (Z15A) / 3.0 AWD (Z16A) 6G72 (DOHC 24V), 6G72-T/C (DOHC 24V) 222–286 hp 1989–2000
Mitsubishi L 300 III Bus (P0_W, P1_W, P2_W, P3_W) 3.0 / 3.0 (PA8W) / 3.0 4WD 6G72 (SOHC 24V) 181–185 hp 1994–2003
Mitsubishi L 300 III Van (P0_V, P1_V, P2_V) 3.0 / 3.0 4WD 6G72 (SOHC 24V) 185 hp 1994–2003
Mitsubishi L200 (K3_T, K2_T, K1_T, K0_T) 3.0 / 3.0 4WD / 3.0 i 4WD 6G72 (SOHC 12V) 145–177 hp 1986–1999
Mitsubishi L200 (K7_T, K6_T, K5_T) 3.0 4WD (K76T) / 3.0 i (K66T) / 3.0 i 4WD (K76T) 6G72 (SOHC 24V) 147–181 hp 1996–2006
Mitsubishi L200 Platform/Chassis truck (K3_T, K0_T, K1_T, K2_T) 3.0 i 4WD 6G72 (SOHC 12V) 148 hp 1990–1996
Mitsubishi L200 Platform/Chassis truck (K6_T, K7_T) 3.0 (K66T) / 3.0 4WD (K76T) 6G72 (SOHC 24V) 181 hp 1996–2006
Mitsubishi MAGNA Saloon (TE) 3.0 i 6G72 (SOHC 24V) 190 hp 1996–1997
Mitsubishi MAGNA Saloon (TF) 3.0 i 6G72 (SOHC 24V) 190 hp 1997–1999
Mitsubishi MAGNA Saloon (TH) 3.0 i 6G72 (SOHC 24V) 190 hp 1999–2000
Mitsubishi MAGNA Saloon (TJ) 3.0 / 3.0 i 6G72 (SOHC 24V) 190–204 hp 2000–2003
Mitsubishi MAGNA Saloon (TR) 3.0 i 6G72 (SOHC 12V) 163 hp 1991–1994
Mitsubishi MAGNA Saloon (TS) 2.5 / 3.0 i 6G72 (SOHC 12V), 6G73 163–175 hp 1994–1996
Mitsubishi MAGNA Estate (TE) 3.0 i 6G72 (SOHC 24V) 190 hp 1996–1997
Mitsubishi MAGNA Estate (TF) 3.0 i 6G72 (SOHC 24V) 190 hp 1997–1999
Mitsubishi MAGNA Estate (TH) 3.0 i 6G72 (SOHC 24V) 190 hp 1999–2000
Mitsubishi MAGNA Estate (TJ) 3.0 i 6G72 (SOHC 24V) 190 hp 2000–2002
Mitsubishi MAGNA Estate (TR) 3.0 i 6G72 (SOHC 12V) 163 hp 1991–1994
Mitsubishi MAGNA Estate (TS) 3.0 i 6G72 (SOHC 12V) 163 hp 1994–1996
Mitsubishi PAJERO CLASSIC (V2_W, V6_W, V7_W) 3.0 (V72W, V83W, V93W) / 3.0 ZR (V72W) 6G72 (SOHC 24V) 178–179 hp 2003–
Mitsubishi PAJERO I (L04_G, L14_G) 3.0 4WD / 3.0 V6 (L141G, L146G) / 3.0 i 4WD 6G72 (SOHC 12V) 141–146 hp 1988–1991
Mitsubishi PAJERO II (V3_W, V2_W, V4_W, V5_W) 3.0 4WD / 3.0 V6 24V (V43W, V23W) / 3.0 V6 4WD (V23W, V43W) 6G72 (SOHC 12V), 6G72 (SOHC 24V) 150–181 hp 1990–2000
Mitsubishi PAJERO II Canvas Top (V2_C, V4_C) 3.0 V6 (V23C) / 3.0 V6 24V (V23C) 6G72 (SOHC 12V), 6G72 (SOHC 24V) 150–181 hp 1990–2000
Mitsubishi PAJERO III (V7_W, V6_W) 3.0 V6 24V (V63W, V73W) 6G72 (SOHC 24V) 181 hp 2000–2006
Mitsubishi PAJERO III Canvas Top (V6_W, V7_W) 3.0 (V73W) 6G72 (SOHC 24V) 170 hp 2001–2006
Mitsubishi PAJERO IV (V8_W, V9_W) 3.0 4WD / 3.0 4WD (V83W, V93W) 6G72 (SOHC 24V) 174–184 hp 2007–
Mitsubishi PAJERO SPORT I (K7_, K9_) 3.0 / 3.0 4WD / 3.0 V6 (K86W) / 3.0 V6 (K96W) / 3.0 V6 4WD (K96W) 6G72 (SOHC 24V) 165–185 hp 1996–2011
Mitsubishi PAJERO SPORT VAN I (K90) 3.0 V6 6G72 (SOHC 24V) 170 hp 1999–2008
Mitsubishi SIGMA (F2_A, F1_A) 3.0 V6 (F17A) 6G72 (DOHC 24V), 6G72 (SOHC 12V) 177–205 hp 1990–1996
Mitsubishi SIGMA Station Wagon (F0_W) 3.0 (F07W) 6G72 (SOHC 12V) 170 hp 1992–1996
Mitsubishi SPACE WAGON (N3_W, N4_W) 3.0 (N86W) 6G72 (DOHC 24V) 215 hp 1997–
Mitsubishi SPACE WAGON (N9_W, N8_W) 3.0 GDi 4WD (N96W) 6G72 (DOHC 24V) 215 hp 2000–2003
Mitsubishi VERADA Saloon (KH) 3.0 Ei 6G72 (SOHC 12V) 177 hp 1999–2000
Mitsubishi VERADA Saloon (KR) 3.0 / 3.0 i 6G72 (SOHC 12V) 170–205 hp 1991–1994
Mitsubishi VERADA Saloon (KS) 3.0 6G72 (SOHC 12V), 6G72 (SOHC 24V) 163 hp 1994–1997
Mitsubishi VERADA Estate (KR) 3.0 i 6G72 (SOHC 12V) 170 hp 1991–1994
Mitsubishi VERADA Estate (KS) 3.0 6G72 (SOHC 12V) 163 hp 1994–1997

Why replace the bearings

Replacing the bearings during a build or rebuild guards against the most expensive failure: a worn-out connecting rod bearing scores the crankpin, contaminates the oil circuit with debris and forces at least a crankshaft regrind, or even a new rod and block. Against such costs a new set weighs little: it is the cheapest part of the rotating assembly, but the one whose failure costs the most.
