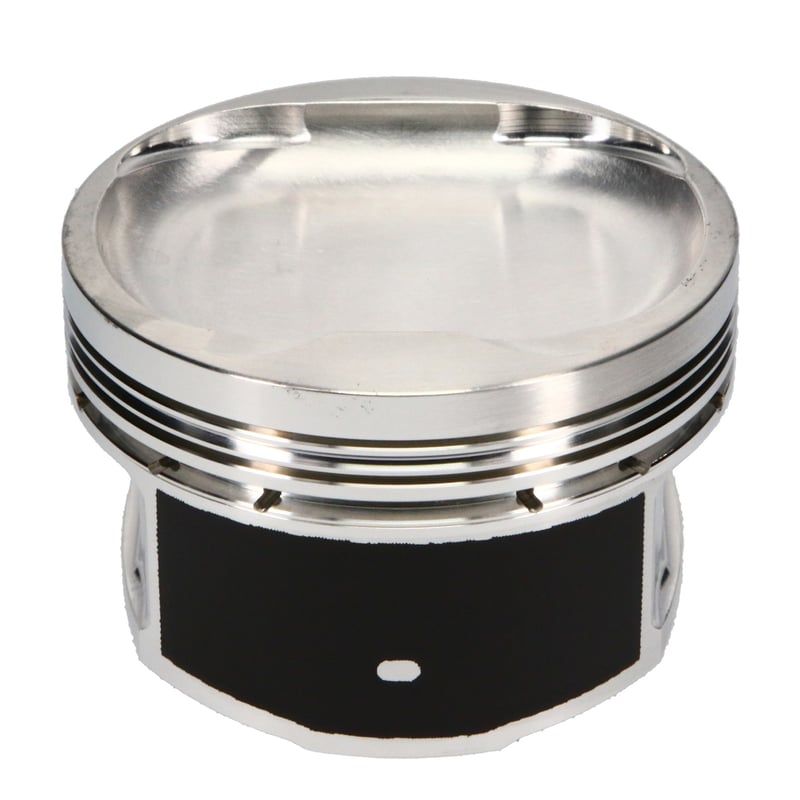

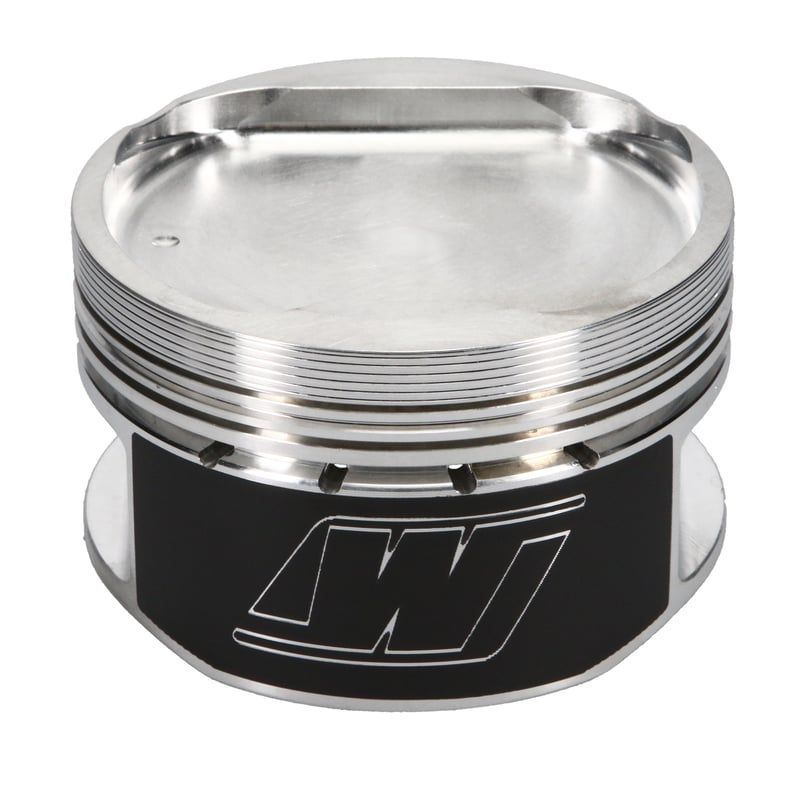

Forged pistons Toyota 2AZ-FE 2.4L, Ø 88.5 mm, Camry/RAV4 Forged pistons Toyota 2AZ-FE 2.4L, Ø 88.5 mm, Camry/RAV4

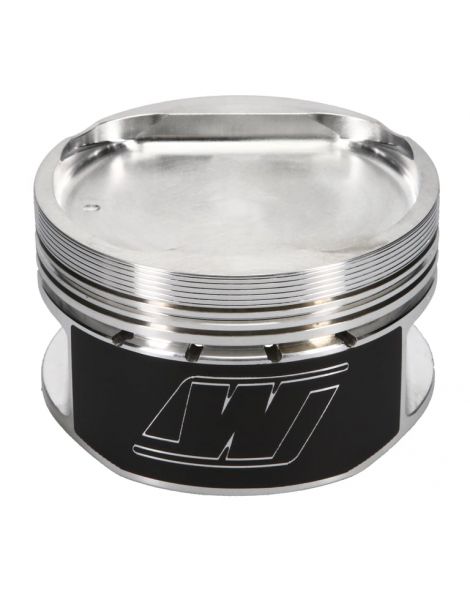

Forged pistons 2.4L 16v 2AZ-FE Toyota

€599.10 (tax incl.)
€855.86 (tax incl.) -30%

Toyota 2AZ-FE 2.4 L forged pistons: O88.5 mm (STD) options up to 90.0 mm, Pin 22 mm, CH 33.25 mm. COMPatibilities Camry, RAV4, Highlander, Scion tC/xB, Matrix/Corolla XRS, Vibe. Sorted table + refs OEM.

WK641M885
On order, 15 to 30 days lead time
Pay in installments

Specifications of the forged pistons offered by NSB Concept for Toyota 2.4 L 16 V 2AZ-FE :

Reference OEM Bore
88.50 mm		 OEM CR 9.6–9.8 :1 OEM Pin
22 mm		 Height OEM Pin
≈ 33.25 mm		 Range Coating Aluminium Forging Dome Weight Rings
JE-361358 88.5 9:1 22.0 33.0 JE Round NC 2618 Round -26.6 331.0 NC
WK641M885 88.5 9:1 22.0 33.25 Wiseco Skirt 2618 NC -29.0 NC 8850XX
JE-361359 88.5 11:1 22.0 33.0 JE Round NC 2618 Round -27.1 317.0 NC
JE-253054 89.0 9:1 NC NC JE NC NC NC NC NC NC
JE-310320 89.0 9:1 22.0 33.0 JE Round NC 2618 Round -27.1 333.0 NC
WK641M89 89.0 9:1 22.0 33.25 Wiseco Skirt 2618 NC -29.0 NC 8900XX
JE-310321 89.0 11:1 22.0 33.0 JE Round NC 2618 Round -12.2 318.0 NC
WK641M895 89.5 9:1 22.0 33.25 Wiseco Skirt 2618 NC -29.0 NC 8950XX
WK641M90 90.0 9:1 22.0 33.25 Wiseco Skirt 2618 NC -29.0 NC 9000XX


Compatibility (engine codes):

  • 2.4L 16v - 2AZ-FE


Original vehicles equipped with the 2AZ-FE 2.4 :

Brand Model Engine code Power Years
Pontiac Vibe II 2.4 2AZ-FE 158 hp 2008 – 2010
Scion tC AT10 2AZ-FE 160–161 hp 2004 – 2010
Scion xB E150 2AZ-FE 158 hp 2007 – 2015
Toyota Alphard MNH/ANH10 2.4 2AZ-FE 160–170 hp 2002 – 2008
Toyota Camry XV30 2.4 VVT-i 2AZ-FE 150 hp 2001 – 2006 (Europe)
Toyota Camry XV40 2.4 VVT-i 2AZ-FE 158–167 hp 2006 – 2011
Toyota Corolla E140 XRS 2.4 2AZ-FE 158 hp 2008 – 2010
Toyota Highlander/Kluger XU20 2.4 2AZ-FE 155–160 hp 2000 – 2007
Toyota Matrix E140 2.4 2AZ-FE 158 hp 2008 – 2014
Toyota Previa/Estima ACR30 2.4 2AZ-FE 160–170 hp 2000 – 2006
Toyota RAV4 XA30 2.4 2AZ-FE 166–170 hp 2005 – 2012


OEM piston references :

  • Toyota Camry XV30 2.4 (2001–2006) : 13211-0H010-A0, 13211-0H010-B0, 13211-0H010-C0
  • Toyota RAV4 XA30 2.4 (2005–2012) : 13211-28110-A0, 13211-28111-B0, 13211-28112-C0
  • Scion tC 2.4 (2005–2010) : 13211-28111-B0
  • Toyota Matrix / Corolla XRS 2.4 (2008–2014/2010) : 13101-0T010 (piston sub-assy w/pin)

Warning: Before installation, please verify the integrity and conformity of each component of the piston kit as well as the correctness of the assembly in the engine; any warranty is strictly limited to the parts included in the piston kit.
