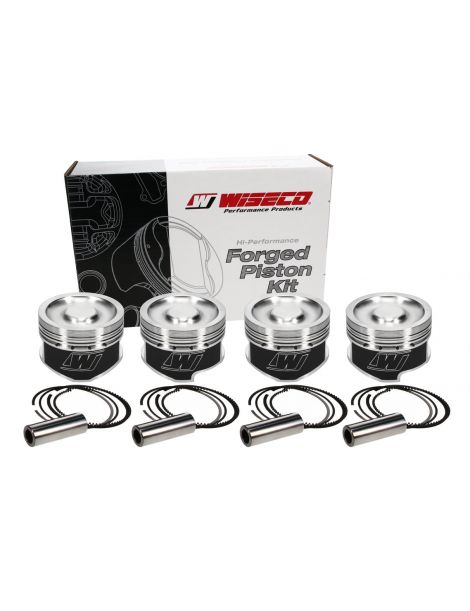

Forged pistons 1.6L 16v AJV ARC VW

Condition: New product

VW 1.6 16V AJV/ARC forged pistons for Polo GTI 6N/6N2: Bore 76.5 mm, Pin 17 mm, Volume ratio 8.8 16:1. COMPATIBILITIES, VEHICLES CONCERNED AND REFERENCES OEM INCLUDED.

More details

More info
Reviews (0)

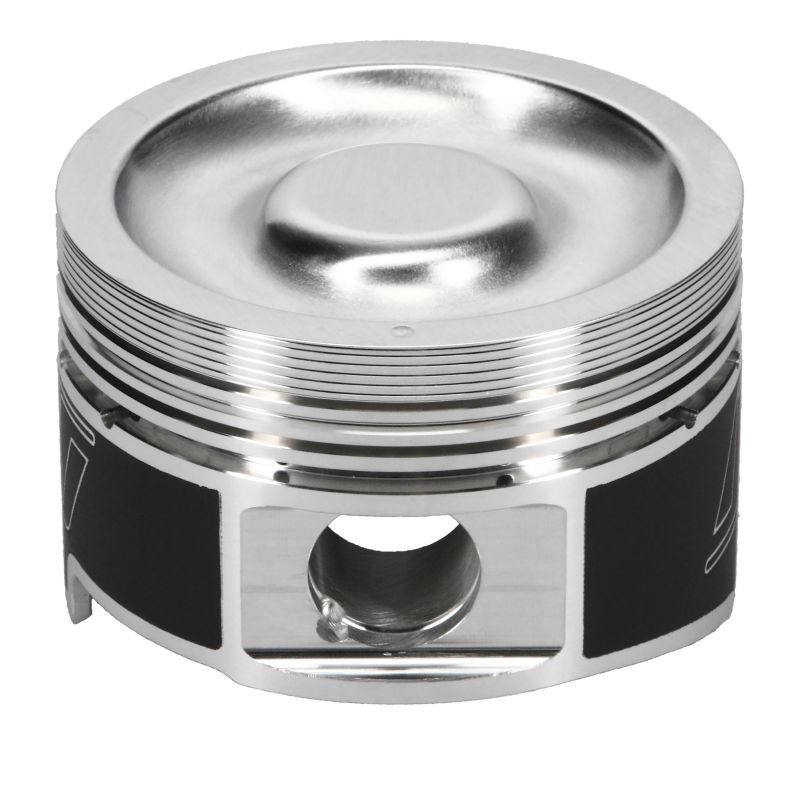

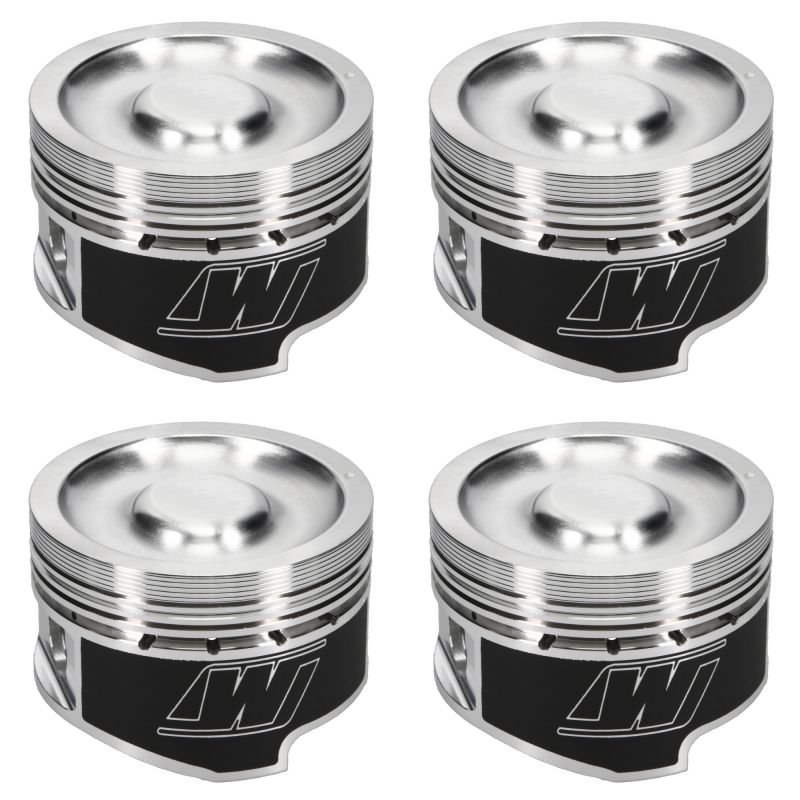

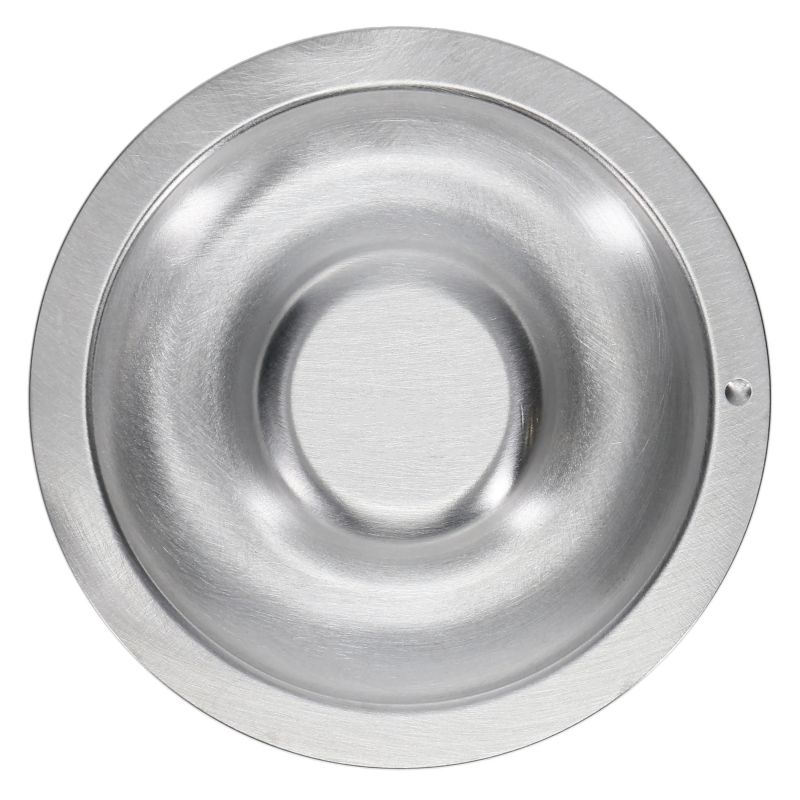

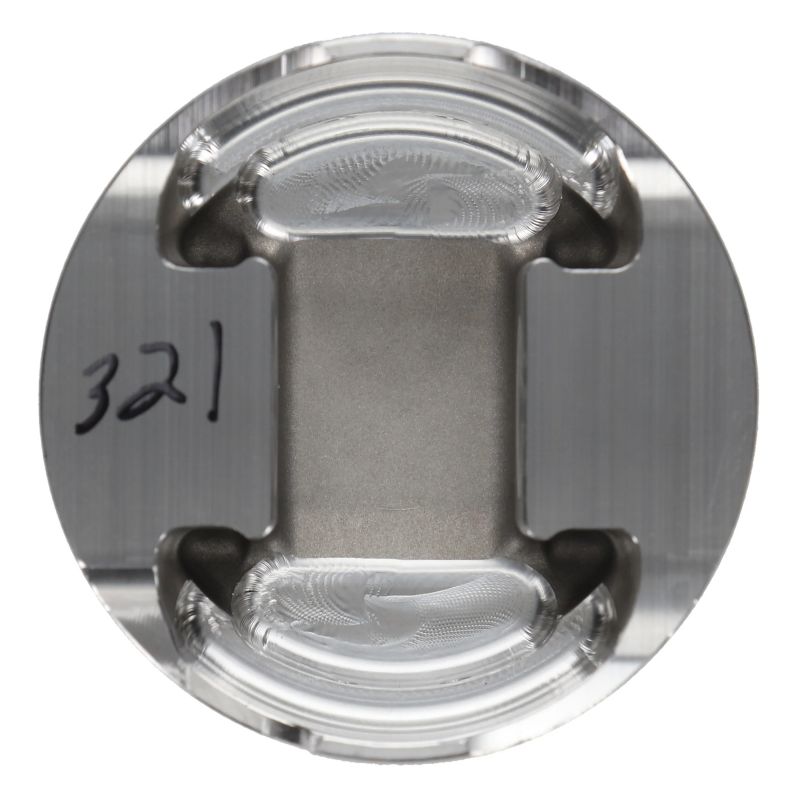

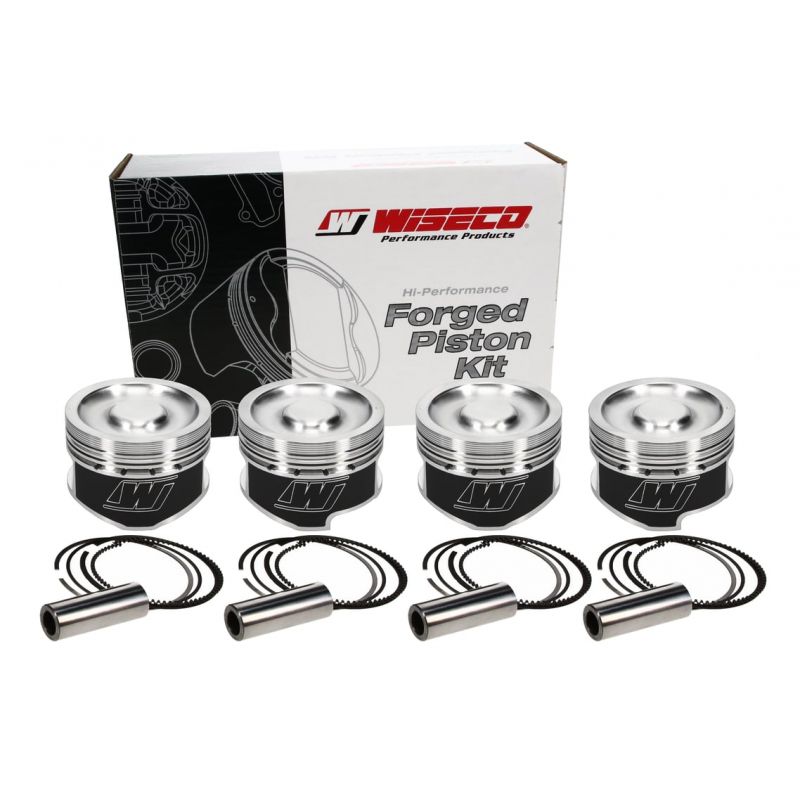

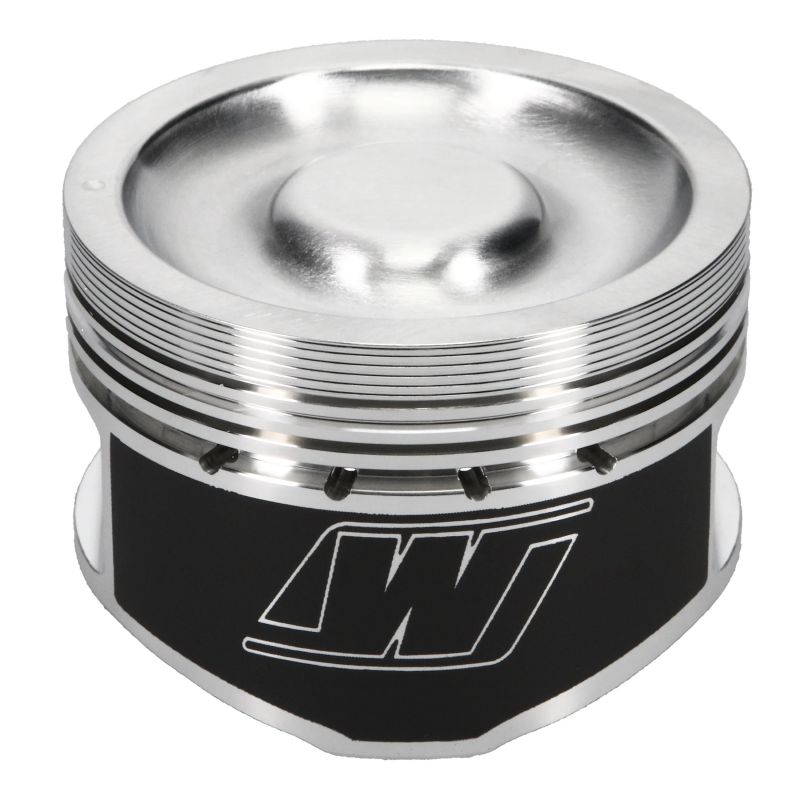

Characteristics of the forged pistons offered by NSB Concept for Volkswagen 1.6 L 16 V (engine codes AJV / ARC):

Reference	Bore OEM 76.50mm	CR OEM	Pin OEM 17mm	Pin Height OEM 29.27mm	Range	Treatment	Aluminum	Forging	Dome	Weight	Rings
WKE255M765	76.5	8.8:1	17	29.27	Wiseco	Skirt	2618.0	NC	-21.3	NC	7650XX
WKE254M765	76.5	12.2:1	17	29.27	Wiseco	Skirt	2618.0	NC	-6.0	NC	7650XX
WKE254M765AP	76.5	12.2:1	17	29.27	Wiseco AP	Skirt	NC	NC	-6.0	NC	7650XX
WKE245M765	76.5	16:1	17	29.27	Wiseco	Skirt	NC	NC	7.0	NC	7650XX
WKE255M77	77.0	8.8:1	17	29.27	Wiseco	Skirt	2618.0	NC	-21.3	NC	7700XX
WKE254M77AP	77.0	12.2:1	17	29.27	Wiseco AP	Skirt	NC	NC	-6.0	NC	7700XX
WKE245M77	77.0	16:1	17	29.27	Wiseco	Skirt	NC	NC	7.0	NC	7700XX
WKE255M775	77.5	8.8:1	17	29.27	Wiseco	Skirt	2618.0	NC	-21.3	NC	7750XX
WKE254M775AP	77.5	12.2:1	17	29.27	Wiseco AP	Skirt	NC	NC	-6.0	NC	7750XX
WKE245M775	77.5	16:1	17	29.27	Wiseco	Skirt	NC	NC	7.0	NC	7750XX

COMPatibilities (engine codes):

AJV 1.6 16V (88 KW / 120 hp)
BOW 1.6 16V (92 KW / 125 hp)

Original vehicles equipped with AJV/ARC engines:

Brand	Model	Engine Code	Power	Years
Volkswagen	Polo 3F / 6N2 GTI	ARC	125 hp	1999 2001
Volkswagen	Polo III 6N GTI	AJV	120 hp	1998 1999

Manufacturer Pistons References (OEM):

Volkswagen Polo 6N2 GTI (ARC): 036 107 065 AG (COMPLETE piston, O76.5 mm).
Volkswagen Polo 6N GTI (AJV): Specific manufacturer reference according to vintage; commonly O76.5 mm, Pin 17 mm.

Attention:before any assembly, please check the integrity and conformity of each COMPONENT of the Pistons kit as well as the conformity of the assembly in the engine; any possible warranty is strictly limited to the parts of the Piston kit only.
