4.0L 24v - V12 Tipo 209
Manufacturers
4.0L 24v - V12 Tipo 209
Warning: Last items in stock!
New product

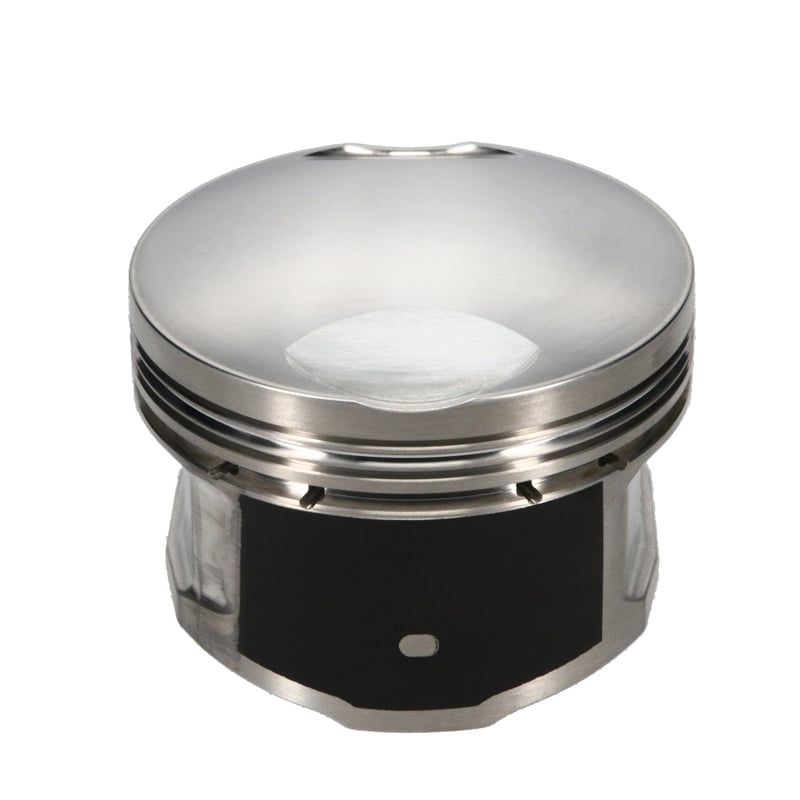

Set of 12 forged pistonsWossner & Ifor Ferrari V12 4.0 L Tipo 209 (330 GT, GTC & GTS): bores 77.0- 78.0 mm, RV 8.8- 10.0:1, Pin 18.5 mm, rings included on Wossner kits.
Specifications of the forged pistons offered by NSB Concept for Ferrari V12 4,0 L 24 v Tipo 209 :
| Reference | Bore (mm) | CR | pin (mm) | Height pin (mm) | Range | Coating | Aluminium | Forging | Dome volume (cc) | Weight | Rings |
|---|---|---|---|---|---|---|---|---|---|---|---|
| K9002DA | 77.0 | 8.8:1 | 18.5 | 29.5 | Wössner | NC | NC | Round | +22.7 | NC | 770XDS |
| JE-362230 | 77.5 | 10:1 | 18.5 | 29.9 | JE Round | NC | 2618 | Round | +20.1 | 280 | NC |
| K9002D050 | 77.5 | 8.9:1 | 18.5 | 29.5 | Wössner | NC | NC | Round | +22.7 | NC | 775XDS |
| JE-362228 | 77.5 | 9:1 | 18.5 | 29.9 | JE Round | NC | 2618 | Round | +15.4 | 266 | NC |
| JE-362231 | 78.0 | 10:1 | 18.5 | 29.9 | JE Round | NC | 2618 | Round | +19.8 | 282 | NC |
| K9002D100 | 78.0 | 8.8:1 | 18.5 | 29.5 | Wössner | NC | NC | Round | +22.7 | NC | 780XDS |
| JE-362229 | 78.0 | 9:1 | 18.5 | 29.9 | JE Round | NC | 2618 | Round | +15.0 | 268 | NC |
Compatibility :
Original vehicles equipped with the engine V12 4,0 L Tipo 209 :
| Brand | Model | Type engine | Power | Years |
|---|---|---|---|---|
| Ferrari | 330 GT 2+2 (S I & II) | Tipo 209 | 300 hp | 1964 – 1967 |
| Ferrari | 330 GTC | Tipo 209 | 300 hp | 1966 – 1968 |
| Ferrari | 330 GTS | Tipo 209 | 300 hp | 1966 – 1968 |
references piston manufacturer (OEM):
Warning: Before installation, please verify the integrity and conformity of each component of the piston kit as well as the correctness of the assembly in the engine; any warranty is strictly limited to the parts included in the piston kit.
