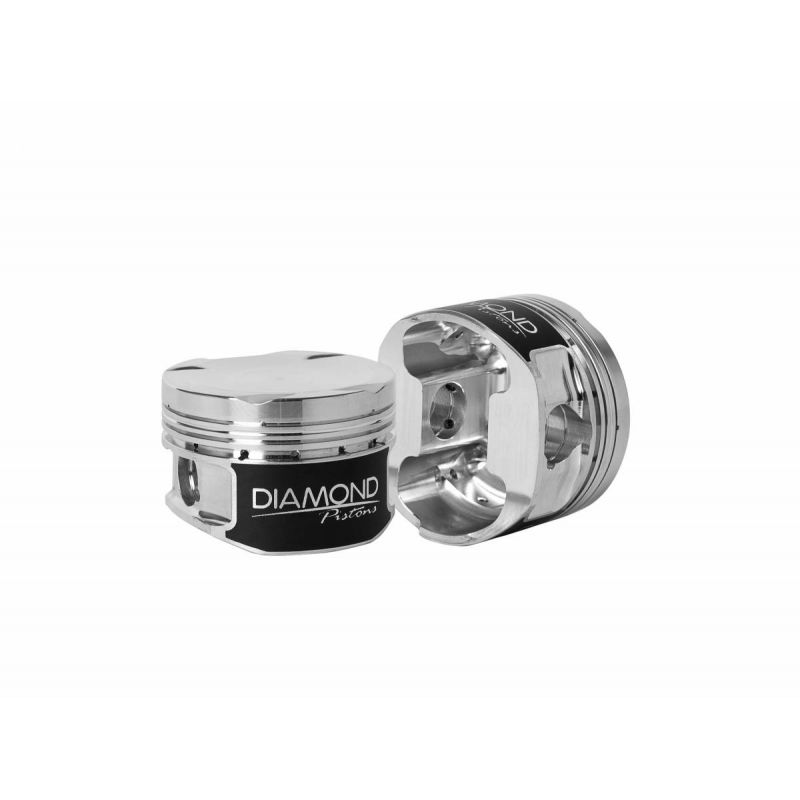

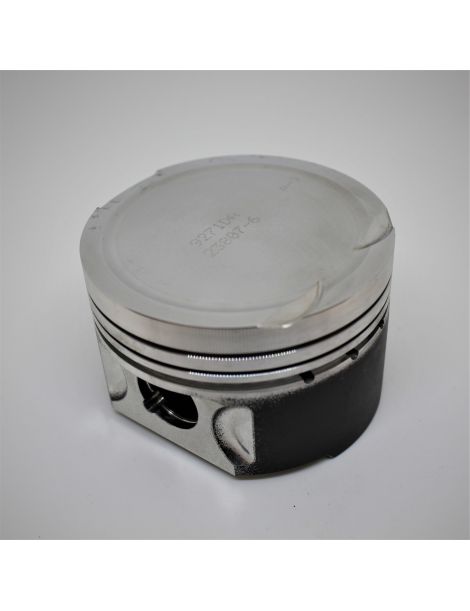

Pistons forgés 1.8L 20VT VW Audi

786,85 € TTC

1 124,07 € TTC -30%

Pistons forgés 1.8T 20VT VW/Audi : alésages 81.0–83.0 mm, axe 20 mm, CH 31–33 mm. Codes AGU/AUM/AUQ, AMK/BAM, AEB/AWT. Compatibles Golf IV, A3 8L, TT 8N, A4/Passat, Leon, Octavia.

DIA-38000-4

Alésage - RV - Gamme : 81 - 9:1 - Diamond

1 disponible en stock France

Sur commande, délais 15 à 30 jours

Disponible en stock France

Derniers articles en stock

Caractéristiques des pistons forgés proposés par NSB Concept pour VW/Audi 1.8 L 20 V Turbo :

Référence	Alésage OEM 81,00 mm	RV OEM 9,0–9,5 :1	Axe OEM 19–20 mm	Hauteur Axe OEM 32,60–32,70 mm	Gamme	Traitement	Aluminium	Forging	Dôme	Poids	Segments
DIA-38005-4	81.0	8.5:1	20	32.64	Diamond	Jupe	2618	NC	-9.0	NC	9513188
DIA-38005-4-H	81.0	8.5:1	20	32.64	Diamond HD	Jupe	2618	NC	-9.0	NC	9513188
JE-302020	81.0	8.5:1	20	32.66	JE FSR	NC	2618	FSR	-10.6	279.0	NC
JE-353823	81.0	8.5:1	20	32.66	JE FSR	Jupe	2618	FSR	-10.6	NC	NC
JE-242909	81.0	8.5:1	20	32.66	JE Round	NC	2618	Round	-8.1	304.0	NC
WK563M81	81.0	8.5:1	20	32.71	Wiseco	Jupe	2618	NC	-7.0	NC	8100XX
WK563M81AP	81.0	8.5:1	20	32.71	Wiseco AP	Jupe	2618	NC	-7.0	NC	8100XX
K9075DA	81.0	8.5:1	20	32.7	Wossner	NC	NC	Round	-9.7	NC	810XPY
DIA-38000-4	81.0	9:1	20	32.64	Diamond	Jupe	2618	NC	-5.0	NC	9513188
DIA-38000-4-H	81.0	9:1	20	32.64	Diamond HD	Jupe	2618	NC	-5.0	NC	9513188
JE-302021	81.0	9.3:1	20	32.66	JE FSR	NC	2618	FSR	-5.3	290.0	NC
JE-353828	81.0	9.3:1	20	32.66	JE FSR	NC	2618	FSR	-5.3	NC	NC
JE-242880	81.0	9.3:1	20	32.66	JE Round	NC	2618	Round	-2.7	302.0	NC
P4-VW18T81-N4-H13-4	81.0	9.3:1	20	32.7	Supertech	Tête + Jupe	4032	NC	-4.0	280.0	W8100XX
JE-367855	81.0	9.5:1	20	32.54	JE Ultra Series	Tête + Jupe	2618	FSR	-2.8	NC	NC
K9271DA	81.0	9.5:1	20	32.7	Wossner	NC	NC	Round	-2.72	NC	810XPY
JE-302022	81.5	8.5:1	20	32.66	JE FSR	NC	2618	FSR	-11.3	284.0	NC
JE-353824	81.5	8.5:1	20	32.66	JE FSR	NC	2618	FSR	-11.3	NC	NC
JE-242926	81.5	8.5:1	20	32.66	JE Round	NC	2618	Round	-8.7	307.0	NC
WK563M815	81.5	8.5:1	20	32.71	Wiseco	Jupe	2618	NC	-7.0	NC	8150XX
WK563M815AP	81.5	8.5:1	20	32.71	Wiseco AP	Jupe	2618	NC	-7.0	NC	8150XX
DIA-38006-4	81.5	8.6:1	20	32.64	Diamond	Jupe	2618	NC	-9.0	NC	9513208
K9075D050	81.5	8.6:1	20	32.7	Wossner	NC	NC	Round	-9.7	NC	815XPY
DIA-38001-4	81.5	9.1:1	20	32.64	Diamond	Jupe	2618	NC	-5.0	NC	9513208
DIA-38001-4-H	81.5	9.1:1	20	32.64	Diamond HD	Jupe	2618	NC	-5.0	NC	9513208
JE-302023	81.5	9.3:1	20	32.66	JE FSR	NC	2618	FSR	-5.9	295.0	NC
JE-353829	81.5	9.3:1	20	32.66	JE FSR	NC	2618	FSR	-5.9	NC	NC
JE-242881	81.5	9.3:1	20	32.66	JE Round	NC	2618	Round	-3.1	305.0	NC
P4-VW18T815-N4-H13-4	81.5	9.3:1	20	32.7	Supertech	Tête + Jupe	4032	NC	-4.0	285.0	W8150XX
JE-367856	81.5	9.5:1	20	32.54	JE Ultra Series	Tête + Jupe	2618	FSR	-3.4	NC	NC
DIA-38006-4-H	81.5	9.6:1	20	32.64	Diamond HD	Jupe	2618	NC	-9.0	NC	9513208
K9271D050	81.5	9.6:1	20	32.7	Wossner	NC	NC	Round	-2.72	NC	815XPY
JE-373411C*4	82.0	8.5:1	20	32.66	JE	NC	NC	NC	NC	NC	NC
JE-302024	82.0	8.5:1	20	32.66	JE FSR	NC	2618	FSR	-12.0	288.0	NC
JE-353825	82.0	8.5:1	20	32.66	JE FSR	NC	2618	FSR	-12.0	NC	NC
JE-242928	82.0	8.5:1	20	32.66	JE Round	NC	2618	Round	-9.3	313.0	NC
WK563M82	82.0	8.5:1	20	32.71	Wiseco	Jupe	2618	NC	-7.0	NC	8200XX
WK563M82AP	82.0	8.5:1	20	32.71	Wiseco AP	Jupe	2618	NC	-7.0	NC	8200XX
DIA-38007-4	82.0	8.7:1	20	32.64	Diamond	Jupe	2618	NC	-9.0	NC	9513228
DIA-38007-4-H	82.0	8.7:1	20	32.64	Diamond HD	Jupe	2618	NC	-9.0	NC	9513228
K9075D100	82.0	8.7:1	20	32.7	Wossner	NC	NC	Round	-9.7	NC	820XPY
DIA-38002-4	82.0	9.2:1	20	32.64	Diamond	Jupe	2618	NC	-5.0	NC	9513228
DIA-38002-4-H	82.0	9.2:1	20	32.64	Diamond HD	Jupe	2618	NC	-5.0	NC	9513228
JE-302025	82.0	9.3:1	20	32.66	JE FSR	NC	2618	FSR	-6.5	295.0	NC
JE-353830	82.0	9.3:1	20	32.66	JE FSR	NC	2618	FSR	-6.5	NC	NC
JE-242882	82.0	9.3:1	20	32.66	JE Round	NC	2618	Round	-3.6	308.0	NC
P4-VW18T82-N4-H13-4	82.0	9.3:1	20	32.7	Supertech	Tête + Jupe	4032	NC	-4.0	292.0	W8200XX
JE-367857	82.0	9.5:1	20	32.54	JE Ultra Series	Tête + Jupe	2618	FSR	-3.9	NC	NC
K9271D100	82.0	9.7:1	20	32.7	Wossner	NC	NC	Round	-2.72	NC	820XPY
JE-302026	82.5	8.5:1	20	32.66	JE FSR	NC	2618	FSR	-12.7	289.0	NC
JE-353826	82.5	8.5:1	20	32.66	JE FSR	NC	2618	FSR	-12.7	NC	NC
JE-295742	82.5	8.5:1	20	32.66	JE Round	NC	2618	Round	-12.2	305.0	NC
DIA-38008-4	82.5	8.8:1	20	32.64	Diamond	Jupe	2618	NC	-9.0	NC	9513248
DIA-38008-4-H	82.5	8.8:1	20	32.64	Diamond HD	Jupe	2618	NC	-9.0	NC	9513248
P4-VW18T825-N10-4	82.5	8.8:1	20	32.7	Supertech	Tête + Jupe	NC	NC	-9.8	NC	W8250XX
K9075D150	82.5	8.8:1	20	32.7	Wossner	NC	NC	Round	-9.7	NC	825XPY
DIA-38003-4	82.5	9.3:1	20	32.64	Diamond	Jupe	2618	NC	-5.0	NC	9513248
DIA-38003-4-H	82.5	9.3:1	20	32.64	Diamond HD	Jupe	2618	NC	-5.0	NC	9513248
JE-302027	82.5	9.3:1	20	32.66	JE FSR	NC	2618	FSR	-7.0	299.0	NC
JE-353831	82.5	9.3:1	20	32.66	JE FSR	NC	2618	FSR	-7.0	NC	NC
JE-295743	82.5	9.3:1	20	32.66	JE Round	NC	2618	Round	-6.0	309.0	NC
P4-VW18T8250-N4-H13-4	82.5	9.3:1	20	32.7	Supertech	Tête + Jupe	4032	NC	-3.2	292.0	W8250XX
JE-367858	82.5	9.5:1	20	32.54	JE Ultra Series	Tête + Jupe	2618	FSR	-4.5	NC	NC
K9271D150	82.5	9.8:1	20	32.7	Wossner	NC	NC	Round	-2.72	NC	825XPY
K9269D150	82.5	12.3:1	20	32.7	Wossner	NC	NC	NC	10.7	NC	825XSY
K9269D170	82.7	12.4:1	20	32.7	Wossner	NC	NC	NC	10.7	NC	827XSY
JE-302028	83.0	8.5:1	20	32.66	JE FSR	NC	2618	FSR	-13.4	292.0	NC
JE-353827	83.0	8.5:1	20	32.66	JE FSR	NC	2618	FSR	-13.4	NC	NC
JE-295744	83.0	8.5:1	20	32.66	JE Round	NC	2618	Round	-12.9	310.0	NC
K9075D200	83.0	8.7:1	20	32.7	Wossner	NC	NC	Round	-9.7	NC	830XPY
DIA-38009-4	83.0	8.9:1	20	32.64	Diamond	Jupe	2618	NC	-9.0	NC	9513268
DIA-38009-4-H	83.0	8.9:1	20	32.64	Diamond HD	Jupe	2618	NC	-9.0	NC	9513268
JE-302029	83.0	9.3:1	20	32.66	JE FSR	NC	2618	FSR	-7.7	303.0	NC
JE-353832	83.0	9.3:1	20	32.66	JE FSR	NC	2618	FSR	-7.7	NC	NC
JE-295745	83.0	9.3:1	20	32.66	JE Round	NC	2618	Round	-6.5	314.0	NC
DIA-38004-4	83.0	9.4:1	20	32.64	Diamond	Jupe	2618	NC	-5.0	NC	9513268
DIA-38004-4-H	83.0	9.4:1	20	32.64	Diamond HD	Jupe	2618	NC	-5.0	NC	9513268
P4-VW18T83-N4-H13-4	83.0	9.6:1	20	32.7	Supertech	Tête + Jupe	4032	NC	-4.5	292.0	W8300XX
K9271D200	83.0	9.7:1	20	32.7	Wossner	NC	NC	Round	-2.72	NC	830XPY

Compatibilités (codes moteur) :

AGU, AJQ, APP, ARY, AUQ (transversal 150–180 ch)
AUM, ARZ, ARX (transversal 150 ch)
AMK, BAM, AMU, APX, APY (S3/TT 210–225 ch)
AEB, ANB, AJL, APU, AVJ, ATW, AWT, AMB, AWM (longitudinal A4/Passat/A6)

Véhicules d’origine équipés du 1.8T 20V (EA113) :

Marque	Modèle	Code moteur	Puissance	Années
Audi	A3 8L 1.8T	AGU/AUM	150 ch	1996 – 2003
Audi	A3 8L 1.8T	AJQ/AUQ	180 ch	1998 – 2003
Audi	A4 B5	AEB/ANB/AJT/AWT	150–170 ch	1994 – 2001
Audi	A4 B6	AMB/AVJ	150–170 ch	2001 – 2005
Audi	S3 8L	AMK/BAM	210–225 ch	1999 – 2003
Audi	TT 8N	AJQ/AMU/APX/BAM	180–225 ch	1998 – 2006
SEAT	Leon 1M	ARY/AUQ	180 ch	1999 – 2005
SEAT	Leon Cupra R (1M)	AMK/BAM	210–225 ch	2002 – 2005
Skoda	Octavia I (1U)	AGU/AUM/AUQ	150–180 ch	1998 – 2010
Volkswagen	Golf IV / GTI	AGU/AUM/AUQ/AWP	150–180 ch	1998 – 2006
Volkswagen	Jetta/Bora IV	AWW/AWP/AUQ	150–170 ch	1999 – 2005
Volkswagen	Passat B5/B5.5	AEB/AWT/AWM	150–170 ch	1996 – 2005

Références pistons constructeur (OEM) :

06A 107 065 AB — Piston STD 81,0 mm (nombreuses versions transversales).
06B 107 065 N — Piston STD 81,0 mm (révisions 06B).
06B 107 065 F — Piston STD 81,0 mm (certaines A4/Passat).
058 107 065 F — Piston STD 81,0 mm (anciens blocs 058).

Attention : avant tout montage, veuillez impérativement vérifier l’intégrité et la conformité de chaque composant du kit pistons ainsi que la conformité de l'assemblage dans le moteur; toute garantie éventuelle est strictement limitée aux seules pièces du kit piston.
