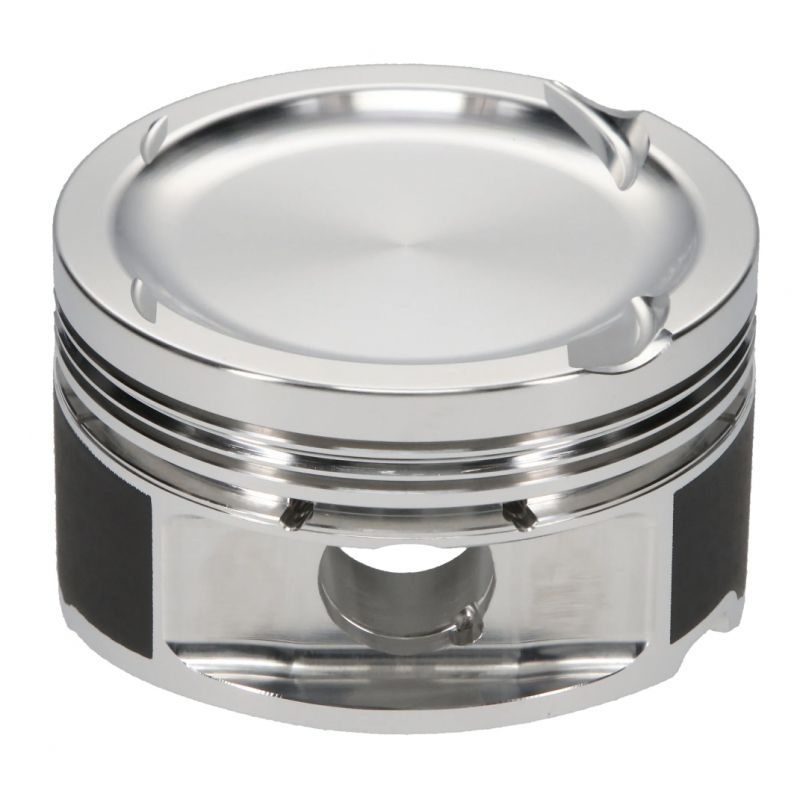

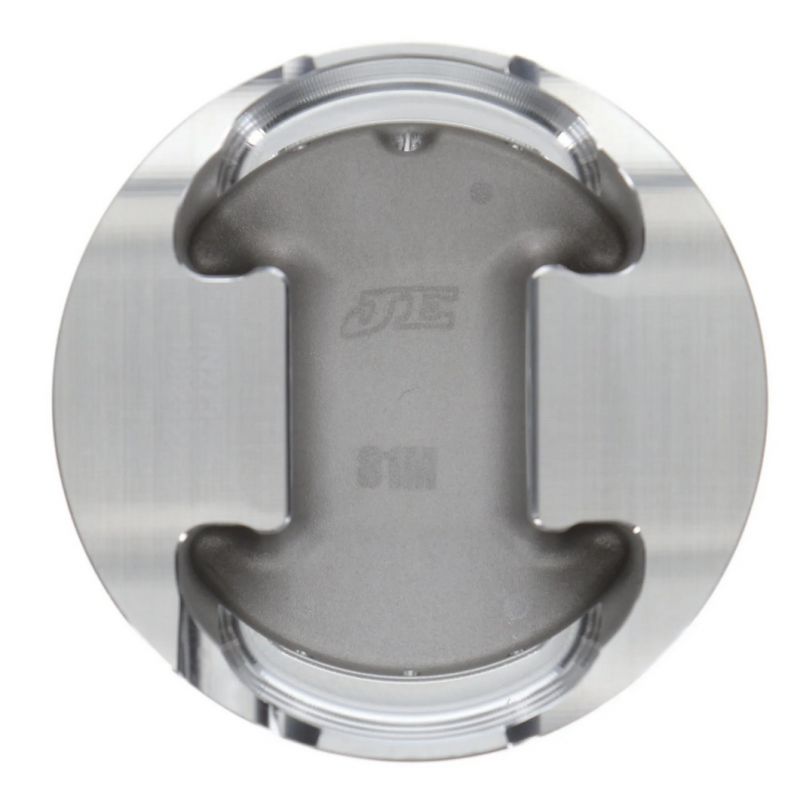

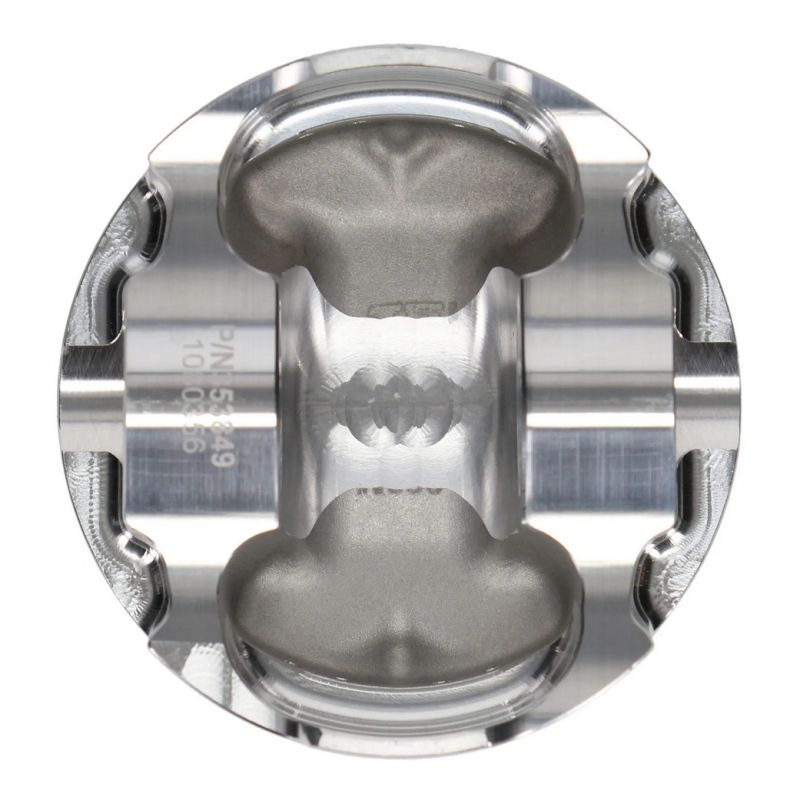

Pistons forgés 2.0 TFSI EA113 Gen1 (K03) VW/Audi : alésage 82,5 mm, axe 20 mm, CH 29,5 mm. Tableau des références, compatibilités AXX/BWA/BPY/BPG/BWE, véhicules d’origine et références OEM

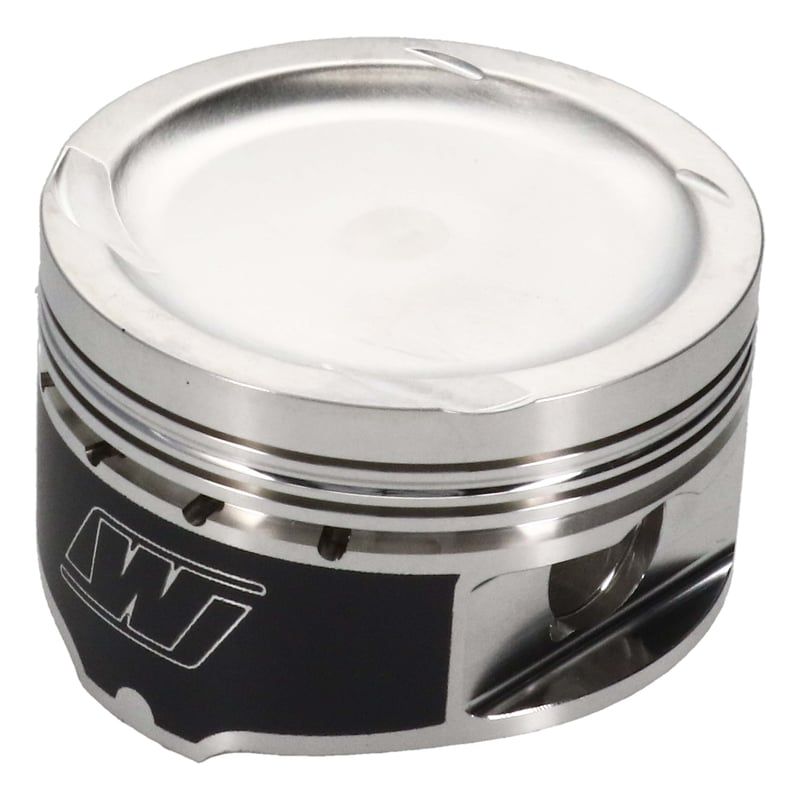

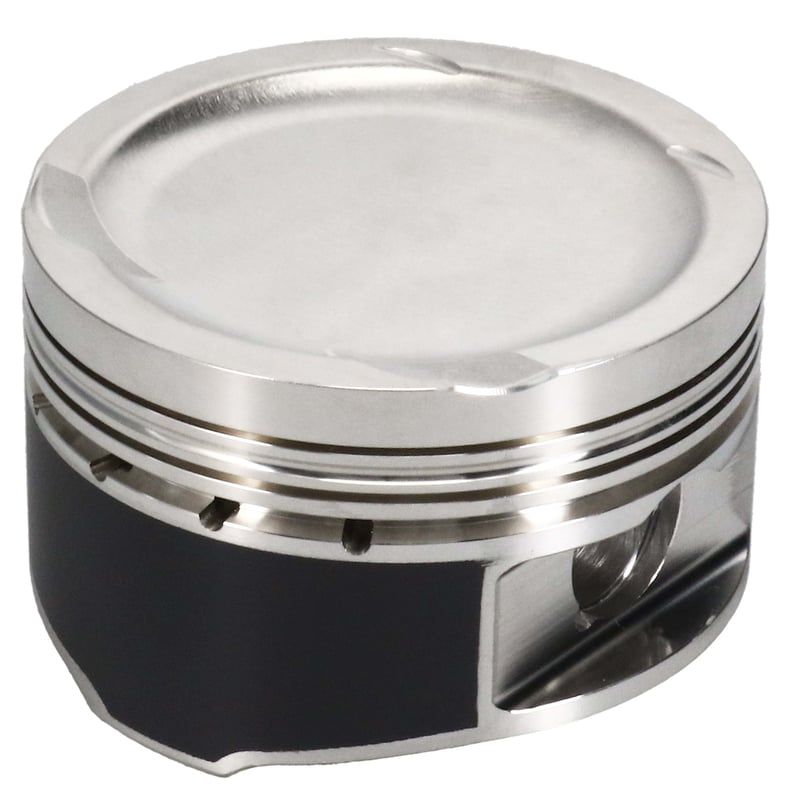

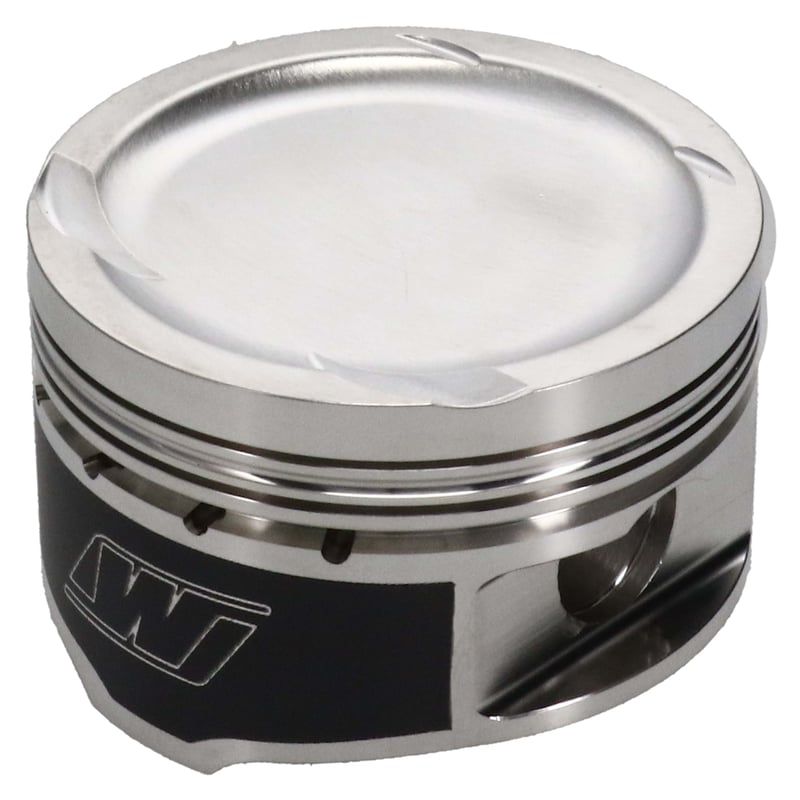

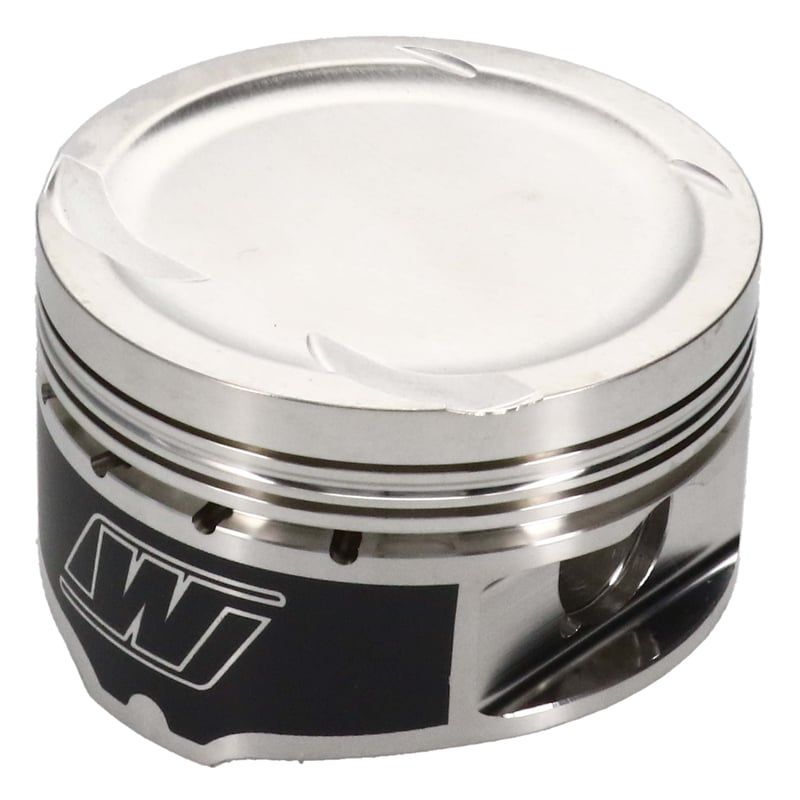

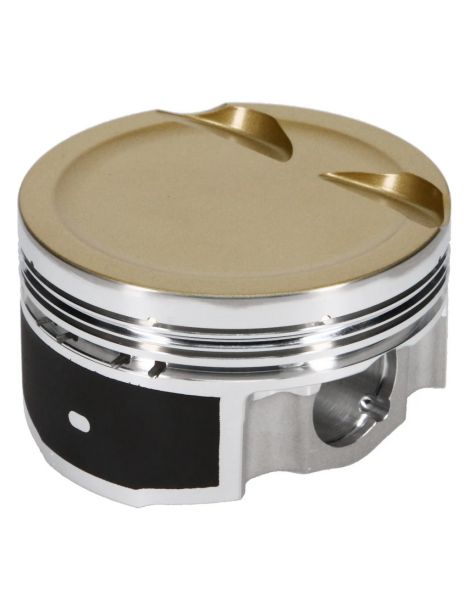

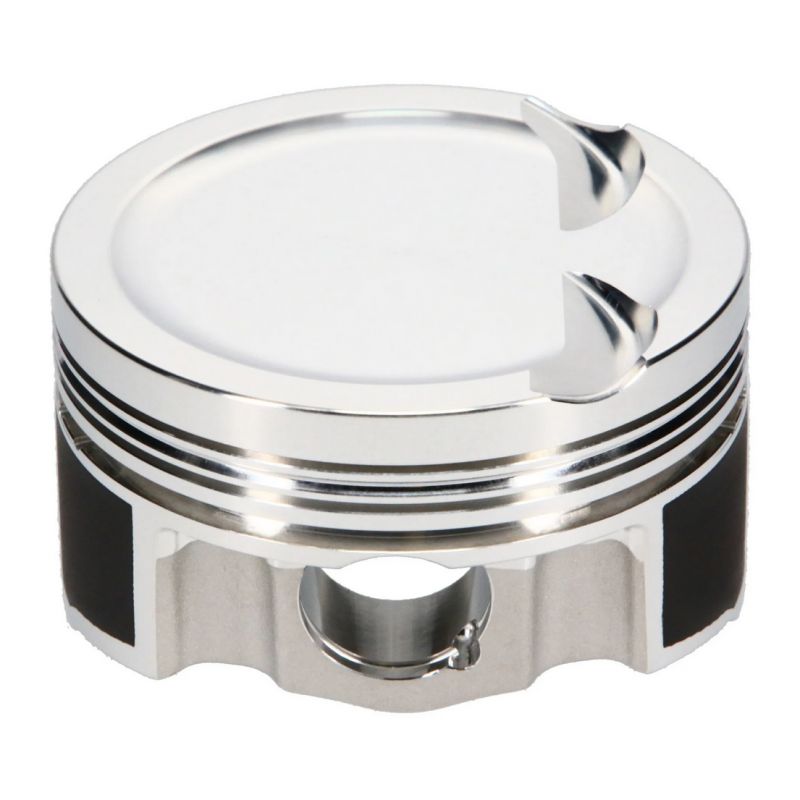

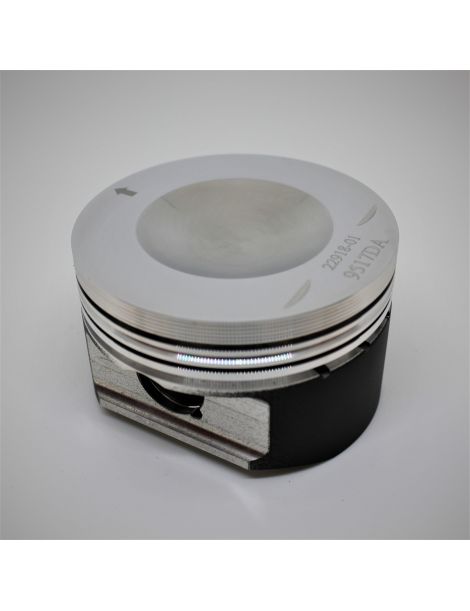

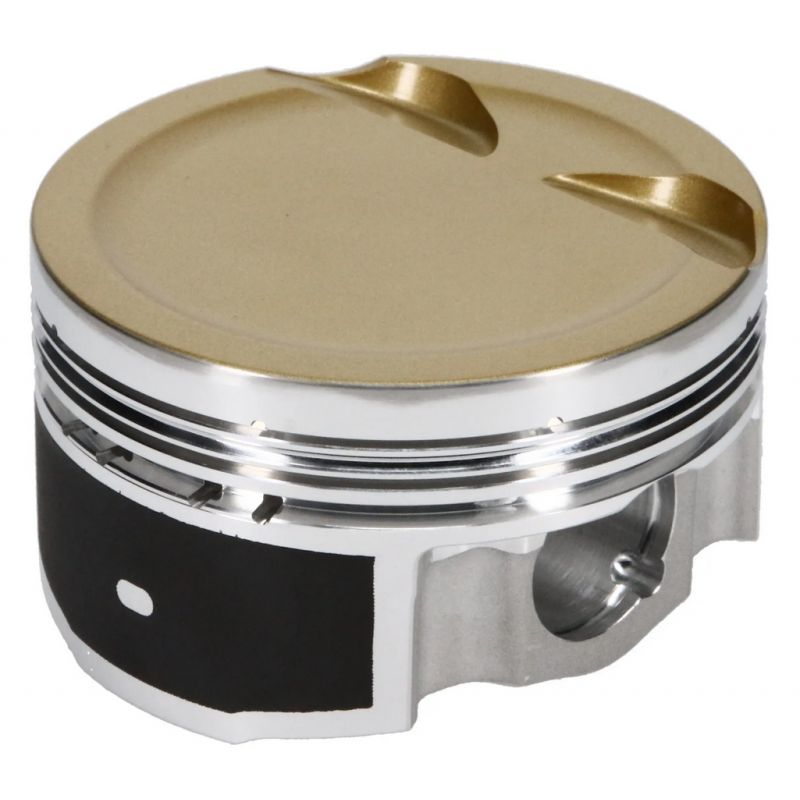

Caractéristiques des pistons forgés proposés par NSB Concept pour Volkswagen/Audi 2.0 L 16 V EA113 Gen1 (turbo K03) :
| Référence | Alésage OEM 82,50 mm | RV OEM 10,3–10,5 :1 | Axe OEM 20 mm | Hauteur Axe OEM 29,5 mm | Gamme | Traitement | Aluminium | Forging | Dôme | Poids | Segments |
|---|---|---|---|---|---|---|---|---|---|---|---|
| DIA-38100-4 | 82.5 | 8.5:1 | 20 | 29.59 | Diamond | Jupe | 2618 | NC | -15.5 | NC | 9513248 |
| DIA-38100-4-H | 82.5 | 8.5:1 | 20 | 29.59 | Diamond HD | Jupe | 2618 | NC | -15.5 | NC | 9513248 |
| JE-302337 | 82.5 | 8.5:1 | 20 | 29.6 | JE FSR | NC | 2618 | FSR | -15.3 | 272.0 | NC |
| DIA-38102-4 | 82.5 | 9:1 | 20 | 29.59 | Diamond | Jupe | 2618 | NC | -11.5 | NC | 9513248 |
| DIA-38102-4-H | 82.5 | 9:1 | 20 | 29.59 | Diamond HD | Jupe | 2618 | NC | -11.5 | NC | 9513248 |
| P4-VW20T825-N13-H13-4 | 82.5 | 9:1 | 20 | 29.6 | Supertech | Tête + Jupe | NC | NC | -12.5 | NC | W8250XX |
| P4-VW20T825-N14ST-4 | 82.5 | 9:1 | 20 | 28.25 | Supertech | Tête + Jupe | NC | NC | -14.0 | NC | W8250XX |
| JE-279930 | 82.5 | 9.1:1 | 20 | 29.6 | JE Round | NC | 2618 | Round | -11.5 | 290.0 | NC |
| WK744M825 | 82.5 | 9.1:1 | 20 | 29.59 | Wiseco | Jupe | 2618 | NC | -11.5 | NC | 8250XX |
| K9213DA | 82.5 | 9.2:1 | 20 | 29.5 | Wossner | NC | NC | Round | -6.7 | NC | 825XPY |
| JE-353833 | 82.5 | 9.3:1 | 20 | 29.6 | JE FSR | NC | 2618 | FSR | -10.5 | NC | NC |
| WK745M825 | 82.5 | 9.3:1 | 20 | 29.59 | Wiseco | Jupe | 2618 | NC | -10.5 | NC | 8250XX |
| JE-302338 | 82.5 | 9.5:1 | 20 | 29.6 | JE FSR | NC | 2618 | FSR | -7.4 | 278.0 | NC |
| JE-367866 | 82.5 | 9.5:1 | 20 | 29.3 | JE Ultra Series | Tête + Jupe | 2618 | FSR | -7.4 | NC | NC |
| WK746M825 | 82.5 | 9.5:1 | 20 | 29.59 | Wiseco | Jupe | 2618 | NC | -7.4 | NC | 8250XX |
| DIA-38104-4 | 82.5 | 10:1 | 20 | 29.59 | Diamond | Jupe | 2618 | NC | -4.5 | NC | 9513248 |
| DIA-38104-4-H | 82.5 | 10:1 | 20 | 29.59 | Diamond HD | Jupe | 2618 | NC | -4.5 | NC | 9513248 |
| JE-353836 | 82.5 | 10:1 | 20 | 29.6 | JE FSR | NC | 2618 | FSR | -5.5 | NC | NC |
| JE-284779 | 82.5 | 10.3:1 | 20 | 29.6 | JE Round | NC | 2618 | Round | -3.7 | 299.0 | NC |
| K9517DA | 82.5 | 10.3:1 | 20 | 29.6 | Wossner | NC | NC | NC | -6.23 | NC | 825XPY |
| JE-302339 | 82.5 | 10.5:1 | 20 | 29.6 | JE FSR | NC | 2618 | FSR | -1.3 | 285.0 | NC |
| JE-291883 | 82.5 | 10.9:1 | 20 | 29.6 | JE Round | NC | 2618 | Round | -0.5 | 295.0 | NC |
| JE-302341 | 83.0 | 8.5:1 | 20 | 29.6 | JE FSR | NC | 2618 | FSR | -16.0 | 275.0 | NC |
| DIA-38101-4 | 83.0 | 8.6:1 | 20 | 29.59 | Diamond | Jupe | 2618 | NC | -15.5 | NC | 9513268 |
| DIA-38101-4-H | 83.0 | 8.6:1 | 20 | 29.59 | Diamond HD | Jupe | 2618 | NC | -15.5 | NC | 9513268 |
| P4-VW20T83-N13-4 | 83.0 | 9:1 | 20 | 29.6 | Supertech | Tête + Jupe | NC | NC | -13.0 | NC | W8300XX |
| P4-VW20T83-N13-H13-4 | 83.0 | 9:1 | 20 | 29.6 | Supertech | Tête + Jupe | NC | NC | -13.0 | NC | W8300XX |
| DIA-38103-4 | 83.0 | 9.1:1 | 20 | 29.59 | Diamond | Jupe | 2618 | NC | -11.5 | NC | 9513268 |
| DIA-38103-4-H | 83.0 | 9.1:1 | 20 | 29.59 | Diamond HD | Jupe | 2618 | NC | -11.5 | NC | 9513268 |
| JE-279931 | 83.0 | 9.1:1 | 20 | 29.6 | JE Round | NC | 2618 | Round | -12.2 | 290.0 | NC |
| WK747M83 | 83.0 | 9.1:1 | 20 | 29.59 | Wiseco | Jupe | 2618 | NC | -12.2 | NC | 8300XX |
| JE-353834 | 83.0 | 9.3:1 | 20 | 29.6 | JE FSR | NC | 2618 | FSR | -11.3 | NC | NC |
| WK748M83 | 83.0 | 9.3:1 | 20 | 29.59 | Wiseco | Jupe | 2618 | NC | -11.25 | NC | 8300XX |
| K9213D050 | 83.0 | 9.3:1 | 20 | 29.5 | Wossner | NC | NC | Round | -6.7 | NC | 830XPY |
| JE-302342 | 83.0 | 9.5:1 | 20 | 29.6 | JE FSR | NC | 2618 | FSR | -8.0 | 282.0 | NC |
| JE-367867 | 83.0 | 9.5:1 | 20 | 29.3 | JE Ultra Series | Tête + Jupe | 2618 | FSR | -8.1 | 299.0 | NC |
| WK749M83 | 83.0 | 9.5:1 | 20 | 29.59 | Wiseco | Jupe | 2618 | NC | -8.0 | NC | 8300XX |
| JE-353837 | 83.0 | 10:1 | 20 | 29.6 | JE FSR | NC | 2618 | FSR | -6.2 | NC | NC |
| DIA-38105-4 | 83.0 | 10.1:1 | 20 | 29.59 | Diamond | Jupe | 2618 | NC | -4.5 | NC | 9513268 |
| DIA-38105-4-H | 83.0 | 10.1:1 | 20 | 29.59 | Diamond HD | Jupe | 2618 | NC | -4.5 | NC | 9513268 |
| JE-284780 | 83.0 | 10.3:1 | 20 | 29.6 | JE Round | NC | 2618 | Round | -4.3 | 303.0 | NC |
| K9517D050 | 83.0 | 10.4:1 | 20 | 29.6 | Wossner | NC | NC | NC | -6.23 | NC | 830XPY |
| JE-302343 | 83.0 | 10.5:1 | 20 | 29.6 | JE FSR | NC | 2618 | FSR | -1.9 | 291.0 | NC |
| JE-291884 | 83.0 | 11:1 | 20 | 29.6 | JE Round | NC | 2618 | Round | -0.5 | 299.0 | NC |
| JE-302346 | 83.5 | 8.5:1 | 20 | 29.6 | JE FSR | NC | 2618 | FSR | -16.7 | 279.0 | NC |
| JE-279932 | 83.5 | 9.1:1 | 20 | 29.6 | JE Round | NC | 2618 | Round | -12.9 | 298.0 | NC |
| JE-353835 | 83.5 | 9.3:1 | 20 | 29.6 | JE FSR | NC | 2618 | FSR | -11.9 | NC | NC |
| K9213D100 | 83.5 | 9.4:1 | 20 | 29.5 | Wossner | NC | NC | Round | -6.7 | NC | 835XPY |
| JE-302348 | 83.5 | 9.5:1 | 20 | 29.6 | JE FSR | NC | 2618 | FSR | -8.7 | 285.0 | NC |
| JE-367868 | 83.5 | 9.5:1 | 20 | 29.3 | JE Ultra Series | Tête + Jupe | 2618 | FSR | -8.7 | NC | NC |
| JE-353838 | 83.5 | 10:1 | 20 | 29.6 | JE FSR | NC | 2618 | FSR | -6.8 | NC | NC |
| JE-284781 | 83.5 | 10.3:1 | 20 | 29.6 | JE Round | NC | 2618 | Round | -4.9 | 309.0 | NC |
| JE-302349 | 83.5 | 10.5:1 | 20 | 29.6 | JE FSR | NC | 2618 | FSR | -2.4 | 294.0 | NC |
| JE-291885 | 83.5 | 11.1:1 | 20 | 29.6 | JE Round | NC | 2618 | Round | -0.5 | 304.0 | NC |
Compatibilités (codes moteur) :
Véhicules d’origine équipés du 2.0 TFSI EA113 Gen1 :
| Marque | Modèle | Code moteur | Puissance | Années |
|---|---|---|---|---|
| Audi | A3 8P 2.0 TFSI | AXX/BPY/BWA | 200 ch | 2004 – 2008 |
| Audi | A4 B7 2.0 TFSI | BGB/BPG/BWE/BUL | 200–220 ch | 2004 – 2008 |
| Audi | TT 8J 2.0 TFSI | BWA/BPY | 200 ch | 2006 – 2010 |
| Seat | Leon 1P FR 2.0 TFSI | BWA | 200 ch | 2006 – 2012 |
| Skoda | Octavia II (1Z) vRS 2.0 TFSI | BWA | 200 ch | 2005 – 2013 |
| Volkswagen | Golf V GTI | AXX/BWA | 200 ch | 2004 – 2009 |
| Volkswagen | Jetta V GLI 2.0 TFSI | BWA/BPY | 200 ch | 2005 – 2010 |
Références pistons constructeur (OEM) :
Attention : avant tout montage, veuillez impérativement vérifier l’intégrité et la conformité de chaque composant du kit pistons ainsi que la conformité de l'assemblage dans le moteur; toute garantie éventuelle est strictement limitée aux seules pièces du kit piston.
