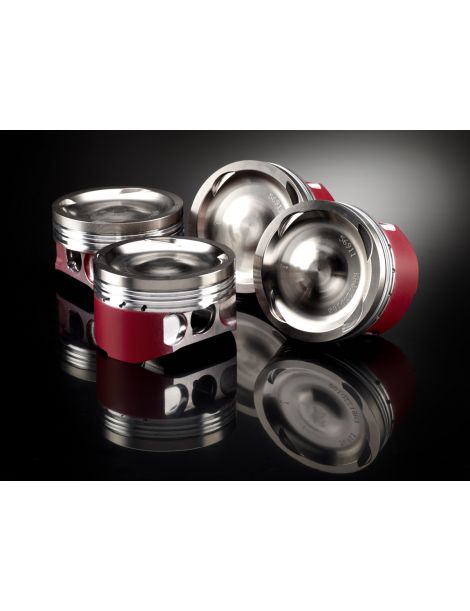

Forged pistons Porsche 997.1 3.6 (M96.05), 96 mm Forged pistons Porsche 997.1 3.6 (M96.05), 96 mm

Forged pistons 3.6L 24v M97 Porsche

€1,401.85 (tax incl.)
€2,002.64 (tax incl.) -30%

Forged pistons Porsche 997.1 3.6 (M96/97 family, M96.05): bore 96.0 mm, CR 11.3:1, pin 22 mm, Pin Height 33.00 mm. Complete table + compatibilities and OEM references.

K9268D200
For larger quantities, 5 to 15 days lead time
Pay in installments

Specifications of the forged pistons offered by NSB Concept for Porsche 3.6 L 24 V — 997.1 Carrera (M96.05 base, family M96/97) :

Reference OEM Bore
96,00 mm		 OEM CR 11,3 :1 OEM Pin
22 mm		 Height OEM Pin
33,00 mm		 Range Coating Aluminium Forging Dome Weight Rings
K9268D200 102 12.7:1 22 30.1 Wossner NC NC NC -0.82 NC 1020XSK


Compatibility (engine codes):

  • M96.05 — 3,6 L 997.1 Carrera (propulsion)
  • M96.05 — 3,6 L 997.1 Carrera 4 (AWD)
  • M96.05 — 3,6 L 997.1 Targa 4


Original vehicles equipped with the 3.6 (997.1) :

Brand Model Engine code Power Years
Porsche 911 Carrera 4 997.1 Coupe M96.05 325 hp 2006 – 2008
Porsche 911 Carrera 997.1 Cabrio M96.05 325 hp 2005 – 2008
Porsche 911 Carrera 997.1 Coupe M96.05 325 hp 2004 – 2008
Porsche 911 Targa 4 997.1 M96.05 325 hp 2007 – 2008


OEM piston references :

  • Porsche 911 997.1 3.6 (2005–2008): 996 103 052 19 — piston Ø96.0 mm (incl. pin), replaces 996 103 052 09 (2002–2008 applications)
    Porsche 911 997.1 3.6 (other markets / selection): 997 103 030 30 — piston (incl. pin), references related depending on VIN

    * indicative references from Catalog / dealership catalogs: check by VIN and tolerance group (selection/oversize).

Warning: Before installation, please verify the integrity and conformity of each component of the piston kit as well as the correctness of the assembly in the engine; any warranty is strictly limited to the parts included in the piston kit.
