3.2L 24v - R32
Fabricants
3.2L 24v - R32
Attention : dernières pièces disponibles !
Neuf

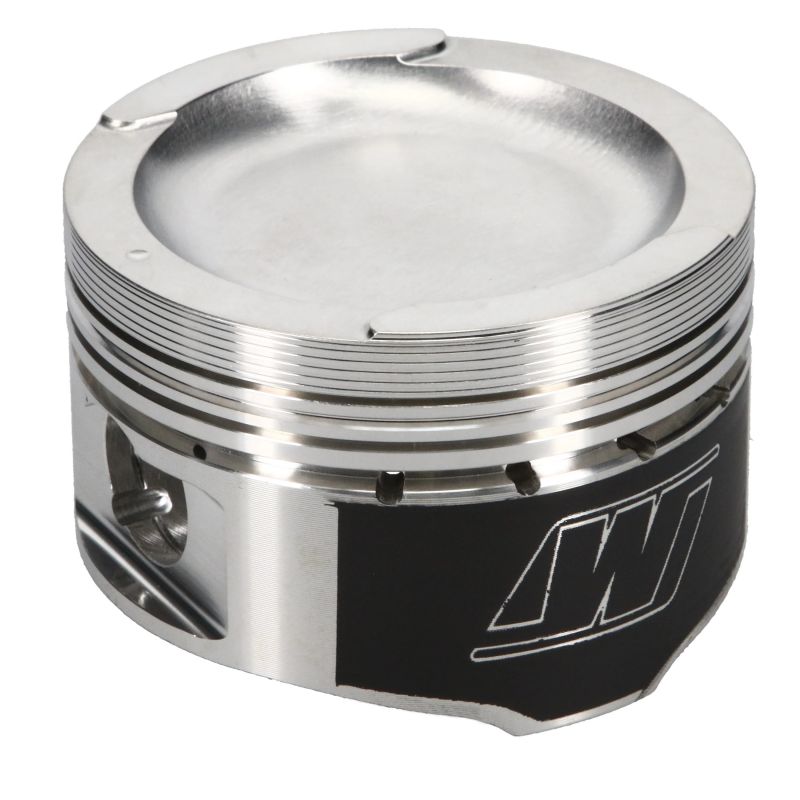

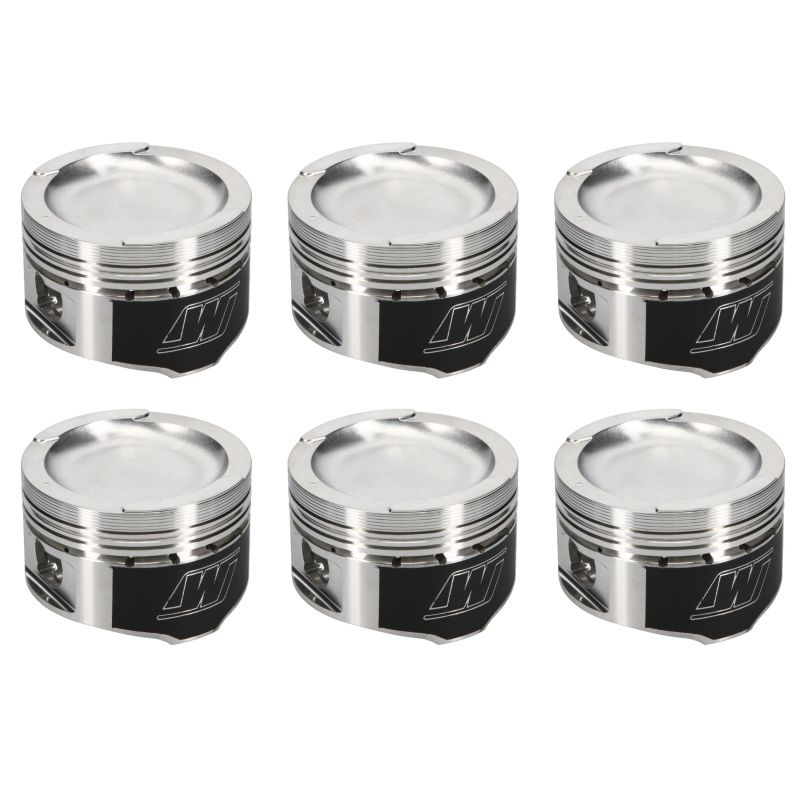

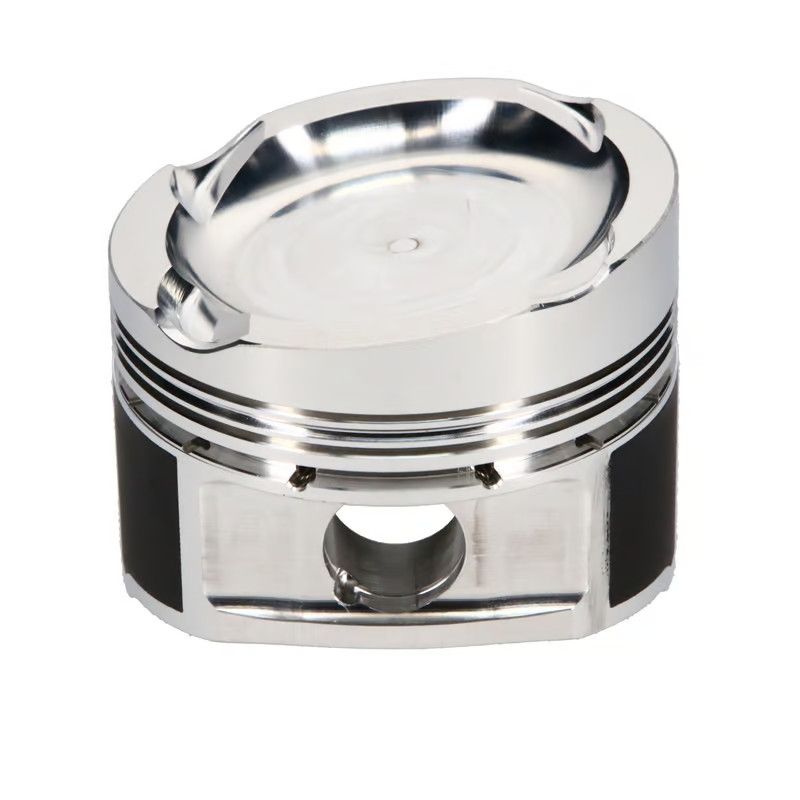

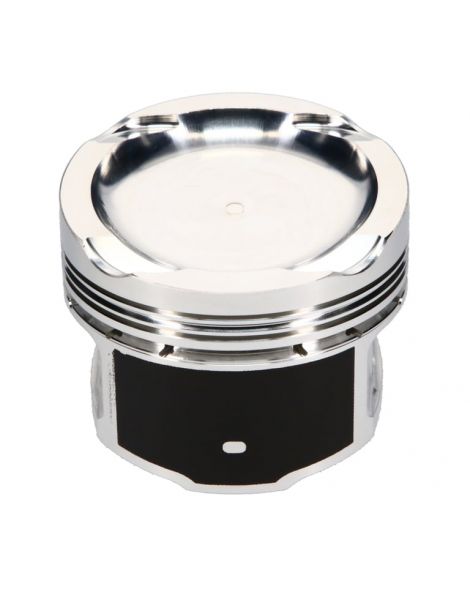

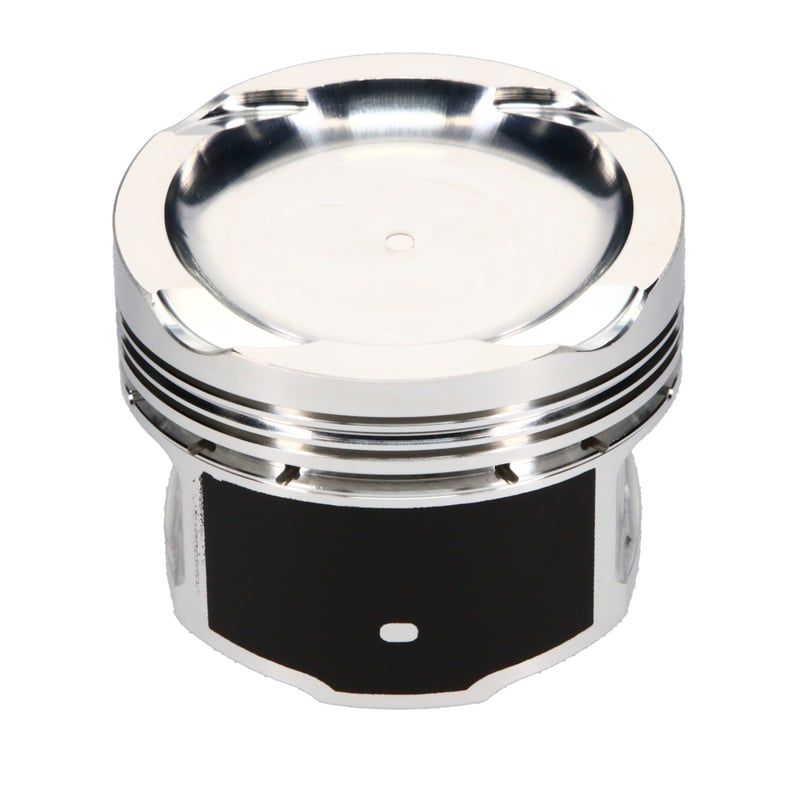

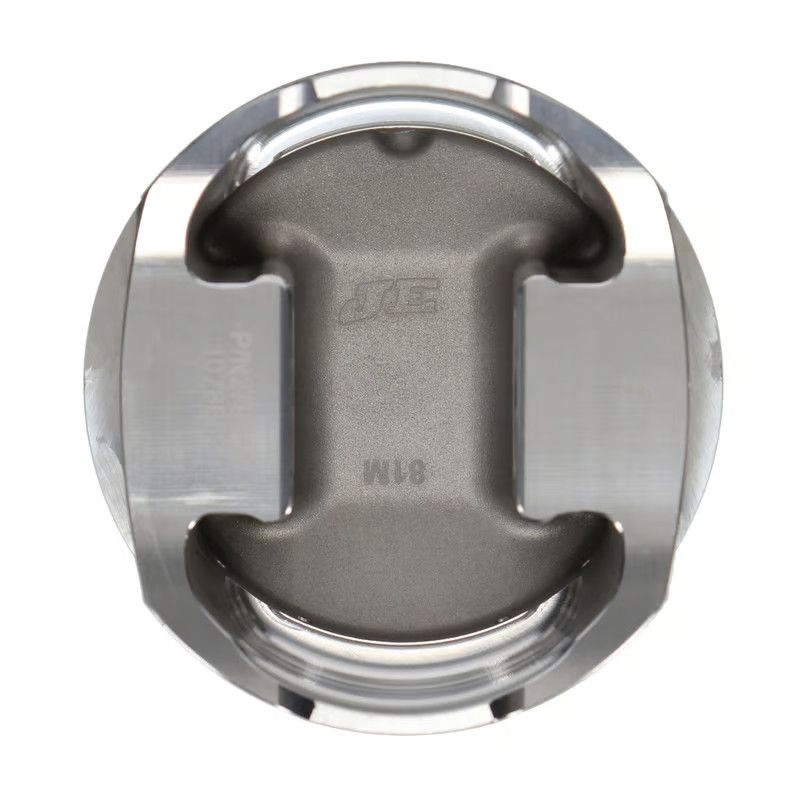

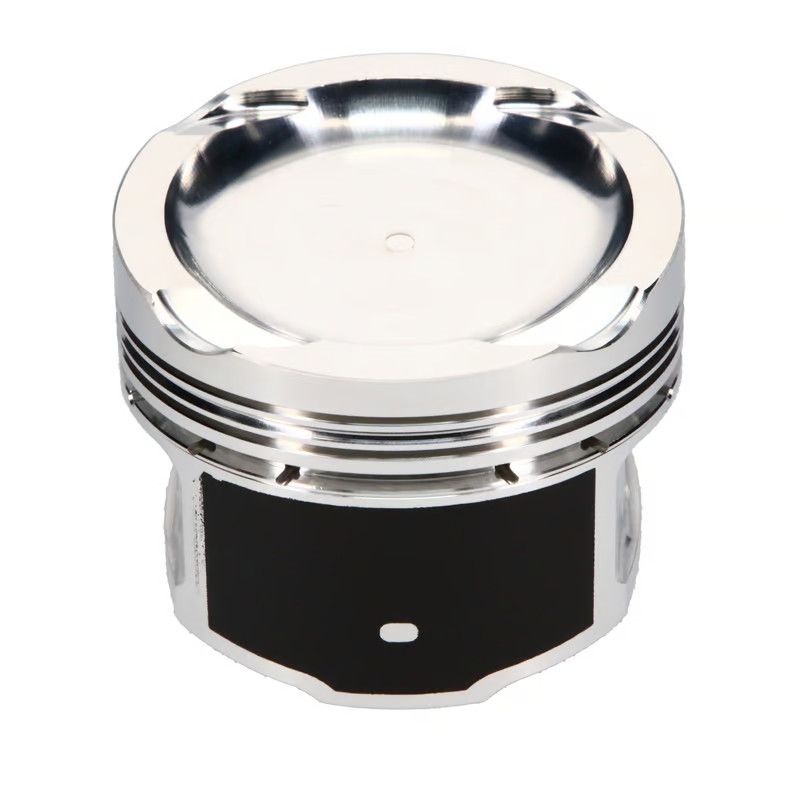

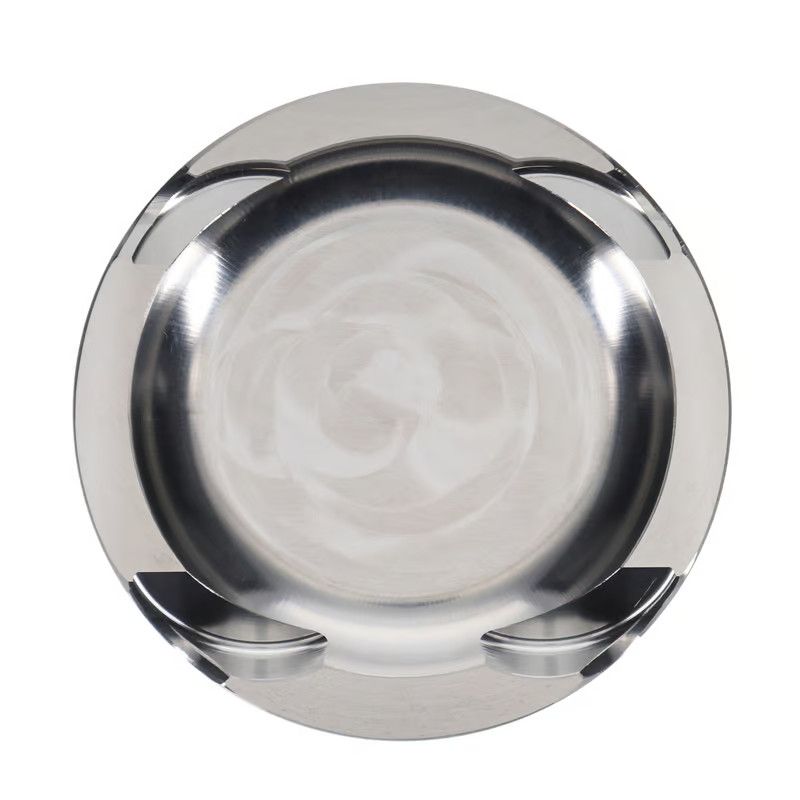

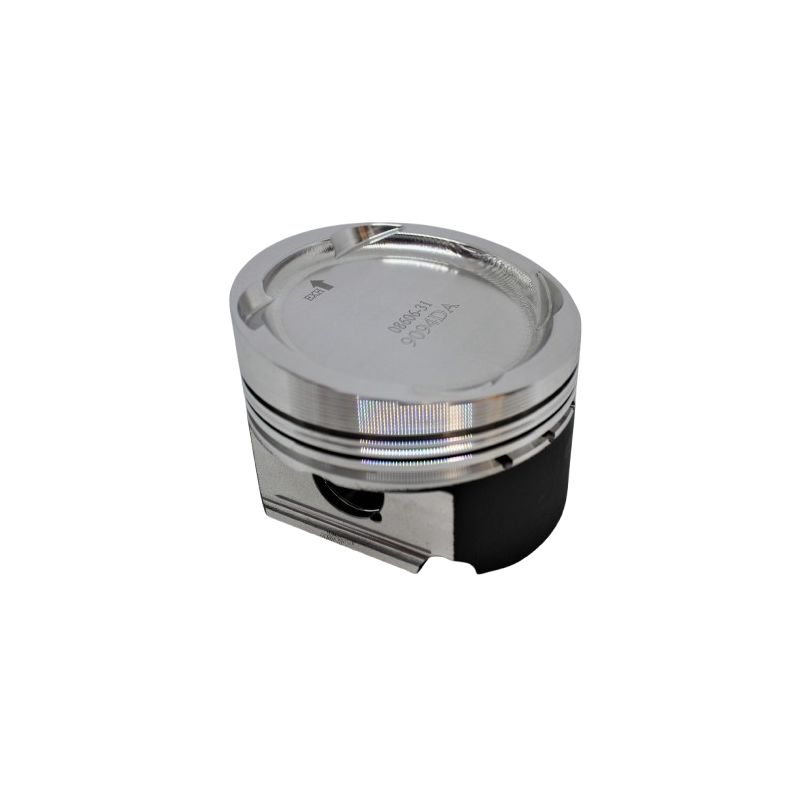

Kit 6 pistons forgés JE PISTONS / WISECO / WOSSNER pour moteur VAG R32 BHE BFH BML BUB CBRA :
Caractéristiques des pistons forgés proposés par NSB Concept pour VR6 3.2 L 24 V R32 :
| Référence (Cliquez) | Alésage OEM 84,00 mm | RV OEM 11,3 :1 | Axe OEM 20 mm | Hauteur Axe OEM 34,5 mm | Gamme | Traitement | Aluminium | Forging | Dôme | Poids | Segments |
|---|---|---|---|---|---|---|---|---|---|---|---|
| WKE204M84 | 84.00 | 8:1 | 20.00 | 34.50 | Wiseco | Jupe | 2618.0 | NC | -30.50 | NC | 8400XX |
| JE-279946 | 84.00 | 8.5:1 | 20.00 | 34.50 | JE Round | NC | 2618.0 | Round | -27.00 | 330 | NC |
| DIA-38200-6 | 84.00 | 9:1 | 20.00 | 34.64 | Diamond | Jupe | 2618.0 | NC | -22.00 | NC | 9513307 |
| DIA-38200-6-H | 84.00 | 9:1 | 20.00 | 34.64 | Diamond HD | Jupe | 2618.0 | NC | -22.00 | NC | 9513307 |
| WKE205M84 | 84.00 | 9:1 | 20.00 | 34.50 | Wiseco | Jupe | NC | NC | -20.50 | NC | 8400XX |

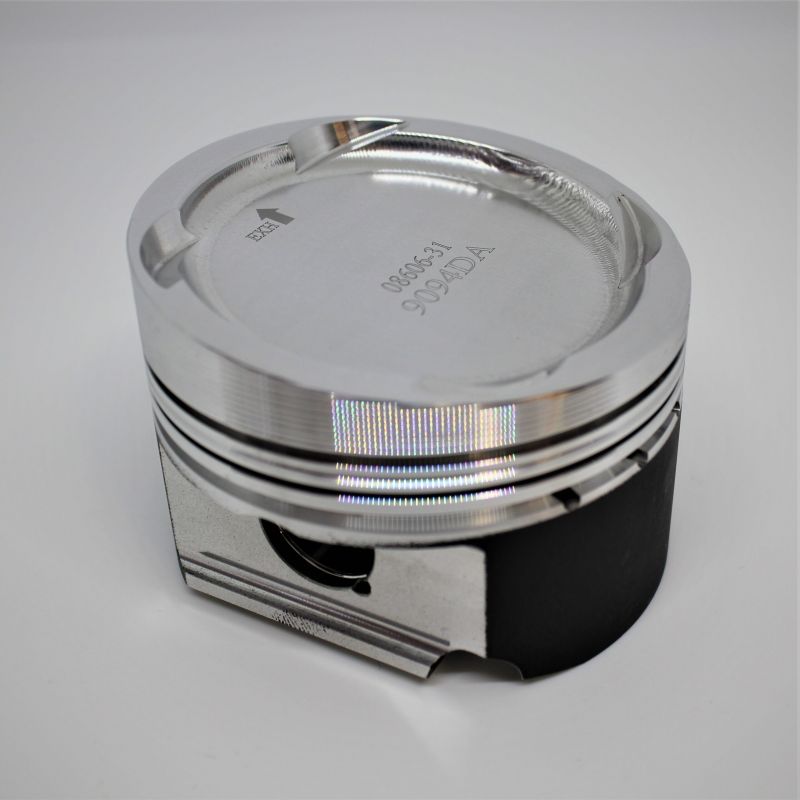

| K9094DA | 84.00 | 9:1 | 20.00 | 29.50 | Wossner | NC | NC | Round | -19.70 | NC | 840XPY |
| DIA-38203-6 | 84.00 | 11.2:1 | 20.00 | 34.64 | Diamond | Jupe | 2618.0 | NC | -7.00 | NC | 9513307 |
| DIA-38203-6-H | 84.00 | 11.2:1 | 20.00 | 34.64 | Diamond HD | Jupe | 2618.0 | NC | -7.00 | NC | 9513307 |
| JE-279949 | 84.00 | 11.5:1 | 20.00 | 34.50 | JE Round | NC | 2618.0 | Round | -6.80 | 342 | NC |
| WKE204M8425 | 84.25 | 8:1 | 20.00 | 34.50 | Wiseco | Jupe | NC | NC | -30.50 | NC | 8425XX |
| WKE205M8425 | 84.25 | 9:1 | 20.00 | 34.50 | Wiseco | Jupe | NC | NC | -20.50 | NC | 8425XX |
| WKE204M845 | 84.50 | 8:1 | 20.00 | 34.50 | Wiseco | Jupe | 2618.0 | NC | -30.50 | NC | 8450XX |
| JE-279947 | 84.50 | 8.5:1 | 20.00 | 34.50 | JE Round | NC | 2618.0 | Round | -27.80 | 334 | NC |
| WKE205M845 | 84.50 | 9:1 | 20.00 | 34.50 | Wiseco | Jupe | NC | NC | -20.50 | NC | 8450XX |
| DIA-38201-6 | 84.50 | 9.1:1 | 20.00 | 34.64 | Diamond | Jupe | 2618.0 | NC | -22.00 | NC | 9513327 |
| DIA-38201-6-H | 84.50 | 9.1:1 | 20.00 | 34.64 | Diamond HD | Jupe | 2618.0 | NC | -22.00 | NC | 9513327 |
| K9094D050 | 84.50 | 9.1:1 | 20.00 | 29.50 | Wossner | NC | NC | Round | -19.70 | NC | 845XPY |
| DIA-38204-6 | 84.50 | 11.4:1 | 20.00 | 34.64 | Diamond | Jupe | 2618.0 | NC | -7.00 | NC | 9513327 |
| DIA-38204-6-H | 84.50 | 11.4:1 | 20.00 | 34.64 | Diamond HD | Jupe | 2618.0 | NC | -7.00 | NC | 9513327 |
| JE-279950 | 84.50 | 11.5:1 | 20.00 | 34.50 | JE Round | NC | 2618.0 | Round | -7.40 | 348 | NC |
| WKE204M85 | 85.00 | 8:1 | 20.00 | 34.50 | Wiseco | Jupe | NC | NC | -30.50 | NC | 8500XX |
| JE-279948 | 85.00 | 8.5:1 | 20.00 | 34.50 | JE Round | NC | 2618.0 | Round | -28.60 | 337 | NC |
| WKE205M85 | 85.00 | 9:1 | 20.00 | 34.50 | Wiseco | Jupe | NC | NC | -20.50 | NC | 8500XX |
| DIA-38202-6 | 85.00 | 9.2:1 | 20.00 | 34.64 | Diamond | Jupe | 2618.0 | NC | -22.00 | NC | 9513347 |
| DIA-38202-6-H | 85.00 | 9.2:1 | 20.00 | 34.64 | Diamond HD | Jupe | 2618.0 | NC | -22.00 | NC | 9513347 |
| K9094D100 | 85.00 | 9.2:1 | 20.00 | 29.50 | Wossner | NC | NC | Round | -19.70 | NC | 850XPY |
| DIA-38205-6 | 85.00 | 11.5:1 | 20.00 | 34.64 | Diamond | Jupe | 2618.0 | NC | -7.00 | NC | 9513347 |
| DIA-38205-6-H | 85.00 | 11.5:1 | 20.00 | 34.64 | Diamond HD | Jupe | 2618.0 | NC | -7.00 | NC | 9513347 |
| JE-279951 | 85.00 | 11.5:1 | 20.00 | 34.50 | JE Round | NC | 2618.0 | Round | -7.90 | 354 | NC |
Compatibilités :
Véhicules d’origine équipés du moteur VR6 3.2 L 24 V :
| Marque | Modèle | Code moteur | Puissance | Années |
|---|---|---|---|---|
| Volkswagen | Golf IV R32 | BFH | 241 ch | 2002 – 2004 |
| Volkswagen | Golf V R32 | BUB | 250 ch | 2005 – 2009 |
| Audi | TT 8N 3.2 V6 | BHE | 250 ch | 2003 – 2006 |
| Audi | A3 8P 3.2 V6 | BDB | 250 ch | 2003 – 2010 |
